Grohe 06654000 Atrio Flow Control Handle

SUMMARY

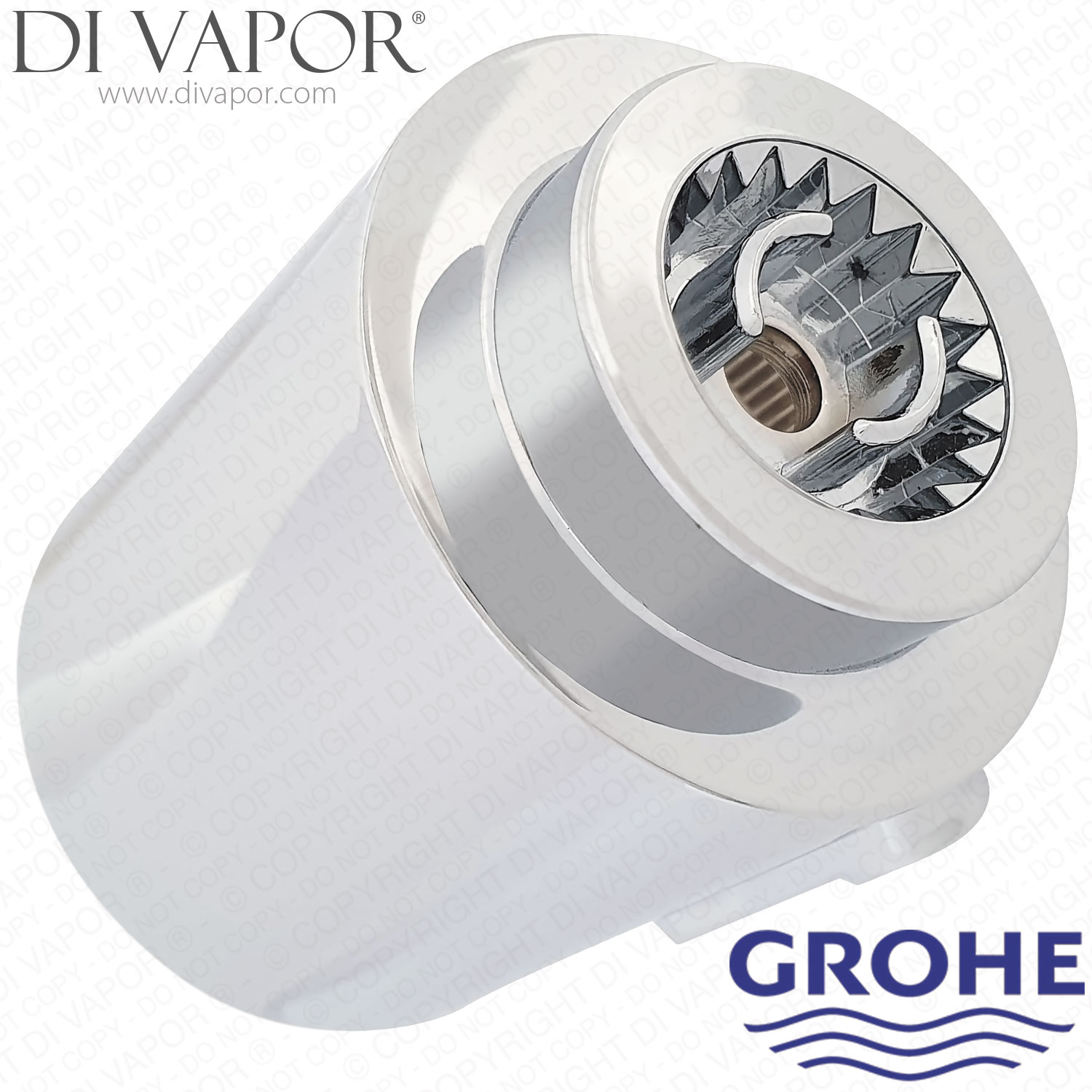

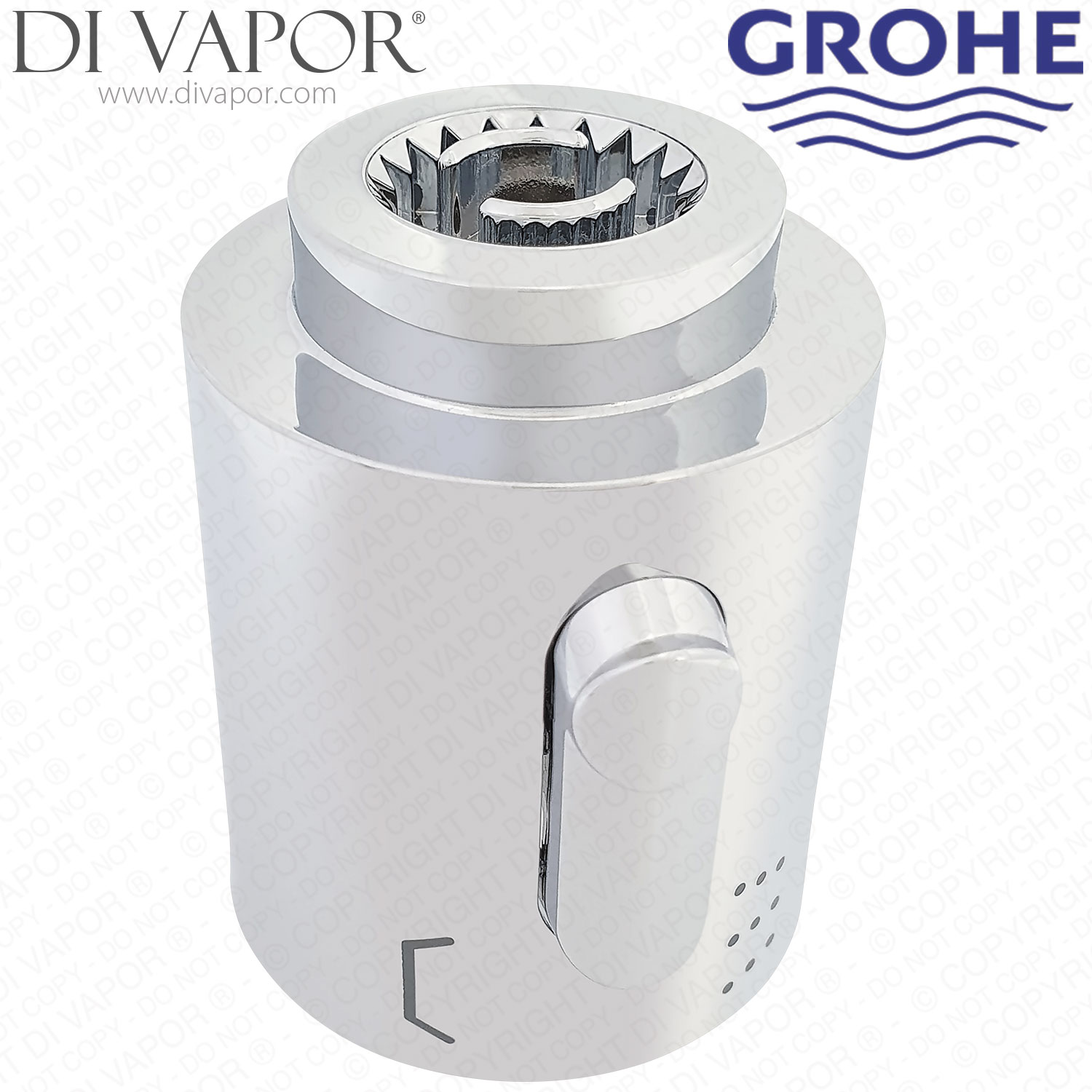

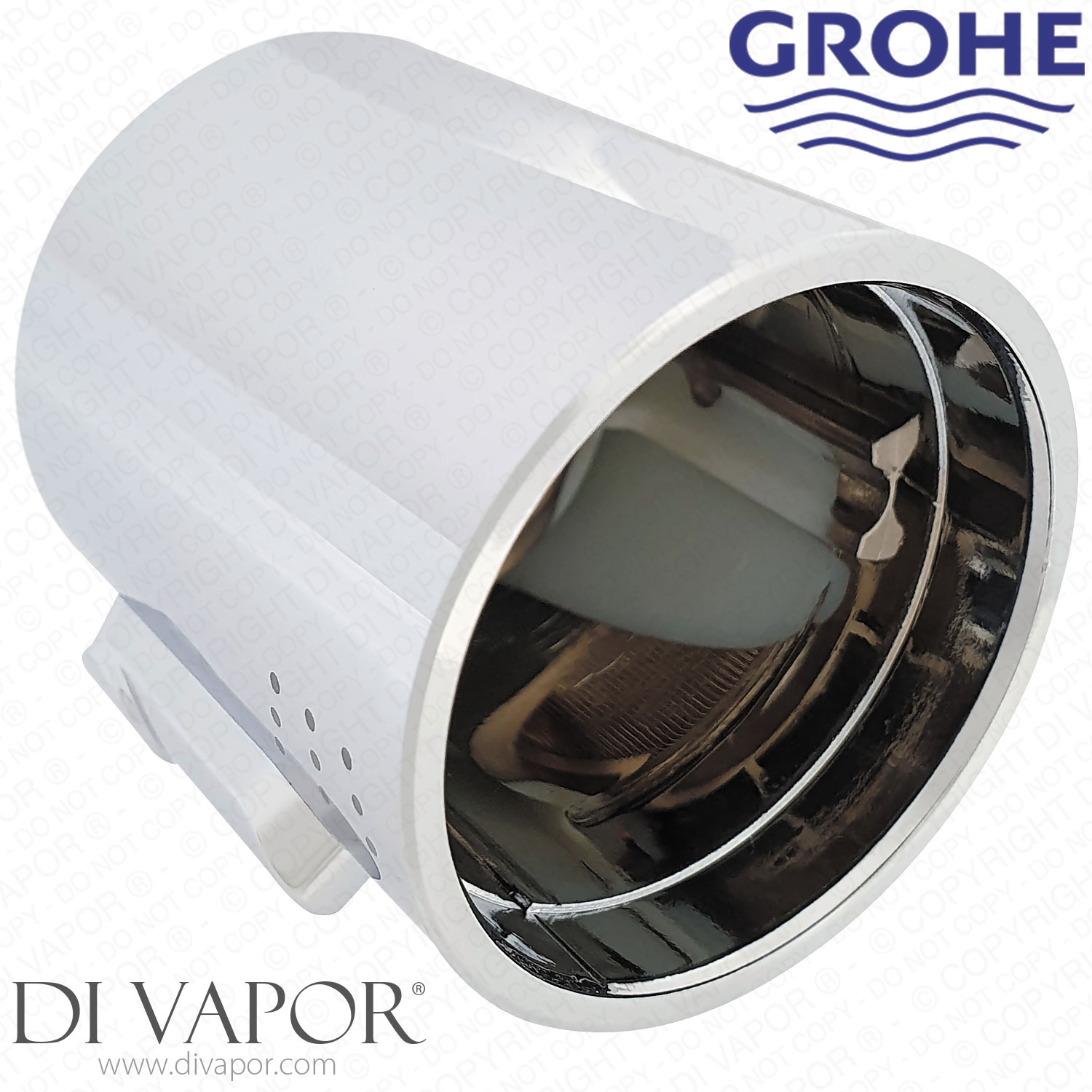

Grohe 06654000 Atrio Flow Control Handle for Bath and Shower Valves

Grohe 06654000 is a chrome Atrio flow-control handle used to operate the shut-off and water-flow control on specific Grohe Atrio thermostatic bath and shower installations. It is an external operating handle and should not be confused with the internal AquaDimmer or thermostatic cartridge fitted behind the control.

The internal flow-control arrangement varies between Atrio generations. GROHE 19135 / 19135000 and 19136 / 19136000 installations use the 47262000 AquaDimmer flow cartridge, while later 19395000 and 19399000 Rapido T installations use the 47364000 AquaDimmer with associated adapter components. These internal cartridges must not be treated as interchangeable solely because the same 06654000 handle is used on the control assembly.

Technical Details

- - Manufacturer part code: 06654000

- - Part type: Atrio shut-off / flow-control handle

- - Finish: chrome

- - Function: operates the external shut-off and water-flow control on the confirmed Atrio assemblies

- - GTIN / EAN: 4005176266010

Confirmed Compatible Models

- - GROHE 19135 | 19135000 Atrio Ypsilon Shower

- - GROHE 19136 | 19136000 Atrio Jota Thermostat Bath Shower Mixer

- - GROHE 19141000 Atrio 4-Hole Bath Combination Trim Set

- - GROHE 19142000 Atrio 4-Hole Bath/Shower Combination

- - GROHE 19395000 Atrio Thermostat with Integrated 2-Way Diverter

- - GROHE 19399000 Atrio Thermostat with Integrated 2-Way Diverter

Before You Order

Check the existing handle code and exact Atrio model before ordering. Other visually similar Atrio controls use different handle codes, so the range name or appearance alone is not sufficient to identify 06654000. If the handle itself is intact but water continues to drip from the shower head or spout after shut-off, check the appropriate internal flow or AquaDimmer cartridge for the exact valve model.

Related Spares You May Need

- - GROHE 47262000 AquaDimmer Flow Cartridge On/Off: used on the 19135 / 19135000 and 19136 / 19136000 installations

- - GROHE Atrio 06676000 Temperature Control Handle 08.945 ABS

- - GROHE 08943000 Atrio Snap Insert Spline Adapter White and Grey

- - GROHE 47220000 3/4 Inch Thermostatic Cartridge with Non-Rising Spindle

- - GROHE Atrio 47289000 Temperature Control Handle

- - GROHE 47300000 Stop Ring and Adapter for Atrio

- - GROHE 47324000 Flow Control Lever Handle: a model-specific control handle from related Atrio assemblies and not a substitute for 06654000

- - GROHE 47477000 Non-Return Valve

- - GROHE 47658000 Thermostatic Cartridge 3/4 Inch Reverse Supplies Non-Rising Spindle

- - GROHE 47364000 AquaDimmer Flow Cartridge: used on the later 19395000 and 19399000 installations

- - GROHE 12701000 Adapter for AquaDimmer 47364000 Cartridges

- - GROHE 49347000 Cartridge and Adapter for AquaDimmer Valves

- - GROHE Atrio 47326000 Cover Plate with Shrouds

- - GROHE 0305600M O-Ring for AquaDimmer Cartridge

- - GROHE 47483000 TurboStat Thermoelement 3/4 Inch Thermostatic Cartridge
