Grohe 27.5mm Rapido T Extension Kit - 47780000

SUMMARY

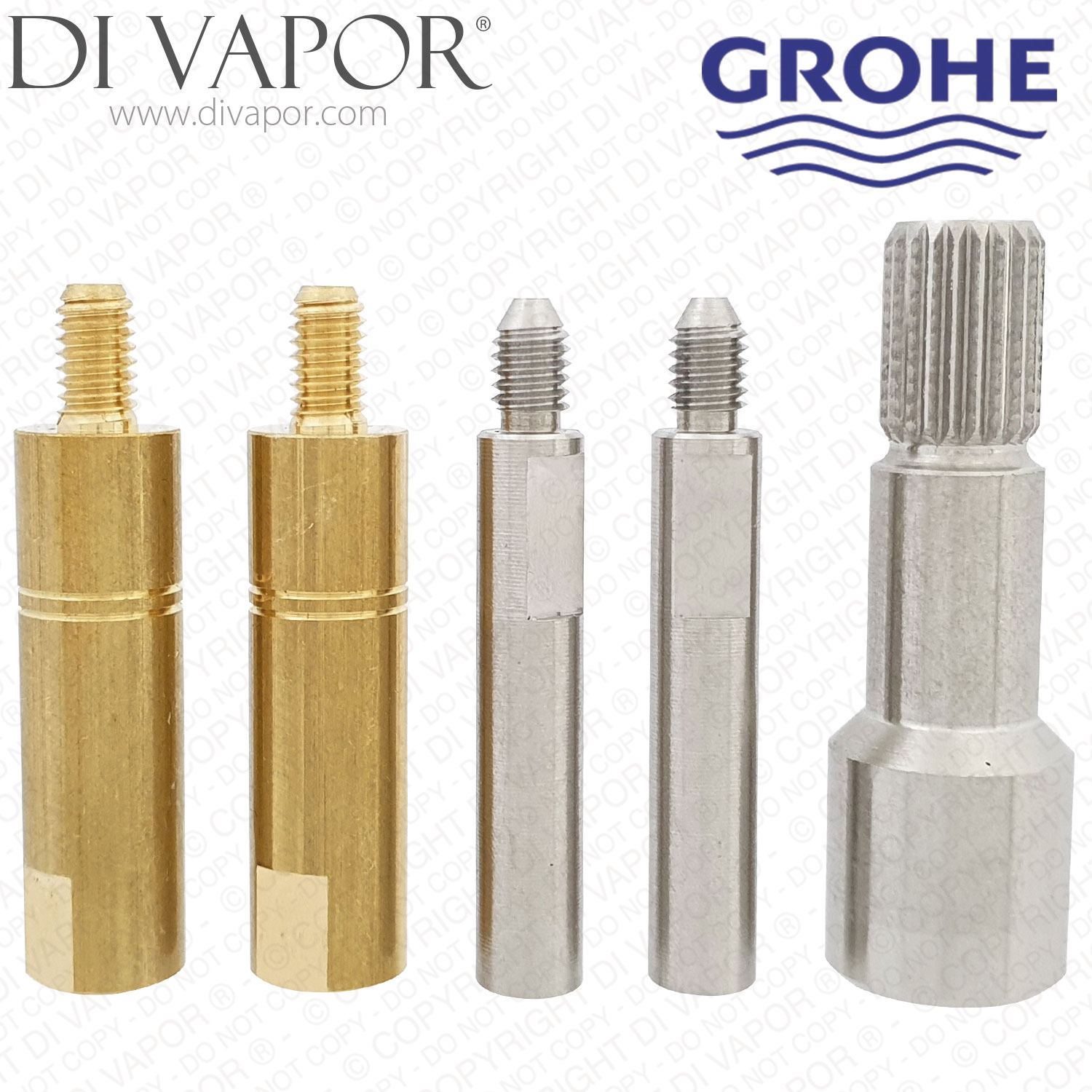

GROHE 47780000 Rapido T 27.5mm Extension Kit for Concealed Central and Shower Thermostats

The GROHE 47780000 is a 27.5 mm Rapido T extension kit for concealed central thermostats and shower thermostats with a shut-off valve. It extends the control assembly where the concealed installation sits too deeply behind the finished wall surface, allowing the appropriate thermostat trim and controls to be fitted at the required depth.

This extension set is specified for the Rapido T concealed installation bodies 35 500 000 and 35 050 000, together with concealed installation references 36 458 000 and 36 459 000. It should not be confused with GROHE 47781000, which is the separate 27.5 mm extension set used for bath thermostats with an Aquadimmer.

Technical Details

- - Manufacturer part code: 47780000

- - Part type: 27.5 mm concealed thermostat extension kit / extension set

- - Extension length: 27.5 mm

- - Finish: chrome

- - Application: concealed central thermostats and shower thermostats with a shut-off valve

- - Concealed body references: 35 500 000 and 35 050 000

- - Additional concealed installation references: 36 458 000 and 36 459 000

- - Bath thermostat and Aquadimmer installations use the separate 47781000 extension set

Confirmed Compatible Models

- - GROHE 35500000 Rapido T Universal Concealed Thermostatic Valve Mixer

- - GROHE 35050000 Rapido T Thermostatic Mixer for Concealed Installation

- - GROHE 19352000 Grohtherm 2000 Thermostat for Bath and/or Shower

- - GROHE 19352001 Grohtherm 2000 Central Thermostatic Mixer

- - GROHE 19354000 Grohtherm 2000 Thermostatic Shower Mixer

- - GROHE 19354001 Grohtherm 2000 Thermostatic Shower Mixer

- - GROHE 19356000 Grohtherm 3000 Central Thermostatic Mixer

- - GROHE 19359000 Grohtherm 3000 Thermostatic Shower Mixer

- - GROHE 19369000 Veris Thermostatic Shower Mixer

- - GROHE 19369LS0 Veris Thermostatic Shower Mixer

- - GROHE 19380000 Allure Thermostatic Shower Mixer

- - GROHE 19392000 Atrio Central Thermostatic Mixer

- - GROHE 19394000 Atrio Thermostatic Shower Mixer

- - GROHE 19396000 Atrio Thermostatic Shower Valve Trim

- - GROHE 19398000 Atrio Thermostatic Shower Mixer

- - GROHE 19402000 Tenso Thermostatic Shower Mixer

- - GROHE 19412000 Chiara Thermostatic Shower Mixer

- - GROHE 19416000 Grohtherm 2000 Special Thermostatic Shower Mixer

- - GROHE 19443000 Ondus Thermostatic Shower Mixer

- - GROHE 19443000 Ondus Thermostatic Shower Mixer GEN1 2007 to 2014

- - GROHE 19443BS0 Ondus Thermostatic Shower Mixer

- - GROHE 19443LS0 Ondus Thermostatic Shower Mixer

- - GROHE 19467000 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 19467LS0 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 19469000 Grohtherm 3000 Cosmopolitan Central Thermostatic Mixer

- - GROHE 19568000 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 19568LS0 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 19568KS0 Grohtherm 3000 Cosmopolitan Thermostatic Shower Mixer

- - GROHE 19791000 Allure Brilliant Thermostatic Shower Mixer

- - GROHE 19887000 Allure Brilliant Central Thermostatic Mixer

- - GROHE 19934000 Grandera Thermostatic Shower Mixer

- - GROHE 19934IG0 Grandera Thermostatic Shower Mixer

- - GROHE 19941000 Grandera Central Thermostatic Trim

- - GROHE 19941IG0 Grandera Central Thermostat

- - GROHE 19959000 Grohtherm Cube Thermostatic Shower Mixer

- - GROHE 19961000 Grohtherm Cube Central Thermostatic Mixer

- - GROHE 19984000 Grohtherm 1000 Thermostatic Shower Mixer

- - GROHE 29094000 Thermostatic Shower Trim

- - GROHE 29096000 Grohtherm Special Thermostatic Shower Valve Trim

- - GROHE 34282000 Grohtherm 2000 Comfort Shower Set

- - GROHE 34575001 Grohtherm 1000 Concealed Shower Set

Before Ordering Check

Check the existing concealed body and the control arrangement before ordering. The 47780000 extension kit is intended for central thermostats and shower thermostats with a shut-off valve. Installations using a bath thermostat with an Aquadimmer require the separate GROHE 47781000 extension set.

Related Spares You May Need

- - GROHE 47483000 TurboStat 3/4 Inch Thermostatic Cartridge

- - GROHE 47950000 Thermostatic Cartridge

- - GROHE 47765000 Retaining Ring

- - GROHE 47753000 Non-Return Valve

- - GROHE 19332000 34mm Hex Socket Box Spanner

- - GROHE 29007000 Safety Combination for Rapido T

- - GROHE 47186000 3/4 Inch Reverse TurboStat Thermostatic Cartridge for reversed hot and cold supplies
