Grohe 12701000 Adapter for Aquadimmer 47364000 Cartridges

SUMMARY

GROHE 12701000 AquaDimmer Waterway Adapter for 47364000 Shower Valve Cartridges

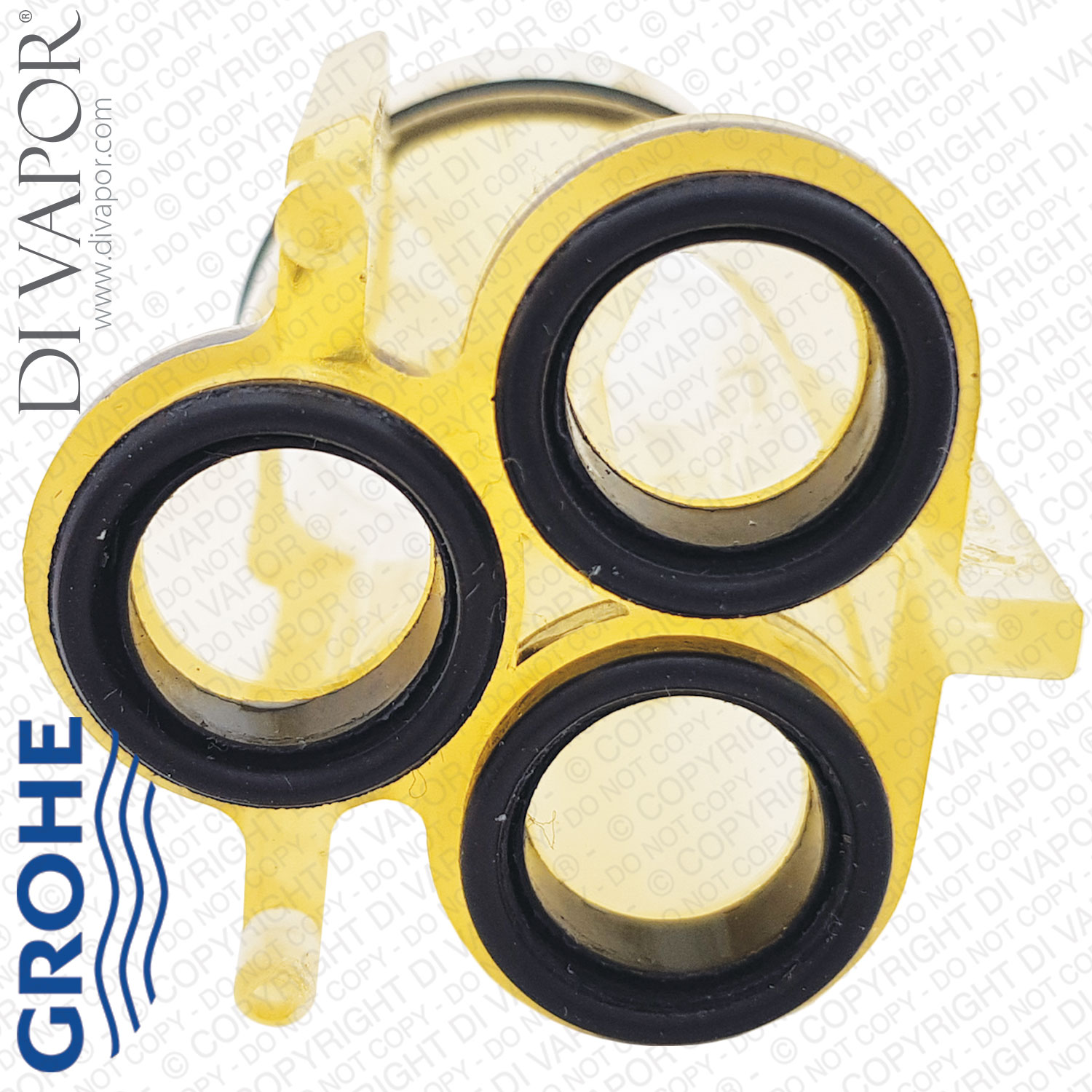

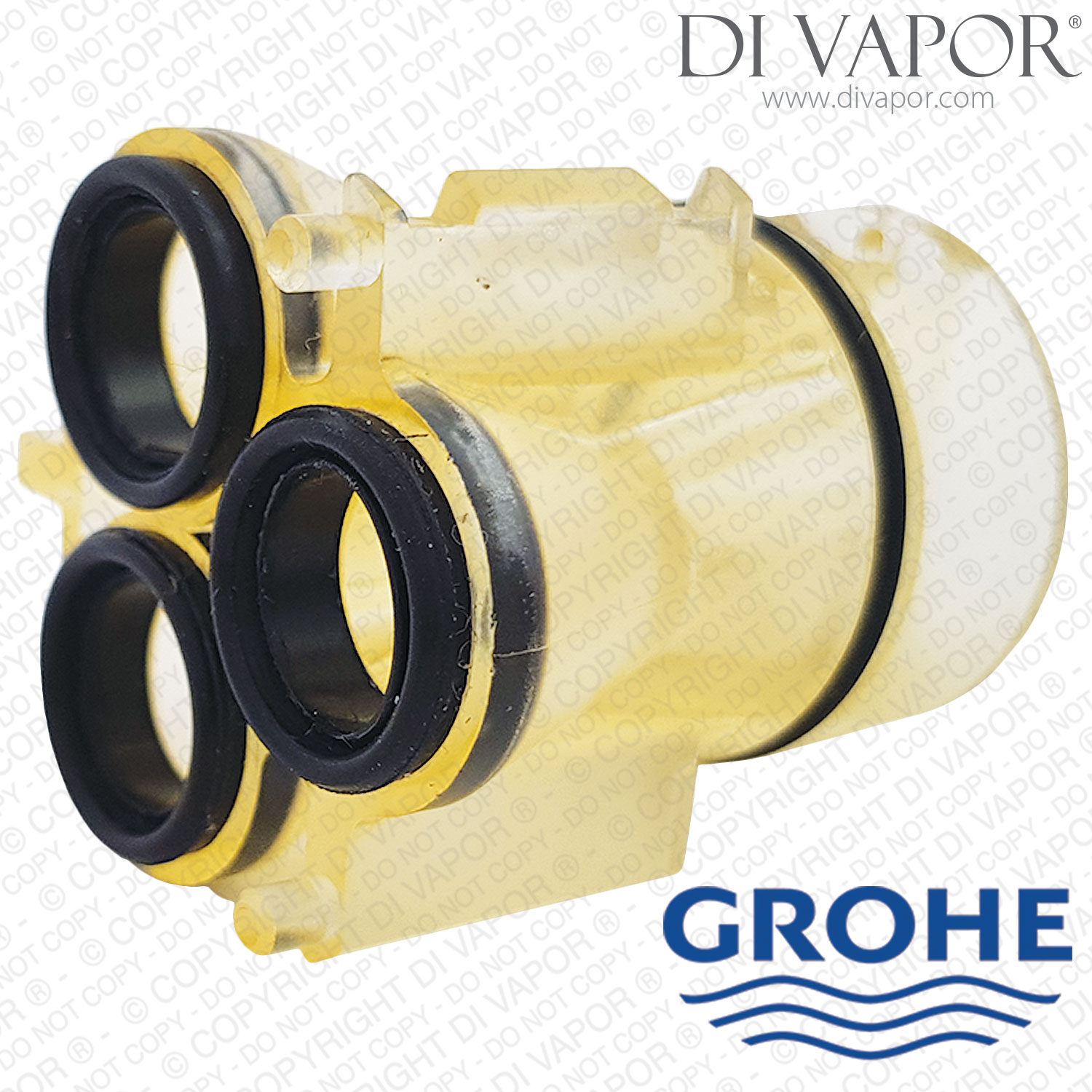

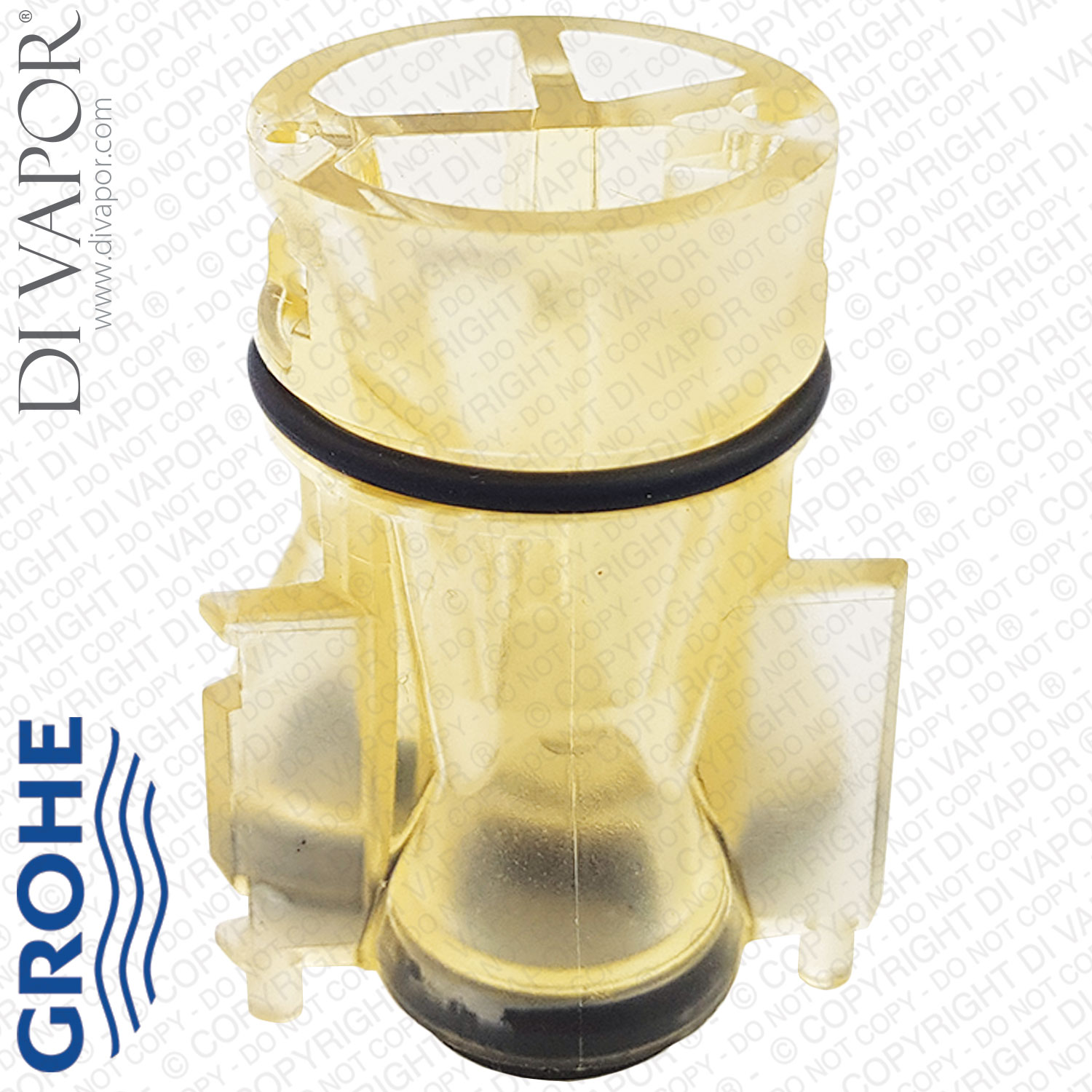

GROHE 12701000 is the waterway adapter used with the 47364000 AquaDimmer cartridge in selected concealed thermostatic shower and bath/shower valves. Its yellow, rocket-shaped body has three ports and three lower O-ring seals, forming the sealed waterway connection within the valve assembly.

This is the adapter, not the complete AquaDimmer cartridge or the thermostatic temperature-control element. The associated AquaDimmer cartridge provides water shut-off, flow regulation and switching between outlets, while the adapter forms part of its waterway arrangement.

Technical Details

- - Brand: Grohe

- - Part code: 12701000

- - Part type: waterway adapter

- - Adapter size designation: 3/4 inch x 1/2 inch

- - Waterway configuration: three ports

- - Sealing arrangement: three O-rings at the lower end

- - Body colour: yellow

- - Associated flow and diverter cartridge: 47364000

Confirmed Compatible Models

Match the exact model code and the existing AquaDimmer arrangement before ordering. A shared range name or concealed valve body does not establish that every version uses the same adapter.

- - GROHE 29095000 Grohtherm Special Thermostatic Bath/Shower Mixer Trim

- - GROHE 19948000 Grandera Thermostatic Bath Mixer with 2-Way Diverter

- - GROHE 19948IG0 Grandera Thermostatic Bath Mixer with 2-Way Diverter

- - GROHE 19937000 Grandera Thermostatic Shower Mixer with Integrated 2-Way Diverter

- - GROHE 19986000 Grohtherm 1000 Thermostatic Bath Mixer with Integrated 2-Way Diverter

- - GROHE 19985000 Grohtherm 1000 Thermostatic Shower Mixer with Integrated 2-Way Diverter

- - GROHE 19355001 Grohtherm 2000 Thermostat with Integrated 2-Way Diverter

- - GROHE 19962000 Grohtherm 3000 Cosmopolitan Thermostatic Shower Valve with 2-Way Diverter

- - GROHE 19963000 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19567000 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19958000 Grohtherm Cube Thermostat with Integrated 2-Way Diverter

- - GROHE 19364000 Veris Thermostat with Integrated 2-Way Diverter

- - GROHE 19792000 Allure Brilliant Thermostat with Integrated 2-Way Diverter

- - GROHE 19446000 Allure Thermostat with Integrated 2-Way Diverter

- - GROHE 19399000 Atrio Thermostat with Integrated 2-Way Diverter

- - GROHE 19395000 Atrio Thermostat with Integrated 2-Way Diverter

- - GROHE 27618000 Grohtherm F Thermostatic Trim with Integrated 2-Way Diverter

- - GROHE 19403000 Tenso Thermostat with Integrated 2-Way Diverter

- - GROHE 19442KS0 Ondus Thermostat with Integrated 2-Way Diverter

- - GROHE 34582000 Grohtherm 1000 Perfect Shower Set with Euphoria Cosmopolitan 180

- - GROHE 19468000 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468A00 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468AL0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468BE0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468DA0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468DC0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468DL0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468EN0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468GL0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468GN0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

- - GROHE 19468LS0 Grohtherm 3000 Cosmopolitan Thermostat with Integrated 2-Way Diverter

Before Ordering

Check the original adapter, its port layout and the exact valve or trim code. The stated adapter size is not an overall length and width. Do not select a substitute from these figures, the yellow colour or the rocket shape alone. The separately listed 12701001 attachment assembly should not be assumed to be an interchangeable replacement for 12701000.

Related Spares You May Need

These are separately supplied items, not additional contents of the 12701000 adapter. Select only the parts required for the fault and the exact valve arrangement; the model-specific controls below are not interchangeable across every model listed above.

- - TACSIL 3g WRAS Approved Silicone Grease, for a light coating on O-rings during fitting

- - GROHE 47483000 TurboStat 3/4 Inch Thermostatic Cartridge, a separate temperature-control component, to be selected for the exact valve

- - GROHE 47364000 AquaDimmer Flow and Diverter Cartridge, the cartridge used with this adapter

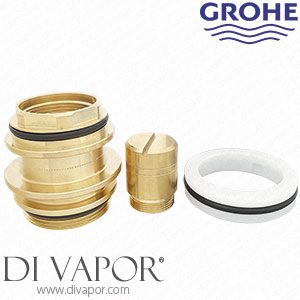

- - GROHE 12701001X AquaDimmer Rocket Waterway Attachments, rocket waterway not included

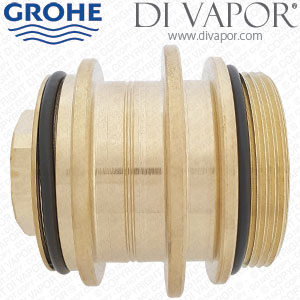

- - GROHE 12701001R AquaDimmer Rocket Waterway Metal Attachment, metal attachment only

- - GROHE 12701001 AquaDimmer Rocket Waterway Cartridge Attachments, a separate attachment assembly; match the existing assembly before ordering

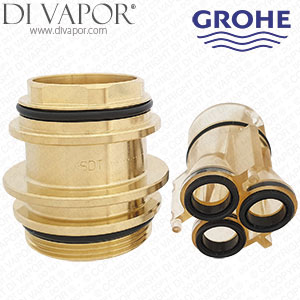

- - GROHE 49347000 AquaDimmer Cartridge and Adapter Kit, contains 47364000 and 12701000, for repairs requiring both components rather than the adapter alone

- - GROHE 19332000 34mm Hex Socket Box Spanner, an optional service tool for the relevant valve assembly

Model-Specific Service Parts

- - GROHE 10089000 Stop Ring, for selected control arrangements, including 19468000 and 19567000

- - GROHE 0305600M AquaDimmer Cartridge O-Ring, for the cartridge sealing position; do not assume it matches the adapter's three lower O-rings

- - GROHE 47765000 Retaining Ring, for relevant valve assemblies, including 19937000 and 34582000

- - GROHE 47186000 Reverse TurboStat 3/4 Inch Thermostatic Cartridge, only for the appropriate valve with reversed hot and cold supplies

Model-Specific Handles and Trim

- - GROHE 47920000 Handle, for Grohtherm 2000 19355001

- - GROHE 47921000 Handle, for Grohtherm 2000 19355001

- - GROHE 4780600 Flow Control Handle Kit, for 19468000, 19567000, 19962000 and 19963000

- - GROHE 47839000 Allure Handle, for Allure Brilliant 19792000

- - GROHE 47324000 Flow Control Lever Handle, for Atrio 19399000

- - GROHE 08943000 Atrio Snap Insert Spline Adapter, for Atrio 19395000 and 19399000

- - GROHE 06676000 Atrio Temperature Control Handle 08.945 ABS, for Atrio 19395000 and 19399000

- - GROHE 47289000 Atrio Temperature Control Handle, for the corresponding Atrio 19395000 handle arrangement

- - GROHE 06654000 Atrio Flow Control Handle, for the corresponding Atrio 19395000 handle arrangement

- - GROHE 47326000 Atrio Cover Plate with Shrouds, for Atrio 19395000

- - GROHE 0635600M Allure Indice Pair, for Allure 19446000

Fitting and Fault Checks

Isolate the hot and cold water supplies and release pressure before dismantling the valve. Inspect the waterway and seal seating areas for damage or debris, and avoid twisting or pinching the O-rings during fitting. Apply only a light, even coating of suitable silicone grease to the seals, then check for leaks and correct outlet operation after reassembly.

Water dripping from the shower head or bath spout when the control is turned off can indicate a fault in the AquaDimmer cartridge's shut-off mechanism. Do not assume that changing the adapter alone will resolve this symptom; identify whether the fault is in the cartridge, waterway or seals before ordering.

For help identifying the correct part, send clear photographs of the original adapter and valve, together with the model code, to Di Vapor's part identification service.
