Grohe 47839000 Handle for Allure Valve

SUMMARY

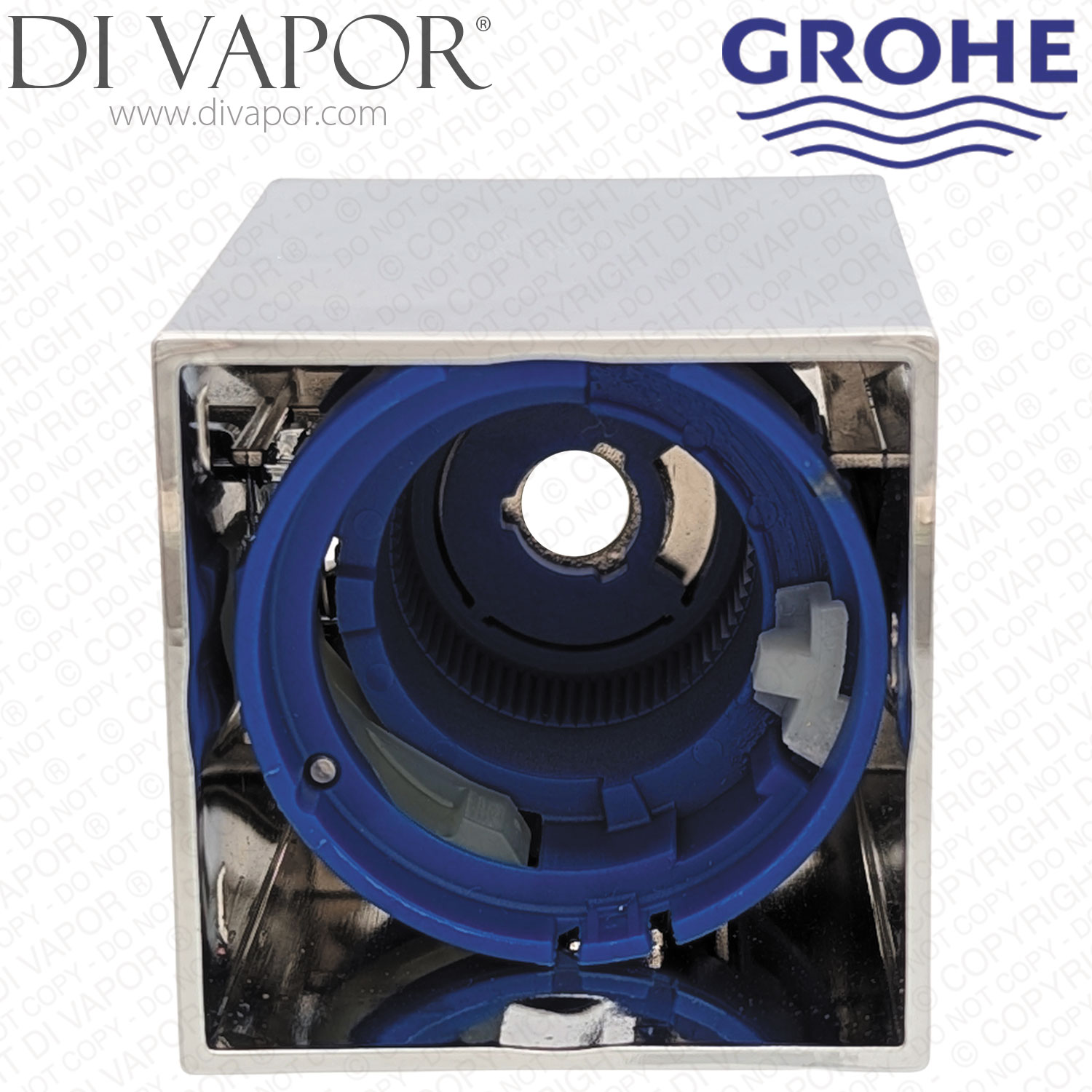

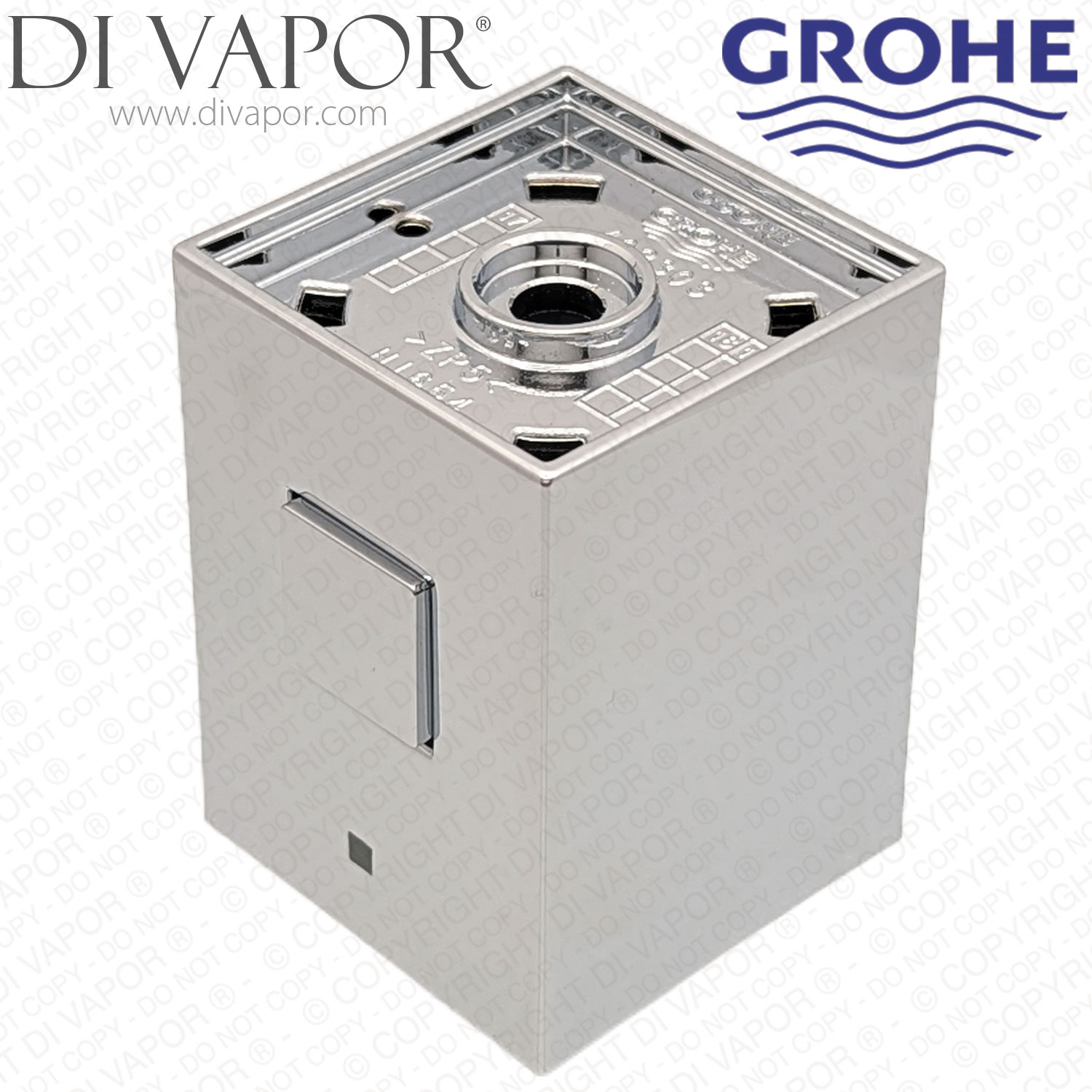

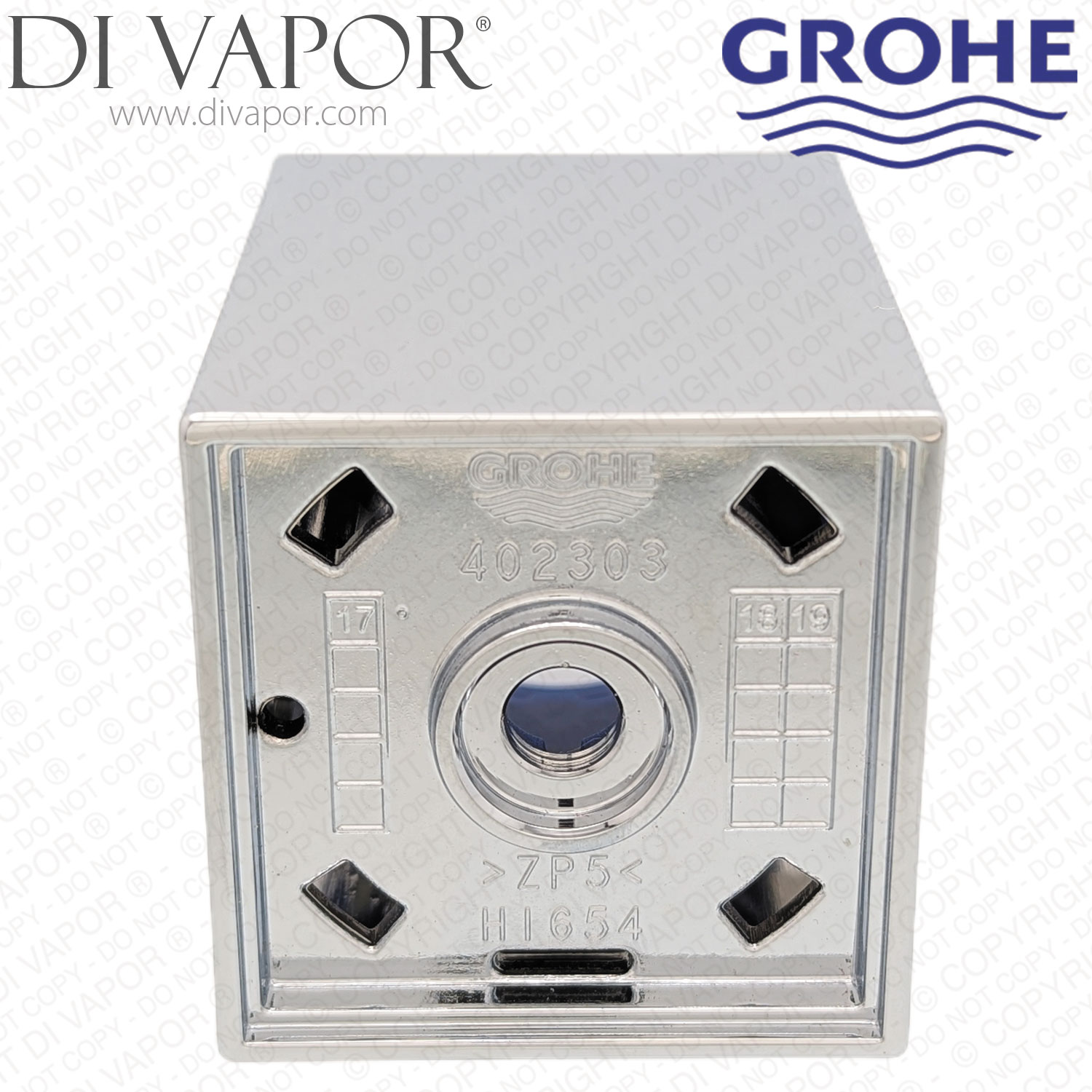

GROHE 47839000 Allure Brilliant Thermostatic Shower Valve Temperature Control Handle Chrome

The GROHE 47839000 is a chrome temperature-control handle for the Allure Brilliant thermostatic shower and central mixer controls listed below. It is the external handle used to select the mixed-water temperature.

This component operates the temperature adjustment, rather than the separate water shut-off or diverter mechanism. It is not the thermostatic cartridge or a complete concealed shower valve.

Technical Details

- - Part number: 47839000

- - Component type: temperature-control handle

- - Finish: chrome

- - Application: external temperature adjustment on the specified concealed thermostatic mixers

Confirmed Models

- - GROHE 19791000 Allure Brilliant Thermostatic Shower Mixer

- - GROHE 19792000 Allure Brilliant Thermostat with Integrated 2-Way Diverter

- - GROHE 19887000 Allure Brilliant Central Thermostatic Mixer

Before Ordering and Fitting

Match the exact finishing-set reference and compare the existing handle and fixing arrangement before ordering. The Allure Brilliant range name alone does not establish fitment. Check whether the cover cap or any fixings also need attention; do not assume separately listed service parts are supplied with the handle.

Follow the temperature-handle fitting and adjustment instructions for the exact valve, then check the outlet temperature after refitting. A damaged handle and a faulty internal thermostatic cartridge require different repairs, so poor temperature regulation should not automatically be treated as a handle fault.

Concealed Valve Context

The handle is selected by the finishing-set model, not by the concealed valve name alone. Internal service components must be matched to the actual valve body.

- - GROHE 35500000 Rapido T Concealed Thermostatic Mixer, concealed-body reference for the specified 19792000 and 19887000 configurations

- - GROHE 35050000 Rapido T Concealed Thermostatic Mixer, concealed-body configuration referenced for 19791000

Related Spares You May Need

These parts serve different functions in the specified finishing sets and concealed bodies. Select only those required for your repair; they are not all needed when changing the temperature handle.

Temperature Handle Cover Cap

- - GROHE 4784000M Cover Cap, separately listed cap for the temperature handle

For GROHE 19791000

- - GROHE 45346000 Half-Turn Flow Cartridge, 1/2 inch headpart with clockwise closing, separate from the temperature-control mechanism

- - GROHE 0392400M O-Rings, pack of 10, associated with the headpart assembly

- - GROHE 12702000 Adapter, discontinued original adapter reference

- - GROHE 12702001 Adapter, replacement reference for the 12702000 adapter

- - NN4-6B9 Fixing Kit for GROHE 19791000, faceplate fixing kit, not a general-purpose handle fixing kit

- - GROHE 19791000 Allure Brilliant Faceplate Assembly, larger external assembly for repairs beyond the individual temperature handle

Extension for GROHE 19791000 and 19887000

- - GROHE 47780000 Rapido T Extension Kit, 27.5mm extension for the specified 19791000 and 19887000 installations, not the extension specified for 19792000

For GROHE 19792000

- - GROHE 47364000 Aquadimmer Flow Cartridge, separate water shut-off and outlet-selection component

- - GROHE 12701000 Aquadimmer Adapter, adapter associated with the 47364000 cartridge arrangement

- - GROHE 49347000 Aquadimmer Cartridge and Adapter Assembly, combined assembly option, rather than an automatic additional purchase alongside the individual cartridge and adapter

- - GROHE 19332000 Hex Socket Box Spanner, 34mm service tool for the specified valve fittings, not necessarily required for a handle-only repair

For the Specified GROHE 35500000 Concealed-Body Arrangement

Check the body reference and supply arrangement before selecting these internal parts. They are separate from the external handle and must not be assumed to suit every Rapido T installation.

- - GROHE 47483000 Thermostatic Cartridge, internal temperature-control component for the specified concealed-body arrangement

- - GROHE 47765000 Retaining Ring, thermostatic-cartridge retaining component

- - GROHE 47753000 Non-Return Valve, concealed-body check-valve component

- - GROHE 29007000 Safety Combination, separate Rapido T safety accessory

- - GROHE 47186000 Reverse Thermostatic Cartridge, option for the specified reversed hot and cold supply arrangement, not the standard cartridge for a normally supplied installation

For help identifying the correct part, contact us with clear photographs of the controls, the removed handle and any visible model or part references.
