Hansgrohe 13471000 Diverter Knob CPL.
Send a photo of your item and we'll help confirm it.
Summary

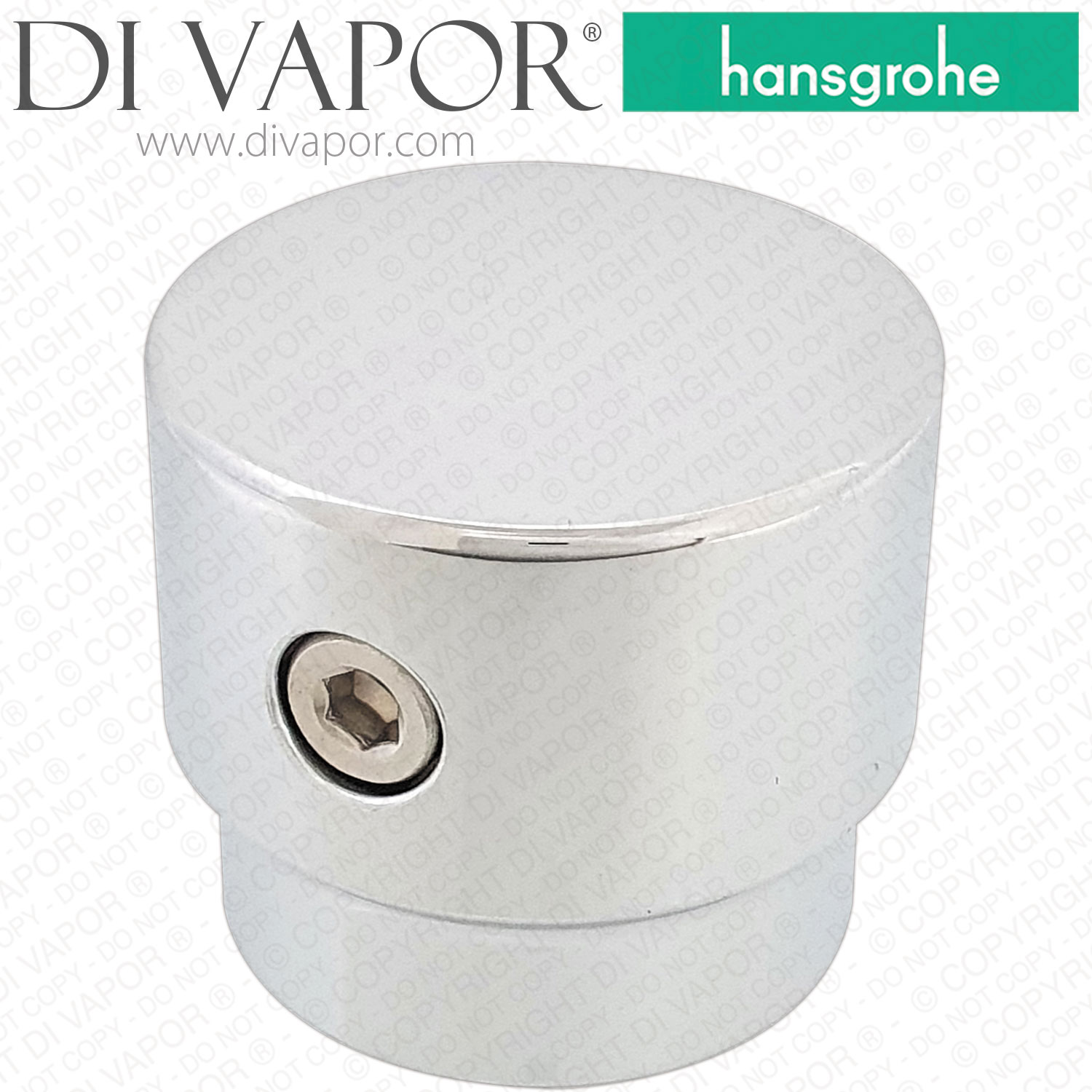

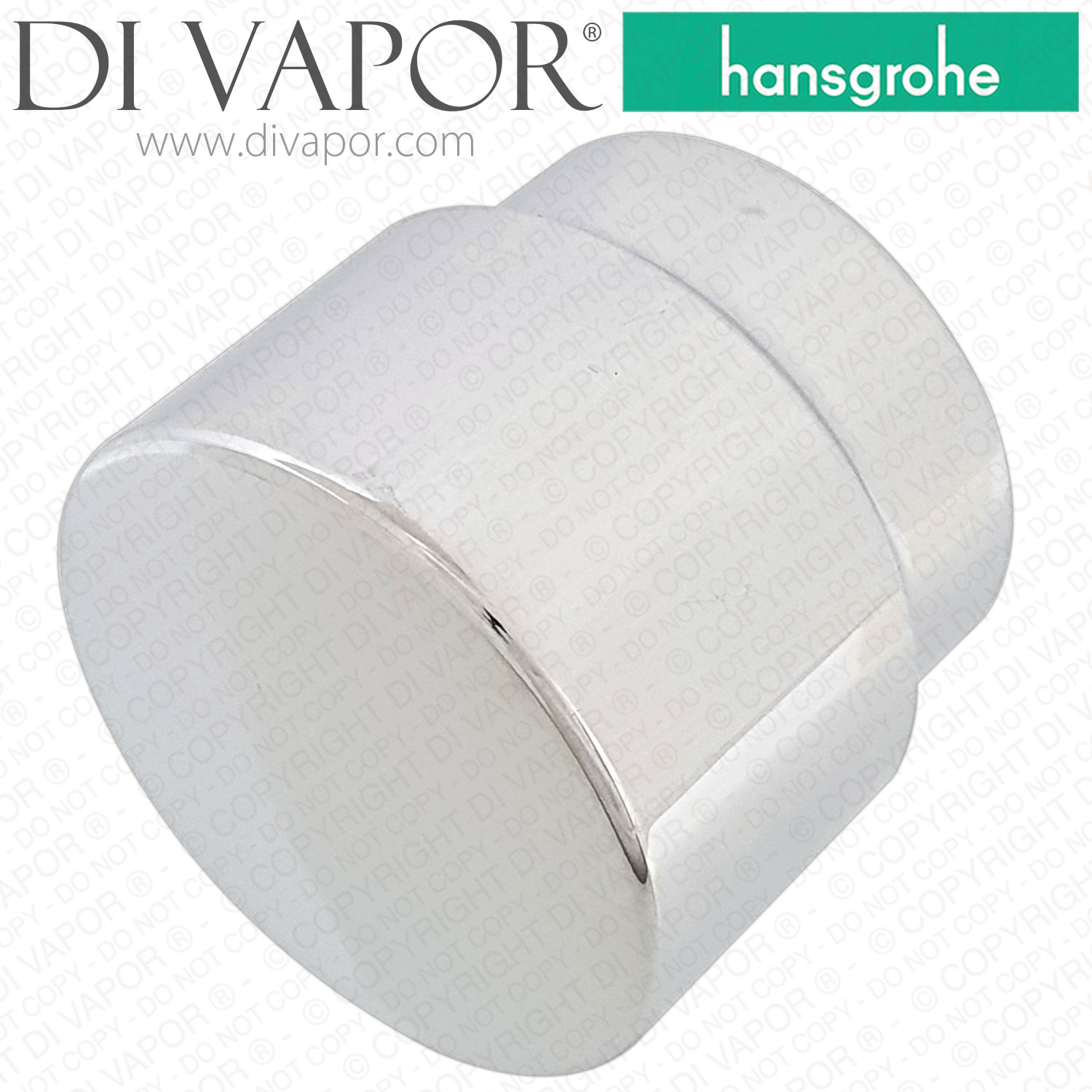

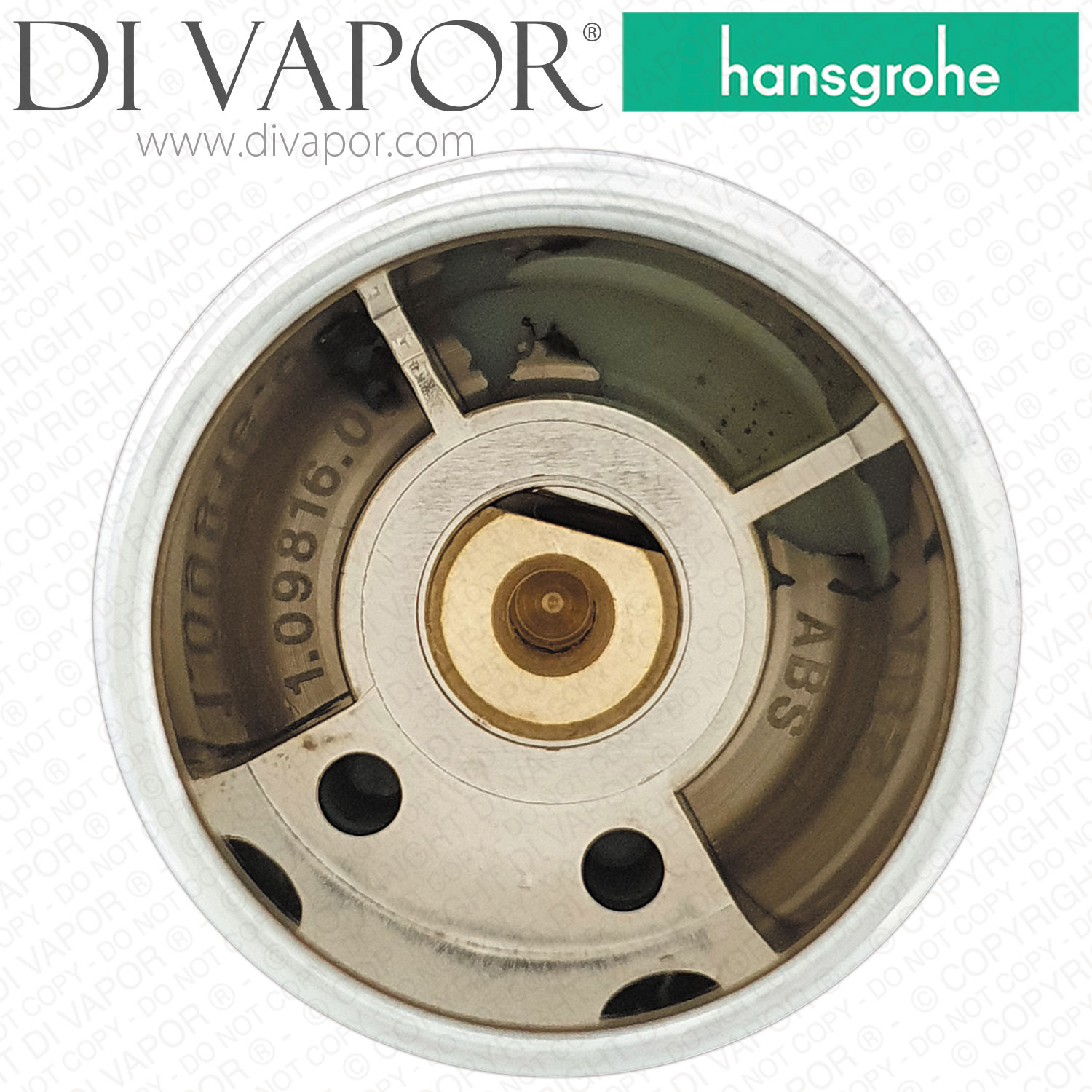

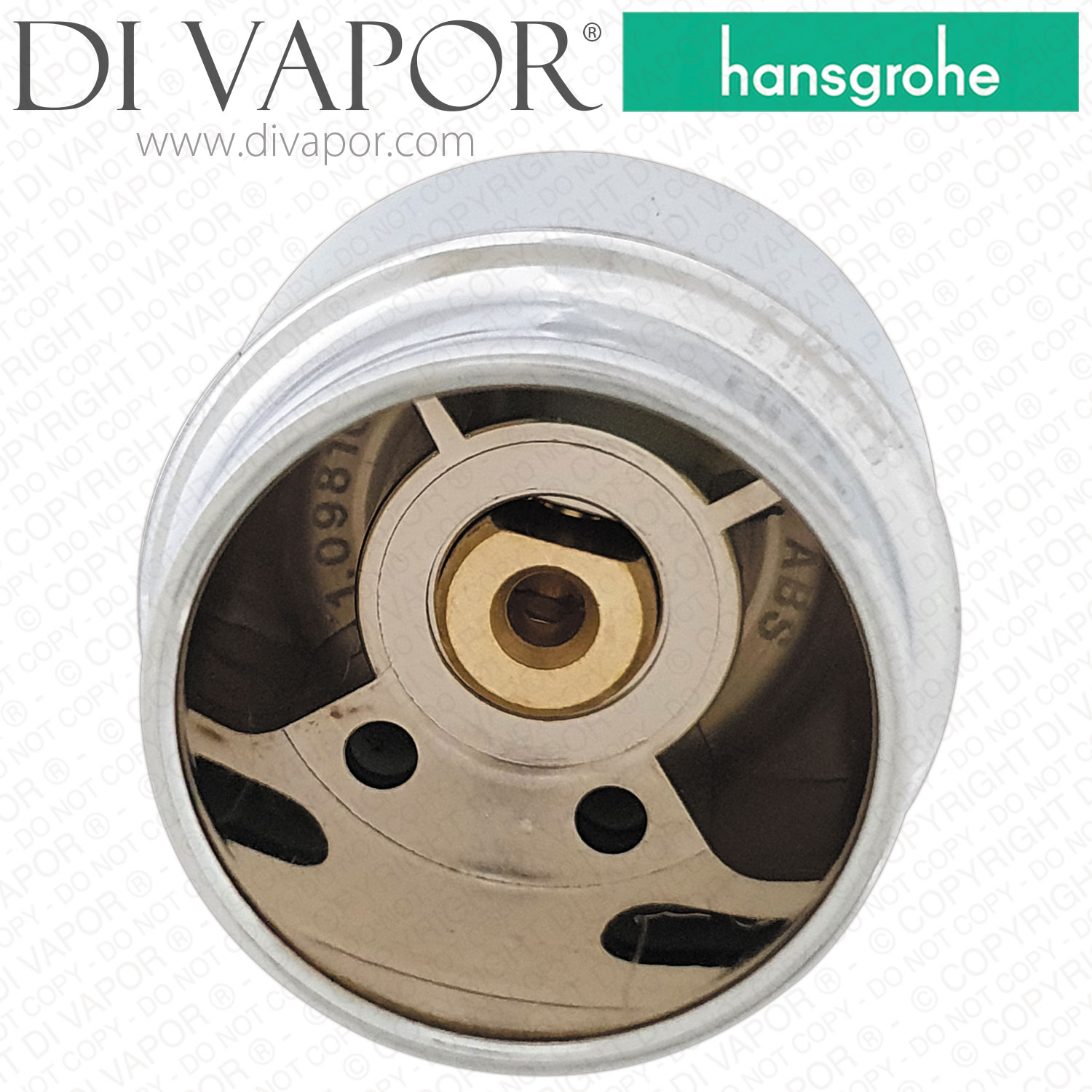

Hansgrohe 13471000 Chrome Diverter Pull Knob CPL. for Bath and Shower Mixers
The Hansgrohe 13471000 is a complete chrome diverter pull knob used as the external operating control on selected Hansgrohe and AXOR bath and shower mixers. It is the visible knob that operates the internal selector and is not the internal diverter cartridge or selector assembly.
Pulling the knob changes the active outlet between the bath spout and shower outlet on the applicable mixer. A loose, damaged or missing knob can prevent reliable operation of the selector. Water dripping from the shower head or spout when the mixer is turned off normally points to an internal selector, diverter or mixing cartridge fault rather than the external knob itself.
Technical Details
| Brand | Hansgrohe |
|---|---|
| Part number | 13471000 |
| Part type | complete external diverter pull knob |
| Finish | chrome |
| Finish suffix | 000 |
| Operation | pull-type bath-to-shower outlet control |
| Handing | no left-handed or right-handed version identified |
- Standalone dimensions and material are not stated in the verified manufacturer documentation
- The retaining screw or internal selector should not be assumed to be included unless confirmed from the supplied part
Before Ordering
- Confirm the exact mixer model code and production period
- Confirm that the required finish is chrome with suffix 000
- Check whether the fault is limited to the external knob or is within the internal diverter mechanism
- Do not order by appearance or partial dimensions alone
- Hansgrohe Talis S 32475000 and 32477000 use 13471000 only for production 09/2002 to 12/2007; later versions use 98795000
Confirmed Models
- Hansgrohe Metris 31405000
Hansgrohe Metris 31455000
- Hansgrohe Metris 31457000
- Hansgrohe Metropol 14405000
- Hansgrohe Metropol 14409000 with vacuum breaker
- Hansgrohe Metropol 14415000
- Hansgrohe Metropol 14417000
- Hansgrohe Metropol E 14477000
- Hansgrohe Mondial 15400000
- Hansgrohe Mondial 15405000
- Hansgrohe Mondial 15409000 with vacuum breaker
- Hansgrohe Mondial 15415000
- Hansgrohe Mondial 15417000
- Hansgrohe Mondial 15420000
- Hansgrohe adesso Talis C 33145000
- Hansgrohe adesso Talis C 33146000
- Hansgrohe Talis C 33147000
- Hansgrohe Talis C 33148000
- Hansgrohe Talis S 32475000 concealed bath mixer - production 09/2002 to 12/2007
- Hansgrohe Talis S 32477000 concealed bath mixer with integrated security combination - production 09/2002 to 12/2007
- Hansgrohe Mediano S 14437000
- Hansgrohe Mediano S 14438000
- Hansgrohe Mediano II 14457000
- Hansgrohe Mediano II 14458000
- AXOR Azzur 34405000
- AXOR Azzur 34409000 with vacuum breaker
- AXOR Arco 11405000
- AXOR Arco 11409000 with vacuum breaker
- AXOR Uno 13456000
- AXOR Uno 13459000 with vacuum breaker
- AXOR Carlton 17400000 exposed bath mixer - production 09/1999 to 02/2009
- AXOR Carlton 17405000
- AXOR Carlton 17409000 with vacuum breaker
- AXOR Mondaro 18400000
- AXOR Mondaro 18405000
- AXOR Mondaro 18409000 with vacuum breaker
- AXOR Mondaro 18420000
- AXOR Allegroh 36405000
- AXOR Allegroh 36409000 with vacuum breaker
Related Spares You May Need
The following associated spares are listed on the verified Di Vapor component pages for the confirmed Talis S 32475000, Talis S 32477000 and AXOR Carlton 17400000 mixers. Match every spare to the exact mixer code and production period before ordering.
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Hansgrohe 96338000 Rubber Screw Cover Cap - Grey
- Hansgrohe 98174000 48x5mm O-Ring
- Hansgrohe 98153000 30x5mm O-Ring
- Hansgrohe 96447000 Sub Plate
- Hansgrohe 96454000 Fixing Screw Set
- Hansgrohe 92730000 Lever Cartridge M3 / M2
- Hansgrohe Nut For Cartridge 95007000
- Hansgrohe 95014000 Diverter Selector Assembly
- Hansgrohe 96525000 Screw Set
- Hansgrohe 98128000 13x2mm O-Ring
- Hansgrohe 94073000 Noise Reduction Set
- Hansgrohe 98185000 O-Ring
- Hansgrohe 14096000 Cartridge
- Hansgrohe 94074000 Non Return Valves DW15 / DN10
