Hansgrohe 95014000 Diverter Selector Assembly
SUMMARY
Hansgrohe 95014000 iBox Universal Concealed Bath Mixer Diverter Selector Assembly

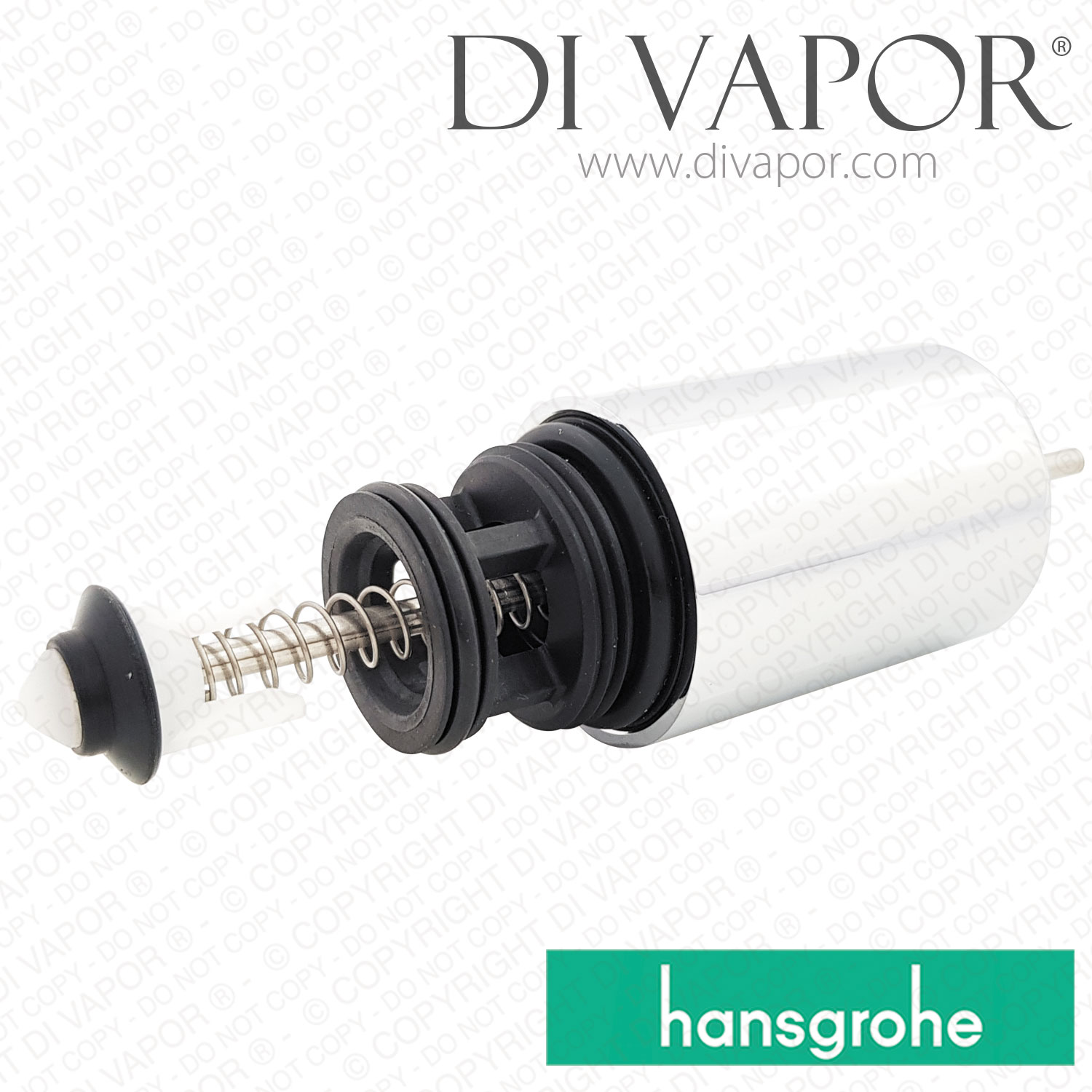

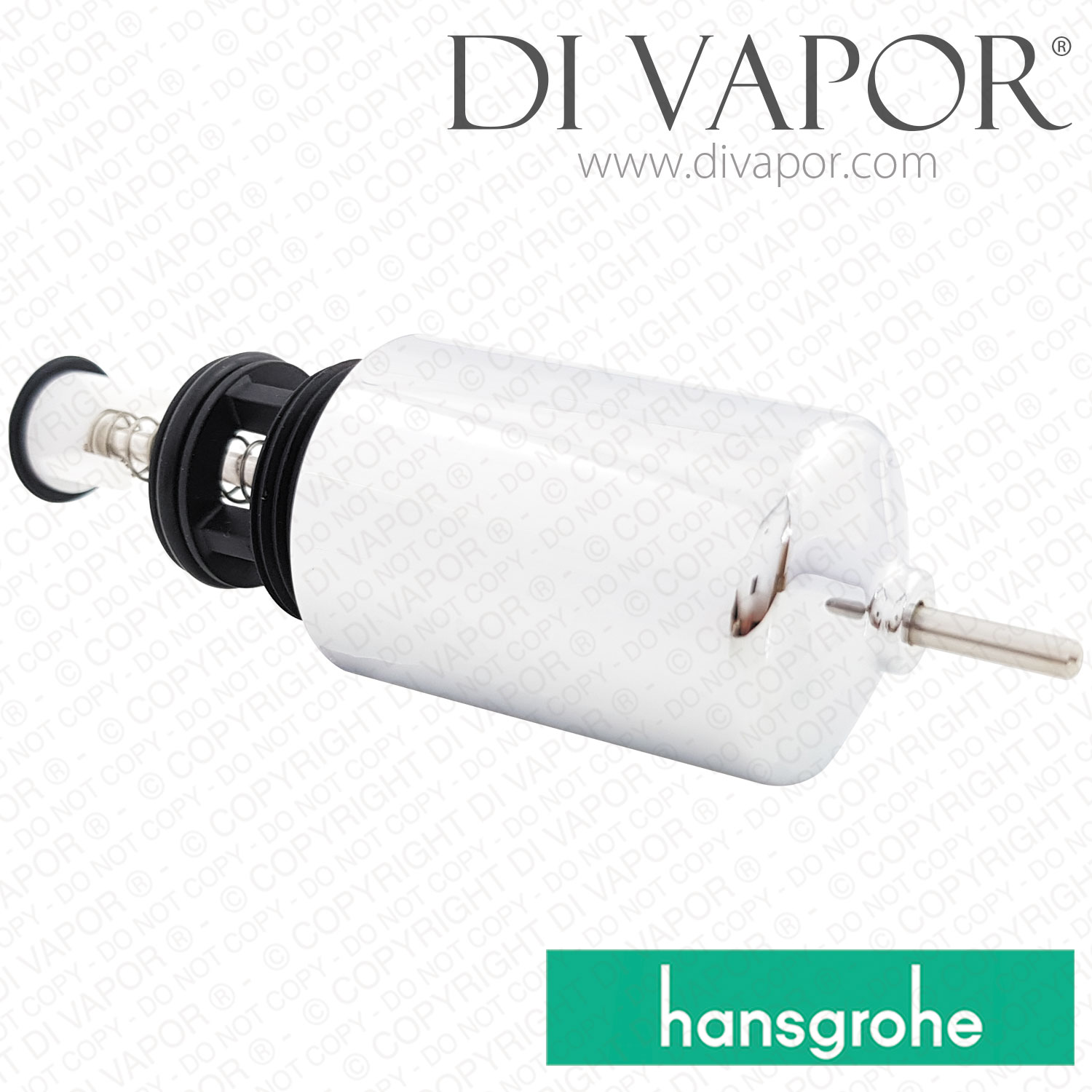

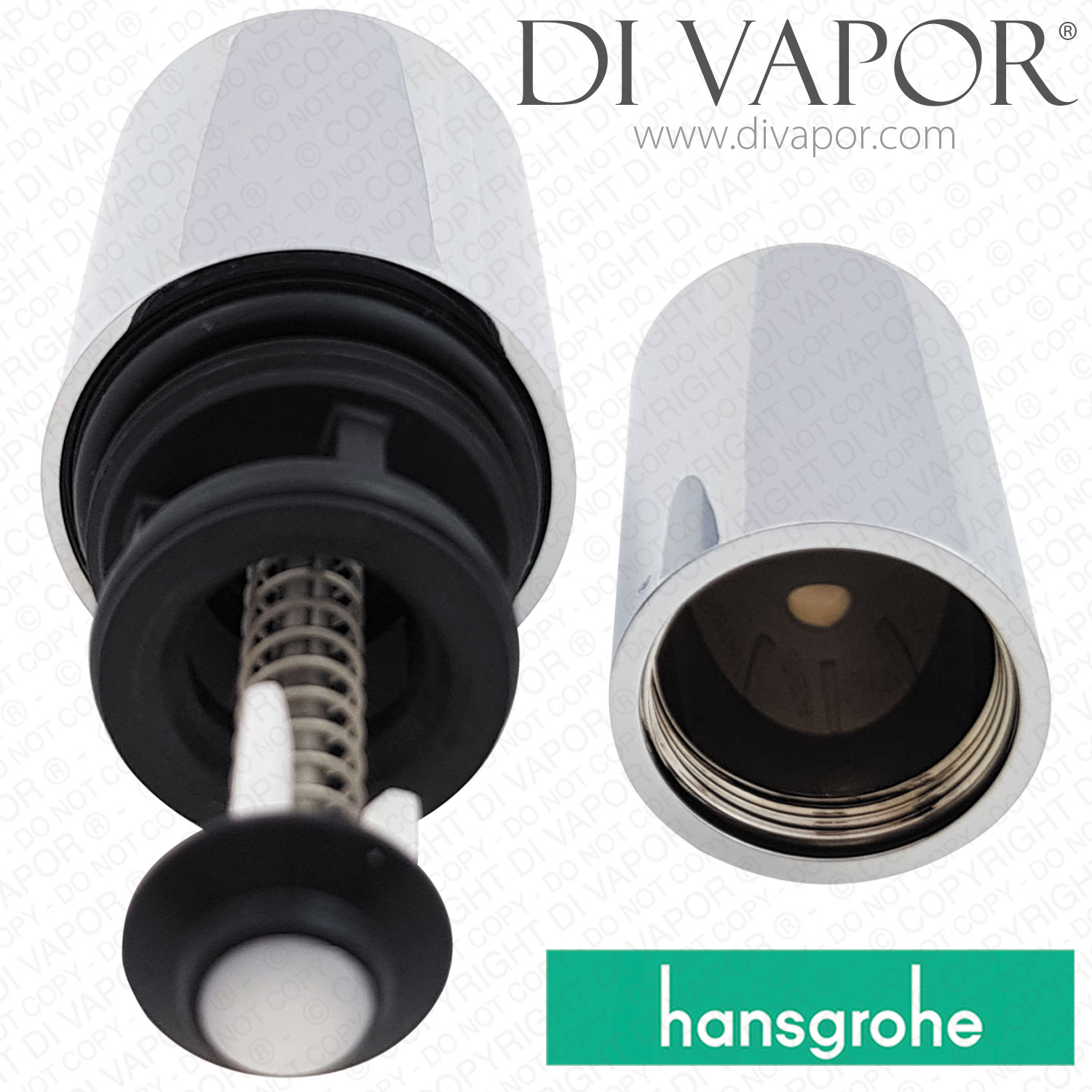

This Hansgrohe 95014000 is a complete chrome diverter selector assembly for specified concealed single-lever bath mixers installed with the iBox universal system.
The selector operates the bath-to-shower outlet changeover within the mixer. It is intended for the exact Hansgrohe article numbers and production periods listed below and should not be selected from the range name or external trim appearance alone.
Technical Details
- - Brand: Hansgrohe.
- - Manufacturer product code: 95014000.
- - Part type: complete bath mixer diverter selector assembly.
- - Application: concealed single-lever bath mixers using the iBox universal system.
- - Finish: chrome.
- - Function: selects between the bath and shower outlets.
- - Supersession: no confirmed replacement or superseding code has been identified.
- - Standalone dimensions, thread size and material specification have not been confirmed.
Before Ordering
Check the complete mixer article number, finish and production period before ordering. Hansgrohe 95015000 is a separate diverter assembly supplied with a sleeve and knob and must not be treated as the same part or as an automatic replacement for 95014000.
Confirmed Compatible Models
- - Hansgrohe Logis single lever bath mixer 71405000 - production from 01/17.
- - Hansgrohe Logis single lever bath mixer 71405000 - production 04/14 to 12/16.
- - Hansgrohe Metris single lever bath mixer 31454000 - production 01/16 to 12/26.
- - Hansgrohe Metris single lever bath mixer 31454000 - production 05/14 to 12/15.
- - Hansgrohe Metris single lever bath mixer 31493000 - production 01/16 to 12/25.
- - Hansgrohe Metris single lever bath mixer 31493000 - production 01/11 to 12/15.
- - Hansgrohe Talis S single lever bath mixer 72405000 - production 01/16 to 12/25 and 10/15 to 12/15.
- - Hansgrohe Focus single lever bath mixer 31945000 - production from 01/16.
- - Hansgrohe Focus single lever bath mixer 31945000 - production 01/10 to 12/15.
- - Hansgrohe Focus single lever bath mixer 31945000 - production 10/08 to 12/09.
- - Hansgrohe Focus single lever bath mixer 31947000 - production from 04/15.
- - Hansgrohe Focus single lever bath mixer 31947000 - production 10/08 to 03/15.
- - Hansgrohe Metropol single lever bath mixer with lever handle 32545000 - production from 04/17.
- - Hansgrohe Metropol single lever bath mixer with loop handle 74545000 - production from 04/17.
- - Hansgrohe Talis E single lever bath mixer 71745000 - production from 01/16.
- - Hansgrohe Talis E single lever bath mixer 71745000 - production 10/15 to 12/15.
- - Hansgrohe Talis E Polished Gold Optic single lever bath mixer 71745990 - production from 07/19.
- - Hansgrohe Talis E Brushed Black Chrome single lever bath mixer 71745340 - production from 07/19.
- - Hansgrohe Talis E Brushed Bronze single lever bath mixer 71745140 - production from 07/19.
- - Hansgrohe Talis E Matt Black single lever bath mixer 71745670 - production from 07/19.
- - Hansgrohe Finoris Matt Black single lever bath mixer 76415670 - production from 06/21.
- - Hansgrohe Finoris Chrome single lever bath mixer 76415000 - production from 06/21.
- - Hansgrohe Finoris Matt White single lever bath mixer 76415700 - production from 06/21.
- - Hansgrohe Vivenis Matt Black single lever bath mixer 75415670 - production from 06/21.
- - Hansgrohe Vivenis Matt White single lever bath mixer 75415700 - production from 06/21.
- - Hansgrohe Vivenis Chrome single lever bath mixer 75415000 - production from 06/21.
- - Hansgrohe Vernis Shape Matt Black single lever bath mixer 71468670 - production from 05/21.
- - Hansgrohe Vernis Shape Chrome single lever bath mixer 71468000 - production from 04/21.
- - Hansgrohe Vernis Blend Matt Black single lever bath mixer 71466670 - production from 04/21.
- - Hansgrohe Vernis Blend Chrome single lever bath mixer 71466000 - production from 04/21.
- - Hansgrohe Rebris S Chrome single lever bath mixer 72466000 - production from 06/22.
- - Hansgrohe Rebris S Matt Black single lever bath mixer 72466670 - production from 06/22.
- - Hansgrohe Rebris E Chrome single lever bath mixer 72468000 - production from 06/22.
- - Hansgrohe Rebris E Matt Black single lever bath mixer 72468670 - production from 06/22.
Troubleshooting
- - Symptom: the mixer does not change correctly between bath and shower outlets. Likely Cause: residue in the mechanism, insufficient water pressure or a defective diverter. Solution: isolate the water supply, inspect and clean the selector mechanism, lubricate the appropriate O-rings with suitable silicone grease and replace the diverter assembly where defective.
Related Spares You May Need
Check the exact mixer article number and production period before ordering associated parts because the surrounding handle, cartridge, seals and trim arrangement vary between mixer generations.
Later iBox Universal Arrangements
- - Hansgrohe 96338000 rubber screw cover cap.
- - Hansgrohe 98795000 diverter knob.
- - Hansgrohe 96454000 fixing screw set.
- - Hansgrohe 98796000 cartridge fixing nut.
- - Hansgrohe 92730000 lever cartridge M3 / M2.
- - Hansgrohe 96525000 screw set.
- - Hansgrohe 98133000 16x2mm O-ring.
- - Hansgrohe 98185000 O-ring.
- - Hansgrohe 94073000 noise reduction set.
Earlier Focus and Legacy Diverter Arrangements
- - Hansgrohe 95508000 O-ring.
- - Hansgrohe 95015000 diverter.
- - Hansgrohe 98128000 13x2mm O-ring.
- - Hansgrohe 95433000 handle cap.
- - Hansgrohe 95013000 chrome diverter knob.
Customers who are unsure of the installed mixer should compare the full article number and construction period before ordering or use the Di Vapor part identification service.
