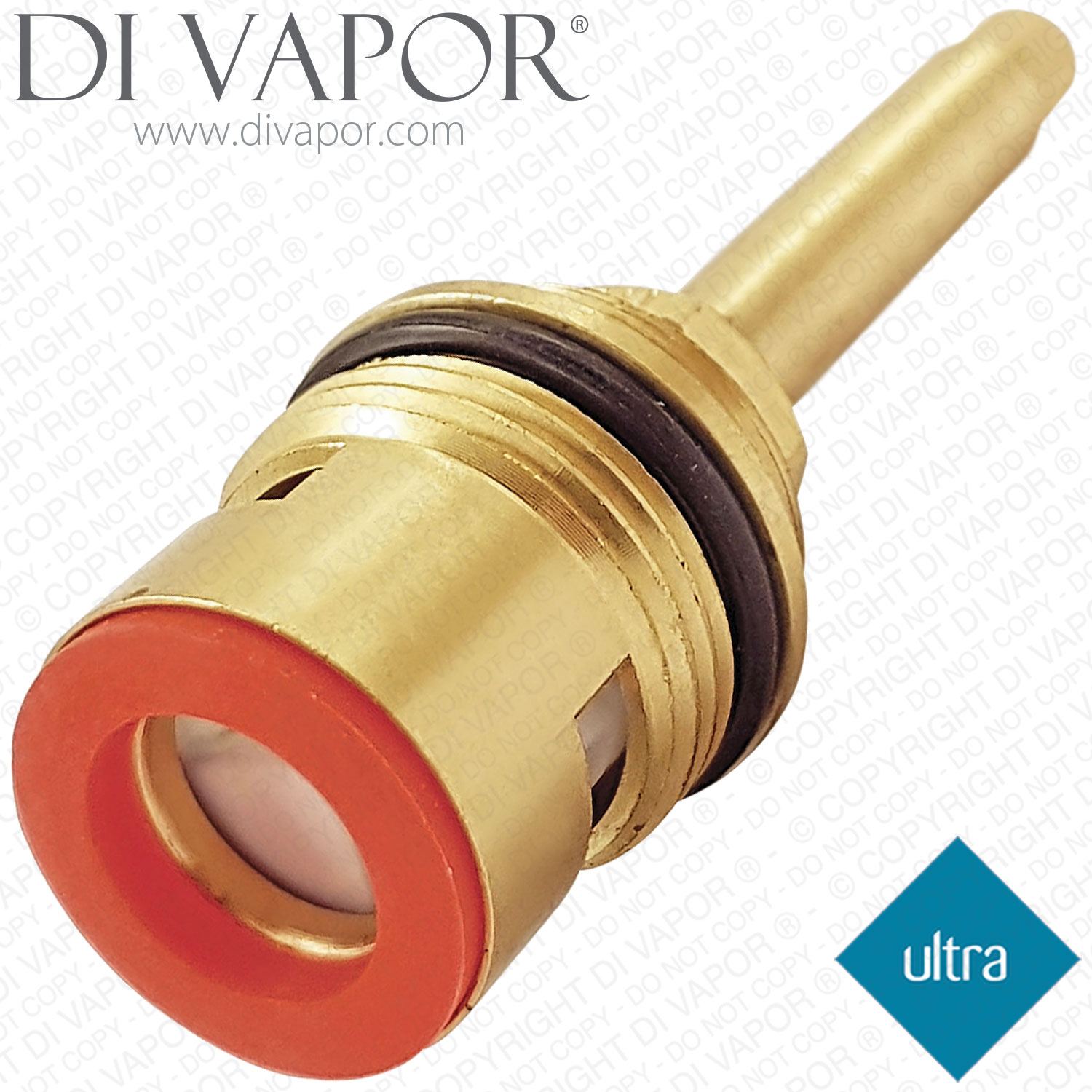

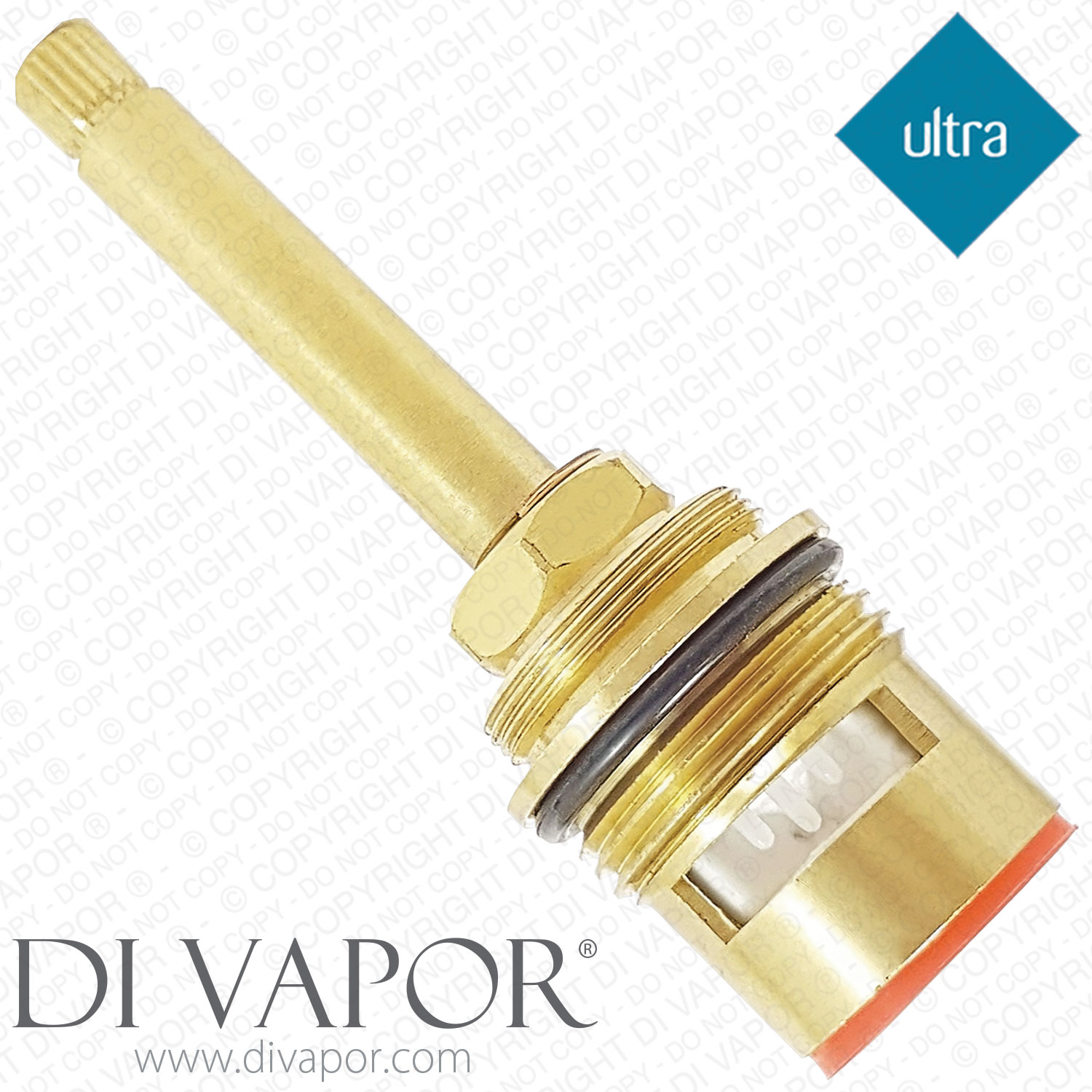

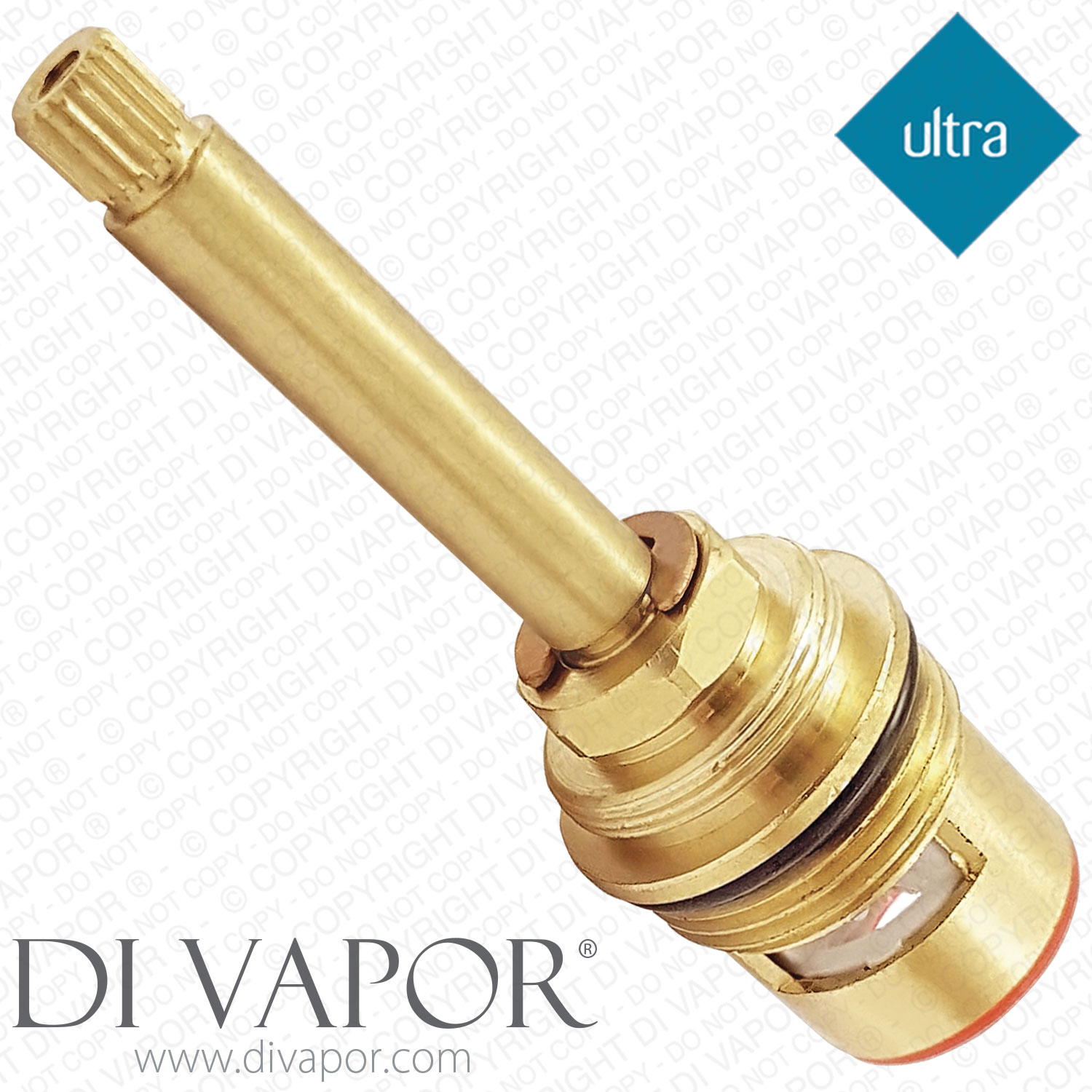

SVR22 87mm Ultra Hot Flow On/Off Cartridge (Red)
SUMMARY
SVR22 87mm Ultra Hot Flow On/Off Cartridge (Red / Clockwise Open).Total Length (incl. red seal): 87.2mm
Spindle Length (from top of circlip to end): 48mm
Spindle Diameter: 9mm

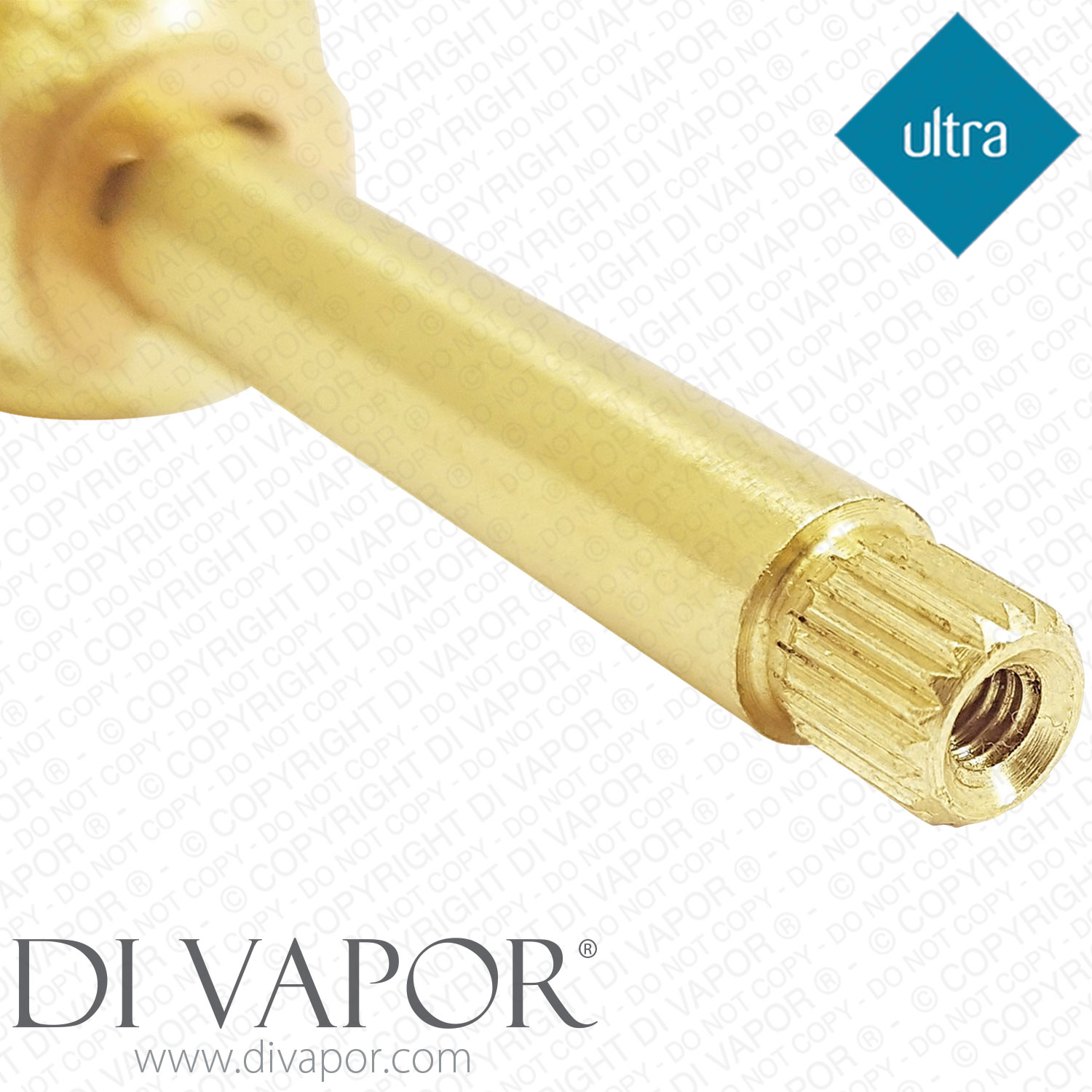

Spindle teeth head Diameter: 7.8mm
Barrel Diameter: 23.8mm
Lower Thread: 26mm
Upper Thread (closer to spline): 23.8mm
SVR21 is the cold flow cartridge. Please visit the page for fitting instructions.
Frequently Asked Questions: Ultra Flow Control On/Off Valve Cartridge – SVR22
Question: What are the compatible showers?
Answer: The Ultra showers spare part SVR22 is fitted in these following shower valves:
Hudson Reed Twin Control Shower Valve
– A3003V
– A3057
– QUEV53
Hudson Reed Triple Control Concealed Shower Valve
– A3003
– ART3211
– BTSVT003
– BTSVT005
– REI3411
– TSVT003
– TSVT005
Question: Is this spare part for the temperature?
Answer: No, the SVR22 spare part is the one that controls the water flow. For the temperature control, we would like to refer you to SC50T20-M which could be the Ultra shower cartridge you need.
You can also use our shower valve spare part identifier to be sure you are making the right purchase. Di Vapor’s spares experts will happily help you determine the thermostatic cartridge you need for shower repair.
Question: My shower cartridge looks similar to this. Will this fit?

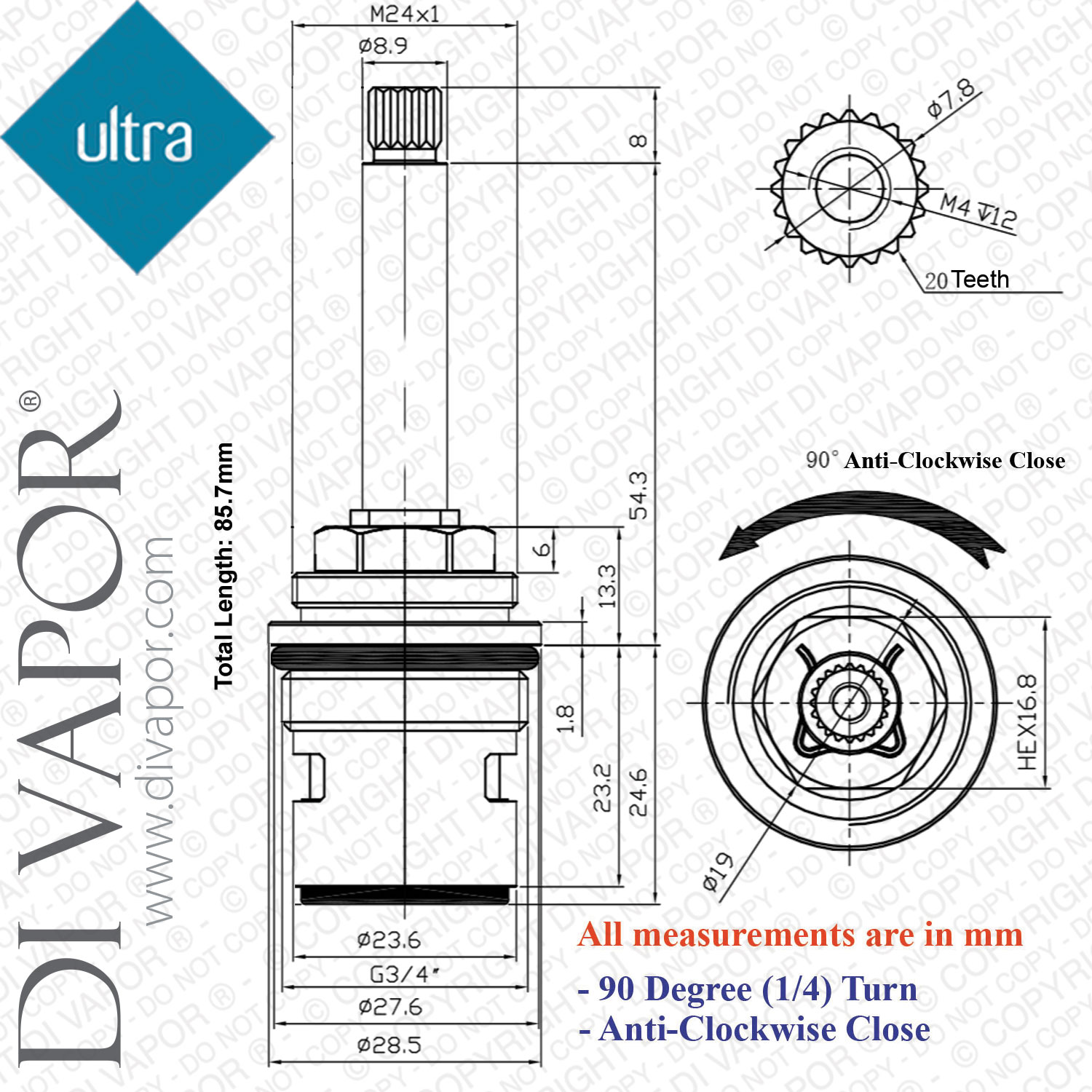

Answer: Please check the measurements of this Ultra shower cartridge given above and in the second photo. You can compare the dimensions with the cartridge you need to replace.
These are some tips we can offer when it comes to comparing cartridge measurements:
On getting the dimensions:
– Use a simple ruler or tape measure to measure the cartridge you have.
On spline counting:
– Mark the starting point with a pen or marker then count from there. It is important to highlight that the number of splines on your cartridge should match with this Ultra shower cartridge for it to fit.
Please browse through our catalogue of in-stock Ultra thermostatic cartridges and other Ultra shower spare parts that are ready to be shipped (unless stated otherwise).
Technical Details
- - Product code: SVR22
- - Cartridge type: ceramic-disc flow on/off cartridge

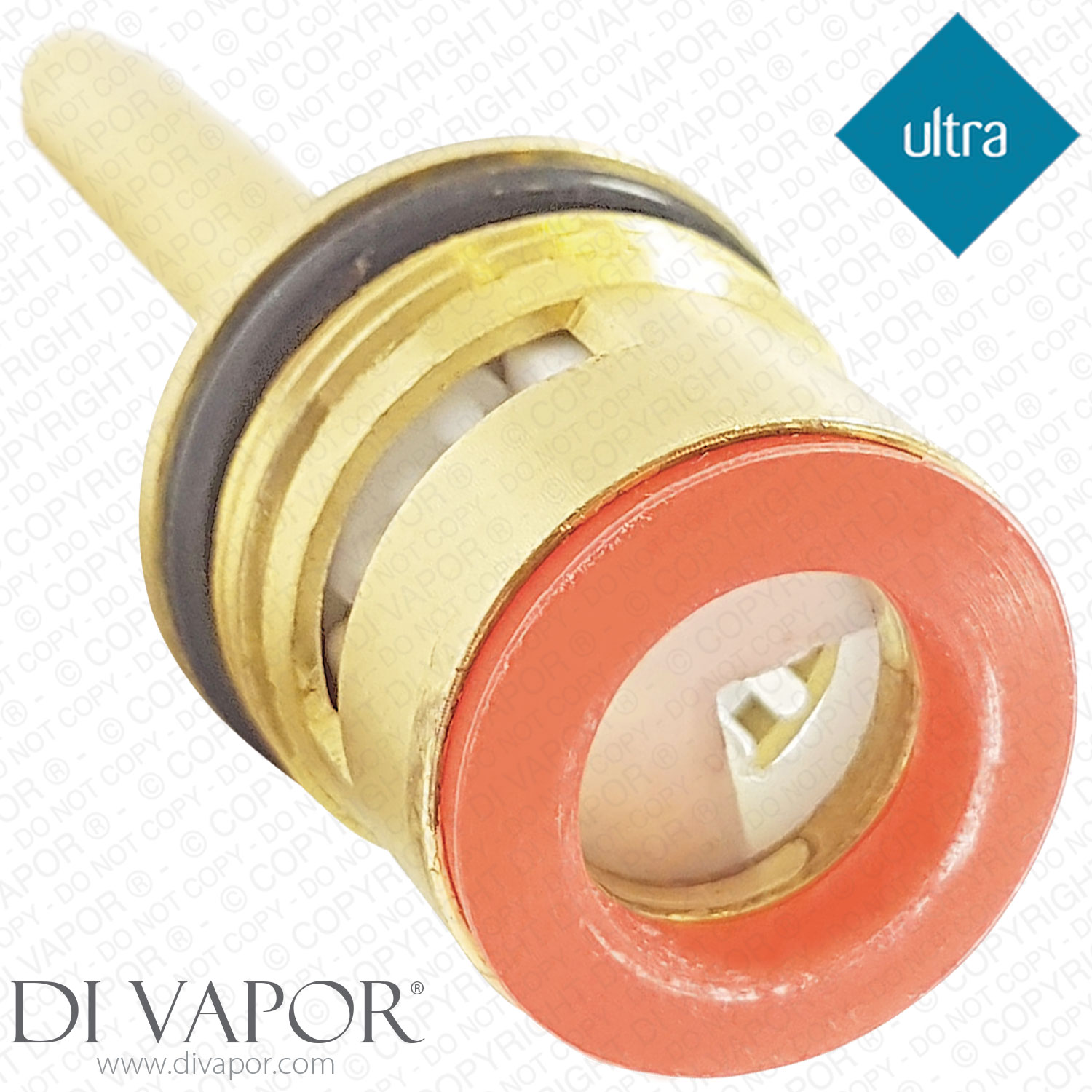

- - Version: hot flow cartridge with red seal
- - Operation: 90-degree quarter turn
- - Opening direction: clockwise
- - Closing direction: anticlockwise
- - Lower connection thread: G3/4
- - Upper thread: M24x1
- - Handle fixing thread: M4
- - Maximum diameter: 28.5mm
- - Hexagon size: 16.8mm
Confirmed Compatible Models
Cartridge designs can vary between production versions of the same shower model. Match the fitted cartridge, opening direction, dimensions, threads and spline details before ordering.
- - Hudson Reed Tec Pura A3003V twin concealed thermostatic shower valve
- - Hudson Reed Xeta A3012 twin concealed thermostatic shower valve
- - Hudson Reed Kubix A3013 twin concealed thermostatic shower valve
- - Hudson Reed Clio A3015 twin concealed thermostatic shower valve
- - Hudson Reed Tec A3098 twin concealed thermostatic shower valve
- - Ultra Tec Pura Plus A3003 triple thermostatic shower valve
- - Hudson Reed Kia A3011 triple concealed thermostatic shower valve
- - Hudson Reed Kubix A3014 triple concealed thermostatic shower valve
- - Ultra Traditional A3057 concealed thermostatic triple shower valve
- - Hudson Reed Arcade ARC3211 triple concealed thermostatic shower valve
- - Hudson Reed Art ART3211 triple concealed thermostatic shower valve
- - Hudson Reed Aspire ASP3211 triple concealed thermostatic shower valve
- - Hudson Reed Topaz Black BTSVT003 triple concealed thermostatic shower valve
- - Ultra Volt CHAV53 concealed thermostatic triple shower valve
- - Hudson Reed Cloud 9 CLO3211 triple concealed thermostatic shower valve
- - Hudson Reed Deco DEC3211 triple concealed thermostatic shower valve
- - Ultra Ecco ECCV53 concealed thermostatic triple shower valve
- - Ultra Flume FLUV53 concealed thermostatic triple shower valve with rectangular plate
- - Hudson Reed Hero HER3411 triple concealed thermostatic shower valve with round plate
- - Ultra Series 1 JTY310 triple concealed thermostatic shower valve
- - Ultra Quest JTY314 triple concealed thermostatic shower valve
- - Hudson Reed Kristal KRI3211 triple concealed thermostatic shower valve
- - Hudson Reed Logo LOG3211 triple concealed thermostatic shower valve
- - Ultra Quest Oval QUEV03 concealed thermostatic triple shower valve
- - Ultra Quest QUEV53 concealed thermostatic triple shower valve with rectangular plate
- - Ultra Ratio RATV53 concealed thermostatic triple shower valve
- - Hudson Reed Reign REI3211 triple concealed thermostatic shower valve with square plate
- - Hudson Reed Reign REI3411 triple concealed thermostatic shower valve with round plate
- - Hudson Reed Topaz TSVT003 triple concealed thermostatic shower valve
- - Ultra Quest QUEV56 concealed thermostatic triple shower valve with built-in diverter
- - Hudson Reed Black Topaz BTSVT005 triple concealed shower valve with diverter
- - Hudson Reed White Topaz TSVT005 triple concealed shower valve with diverter
Related Spares You May Need
Related parts vary by shower model and production version. Match the existing component before ordering. The correct thermostatic cartridge and diverter depend on the valve assembly fitted to your shower.
- - VH019 Beaumont thermostatic X-head handle - for the A3057 temperature control
- - SVR21 cold flow cartridge - opens anticlockwise and closes clockwise
- - SB322 four-way diverter cartridge - check the fitted diverter assembly before selecting this part
- - TACSIL 3g cartridge silicone grease (TAC86)
- - SVQ13 shower diverter cartridge - retaining nut supplied separately
- - SC50T20 thermostatic cartridge (SC50T20-M)

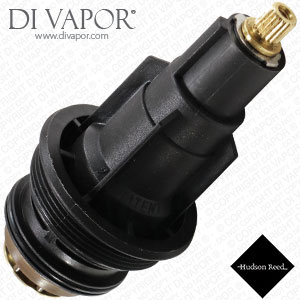

- - A3003PL plastic thermostatic cartridge
- - A3003CT brass thermostatic cartridge
- - SVQ02 non-return valve housing
- - V068-P Ov20 20mm non-return check valve - supplied individually
- - SVQ01 3/4-inch tapered conical nut and washer
- - SVQ04 flow cartridge shroud
- - SVQ05 shroud for Valquest twin and triple shower valves
- - SVQ15 concealed non-return valve
- - SP350 Tec crosshead handles - supplied as a pair
- - STECLTH control handle - for the relevant A3003 and A3003V handle assemblies
- - VH008 Tec Pura temperature-control crosshead handle
- - VH008A Tec Pura flow lever handle
- - SA30047 override button and thermostat shroud - for the A3003V thermostat assembly
- - VH039 Quest thermostatic shower handle
- - VH039A Quest flow-control shower handle
- - V146 brass stop ring for the VH039 handle (Part Number VH146)
- - VH046A flow-control handle - for Art and Aspire valve assemblies
- - VH044-M round temperature-control handle (Part Number VH044)
- - VH054A Cloud 9 and Ratio flow-control handle
- - VH013 traditional crosshead handle
- - VH013A traditional lever handle
- - VH009 Kristal temperature-control crosshead handle
- - VH009A Kristal flow-control crosshead handle
- - VH003A-M Kubix flow-control handle
- - VPS002 triple rectangular plate with round flanges
- - VPS011 triple rectangular plate with square flanges
- - VPS013 Traditional Topaz triple concealing plate
- - VRTRIP1 concealed triple valve body - supplied without a thermostatic cartridge
- - SVR21W cold ceramic-disc flow cartridge - check the required cold cartridge version
- - SPR06 spline adaptors - for the matching A3011 handle assembly, supplied as a pair without screws
- - YM43MN locking ring - for the separate SVQ13 diverter cartridge
- - SVR22W hot ceramic-disc flow cartridge - check the fitted version before selecting this alternative cartridge
Fault Diagnosis and Fitting
Persistent dripping after the shower has been switched off can be caused by debris in the flow cartridge. Brief dripping may be water draining from the shower head or hose. Check the source of the leak before selecting a replacement.
Isolate both hot and cold water supplies before removing the cartridge. Follow the shower valve's servicing instructions, clear any debris and apply a small amount of suitable silicone grease to the O-rings where specified. After fitting, restore the supplies and check for leaks and correct shut-off.
If you are unsure which part you need, use our Di Vapor part identification service.
