Ultra SVQ02 Non-Return Valve Housing

SUMMARY

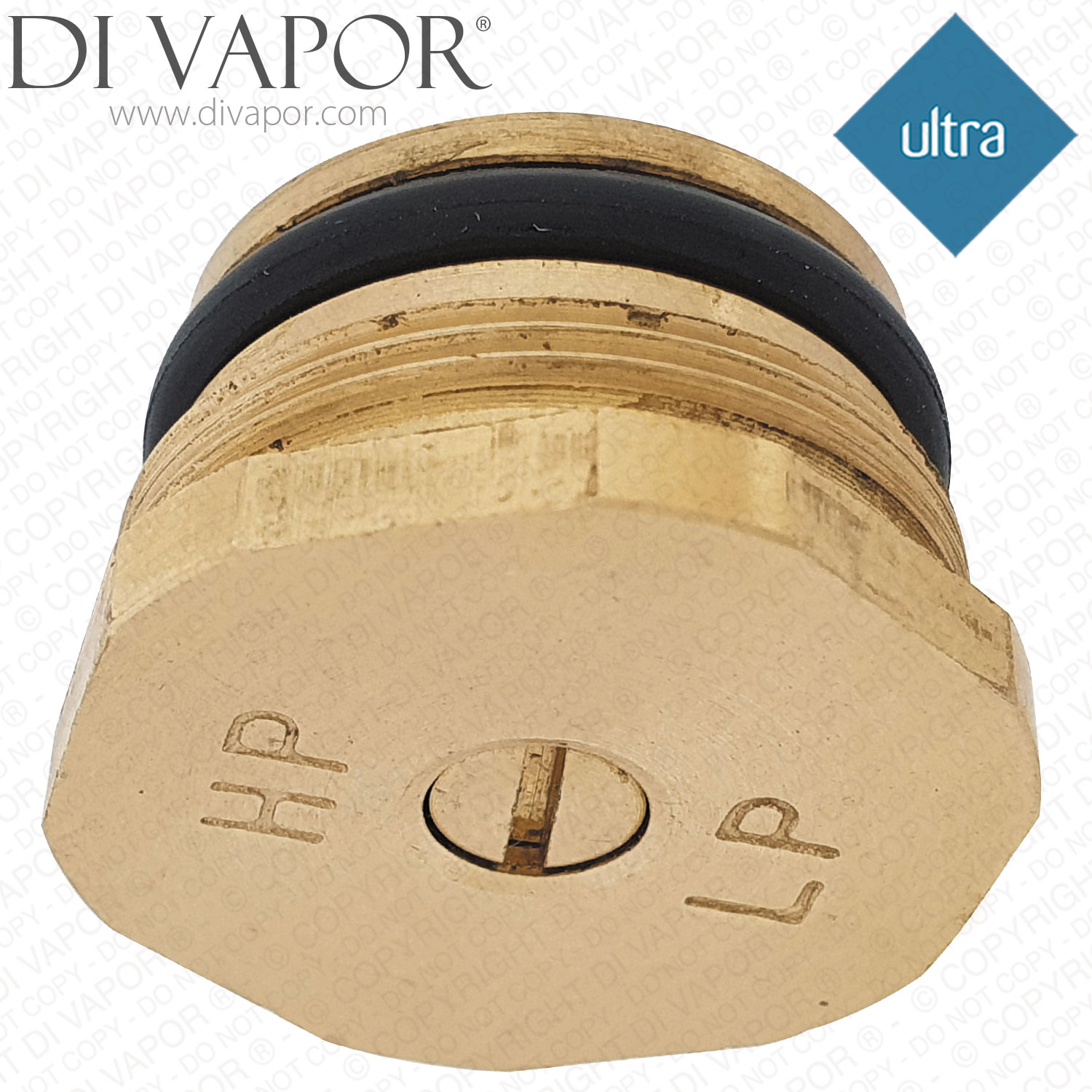

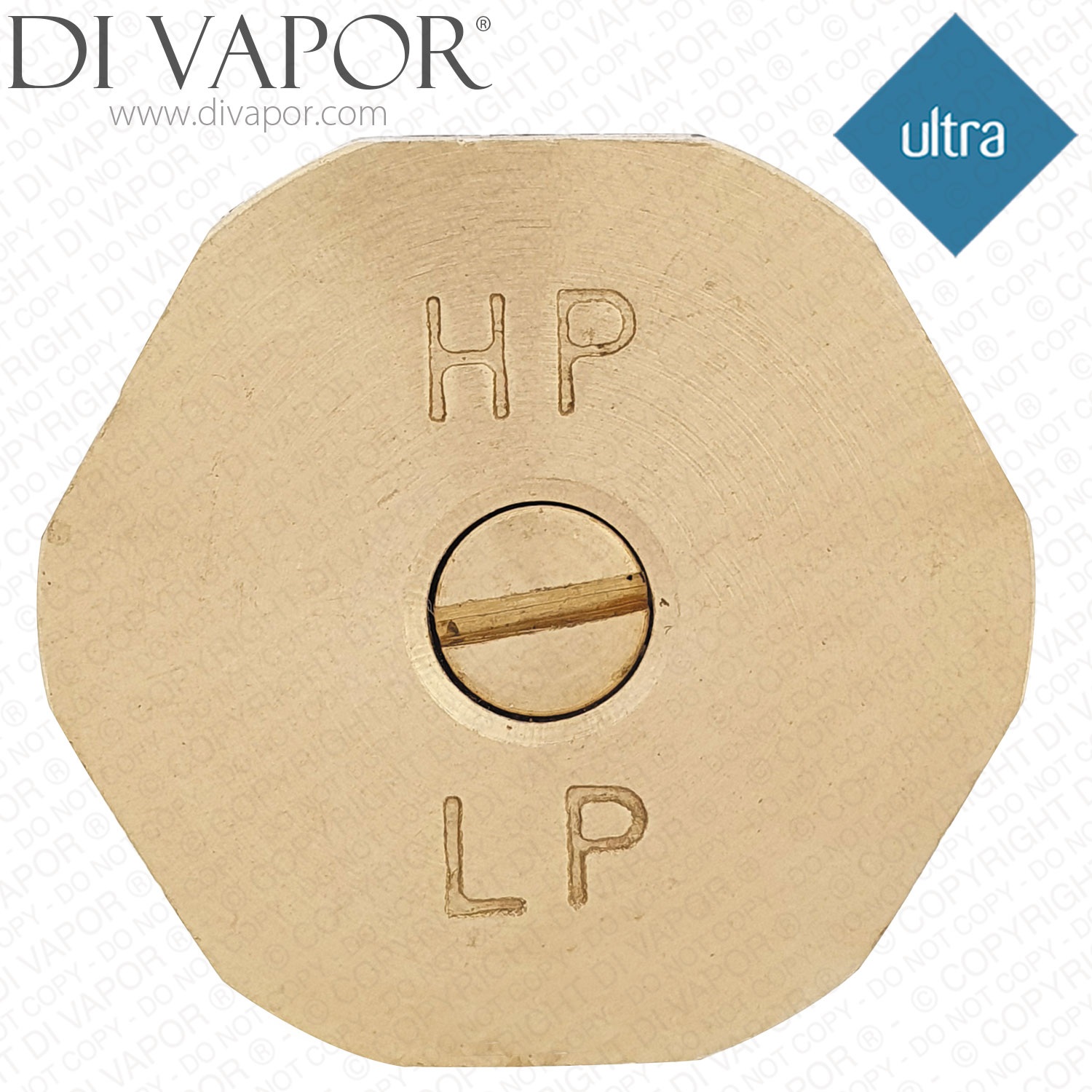

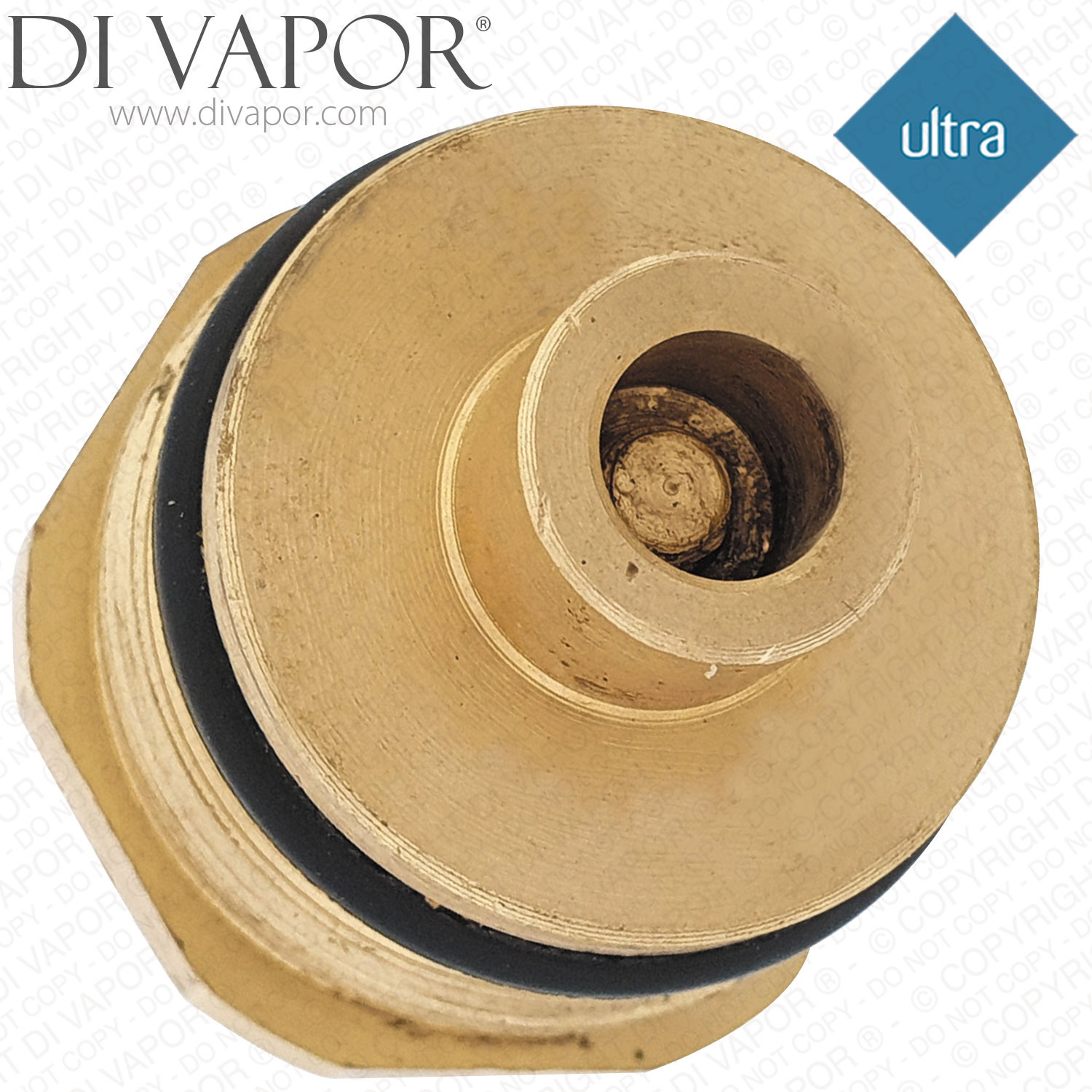

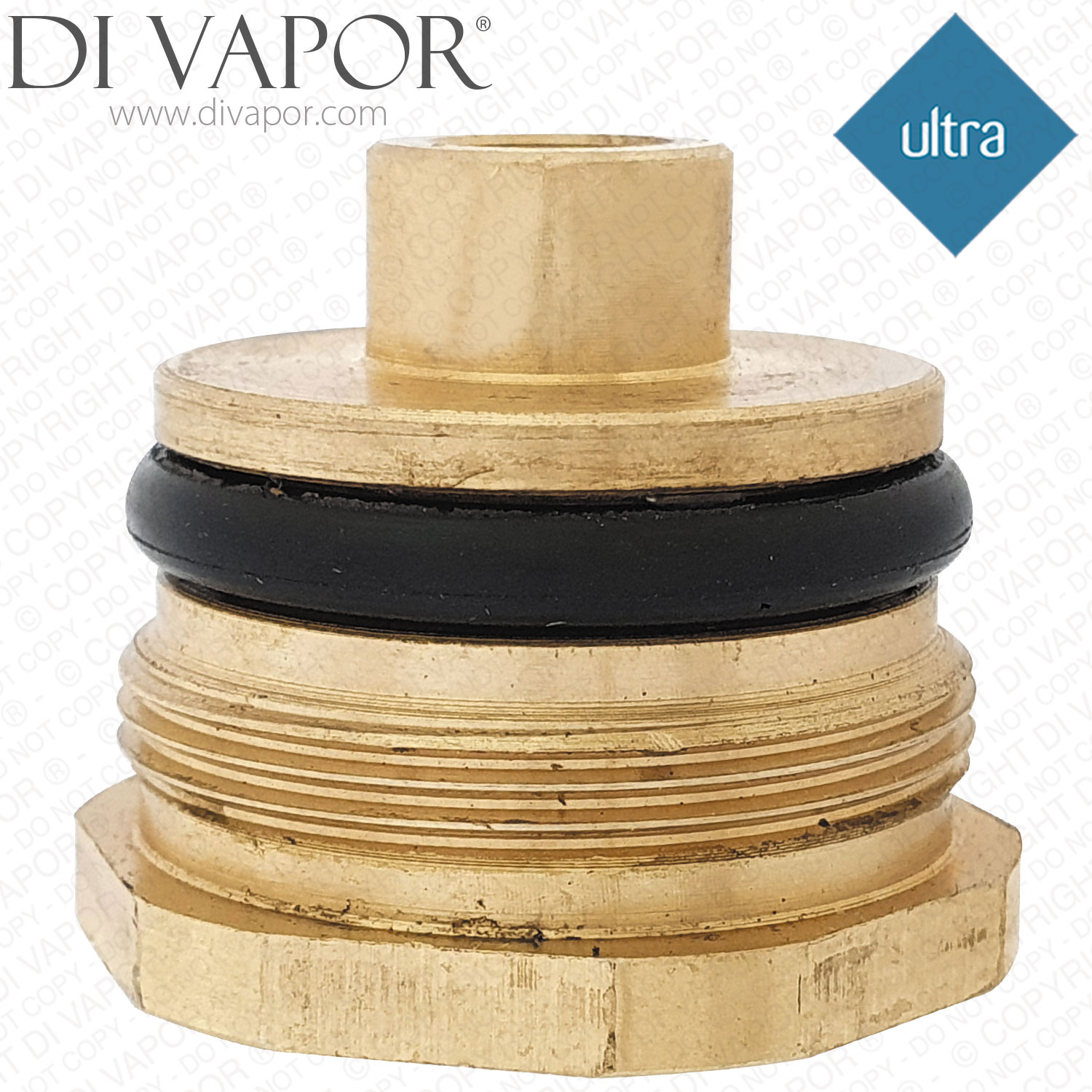

Ultra SVQ02 Non-Return Valve Housing with O-Ring for Shower Valves

Ultra SVQ02 is a brass non-return valve housing supplied with its O-ring for use in selected Ultra, Hudson Reed and Premier thermostatic shower valves. The housing forms part of the shower valve inlet non-return assembly and is designed to hold and seal the separate check-valve insert.

The SVQ02 is the housing only and does not include the working non-return valve insert. The check-valve insert controls one-way water flow and helps prevent reverse flow through the shower valve. The associated check valve is the V068-P, which is available separately.

Technical Details

- - Part Number: SVQ02

- - Part type: non-return valve / check-valve housing

- - Construction: brass housing with O-ring

- - Supplied as: one housing with O-ring

- - Check-valve insert: not included

- - Associated Dcheck valve: V068-P

Before ordering, check the shower valve model code and the removed housing carefully, as different non-return valve arrangements can be used across Ultra and Hudson Reed shower valve ranges.

Confirmed Compatible Models

- - Ultra A3003 Tec Pura Plus Triple Thermostatic Shower Valve

- - Hudson Reed A3003V Tec Pura Twin Concealed Thermostatic Shower Valve

- - Hudson Reed A3007 Tec Pura Concealed Twin Shower Valve With Built-in Diverter

- - Hudson Reed A3023 Tec Pura Plus Concealed Thermostatic Triple Shower Valve With Diverter

- - Ultra QUEV51 Quest Rectangular Concealed Thermostatic Twin Shower Valve

- - Ultra QUEV52 Quest Rectangular Twin Shower With Built-in Diverter

- - Ultra QUEV53 Quest Rectangular Concealed Thermostatic Triple Shower Valve

- - Ultra A3033 Concealed Traditional Thermostatic Twin Shower Valve

- - Hudson Reed SQR3207 Lennox Twin Concealed Thermostatic Shower Valve With Diverter

- - Hudson Reed SQR3210 Lennox Twin Concealed Thermostatic Shower Valve

- - Hudson Reed TSVT002 Topaz Twin Concealed Thermostatic Shower Valve

- - Hudson Reed TSVT003 Topaz Triple Concealed Thermostatic Shower Valve

- - Hudson Reed TSVT004 White Topaz Twin Concealed Shower Valve With Diverter

- - Hudson Reed TSVT005 White Topaz Triple Concealed Shower Valve With Diverter

- - Hudson Reed BTSVT002 Black Topaz Twin Concealed Thermostatic Shower Valve

- - Hudson Reed BTSVT003 Black Topaz Triple Concealed Thermostatic Shower Valve

- - Hudson Reed BTSVT004 Black Topaz Twin Concealed Shower Valve With Diverter

- - Hudson Reed BTSVT005 Black Topaz Triple Concealed Shower Valve With Diverter

- - Hudson Reed A3014 Kubix Triple Concealed Thermostatic Shower Valve

- - Hudson Reed KUB3023 Kubix Triple Concealed Thermostatic Shower Valve With Diverter

Related Spares You May Need

- - Ultra V068-P Ov20 20mm Check Valve - Non-Return Valve - associated check-valve insert supplied individually

Not sure if this is the right part? Use the Di Vapor Part Identification Service and send us a photo.
