SSC50T20 Thermostatic Cartridge (Valquest, Ultra, Hudson Reed)

SUMMARY

SSC50T20 Thermostatic Cartridge (Valquest, Ultra, Hudson Reed)

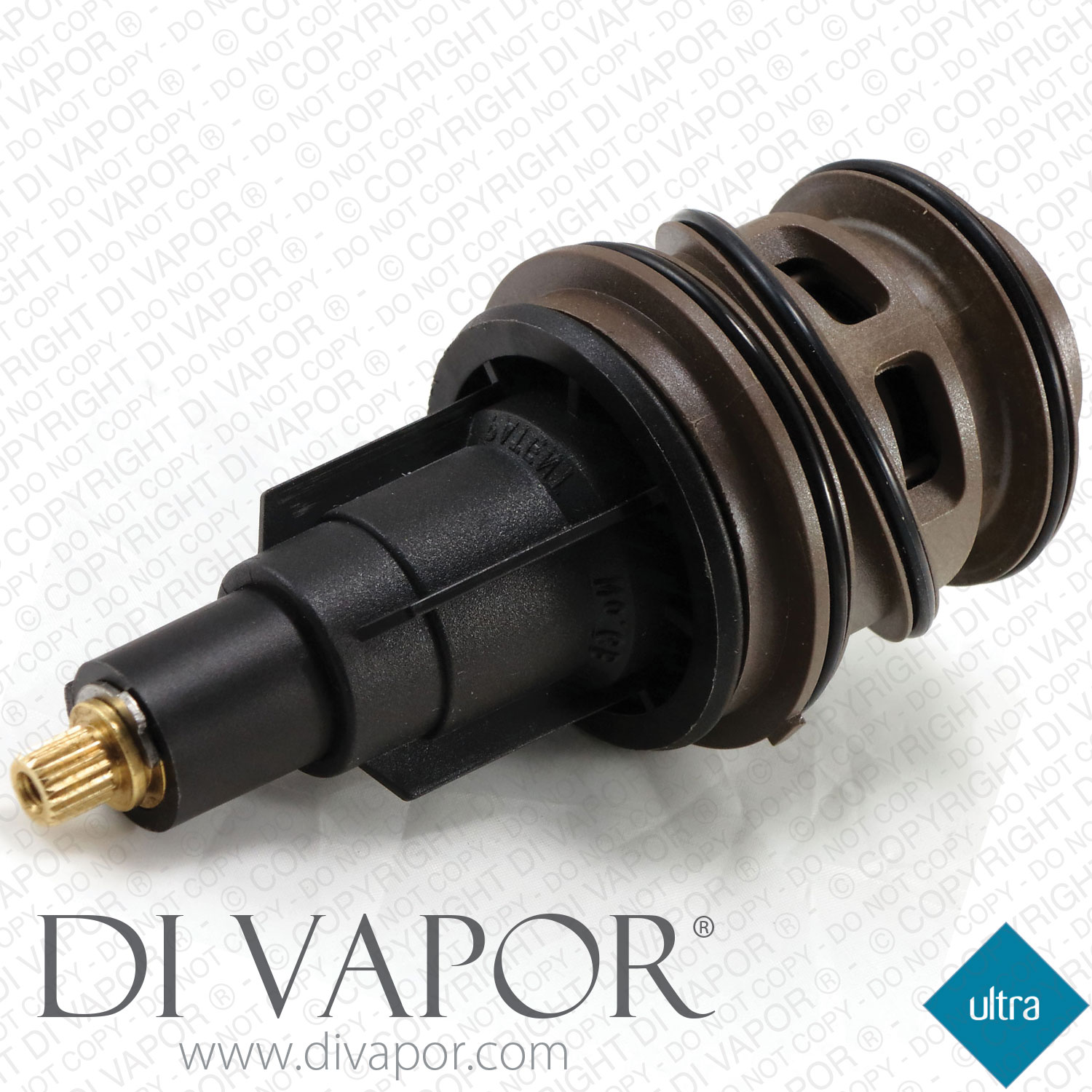

The SSC50T20 is a thermostatic shower cartridge for selected Ultra, Hudson Reed and Valquest twin and triple control shower valves. It has a polymer body and a 20-tooth brass control spindle.

The cartridge regulates the mixture of hot and cold water to control the shower temperature. Separate components in the shower valve control water flow and, where fitted, divert water between outlets. Replacing a failed thermostatic cartridge can restore temperature adjustment without replacing the complete shower valve.

Technical Details

- - Part Number: SSC50T20

- - Function: Thermostatic temperature regulation

- - Control spindle: Brass with 20 teeth

- - Body material: Engineered polymer

- - Seals: Three O-rings

- - Fitting type: Push-in cartridge

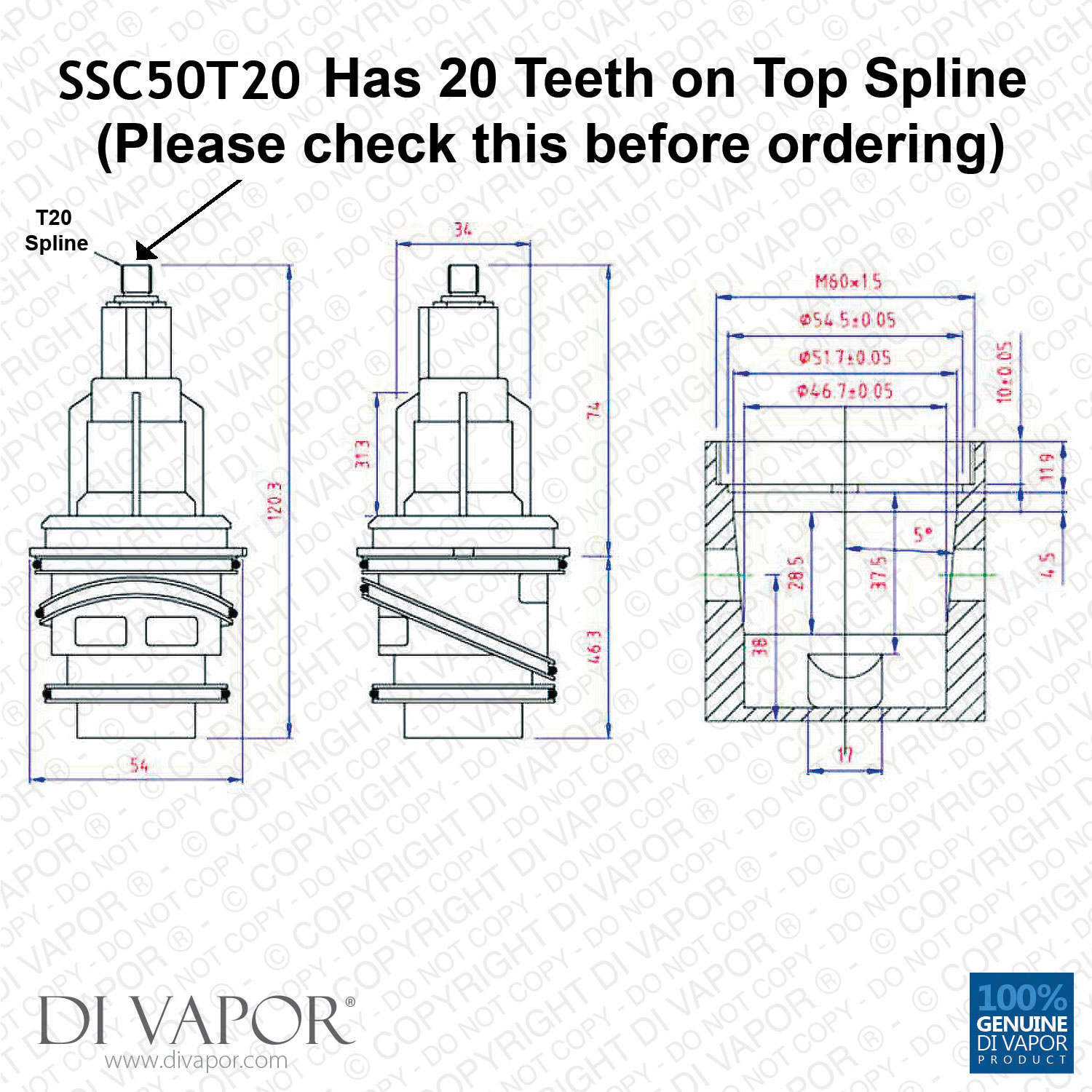

- - Illustrated overall length: 120.3mm

- - Illustrated maximum body width: 54mm

Before Ordering

Compare your original cartridge with the product photographs and dimensional drawing. Check the valve model, spindle tooth count, complete body profile, seal positions and retaining arrangement together. Pioneer valve versions can differ, so check the existing cartridge and its retaining arrangement carefully before ordering.

Confirmed Shower Valve Models

- - Premier JTY372 Pioneer round twin valve with chrome-plated brass trimset

- - Hudson Reed REI3407 Reign twin concealed thermostatic shower valve with diverter and round plate

- - Hudson Reed REI3410 Reign twin concealed thermostatic shower valve with round plate

- - Hudson Reed REI3411 Reign triple concealed thermostatic shower valve with round plate

Fault Finding and Fitting

Water that remains too hot or too cold, or a fluctuating shower temperature, can indicate a cartridge, calibration or supply problem. Check the incoming hot and cold supplies and the valve filters before replacing parts. Dripping from the shower head after shut-off can result from the separate flow cartridge or water retained in the head.

Isolate the hot and cold water supplies before servicing. Follow the instructions for your shower valve when removing and refitting the cartridge, and recalibrate and test the temperature control after installation.

Related Spares You May Need

Select related spares according to the shower valve model and the component being serviced.

- - Ultra VH039A Quest flow control shower handle for JTY372

- - Ultra SB322 4 way diverter cartridge

- - TACSIL 3g cartridge silicone grease

- - Ultra VH039 Quest thermostatic shower handle for JTY372

- - Ultra SVQ07 diverter cartridge for JTY372 and REI3407

- - Ultra SVR21W G 3/4 cold flow cartridge for JTY372, REI3410 and REI3411

- - Ultra V146 brass stop ring for VH039 handle

- - Ultra SVR21 ceramic disc flow cartridge for REI3410 and REI3411

- - Ultra SVR22 hot flow cartridge for REI3411

- - Hudson Reed VH044-M round temperature control handle for REI3407, REI3410 and REI3411

- - Hudson Reed VH054A shower flow control handle for REI3407, REI3410 and REI3411

- - Ultra VRTRIP1 triple concealed valve without thermostatic cartridge for REI3411

- - Ultra SVR22W G 3/4 hot flow cartridge for REI3411

- - NXT734 shower hose (optional shower accessory)

If you need help identifying your cartridge, use the Di Vapor part identification service.
