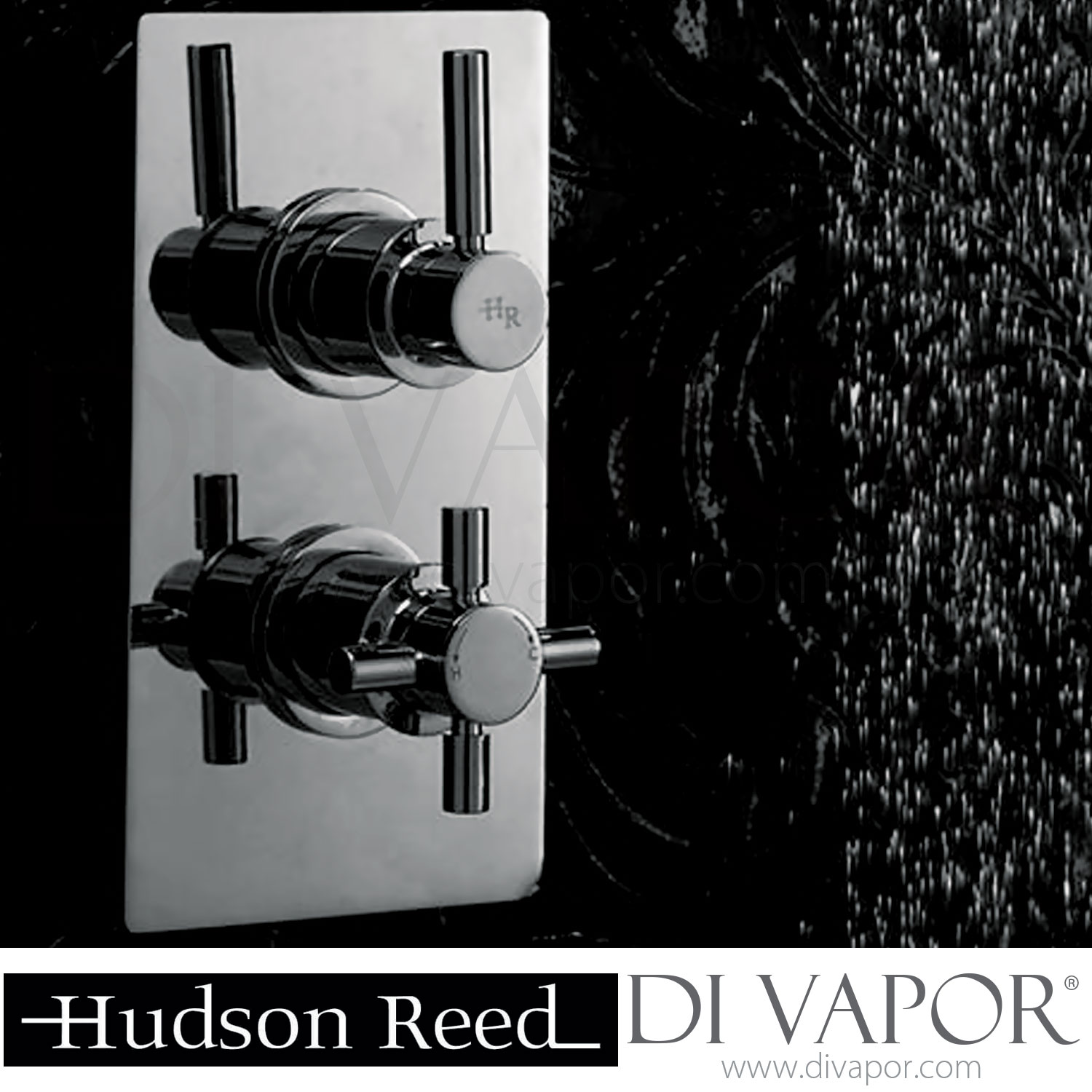

Hudson Reed Tec Pura Twin Concealed Thermostatic Shower Valve - A3003V Spare Parts

You will receive the original version of this cartridge as per the photos and not the cheap copy that is being sold in the market. This is a replacement screw in thermostatic cartridge for Hudson Reed SA30049 Ultra Group twin and triple valves which were mainly sold pre 2010. ...

This is a replacement flow cartridge for Hudson Reed SACDV, also known as Ultra SACDV. The sister part for this SACDV flow cartridge is the SA30049 thermostatic cartridge. Total Length: 54mm Number of Splines/Teeth: 20 Diameter of Splines/Teeth: 7.7mm Main Body Diameter: ...

SC50 T20 TMV2 Thermostatic Cartridge Replacement. The SC50-T20 (SC50T20) is used on the following shower mixer valve - Crosswater Totti Thermostatic Shower Valve - CROSSWATER-PARENT-3 - Hudson Reed Tec Pura Showers - Hudson Reed REI3407 Reign Twin Concealed Shower Va...

Hudson Reed SP350 Tap Handle Knobs - Tec Cross Heads Pair (Chrome) for 20 spline cartridges. These handles are used in the following models: TEX315, TEX353, TEX354, TEX337, TEX334 & TEX317...

Ultra STECLTH Control Handle for A3004 Valves Used on TEL315, TEL353, TEL354, TEL337, TEL334, A3004 and TEL317...

Ultra SVQ01 3/4 Tapered Conical Nut & Washer Top Internal Diameter: 18.3mm Bottom Screw Thread diameter: 24.5mm...

Ultra SVQ04 Flow Cartridge Shroud Diameter: 37.8mm Height: 39.5mm

Ultra SVQ05 Shroud For Valquest Twins / Triples

Ultra SVQ15 Non-Return Valve Concealed (NRV)

SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves - Clockwise close (anti-clockwise open). Total Length (including bottom seal): 85.7mm Diameter at Widest Point: 28.5mm Top Spline Diameter: 7.8mm Top Spline Teeth / Notches: 20 Barrel Diameter: ...

SVR22 87mm Ultra Hot Flow On/Off Cartridge (Red / Clockwise Open). Total Length (incl. red seal): 87.2mm Spindle Length (from top of circlip to end): 48mm Spindle Diameter: 9mm Spindle teeth head Diameter: 7.8mm Barrel Diameter: 23.8mm Lower Thread: 26mm Upper Thread (...

Ultra VH008 Tec Pura Temperature Control Handle (Crosshead). Used on 20 spline cartridges....

Hudson Reed VH008A Tec Pura Flow Lever Handle (Ultra Finishing) Diameter at widest round part: 40mm Diameter of bottom round part: 32mm Diameter of Top round part which says HR: 28mm Length of Lever Rod: 47mm Number of Splines: 20...

Ultra V068-P Ov20 Check Valve - Non-Return Valve This check valves is sold individually, therefore you'll receive one check valve with one purchase. If you need two, you will need to place an order for two. Measurements: Diameter of Yellow plastic section: 19.6mm (i.e. 20...

Ultra SVQ02 Non-Return Valve Housing

Ultra SA30047 Over Ride Button & Thermostat Shroud The SA30047 Ultra override button and thermostat shroud/housing is used in: - (A3003) Hudson Reed Triple Control Thermostatic Shower Valve - (A3003V) Hudson Reed Twin Control Thermostatic Shower Valve - (A3004) Ultra ...
