Hudson Reed A3003 Thermostatic Cartridge - Brass (A3003CT)
Send a photo of your item and we'll help confirm it.
Summary

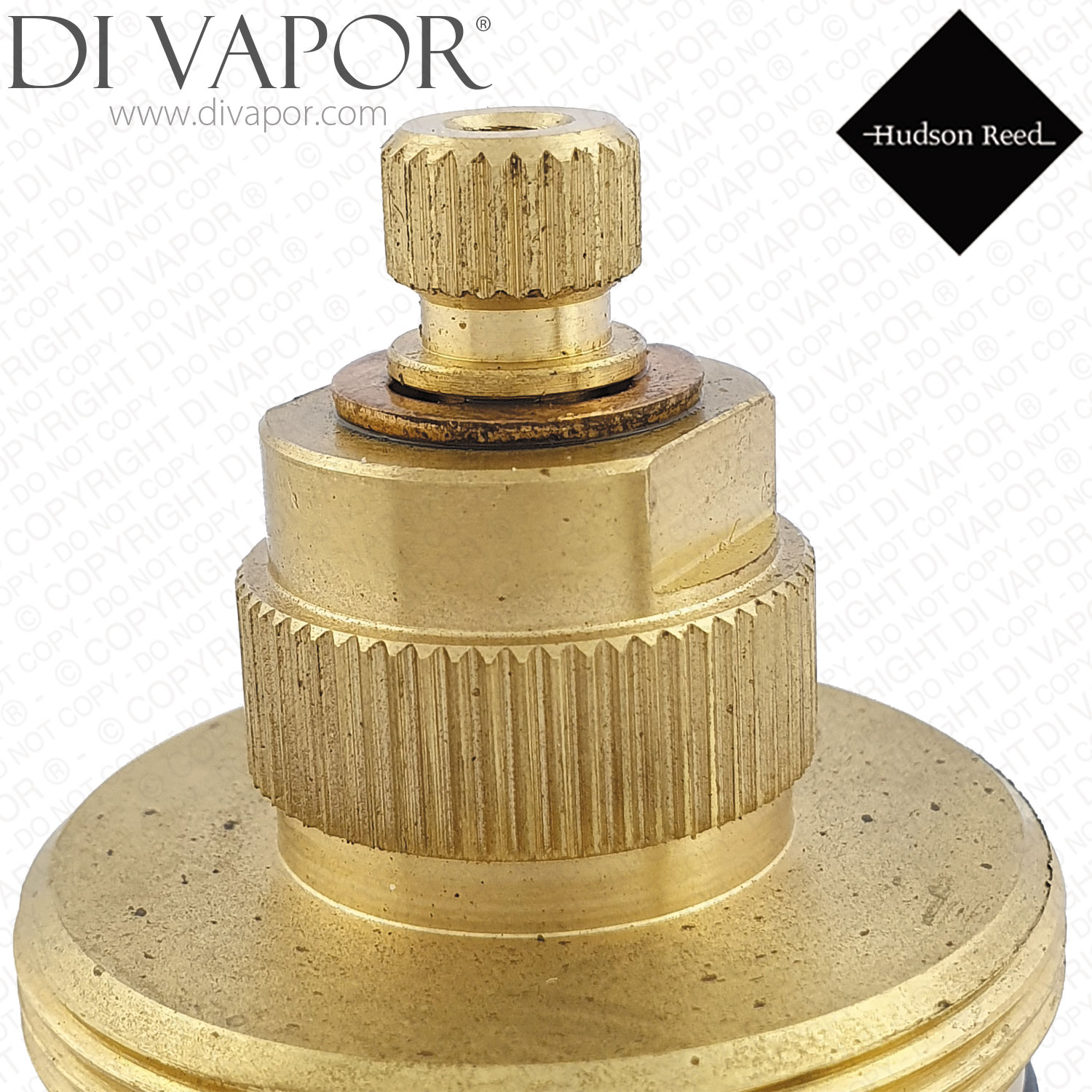

Hudson Reed A3003CT Brass Thermostatic Shower Cartridge for Ultra A3003 Tec Pura Triple Shower Valve
The Hudson Reed A3003CT is a brass thermostatic shower cartridge for the A3003 Tec Pura triple thermostatic shower valve. This cartridge sits inside the thermostatic section of the valve and regulates the mixed water temperature by reacting to hot and cold supply changes.
Use this part when the existing A3003CT thermostatic cartridge is worn, seized, scaled or no longer maintaining a stable outlet temperature. Typical temperature-control faults can include fluctuating shower temperature, reduced control range or failure to achieve the selected mixed temperature.
Technical Details
| Brand | Hudson Reed |
|---|---|
| Part Number | A3003CT |
| Part type | thermostatic shower cartridge |
| Cartridge material | brass |
| Valve application | A3003 Tec Pura triple thermostatic shower valve |
| A3003 valve maximum dynamic pressure | 5 bar |
| A3003 valve minimum dynamic pressure | 0.2 bar |
| A3003 valve factory outlet temperature setting | 43°C |
- A3003 valve minimum temperature differential from mixed water to hot water: 10°C
- A3003 valve temperature stability: ±2°C
Confirmed Valve Use
Before Ordering
- Match the removed cartridge to A3003CT and compare the cartridge body, brass construction, seals and spindle arrangement before ordering.
- Do not treat A3003PL, SA30049, SC50T20 or SC50T20-M as direct replacements for A3003CT unless the removed cartridge and valve documentation confirm that version is required.
- Cartridge seals should be lubricated with WRAS-approved silicone grease during fitting to help protect the O-rings and ease installation.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Hudson Reed PR905 3/4" On/Off Flow Cartridge for Quadro Valves - HR-PR905
- Ultra SVQ02 Non-Return Valve Housing
- Ultra V068-P Ov20 20mm Check Valve - Non-Return Valve
- SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves
- SVR22 87mm Ultra Hot Flow On/Off Cartridge (Red)
- Ultra SVQ01 3/4 Tapered Conical Nut & Washer
- Ultra SVQ04 Flow Cartridge Shroud
- Ultra SVQ05 Shroud For Valquest Twins / Triples
- Ultra SVQ15 Non-Return Valve Concealed (NRV)
- Ultra SVR21W G 3/4" Cold CD Valve Flow Cartridge
- Ultra SVR22W G 3/4" Hot CD Valve WRAS Approved
