Hudson Reed SPR06 Spline Adapter - Pair
Send a photo of your item and we'll help confirm it.
Summary
Screws are no longer included.

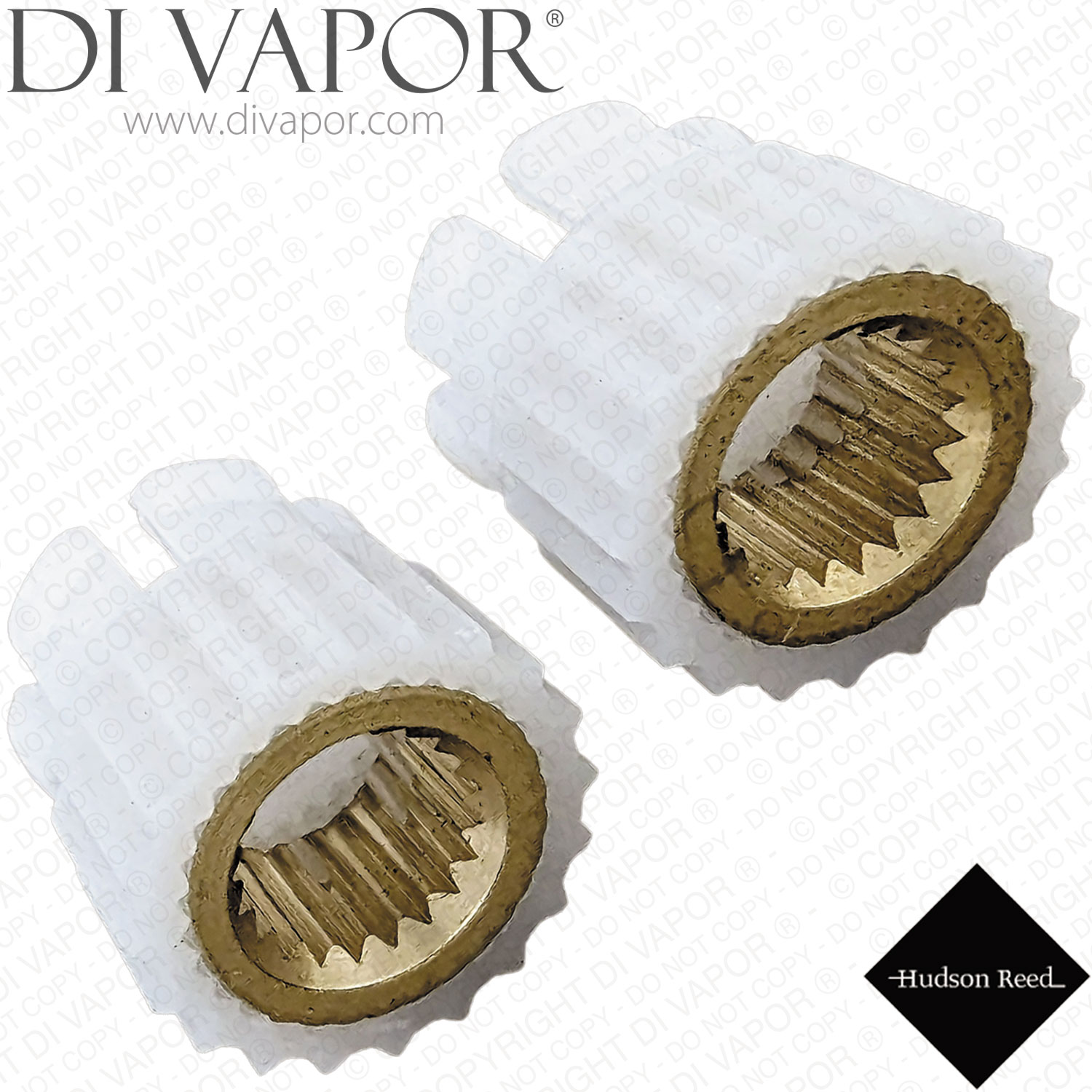

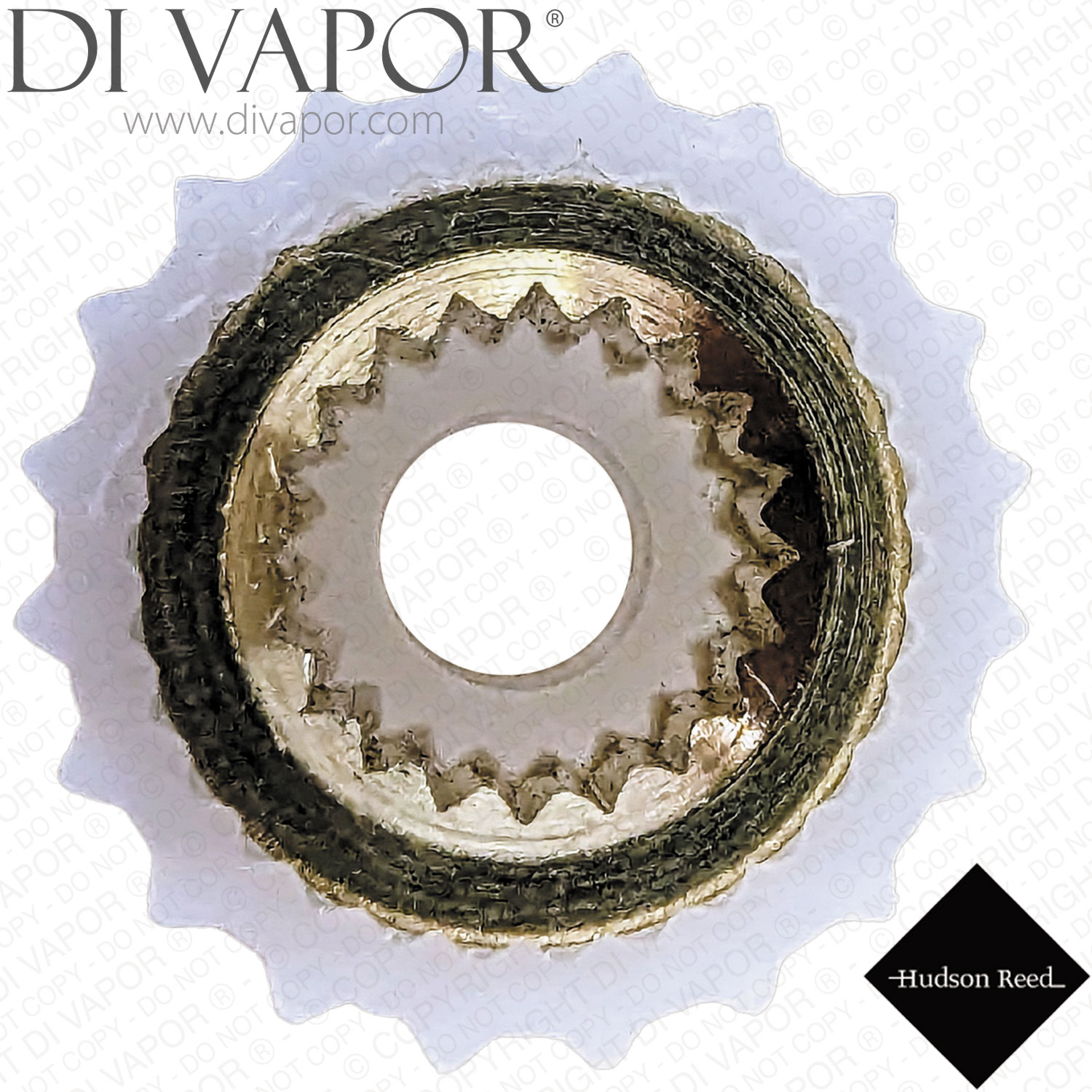

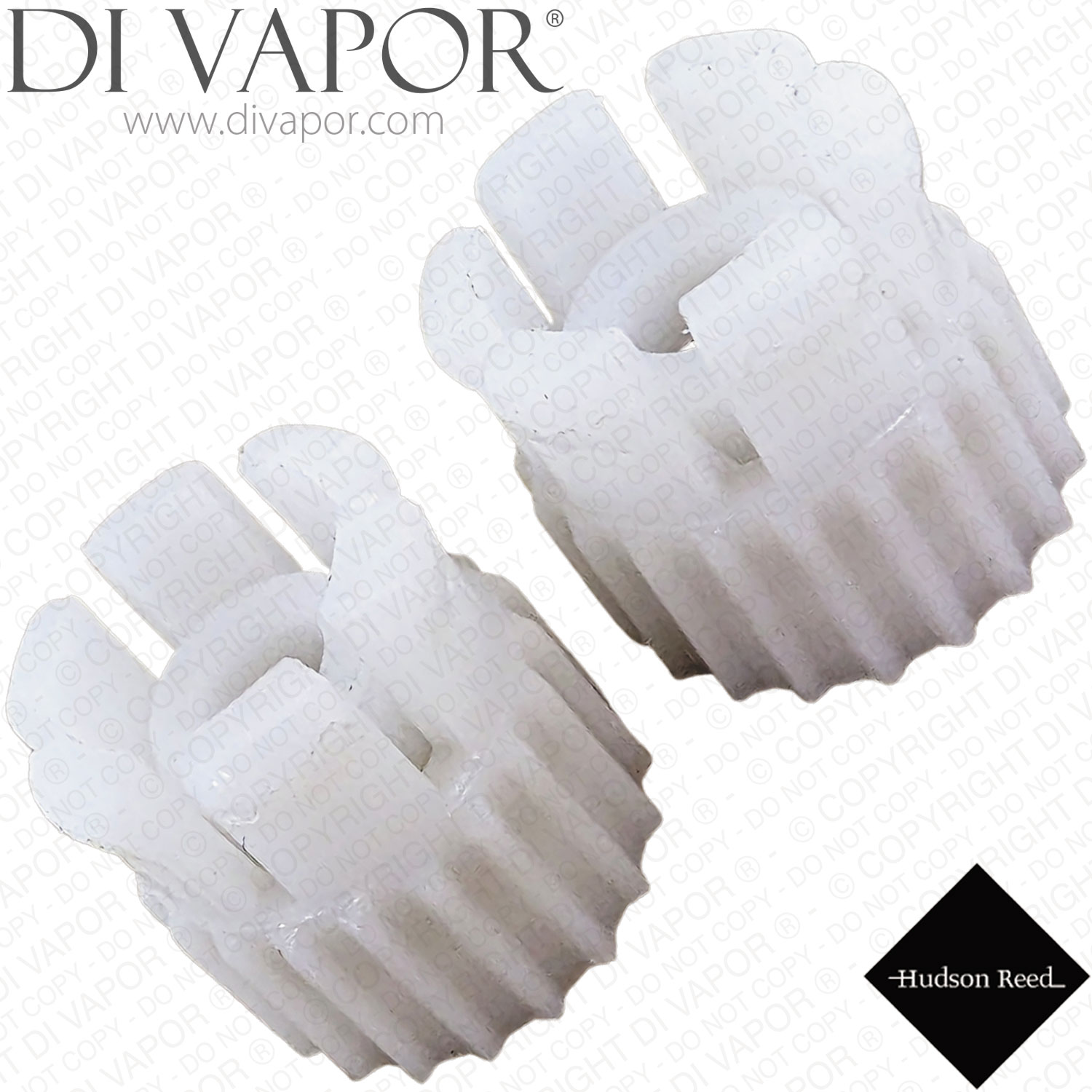

Hudson Reed SPR06 is a pair of spline adapters used to connect a 7.6mm 20-spline cartridge or valve spindle to a larger 15.33mm 20-spline handle interface on selected Hudson Reed and Ultra tap or shower valve assemblies.
The adapter acts as a handle bush between the cartridge spindle and the control handle. Check the spline count, spline diameter, overall height and handle arrangement against the original part before ordering. Screws are no longer included.
Technical Details
- Supplied as a pair
| Part type | spline adapter pair / handle bush pair |
|---|---|
| External spline diameter | 15.33mm |
| External spline count | 20 teeth / splines |
| Internal spline diameter | 7.6mm |
| Internal spline count | 20 teeth / splines |
| Total height | 15.1mm |
- Screws are no longer included
Before You Order
Do not rely on the 20-spline count alone. Compare the internal spline diameter, external spline diameter, total height and the original handle fixing method before fitting this SPR06 adapter pair.
Confirmed Compatible Models
- PW302 Hudson Reed Designer Xeta Bath Taps
- TEL353 Hudson Reed Tec Lever Bath Tap Filler With Swivel Spout
- TEL313 Hudson Reed Tec Lever Wall Mounted Bath Mixer
- TEL305 Hudson Reed Tec Lever Mono Basin Mixer Tap With Large Swivel Spout & Pop Up Waste
- TEL306 Hudson Reed Tec Lever Mono Bidet Mixer Tap
- TEL307 Hudson Reed Tec Lever 3 Tap Hole Basin Mixer
- TEL315 Hudson Reed Tec Lever Mono Basin Mixer Tap inc Swivel Spout & Waste
- TEL317 Hudson Reed Tec Lever Wall Mounted Basin Mixer Tap
- TEX305 Hudson Reed Tec Crosshead Mono Basin Mixer Tap
- TEX307 Hudson Reed Tec Crosshead 3 Tap Hole Basin Mixer
- TEX311 Hudson Reed Tec Crosshead Freeflow Bath Valves
- TEX311-E358 Hudson Reed Tec Crosshead Freeflow With Pop Up Waste Overflow and Bath Filler Valves
- TEX315 Hudson Reed Tec Crosshead Mono Basin Mixer Tap With Swivel Spout & Waste
- TEX317 Hudson Reed Tec Crosshead Wall Mounted Basin Mixer Tap
- HEX317 Hudson Reed / Ultra Helix Crosshead Wall Mounted Basin Mixer Tap
- HEX323 Hudson Reed / Ultra Helix Crosshead Swivel Spout Bath Filler
- HEX324 Hudson Reed / Ultra Helix Crosshead Swivel Spout Bath Shower Mixer
- HEX373 Hudson Reed / Ultra Helix Crosshead Wall Mounted Bath Filler Spout
- A3010 Hudson Reed Kia / Jule Twin Concealed Thermostatic Shower Valve
- A3011 Hudson Reed Kia Triple Concealed Thermostatic Shower Valve
- A3010-A3287 Hudson Reed Kia / Jule Twin Concealed Thermostatic Shower Valve With P-zazz Slider Rail Kit
- A3010-A3218 Hudson Reed Kia / Jule Twin Concealed Thermostatic Shower Valve With Cloudburst Fixed Head
- A3010-A3239 Hudson Reed Kia / Jule Twin Concealed Thermostatic Shower Valve With Minimalist Square Fixed Head Arm
- A3011-A3288-A3287 Hudson Reed Kia / Jule Triple Concealed Thermostatic Shower Valve With P-zazz Slider Rail Kit and P-zazz Fixed Head
- A3011-A3219-A383(x4) Hudson Reed Kia / Jule Triple Concealed Thermostatic Shower Valve With Tec T-bar Fixed Head and 4 Body Jets
- A3011-A3217-A354(x4) Hudson Reed Kia / Jule Triple Concealed Thermostatic Shower Valve Tec 8 Fixed Head and 4 Square Body Jets
