Ultra V068-P Ov20 20mm Check Valve - Non-Return Valve

SUMMARY

Ultra V068-P Ov20 Check Valve - Non-Return Valve

Note: This check valves is sold individually, therefore you'll receive one check valve with one purchase. If you need two, you will need to place an order for two.

Measurements:
Diameter of Yellow plastic section: 19.6mm (i.e. 20mm)
Approximate Diameter at o-ring: 20.2mm

Common Question:

What is a Check Valve?
- A check valve is a valve which stops the backwards flow of water. This means that water can flow through it one way, but will prevent the water from flowing back through that point.

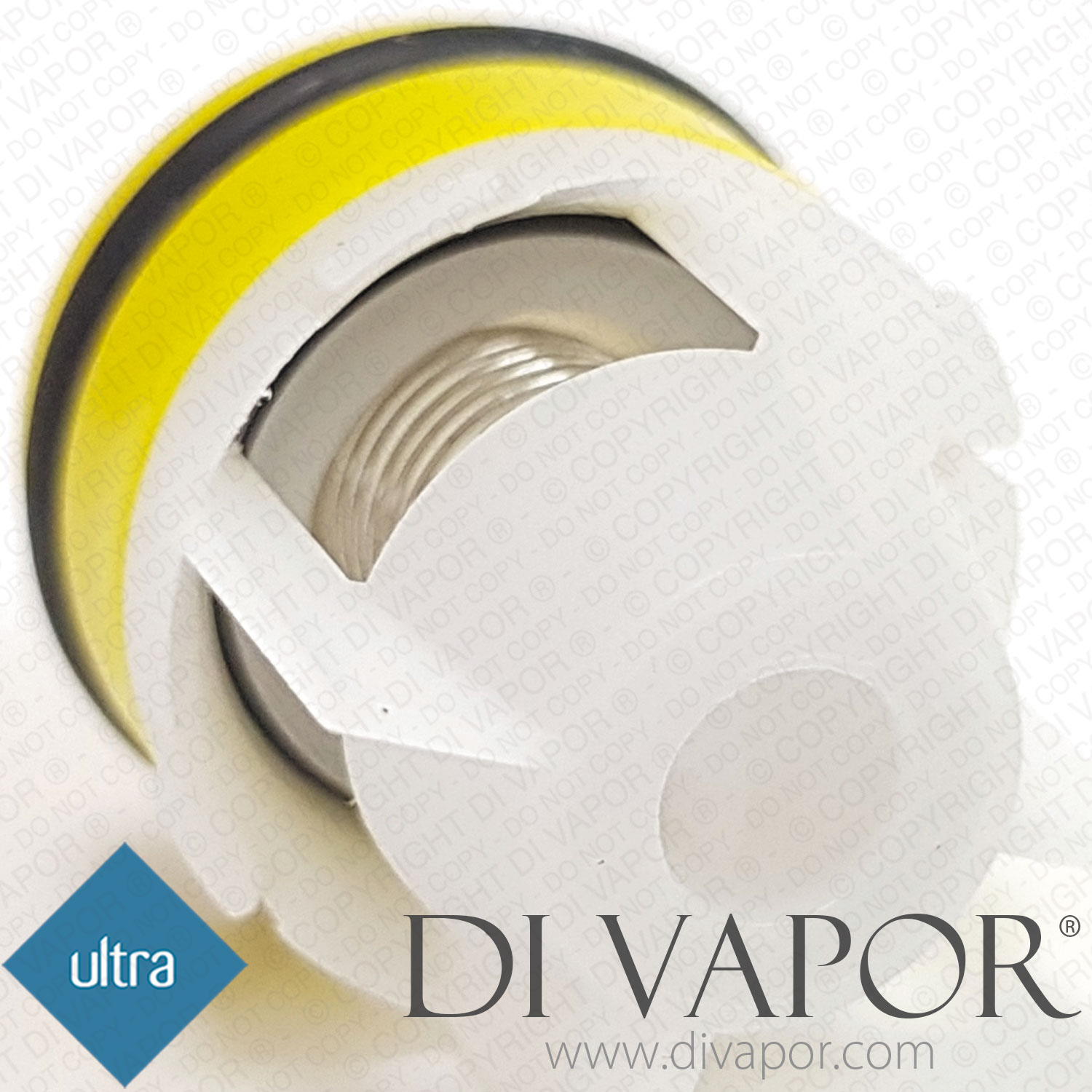

The Ultra V068-P Ov20 Check Valve - Non-Return Valve is made from a white and yellow plastic.

The Ultra V068-P Ov20 is a nominal 20mm non-return check valve insert for selected Ultra and Hudson Reed shower valves. It is supplied individually, with one check valve per purchase.

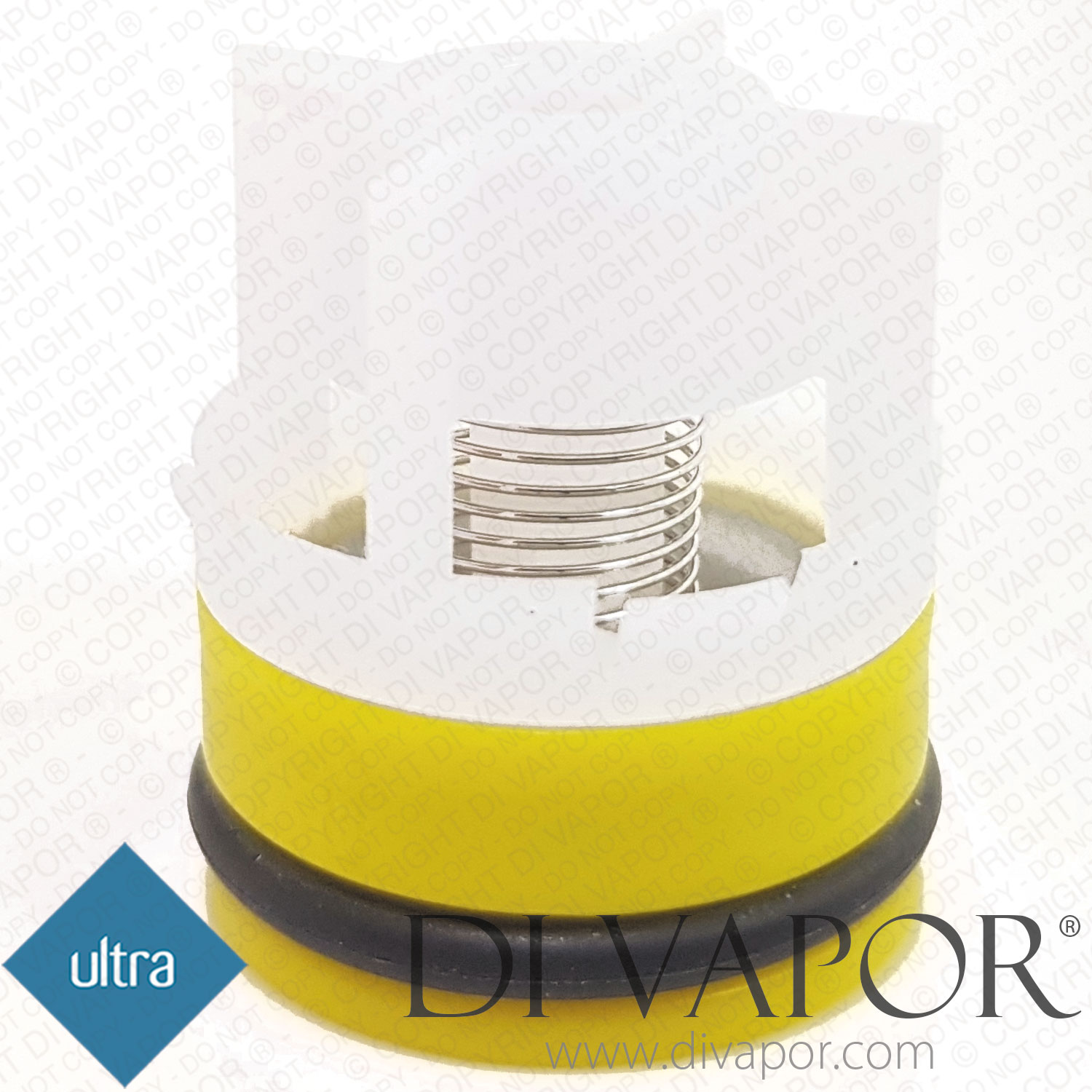

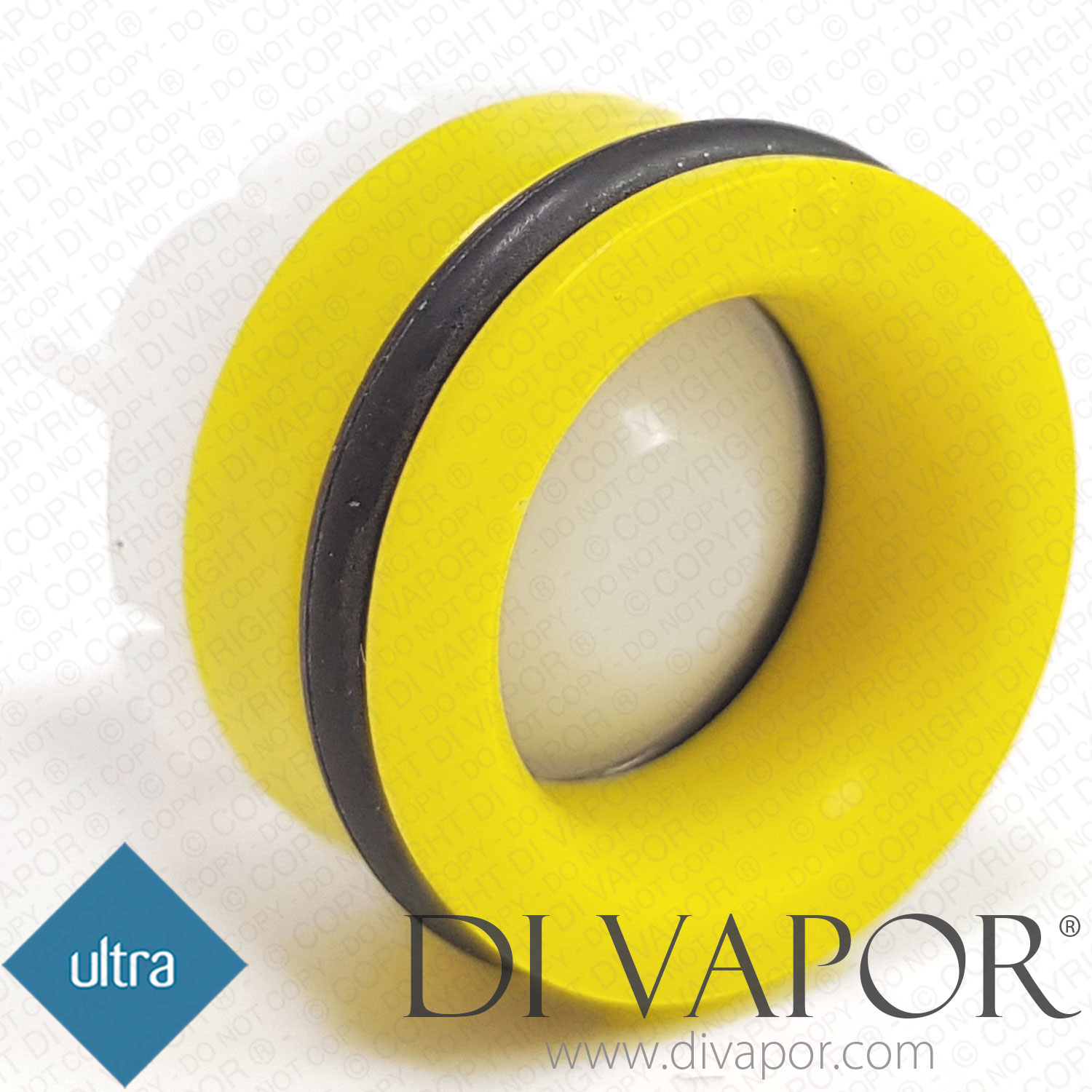

The spring-loaded insert allows water to pass towards the mixer and helps prevent reverse flow into the supply. Its white and yellow plastic body carries an external O-ring. The housing is supplied separately; order a quantity of two if two inserts are required.

Technical Details

- - Part Number: V068-P

- - Check valve designation: Ov20

- - Part type: Non-return check valve insert

- - Nominal size: 20mm

- - Body material: White and yellow plastic

- - Seal: One external O-ring

- - Mechanism: Spring-loaded

- - Quantity supplied: One check valve

- - Housing: Not included

Confirmed Shower Models

- - Ultra A3003 Tec Pura Plus triple thermostatic shower valve

- - Hudson Reed A3003V Tec Pura twin concealed thermostatic shower valve

- - Hudson Reed A3014 Kubix triple concealed thermostatic shower valve

Before Ordering

Match the valve model, existing insert shape, O-ring position and inlet housing before ordering. The nominal diameter alone does not establish fit.

For A3380 valves, check the existing non-return insert and inlet housing before selecting this part. V068-P and SAOV15 are different inserts, and the model code alone does not identify the required size.

- - Hudson Reed / Ultra A3380 concealed traditional sequential shower valve - Confirm the existing insert and housing before ordering

Fault Symptoms and Checks

Hot water passing into the cold supply, or vice versa, can indicate an obstructed check valve. A sticking check valve or blocked inlet strainer can also cause poor flow.

Persistent dripping when the shower is turned off should prompt a check of the flow-control cartridge for debris or wear. This check valve does not provide the shower's normal on/off control.

Fitting

Isolate both water supplies before opening the valve. Inspect the inlet strainers and housing for debris or damage, and follow the valve manufacturer's servicing instructions. After fitting, restore the supplies and check for leaks and correct operation.

Related Spares You May Need

The following parts are supplied separately for the valve models and arrangements described below. Internal cartridge versions, handles and trim vary, so match each spare to the fitted part and select only the items needed for the repair.

Check Valve Housing and Assemblies

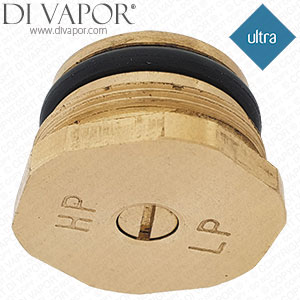

- - Ultra SVQ02 non-return valve housing - Separate housing

- - Ultra SVQ02-V068 complete non-return valve and housing assembly - For renewing the complete assembly; confirm the existing arrangement

- - Ultra SVQ15 concealed non-return valve assembly - For valves fitted with the SVQ15 arrangement; check the complete assembly

Twin and Triple Valve Thermostatic Cartridges

- - SC50T20-M thermostatic cartridge

- - Hudson Reed A3003CT brass thermostatic cartridge for A3003

- - Hudson Reed A3003PL plastic thermostatic cartridge for A3003

- - Hudson Reed SA30049 thermostatic cartridge - Original version

- - Hudson Reed SA30049-2 thermostatic cartridge - Version 2

Twin and Triple Valve Flow and Diverter Parts

- - Ultra SACDV 3/4-inch ceramic-disc flow headwork

- - SVR21 quarter-turn flow cartridge

- - SVR22 hot flow cartridge

- - Ultra SVR21W cold flow cartridge

- - Ultra SVR22W hot flow cartridge

- - Ultra SVQ07 diverter cartridge

Twin and Triple Valve Controls and Trim

- - Ultra SA30047 override button and thermostat shroud

- - Ultra SVQ01 tapered conical nut and washer

- - Ultra SVQ04 flow cartridge shroud

- - Ultra SVQ05 twin and triple valve shroud

- - Hudson Reed SP350 Tec crosshead handle pair

- - Ultra STECLTH control handle

- - Ultra VH008 Tec Pura temperature-control handle

- - Hudson Reed VH008A Tec Pura flow lever handle

- - Hudson Reed VH003A-M Kubix flow-control handle - For the A3014 arrangement

- - Hudson Reed VPS002 triple rectangular plate with round flanges - For the A3003 arrangement

- - Ultra VPS011 triple rectangular plate with square flanges - For the A3014 arrangement

A3380 Sequential Valve Parts

For an A3380 repair, identify the fitted cartridge, spindle, handle and inlet components before choosing these parts. In particular, SAOV15 is a separate smaller insert and must not be used as an interchangeable substitute for V068-P.

- - Ultra SAR00-CS thermostatic cartridge service kit - Cartridge, handle and Hot/Off plate

- - SAR00 thermostatic cartridge - Cartridge assembly without the handle

- - Ultra SAR00-HANDLE temperature-control handle - Traditional design

- - Ultra SAR00-A3380-HANDLE temperature-control handle - Conical design

- - Hudson Reed SA3290SPIN2 24-spline spindle

- - Ultra A3380-PP SAR00 indicator plate - Small control plate

- - Ultra A3380 Beaumont concealed faceplate - Large outer plate

- - Ultra SAOV15 non-return valves - Pair for installations requiring SAOV15; different insert size from V068-P

Optional Servicing Materials

Use seal lubricant only where permitted by the valve manufacturer's servicing instructions.

- - TACSIL 3g silicone grease

- - GROHE 2g SYNTHESO LM 220 silicone grease

If you need help finding the right part, use the Di Vapor part identification service.
