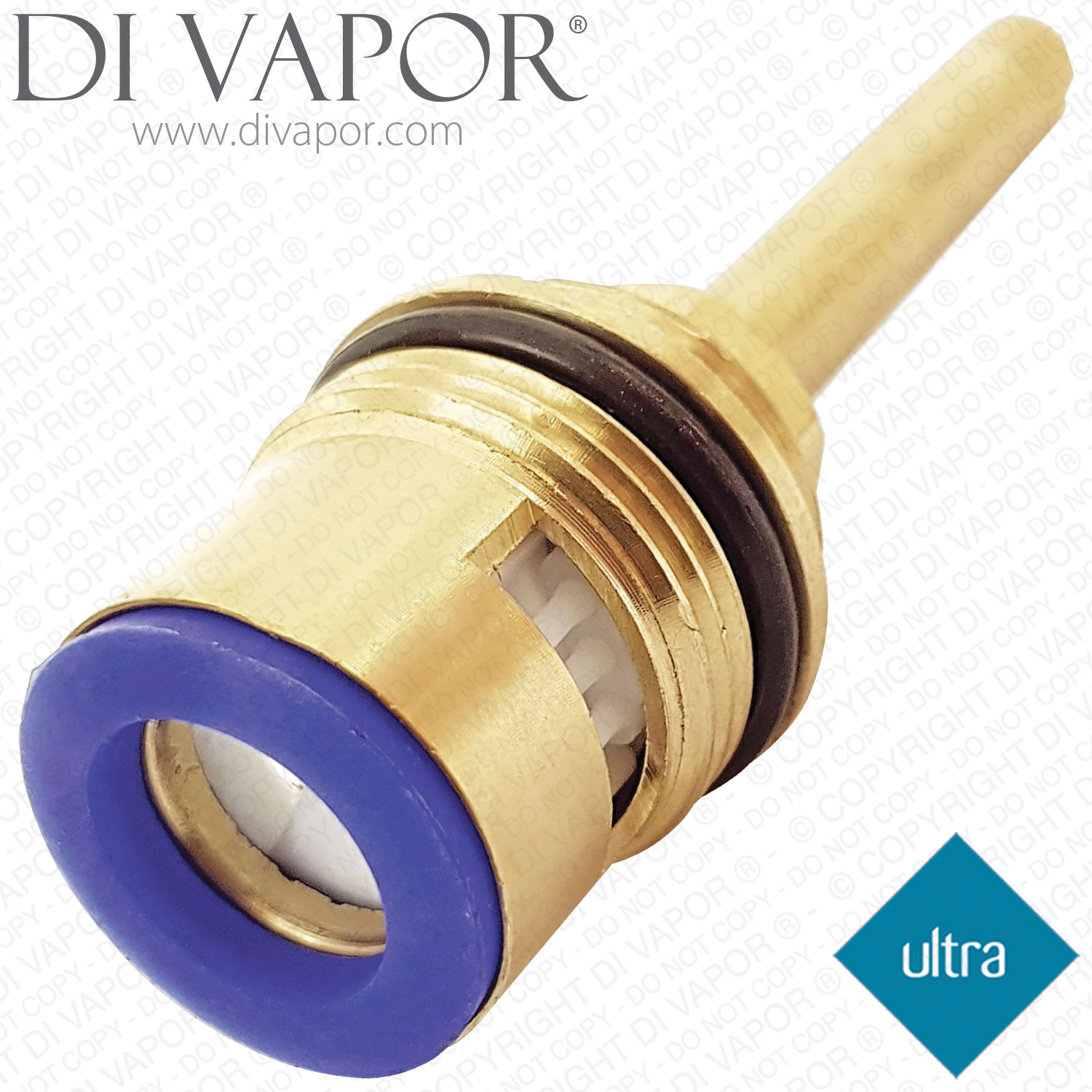

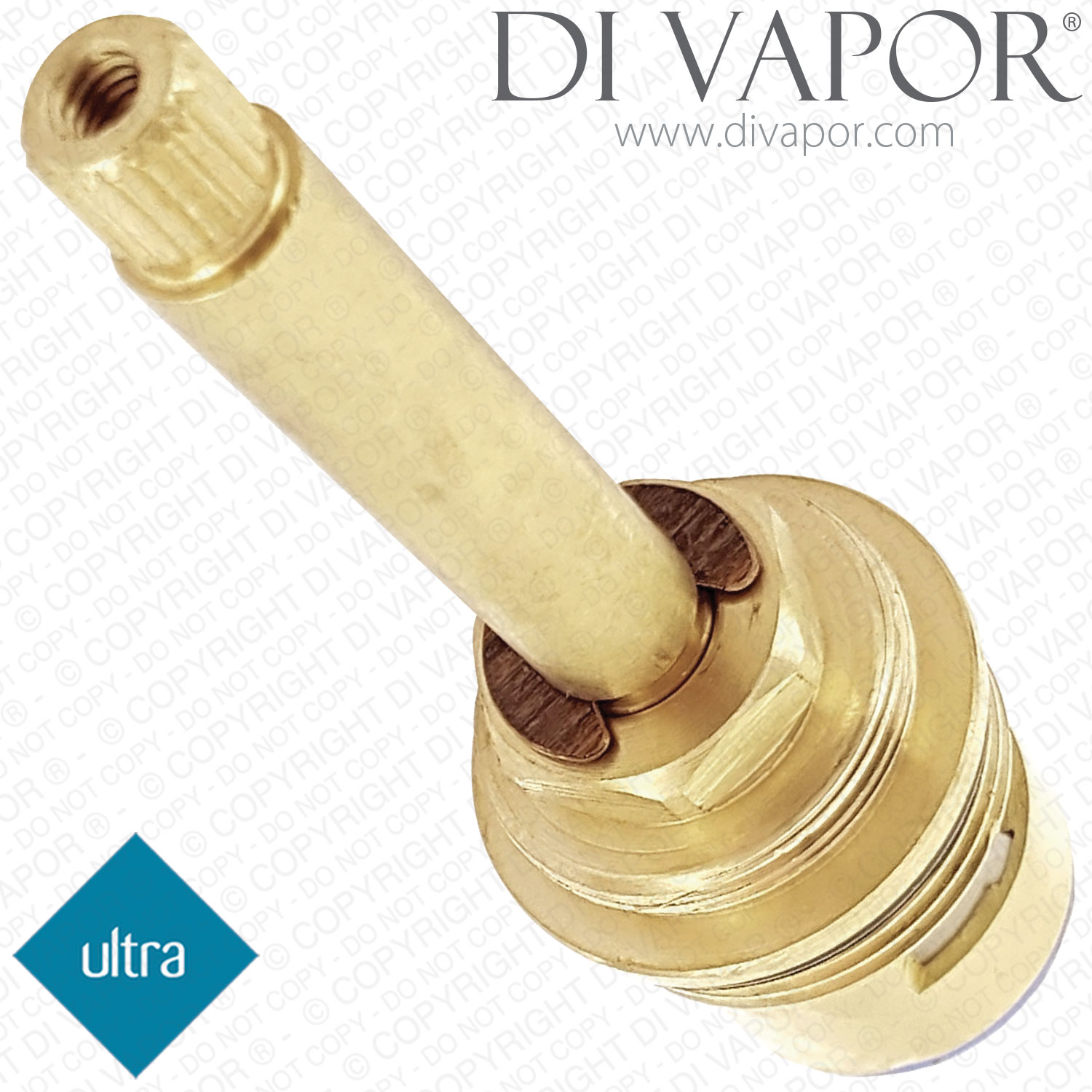

SVR21 Ultra 3/​4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves

SUMMARY

SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves - Clockwise close (anti-clockwise open).

Total Length (including bottom seal): 85.7mm
Diameter at Widest Point: 28.5mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 23.6mm
Lower Thread: 27.6mm
Upper Thread (closer to spline): 24mm
Bottom Seal Colour: Blue (for Cold Side)
Close Direction: Clockwise Close (Anti-Clockwise Open)

This on / off valve cartridge is used in a number of different Ultra valves and needs replacing if your shower begins to drip from the shower head or from out of the on/off handle. This is because the ceramic discs within the cartridge have become damaged and no longer create a water tight seal.

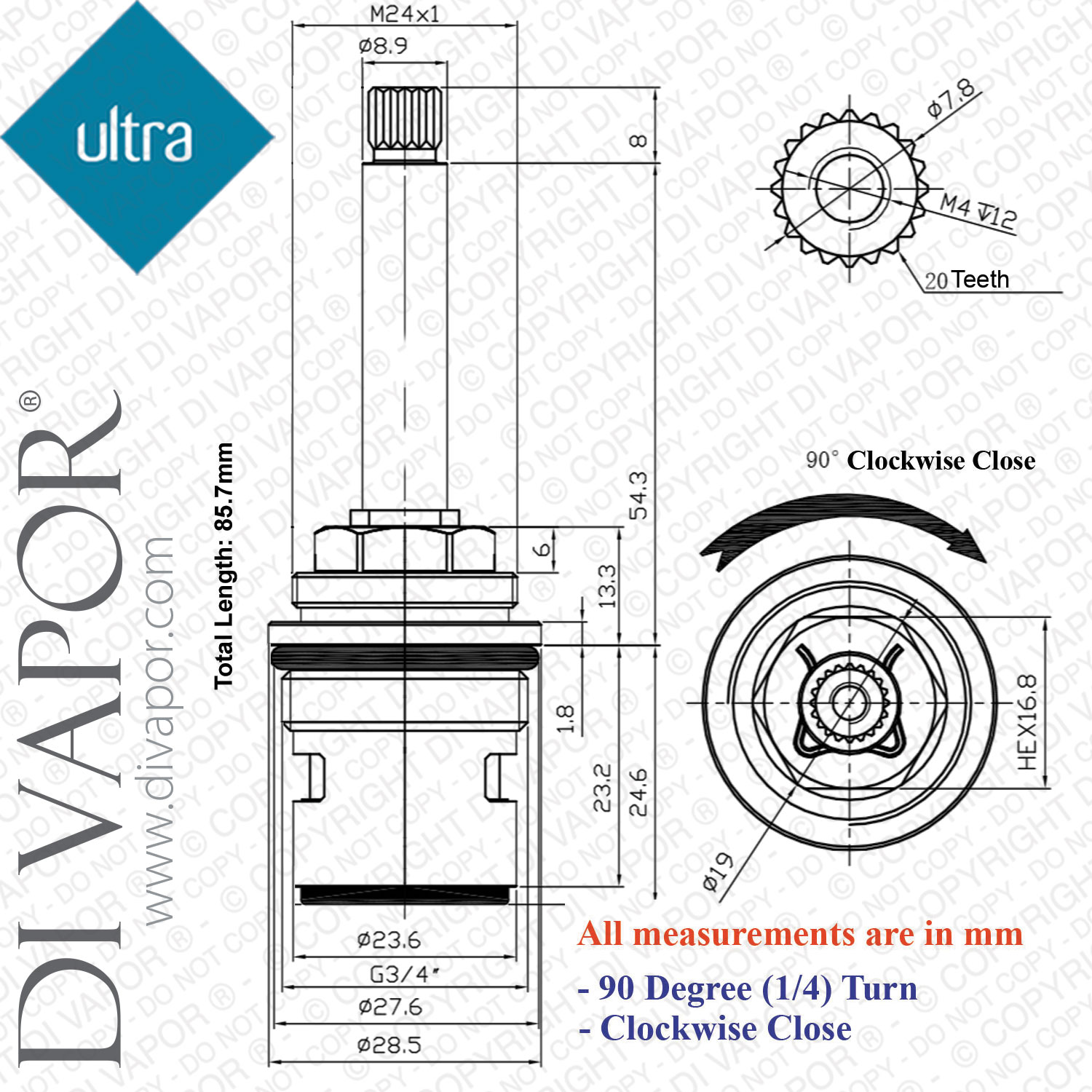

If you don't know if you need the SVR21 cartridge because you don't have a code, please measure the cartridge and compare it to the technical diagram in picture 2. If you're still unsure, send us a photo of your cartridge and give some of the key measurements.

To remove the old SVR21 cartridge from the valve, use a 17mm spanner (ideally a box spanner) and turn the cartridge anti-clockwise). When the cartridge is removed, check inside the valve for debris that may have found its way through the pipes and into the valve as it may have even been these little bits that have damaged the ceramic discs. Once you are happy that the valve is clear of debris, put silicone grease on the black o'ring (and preferably on the blue rubber seal at the bottom). By doing this, it will create a better long term water tight seal.

Screw the new cartridge into the valve and tighten. Turn the shower on and the dripping shower should be fixed.

Confirmed Models

SVR21 is listed for the shower valve models below. Different production versions can use different cartridge assemblies, so check the existing cartridge type before ordering.

- - Hudson Reed Art: ART3210 twin; ART3211 triple

- - Hudson Reed Aspire: ASP3210 twin; ASP3211 triple

- - Hudson Reed Arcade: ARC3210 twin; ARC3211 triple

- - Hudson Reed Arina: ARI3210 twin; ARI3211 triple

- - Hudson Reed Clio: A3015 twin; A3415 twin

- - Hudson Reed Cloud 9: CLO3211 triple

- - Hudson Reed Dias: DIA3210 twin

- - Hudson Reed Genna: GEN3210 twin; GEN3211 triple

- - Hudson Reed Grace: GRA3210 twin with square plate; GRA3411 triple with round plate

- - Hudson Reed Harmony: HAR3211 triple

- - Hudson Reed Hero: HER3210 twin with square plate; HER3410 twin with round plate; HER7210 black twin; HER3411 triple with round plate; HER7211 black triple

- - Hudson Reed Kia: A3011 triple; KIA3023 triple with diverter

- - Hudson Reed Kristal: KRI3210 twin; KRI3211 triple

- - Hudson Reed Kubix: A3013 twin; A3063 twin with built-in outlet; A3014 triple; KUB3023 triple with diverter

- - Hudson Reed Lennox: SQR3210 twin

- - Hudson Reed Motif: MOT3210 twin; MOT3211 triple

- - Hudson Reed Rapid: RAP3210 twin with square plate

- - Hudson Reed Reign: REI3210 twin with square plate; REI3410 twin with round plate; REI3411 triple with round plate

- - Ultra / Hudson Reed Tec Pura and Tec Pura Plus: A3003V Tec Pura twin; A3003 Tec Pura Plus triple; A3023 Tec Pura Plus triple with diverter

- - Hudson Reed Topaz: TSVT002 twin; BTSVT002 black twin; TSVT003 triple; BTSVT003 black triple

- - Ultra Charm: CHRV01 twin with oval plate; CHRV03 triple with oval plate; CHRV53 triple with rectangular plate

- - Ultra Ecco: ECCV53 triple

- - Ultra Entity: ENTV51 twin with rectangular plate; ENTV03 triple with oval plate

- - Ultra Flume: FLUV51 twin with rectangular plate; FLUV03 triple with oval plate; FLUV53 triple with rectangular plate

- - Ultra Helix: HELV51 twin with crosshead controls; HELV53 triple; A3004 twin with oval plate in the A3004 / PK346 listing

- - Ultra Muse: MUSV51 twin with A3029 Intuition shower kit

- - Ultra Prospa: PROV51 twin with ARM12 / HEAD42 fixed-head package

- - Ultra Quest: QUEV51 twin with rectangular plate; QUEV53 triple with rectangular plate

- - Ultra Ratio: RATV51 twin with rectangular plate; RATV53 triple

- - Ultra Traditional: A3033 twin; A3057 triple

- - Ultra Vibe: VIBV51 twin with ARM13 / HEAD91 fixed-head and arm package

- - Ultra Volt: CHAV51 twin

- - Hudson Reed A3096 Traditional triple shower valve (versions originally fitted with SVR21)

Related Spares You May Need

These spares are used in selected valve assemblies and production versions. Check the existing component before ordering, as the parts listed are not interchangeable across all models.

- - Ultra VH039A Quest flow control handle

- - Ultra VH019 Beaumont X-head temperature control handle

- - Ultra SVR22 hot flow cartridge (clockwise opening with opposite operation to SVR21)

- - Ultra SVQ07 diverter cartridge (for the matching outlet-selection assembly)

- - Ultra SB322 four-way diverter cartridge (for valves fitted with the matching four-way diverter)

- - TACSIL 3g silicone grease (Part Number TAC86)

- - Ultra SVQ15 concealed non-return valve

- - Hudson Reed SVQ13 diverter cartridge (for the matching VQ15/16 assembly; retaining nut sold separately)

- - SC50T20 / SC50-T20 / SC50T20-M thermostatic cartridge (match the existing temperature-control cartridge)

- - Hudson Reed KRI3023 Kristal thermostatic cartridge (for the matching KRI3023 temperature-control assembly)

- - Hudson Reed KIA3023 Kia/Jule thermostatic cartridge (check the fitted cartridge version)

- - Hudson Reed A3003CT brass thermostatic cartridge (for the matching brass-cartridge assembly)

- - Ultra VH046A Art / Aspire / Prospa flow control handle

- - Ultra VH026 Helix temperature control handle

- - Ultra VH026A Helix flow control handle

- - Hudson Reed VPS002 triple rectangular plate with round flanges

- - Hudson Reed SA30049 thermostatic cartridge (for the matching earlier valve assembly)

- - Hudson Reed VH009 Kristal temperature control crosshead handle

- - Hudson Reed VH009A Kristal flow control crosshead handle

- - Hudson Reed VH054A Cloud 9 / Ratio flow control handle

- - Ultra SVR22W hot flow cartridge (anticlockwise closing and clockwise opening; opposite operation to SVR21)

- - Ultra VRTRIP1 triple concealed valve body (supplied without a thermostatic cartridge)

- - Ultra SVQ01 3/4 tapered conical nut and washer

- - Ultra SVQ04 flow cartridge shroud

- - Ultra SVQ05 Valquest twin/triple shroud

- - Ultra VPS003 twin oval faceplate

- - Hudson Reed VH044-M round temperature control handle (Part Number VH044)

- - Ultra VPS011 triple rectangular plate with square flanges

- - Ultra VH013 traditional crosshead handle

- - Ultra VH013A traditional lever handle

- - Ultra VPS013 Topaz triple concealing plate

- - Hudson Reed A3003PL plastic thermostatic cartridge (for the matching plastic-cartridge assembly)

- - Ultra SVQ02 non-return valve housing

- - Ultra V068-P 20mm check valve

- - Ultra VH008 Tec Pura temperature control crosshead handle

- - Hudson Reed VH008A Tec Pura flow lever handle

- - Hudson Reed SA30049-2 thermostatic cartridge (Version 2; match the existing assembly)

- - Ultra SA30047 override button and thermostat shroud (for the matching earlier temperature-control assembly)

- - Ultra VH039 Quest temperature control handle

- - Hudson Reed VH003A-M Kubix flow control handle

- - Ultra SAOV15 non-return valve pair (pack of two)

- - Ultra V107 ABS thermostat collar (for the matching A3004 assembly)

- - Ultra V108 brass flow control collar (for the matching A3004 assembly)

Isolate the water supplies before removing the old cartridge. Compare the existing cartridge with the product images and technical drawing, including the threads, spline profile and closing direction.

If you are unsure which part you need, use our part identification service.
