Ultra SVQ15 Non-Return Valve Concealed (NRV)
Part number: SVQ15
Price: £34.00
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

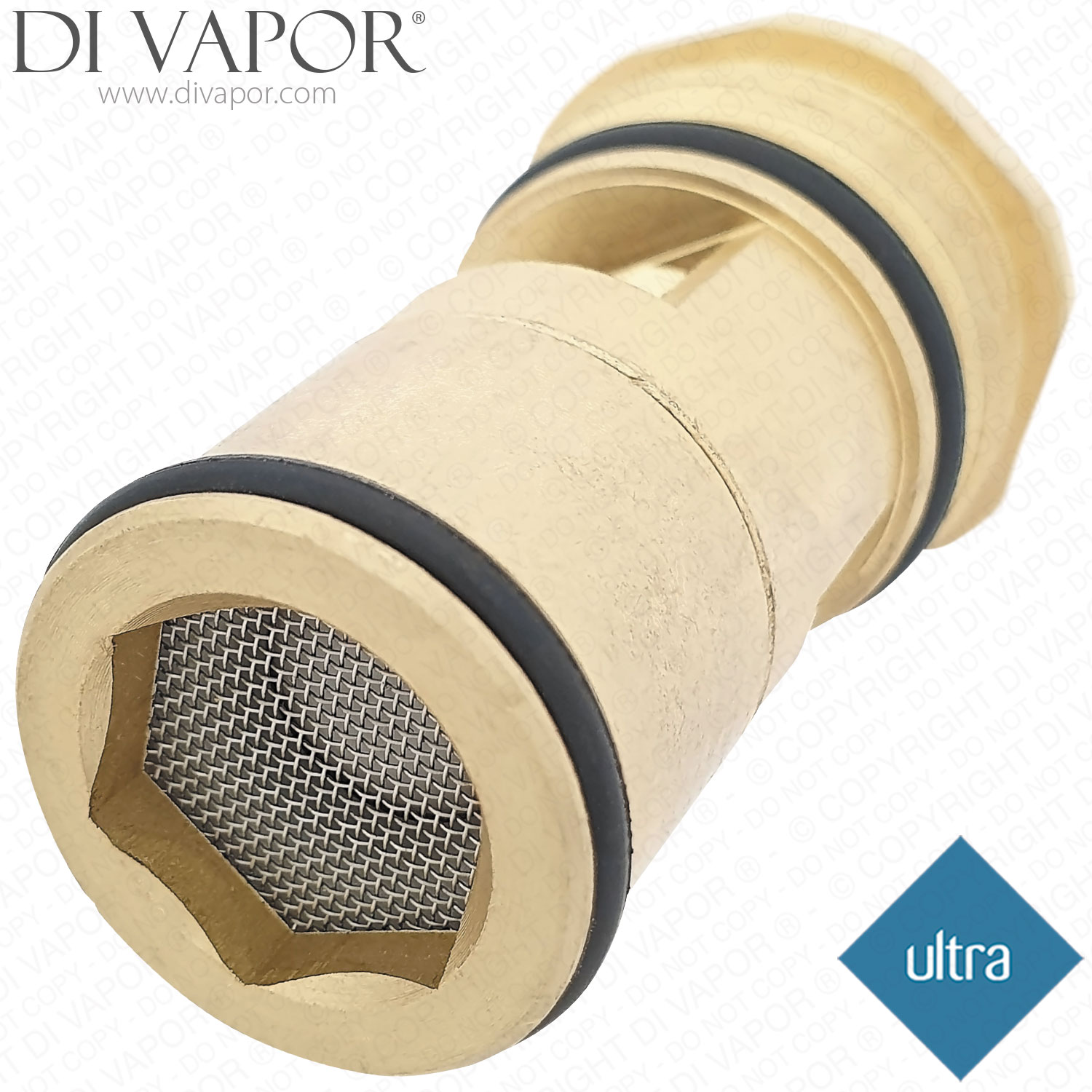

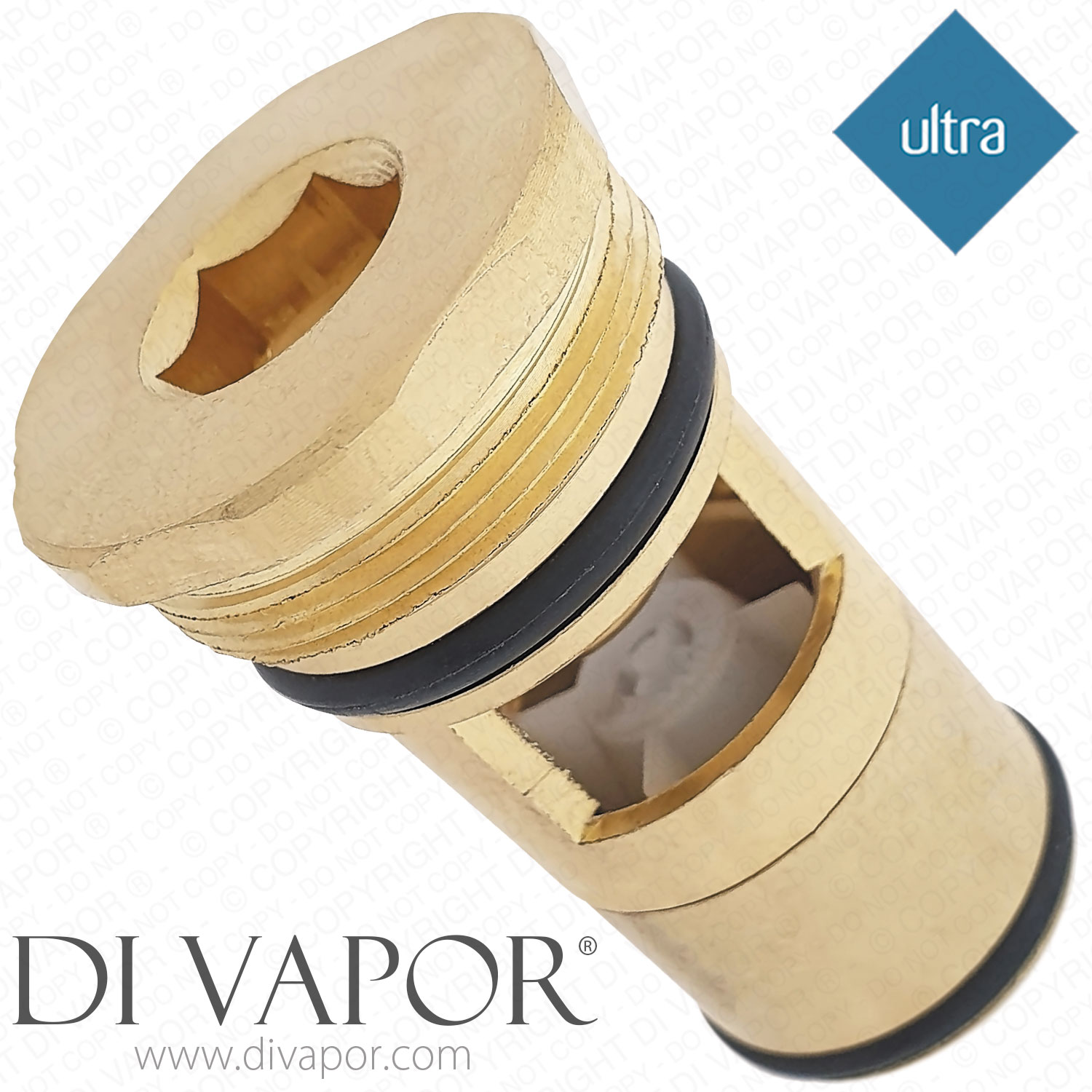

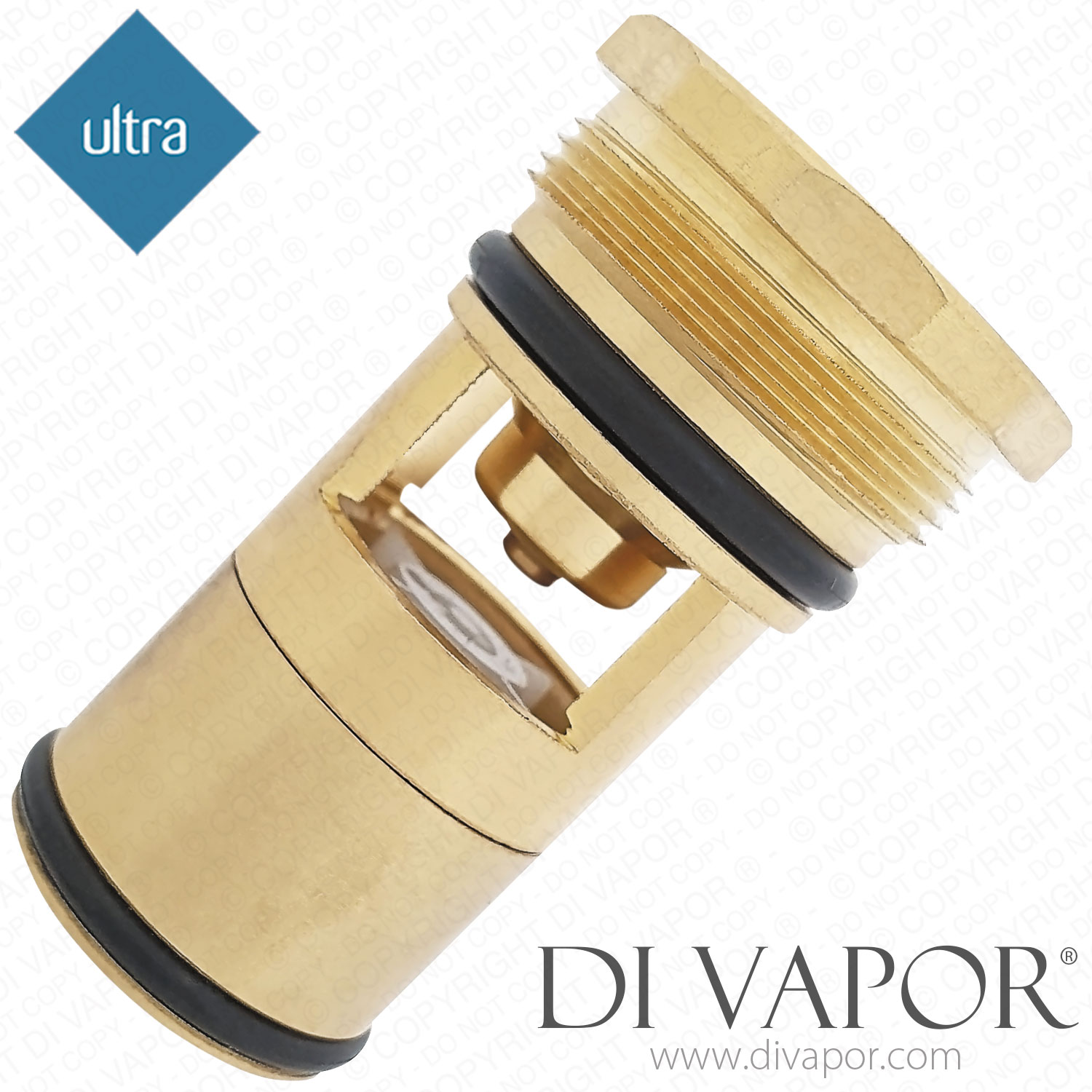

Ultra SVQ15 Non-Return Valve NRV for Concealed Shower Valves
This Ultra SVQ15 is a concealed shower valve non-return valve, also known as an NRV or check valve, for selected Ultra, Hudson Reed, Premier and Nuie concealed thermostatic shower valves.
The non-return valve helps prevent reverse flow through the shower valve supply path. It is used inside compatible concealed mixer valve assemblies where the hot and cold supplies need backflow protection and stable valve operation.
Technical Details
| Part Number | SVQ15 |
|---|---|
| Part type | concealed non-return valve / NRV / check valve |
| Application | concealed thermostatic shower mixer valves |
| Diameter | 26.47mm |
| Length | 44.45mm |
| Material | brass |
| Gauze filters | 1 |
| O-rings | 2 |
| Grub screw hole | no |
| Long spline | no |
Before ordering, compare the existing part with SVQ15, including the overall length, diameter, O-ring positions and filter arrangement. Do not rely on diameter alone when identifying this concealed shower valve NRV.
Common Signs This Part May Need Checking
- Cross-flow between hot and cold supplies when the shower is off
- Unstable pressure or irregular water behaviour at the valve
- A damaged, worn or scaled NRV removed from the concealed shower valve body
Confirmed Compatible Models
- Hudson Reed / Nuie ITY316 Victorian Twin Concealed Valve Shower Spare Parts
- Premier / Nuie JTY362 Minimalist Lever Shower Valve Spare Parts
- Ultra Concealed Traditional Thermostatic Twin Shower Valve - A3033 Spare Parts
- Hudson Reed Lennox Twin Concealed Thermostatic Shower Valve - SQR3210 Spare Parts
- Hudson Reed Lennox Twin Concealed Thermostatic Shower Valve With Diverter - SQR3207 Spare Parts
- Hudson Reed Kristal Twin Concealed Thermostatic Shower Valve - Chrome - KRI3210 Spare Parts
- Hudson Reed Xeta Twin Concealed Thermostatic Shower Valve Spare Parts
- Hudson Reed A3094 P-zazz Twin Concealed Thermostatic Shower Valve Spare Parts
- Hudson Reed A3094-A3287 P-zazz Twin Concealed Thermostatic Shower Valve with P-zazz slider rail kit Spare Parts
- Hudson Reed Arcade Twin Concealed Thermostatic Shower Valve With Built-in Diverter - ARC3207 Spare Parts
- Hudson Reed Tec Pura Plus Concealed Thermostatic Triple Shower Valve With Diverter Spare Parts
- Ultra Quest Rectangular Concealed Thermostatic Twin Shower Valve - QUEV51 Spare Parts
- Ultra Quest Rectangular Concealed Thermostatic Triple Shower Valve - QUEV53 Spare Parts
- Hudson Reed Kubix Twin Concealed Thermostatic Shower Valve - A3013 Spare Parts
- Hudson Reed Topaz Black Twin Concealed Thermostatic Shower Valve - BTSVT002 Spare Parts
- Hudson Reed A3012-A3241 Xeta Twin Concealed Thermostatic Shower Valve with Round Sheer fixed head Spare Parts
- Hudson Reed A3096 Traditional Triple Concealed Thermostatic Shower Valve Spare Parts
Related Spares You May Need
- Hudson Reed SA30049 Thermostatic Cartridge - ULTRA Original Version
- Ultra SACDV 3/4" Flow Cartridge Hudson Reed | Headwork | Ceramic Disc
- SC50T20 Crosswater Thermostatic Cartridge (Valquest SC50-T20 and SC50T20-M)
- Ultra SVQ01 3/4 Tapered Conical Nut & Washer
- Ultra SVQ04 Flow Cartridge Shroud
- Ultra SVQ05 Shroud For Valquest Twins / Triples
- Ultra SVQ07 Diverter Cartridge for A3023 Triple Shower Mixer Valves
- SVR21 Ultra 3/4" Ceramic Disc Quarter Turn Cartridge for ART3210 Shower Valves
- Ultra SVR21W G 3/4" Cold CD Valve Flow Cartridge
- Hudson Reed VH009 Kristal Temperature Control Shower Handle (Crosshead)
- Hudson Reed VH009A Kristal Flow Control Shower Handle (Crosshead)
- Ultra VH013 Traditional Crosshead Handle Chrome
- Ultra VH013A Traditional Lever Handle
- Ultra VH013IND Ceramic Thermostat Indice
- Ultra Showers Ultra Beaumont Thermostatic Handle (X- Head) - VH019
- 150mm Universal Shower Hose - NXT734
