Hudson Reed KIA3023 Thermostatic Cartridge for Kia Jule Triple Concealed Thermostatic Shower Valves (Ultra Finishing)

SUMMARY

Hudson Reed KIA3023 Thermostatic Cartridge for Kia Jule Triple Concealed Thermostatic Shower Valves (Ultra Finishing)

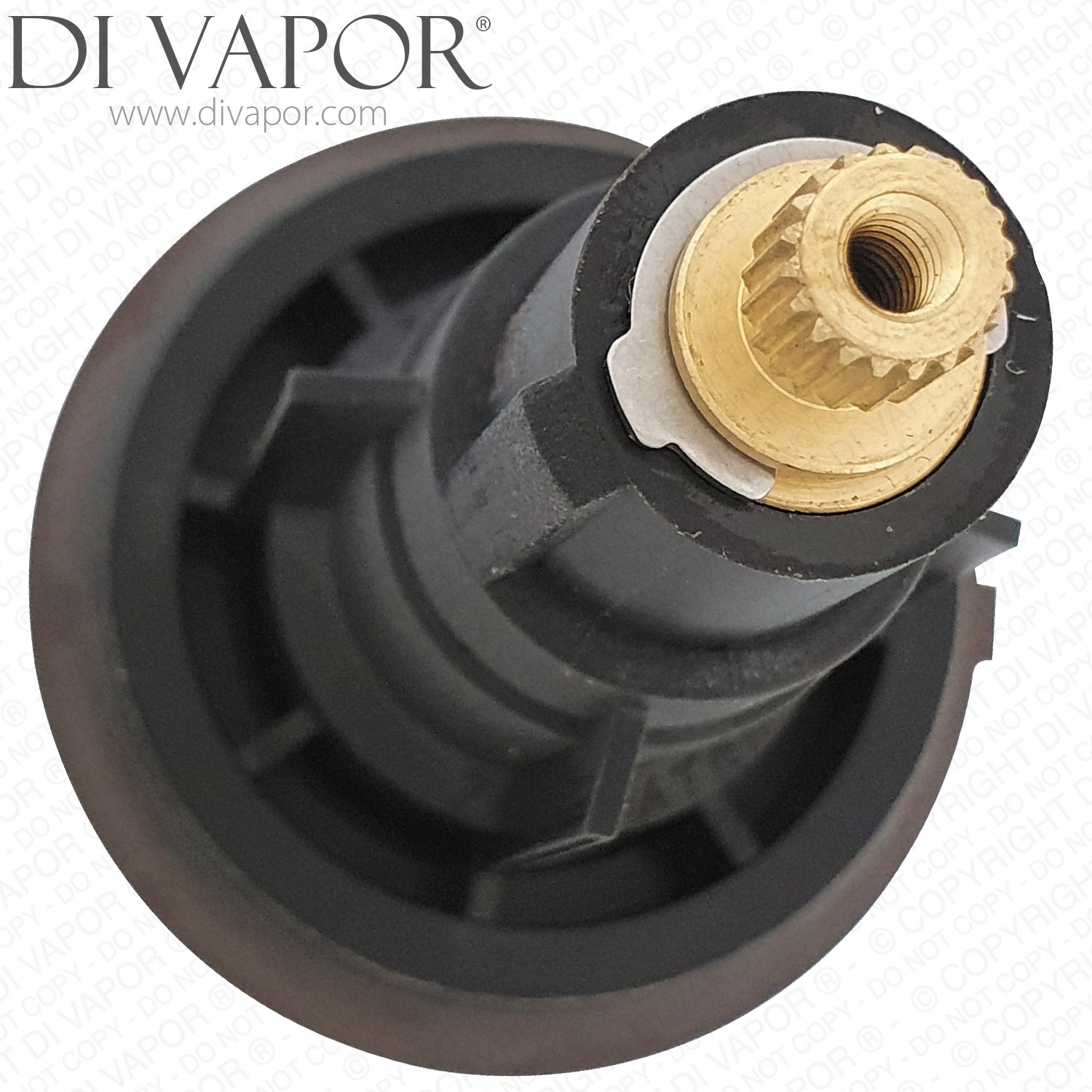

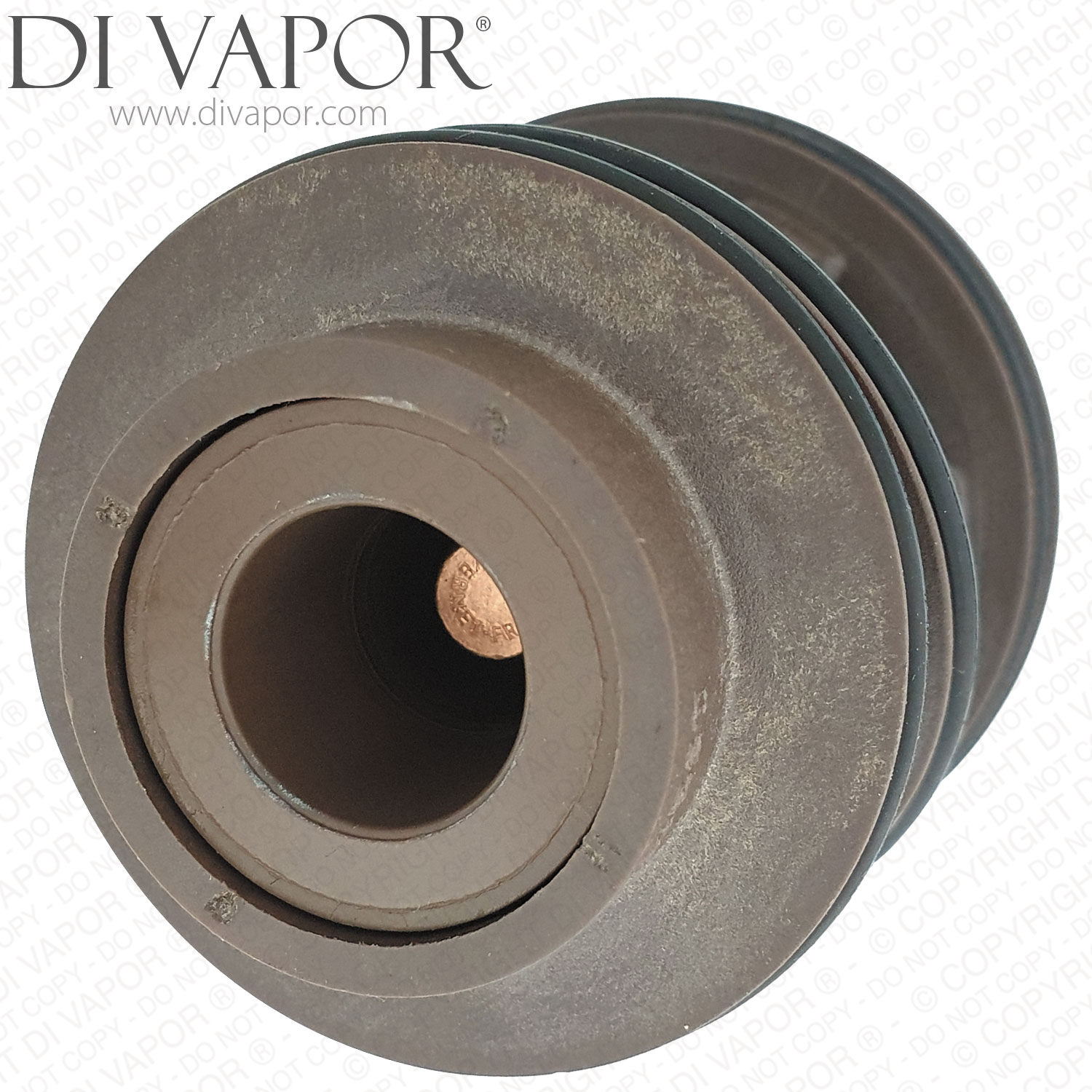

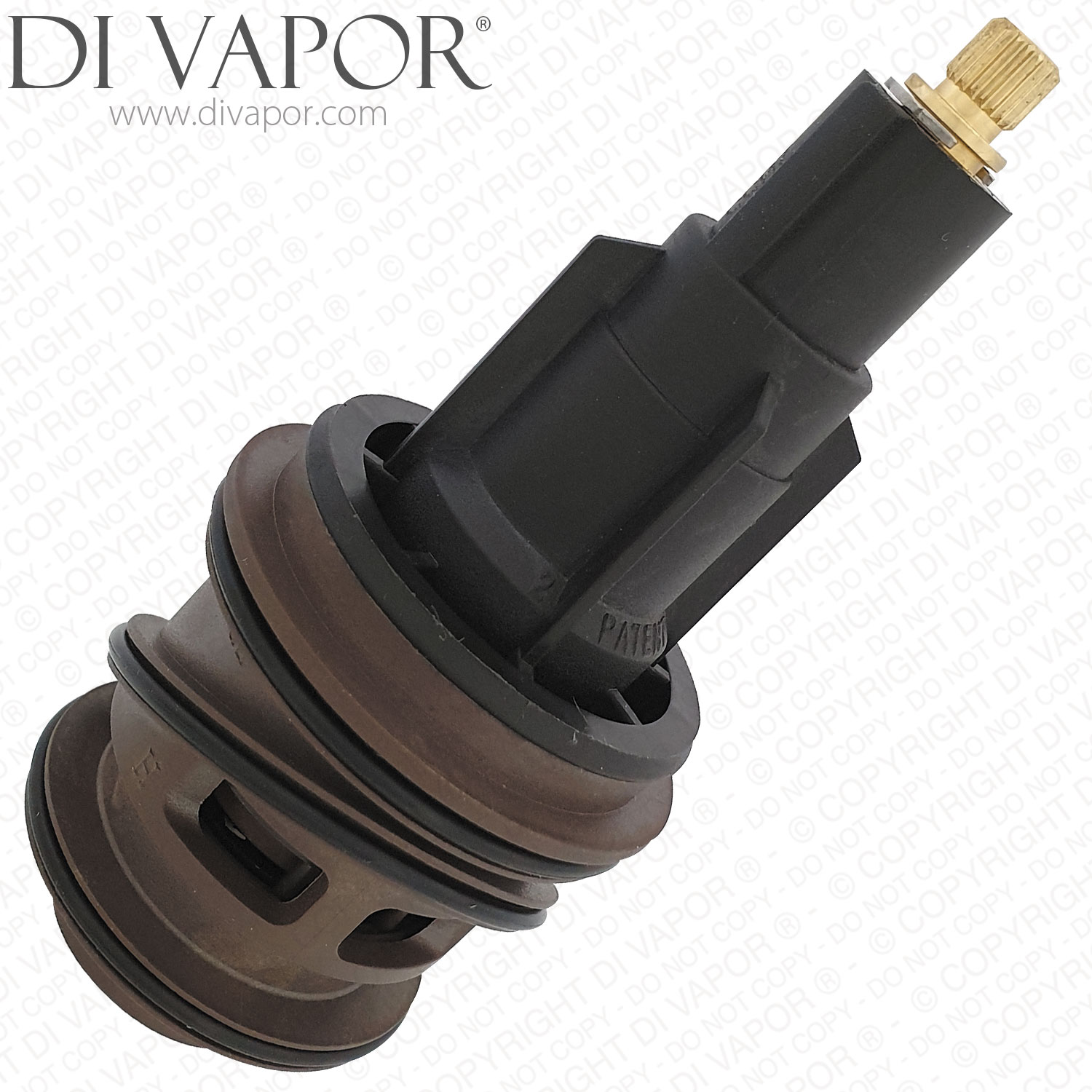

This thermostatic cartridge is designed for the Hudson Reed KIA3023 Kia/Jule triple concealed thermostatic shower valve. It forms part of the shower's temperature control mechanism and is used in the concealed mixer valve assembly.

The thermostatic cartridge regulates the mixing of hot and cold water to help maintain the selected shower temperature. A faulty or worn cartridge may cause fluctuating water temperatures, difficulty adjusting the temperature or an inability to achieve the desired temperature. Replacing the correct cartridge can restore normal thermostatic temperature control without replacing the complete shower valve.

Technical Details

- - Brand: Hudson Reed / Ultra Finishing

- - Part Number: HUD-KIA3023-CT

- - Part type: Thermostatic shower mixer cartridge

- - Function: Hot and cold water temperature regulation

- - Application: Kia/Jule triple concealed thermostatic shower valves

- - Associated shower valve code: KIA3023

- - Valve configuration: Triple concealed thermostatic shower valve with diverter

- - Associated shower valve finish: Chrome

- - Complete shower valve inlet and outlet connections: 3/4-inch BSP female

Confirmed Compatible Models

- - Hudson Reed Kia KIA3023 triple concealed thermostatic shower valve with diverter - Chrome

Important Checks Before Ordering

Different thermostatic cartridge listings are associated with the KIA3023 shower valve. Before ordering, compare the existing cartridge with the product photographs and check the overall length, body diameter, spindle arrangement and seal configuration. The shower valve model number alone may not establish which cartridge version is fitted.

If the shower temperature fluctuates or cannot be adjusted correctly, the thermostatic cartridge may require attention. If water continues dripping from the shower head or outlet when the shower is switched off, the flow-control cartridge may instead be responsible. Identifying the faulty component before ordering can help avoid unnecessary replacement.

Related Spares You May Need

- - Ultra SVQ07 Diverter Cartridge - ULTRA-SVQ07 - Controls the diversion of water between shower outlets

- - Ultra SVR21 3/4-inch Ceramic Disc Flow Cartridge - ULTRA-SVR21 - Clockwise-closing quarter-turn flow cartridge used for water flow and shut-off control

Need Help Identifying Your Cartridge?

If you are unsure which cartridge you need, use the Di Vapor Part Identification Service and send us a photograph and measurements of your existing part.
