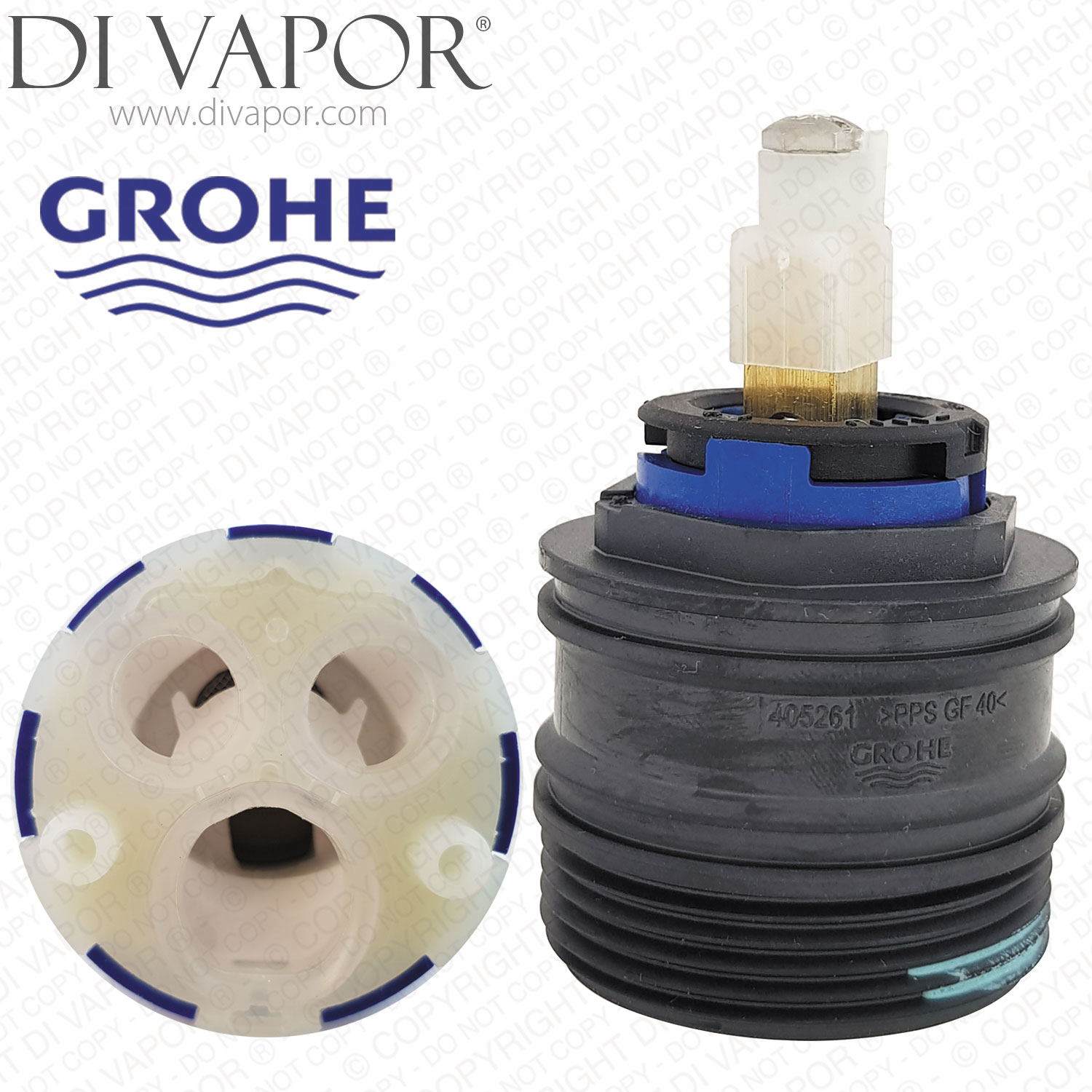

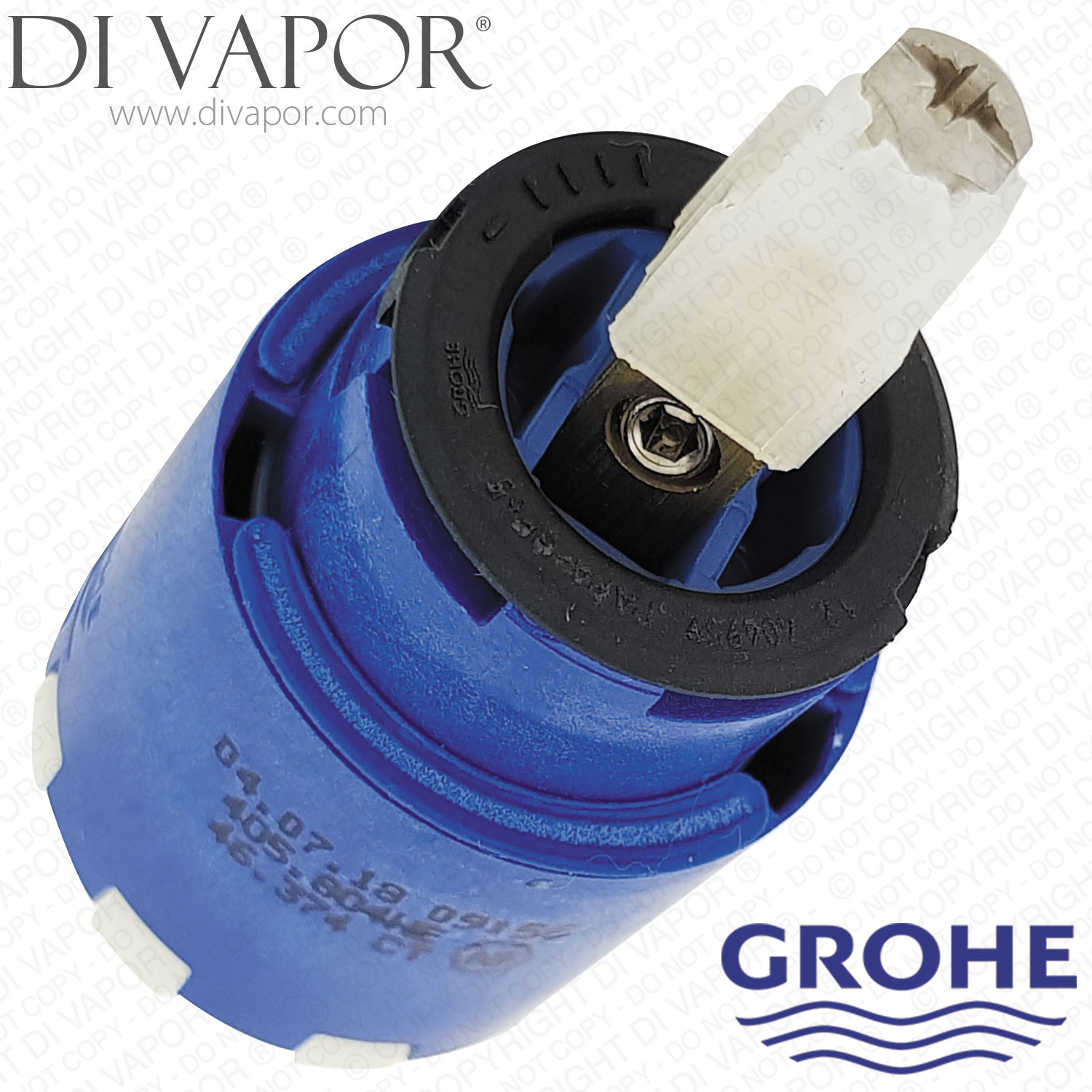

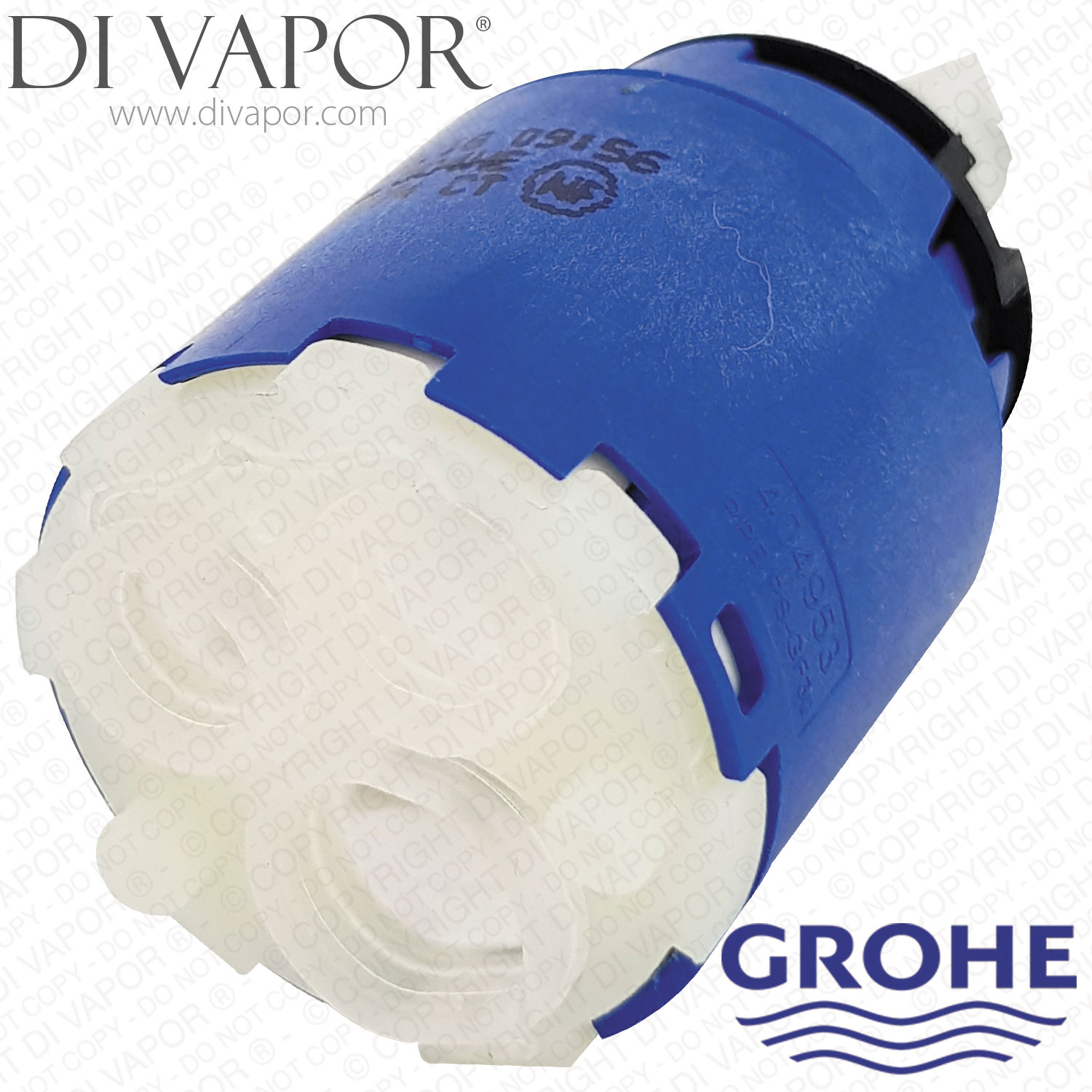

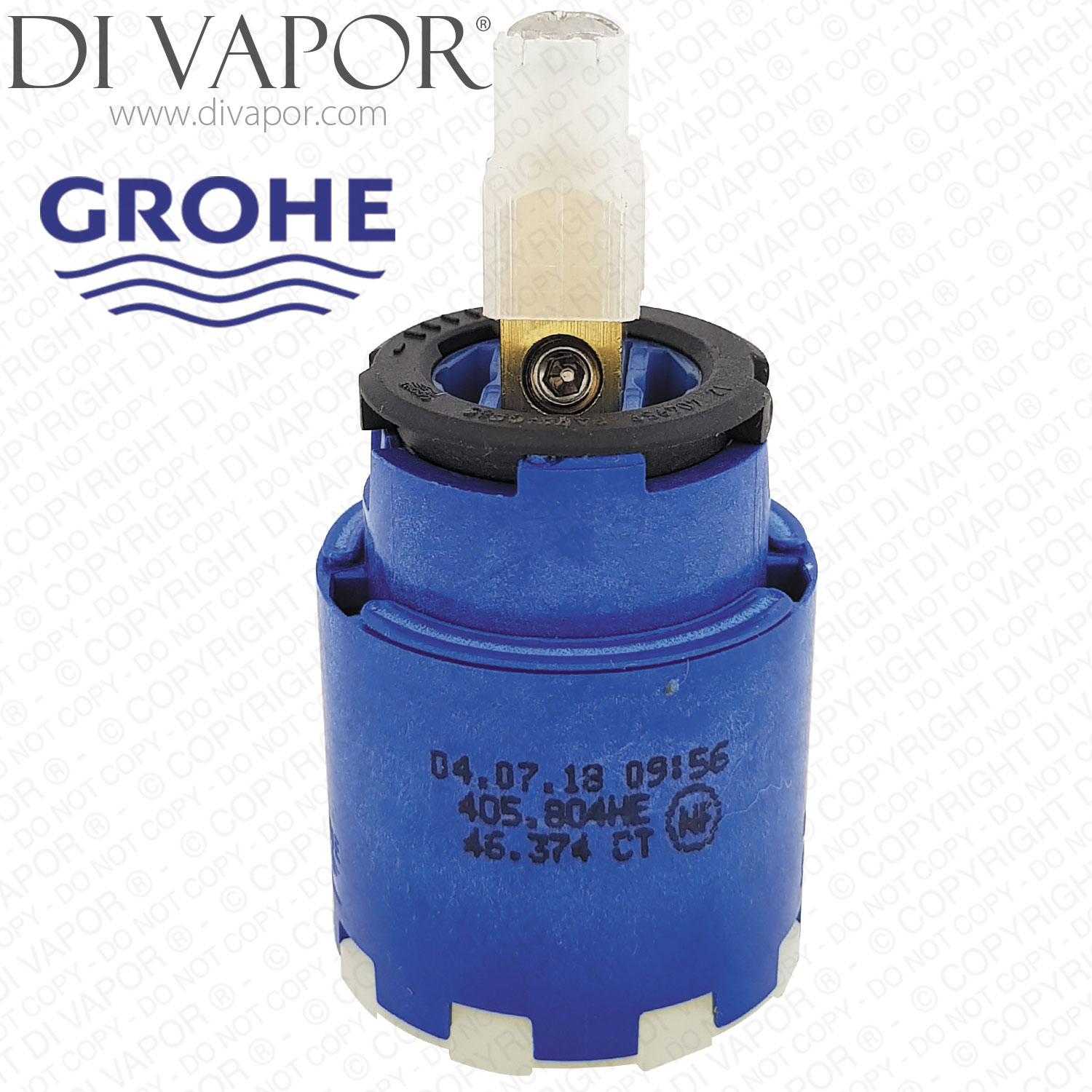

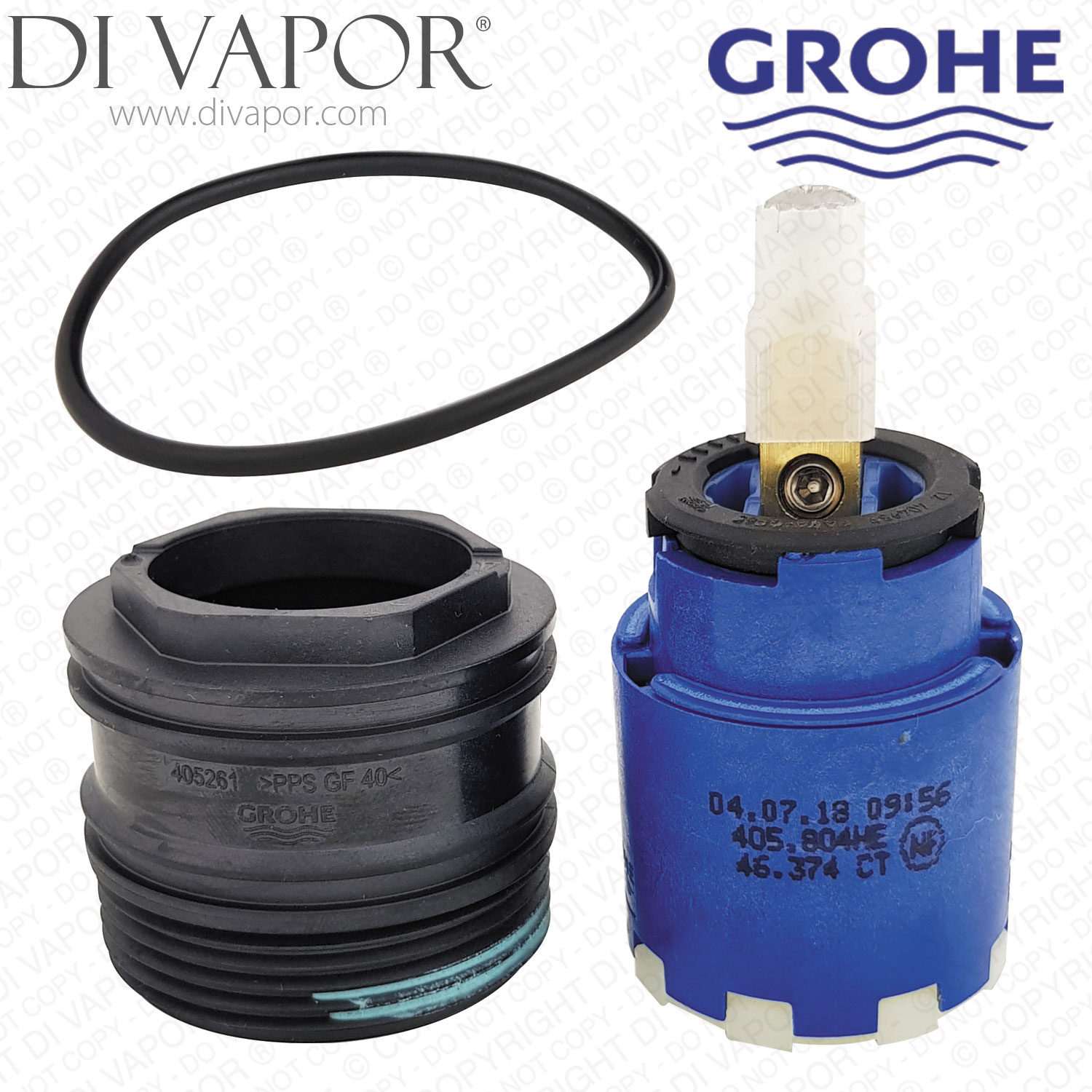

Grohe 46374000 35mm Ohm Cartridge for Atrio, Europlus, Eurostyle, Eurosmart etc. Valves

SUMMARY

GROHE 46374000 35mm SilkMove Ceramic Lever Cartridge for Single-Lever Mixers

GROHE 46374000 is a 35mm SilkMove ceramic lever cartridge used to control mixed water flow and temperature in selected GROHE single-lever basin mixers, bidet mixers, kitchen and sink mixers, bath mixers and shower mixers. It uses a ceramic sealing system and incorporates temperature limiting and adjustable flow-rate limiting functions.

The 46374000 cartridge is also referenced as 43.374. This should be treated as an alternative reference rather than a confirmed superseded part number. Earlier versions of the cartridge have been recorded with a green and beige appearance, so colour alone should not be used to identify the correct cartridge.

Technical Details

- - Cartridge size: 35mm

- - Cartridge type: ceramic single-lever mixer cartridge

- - Technology: SilkMove

- - Sealing system: ceramic

- - Temperature limiter: yes

- - Flow-rate limiter: adjustable

- - Flow adjustment tool: 2.5mm Allen key

- - Flow adjustment direction: clockwise reduces flow and anticlockwise increases flow

- - Manufacturer seal kit reference: 46347000

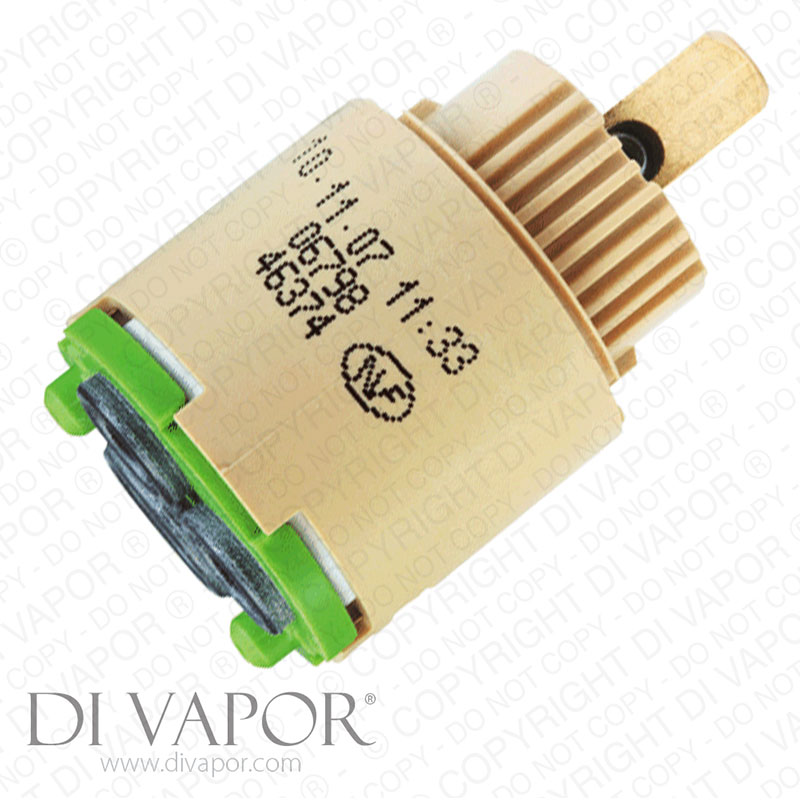

- - Previous version appearance recorded as green and beige

Confirmed Compatible Models

- - GROHE Atrio 32003 Single-Lever Sink Mixer 1/2 Inch

- - GROHE 32108 Atrio Bidet Mixer 1/2 Inch

- - GROHE 32457 Atrio Single-Lever Basin Mixer 1/2 Inch

- - GROHE Chiara 32303 Basin Mixer 1/2 Inch

- - GROHE Chiara 32304 Basin Mixer 1/2 Inch

- - GROHE Chiara 32305 Bidet Mixer 1/2 Inch

- - GROHE Concealed Body for OHM 32635 Single-Lever Mixer 1/2 Inch

- - GROHE Concetto 32204 Basin Mixer 1/2 Inch

- - GROHE Concetto 32208 Bidet Mixer 1/2 Inch

- - GROHE Concetto 32629 Basin Mixer 1/2 Inch

- - GROHE Concetto 32659 Sink Mixer 1/2 Inch

- - GROHE Concetto 32661 Sink Mixer 1/2 Inch

- - GROHE Concetto 32663 Sink Mixer 1/2 Inch

- - GROHE Essence 32105 Sink Mixer 1/2 Inch

- - GROHE Essence 32171 Sink Mixer 1/2 Inch

- - GROHE Essence 32247 Basin Mixer 1/2 Inch

- - GROHE Essence 32628 Basin Mixer 1/2 Inch

- - GROHE Essence 33532 Basin Mixer 1/2 Inch

- - GROHE Essence 33562 Basin Mixer 1/2 Inch

- - GROHE Essence 33603 Bidet Mixer 1/2 Inch

- - GROHE Euroeco Special 32763 Basin Mixer 1/2 Inch

- - GROHE Europlus 32612 Basin Mixer 1/2 Inch

- - GROHE Europlus 32618 Basin Mixer 1/2 Inch

- - GROHE Europlus 33155 Basin Mixer 1/2 Inch

- - GROHE Europlus 33163 Basin Mixer 1/2 Inch

- - GROHE Europlus 33241 Bidet Mixer 1/2 Inch

- - GROHE Eurosmart 32925 Basin Mixer 1/2 Inch

- - GROHE Eurosmart 32929 Bidet Mixer 1/2 Inch

- - GROHE Eurosmart 33284 Basin Mixer 1/2 Inch

- - GROHE Eurostyle 33557 Single-Lever Basin Mixer 1/2 Inch

- - GROHE Eurostyle 33558 Basin Mixer 1/2 Inch

- - GROHE Eurostyle 33559 Basin Mixer 1/2 Inch

- - GROHE Eurostyle 33565 Bidet Mixer 1/2 Inch

- - GROHE Eurostyle 33977 Sink Mixer 1/2 Inch

- - GROHE Blue Still 31087 Starter Kit

- - GROHE K4 33782 Sink Mixer 1/2 Inch

- - GROHE K4 33786 Sink Mixer 1/2 Inch

- - GROHE Lineare 33848 Bidet Mixer 1/2 Inch

- - GROHE Quadra 32630 Basin Mixer 1/2 Inch

- - GROHE Quadra 32631 Basin Mixer 1/2 Inch

- - GROHE Quadra 32636 Bidet Mixer 1/2 Inch

- - GROHE Tenso 32427 Basin Mixer 1/2 Inch

- - GROHE Tenso 33347 Basin Mixer 1/2 Inch

- - GROHE Tenso 33348 Bidet Mixer 1/2 Inch

- - GROHE 32650003 Atrio Single-Lever Shower Mixer

- - GROHE 32652DC3 Atrio Single-Lever Bath Shower Mixer

- - GROHE 32653003 Atrio Floor Mounted Single-Lever Bath Mixer

- - GROHE 3330220A Eurosmart Single-Lever Bath Mixer 1/2 Inch

- - GROHE 33300002 Eurosmart Single-Lever Bath Mixer 1/2 Inch

- - GROHE 23729003 Eurostyle Single-Lever Bath Mixer 1/2 Inch

- - GROHE 23460002 Eurosmart Single-Lever Shower Mixer

- - GROHE 23601000 BauFlow Single-Lever Bath Shower Mixer

- - GROHE 23572003 Eurostyle Single-Lever Shower Mixer

- - GROHE 32279001 Start Single-Lever Shower Mixer

- - GROHE 30198000 Get Single-Lever Sink Mixer Tap

- - GROHE 31345002 Blue Pure Minta Starter Kit

- - GROHE 31354DC1 Blue K7 Pure Starter Kit Supersteel

- - GROHE 23444DC1 Lineare Two-Hole Basin Mixer L-Size

- - GROHE 19409DC1 Lineare Two-Hole Basin Mixer M-Size

- - GROHE 19408BE1 Essence Two-Hole Basin Mixer M-Size

- - GROHE 19408AL1 Essence Two-Hole Basin Mixer M-Size

- - GROHE 19408DC1 Essence Two-Hole Basin Mixer M-Size

- - GROHE 19408A01 Essence Two-Hole Basin Mixer M-Size

- - GROHE 29303003 GROHE Plus Two-Hole Basin Mixer M-Size

- - GROHE 29307AL3 GROHE Plus 4-Hole Single-Lever Bath Combination

- - GROHE 23570LS3 Eurostyle Single-Lever Basin Mixer 1/2 Inch XL-Size

- - GROHE 2310500L Quadra Basin Mixer S-Size

- - GROHE 1929100A Atrio Two-Hole Basin Mixer S-Size

- - GROHE 23739001 Concetto Single-Lever Basin Mixer L-Size

Before You Order

Check the existing cartridge code and the exact mixer model before ordering. Do not identify the cartridge from the 35mm diameter or cartridge colour alone.

Take particular care with GROHE Europlus 33155. The verified 33155 spares page uses 46374000, while a separate 33155000 spares page is associated with the older 46048000 cartridge. These model references should not be treated as interchangeable.

Likewise, the legacy Eurosmart 32925 reference should not be automatically changed to 32925001 without separate evidence for the exact mixer being serviced.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease WRAS Approved - Part Number TAC86

- - GROHE 46460000 Red Screw Coupling - Part Number 46460000 - model-dependent coupling used alongside 46374000 in selected mixer assemblies

- - GROHE 19332000 34mm Hex Socket Box Spanner - Part Number 19332000 - service tool listed with 46374000 on multiple mixer spares pages

- - GROHE 48166000 500ml Grohclean Bathroom Cleaning Spray - Part Number GROHE-48166000 - care product shown with the cartridge for removal of staining without unsuitable abrasive cleaners
