A whirlpool bath is a tub that uses air jets, water jets or both to create swirling currents in the water to produce a therapeutic massage sensation. Water jets are operated using a pump that jets streams of water against the body while air jets typically line the bottom of the tub and blow air up through the water and against the bather.
Using a dedicated air pump located underneath the bath, a continuous stream of air is blown up through the water at each jet location. These streams of air provide a therapeutic massage to the bather.
|
 |
About the Pesaro (B-DV068)
Dimensions: 1900×980×650(mm), 75×39×26(inches)
Number of Air Jets: 10
Number of Water Jets: 10
Note: Acrylic curtain surround not provided. |
| The Pesaro boasts a simple, modern design without compromising the features of a luxury whirlpool bath, combining both water massage and air massage jets. The Pesaro enjoys the health and relaxation benefits associated with hydro-therapy while complimenting your bathroom design with a curtain-free surround that can be tiled to your own preference. |
|
|
|
|
| |
| The Pesaro whirlpool bath has the following product features: | |
| Product FeaturesInformation about the Pesaro whirlpool bath |
 | Adjustable Water Massage

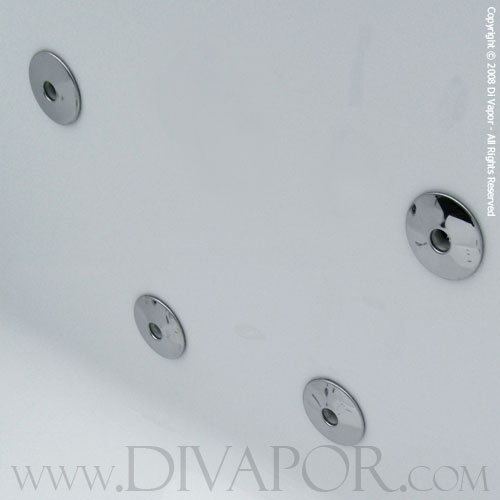

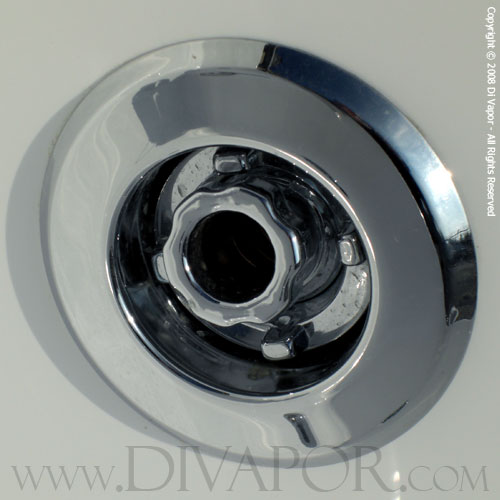

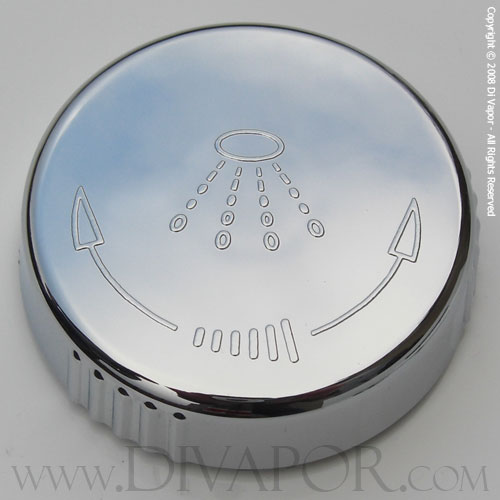

Four smaller water massage jets line the rear side of the bath while a further 6 large water jets surround the user. The larger jets' direction can be adjusted and the jet strength can be varied using the water pressure control dial. |
|
 | Adjustable Air Massage System

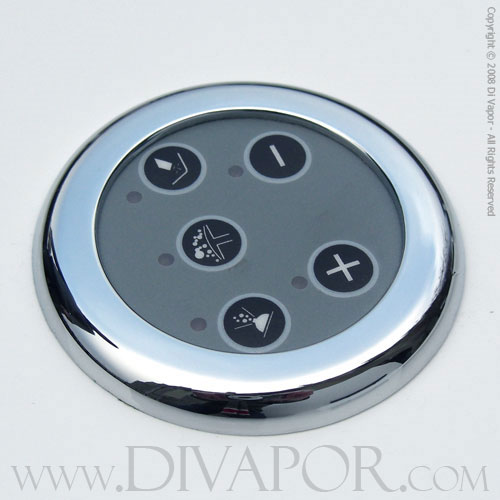

Ten air massage jets are lined along the bottom of the Pesaro whirlpool bath. This secondary massage system provides a different sensation to the water jets. The air pressure can be adjusted using the control panel at the side of the bath. |
|
 | Cleaning System
Simply open up the cleaning cap and put in a mild cleaning agent. Pressing this cleaning button will then circulate the cleaning agent with the water in the bath to clean in the pipes inside the bath. |
|
 | Water Level Sensor
The water level sensor helps protect the water pump used within the bath. The unit will automatically detect whether there is sufficient water present in the bath and will only start the water pump if enough water is detected. |
|
 | Underwater Light
Positioned at the side of the bath this underwater light can be illuminated to help create an ambience within the bubbling water. |
|
 | Without Apron
To create a uniform design within your bathroom, the Pesaro is provided without a curtain so you can tile the sides in a style to best compliment your bathroom. |
|
|
| | |

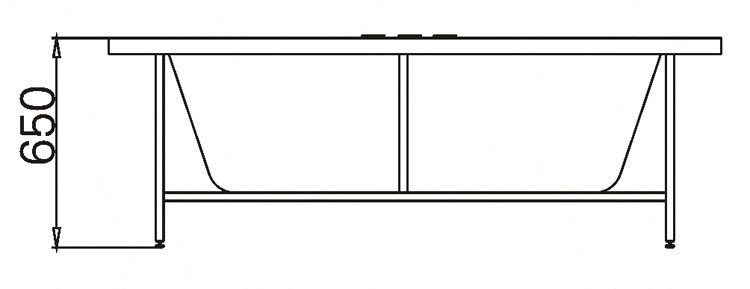

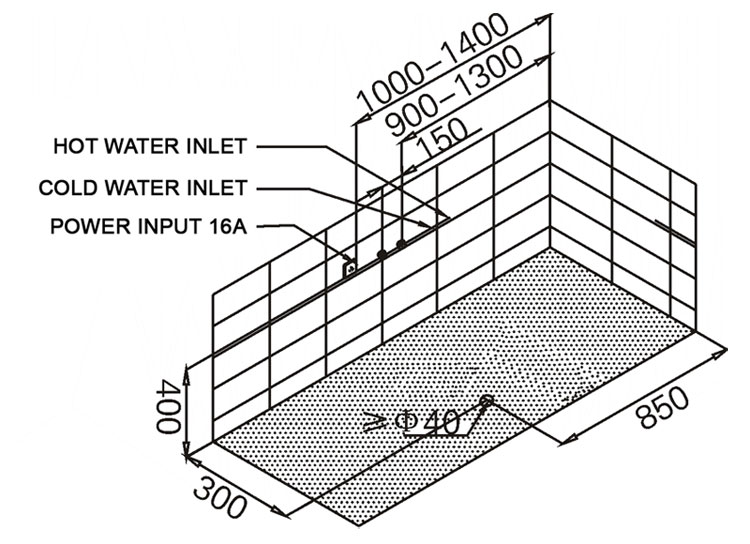

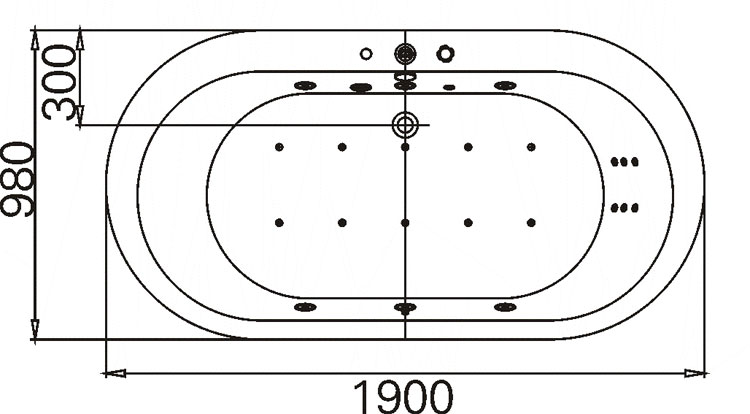

| Technical DiagramsDimensions and Layout |
 |  |  |
Electrical:- 1HP Water pump supplied.
- 0.5HP air blower pump supplied.
Plumbing:- Hot & cold water supply required.
- Water mixer and taps not supplied.
|
|
| | |

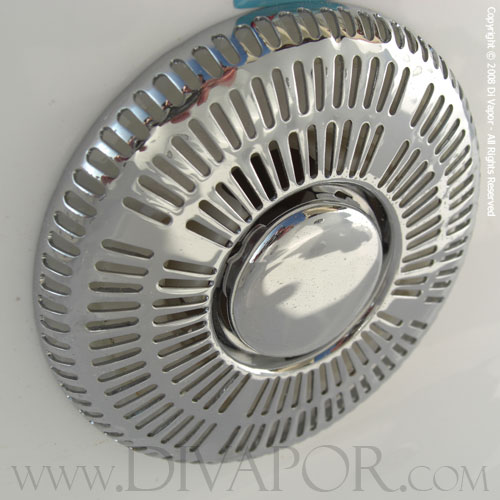

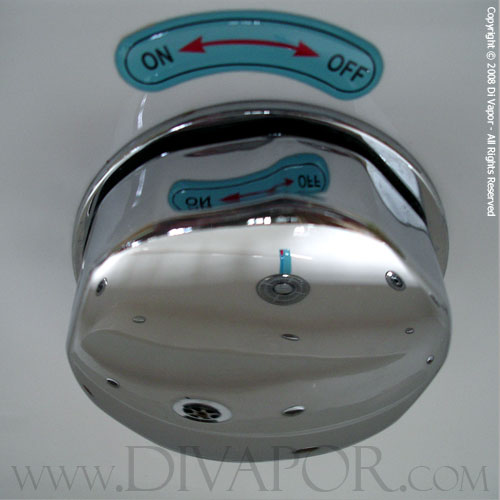

| More PhotographsClick to Enlarge |
|
|
| |
 |
| | |
|
|
|
