A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user.
Using a dedicated air pump located underneath the bath, a continuous stream of air is blown up through the water at each jet location. These streams of air provide a therapeutic massage to the bather.
|
 |

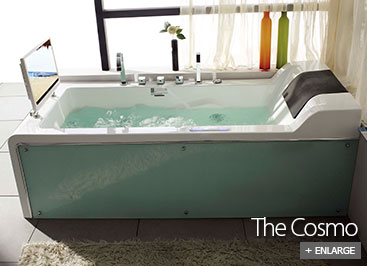

About the Cosmo (B-DV003)
Dimensions: 1900 × 850 × 680 (mm) | 75 × 34 × 27 (in.)
Number of Jets: 7 big jets, 9 bubble jets, 2 back jets |
| After much interest in our 2 person hydromassage TV bathtub, Di Vapor now provide this single person luxury TV bath that will make you the envy of all your friends! The unit enjoys adjustable air and water massage jets along with a 17 inch touch-sensitive LCD TV with video input meaning you can watch anything from a DVD to Sky or cable while soaking away stress and aches in the comfort of your own home. |
|
|
|
|
| |
Hydromassage Bathtub FeaturesThe Cosmo includes the following product features: |  |
|
| Product FeaturesInformation about the Cosmo whirlpool TV bath |

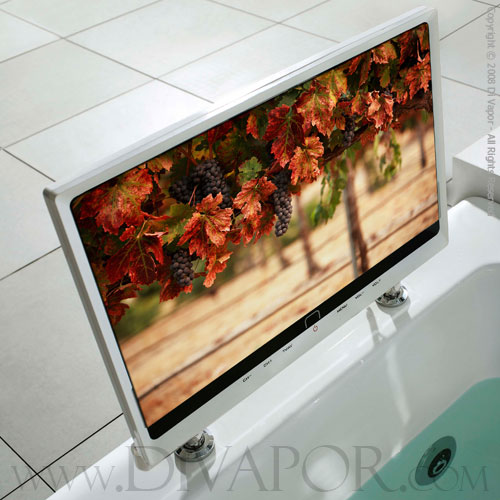

 | 17" Touch-sensitive LCD with remote control
A 17" waterproof touch-sensitive colour flat screen LCD sits at the rear of this hydro-massage bath tub so you can watch your favourite programmes and movies at the press of a button on the remote control. The TV is waterproof graded IPX6. |
|

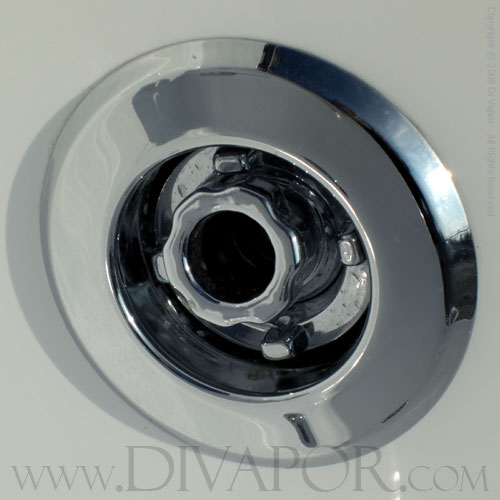

 | Adjustable Water Jets
These directional water jets function by taking water from the bath via an inlet and then pump it through the jets to gently massage the body. The water jets are adjustable by turning the control dial to increase or decrease pressure to bring the exact relaxation you need. |
|

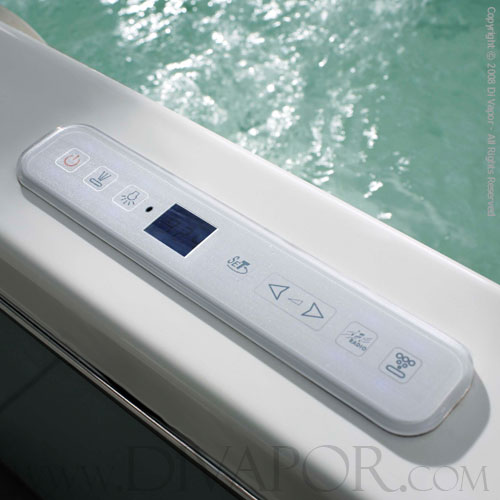

 | Touch Sensitive Control Panel
Located at the side of the bath is a rectangular, touch-sensitive control panel from which the radio, underwater light, radio volume and water jets can be operated. |
|

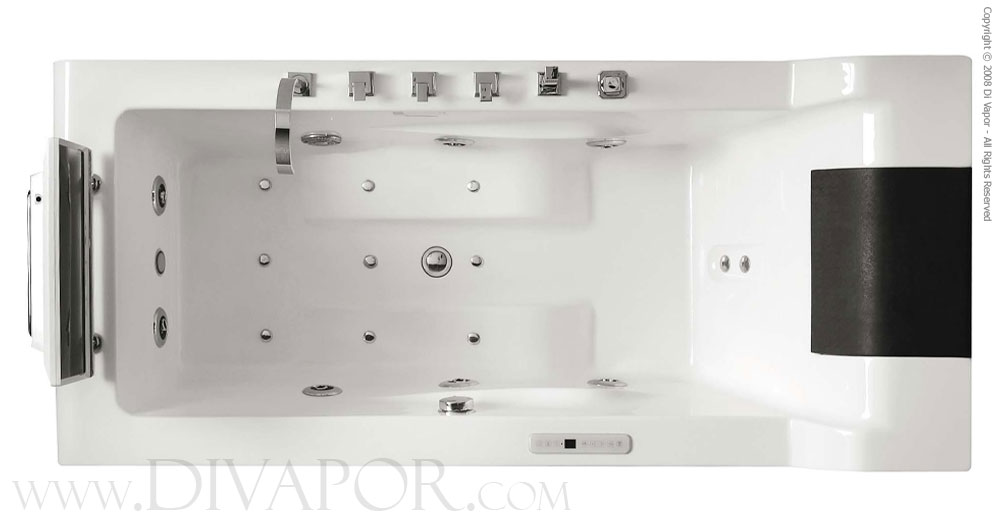

 | 7 Hydro massage jets/9 bubble jets/2 back massage jets
These smartly placed jets mean you can soak away aches and pains no matter where they are. With easily adjusted pressure nozzles, you can get the perfect massage every time. |
|
 | Timed Auto Shut-off function for Jets
To protect the water and air pumps this unit has an auto-shutoff facility to stop the jets after a given time. This helps prevent overheating that could result from prolonged use. |
|
 | Adjustable Air Massage
Air massage jets line the bottom of the bath to gently soothe aching muscles. These jets can be adjusted easily by turning their nozzles to increase or decrease the pressure depending on your requirements. |
|
 | Underwater Light
A fluorescent underwater light illuminates the bubbling water to provide the perfect atmosphere and luxury finish to an already luxury bathtub. |
|
 | Fully Programmable FM radio with Memory Function
A built-in speaker at the rear of the unit plays any FM radio station. Simply use the touch-sensitive control panel to select your desired radio station and from which you can also store your favourite FM stations. |
|
 | Single Padded Head Rest
Our hydro massage bath comes fitted with a durable and comfortable head rest to maximise your relaxation. |
|
 | Video Input
Connecting to sky, cable or your DVD player via our video inputs means you watch what you like while soaking in your luxury hydro massage bath. |
|
 | Hand shower
This hand shower provides a jet spray to wash off those bubbles or shampoo out of your hair and is easily accessible at the side of the tub. |
|
 | Water Level Sensor
A built-in water level sensor will help the protect the water pump when it is started before the bath is filled with sufficient water. |
|
 | RCD (Residual Current Device) Safety
In the event where there is an imbalance in the phase of the current this RCD safety device will trip to help protect both the user and bath. |
|
|
|
| |
| Extra Material Specifications: |
» Fibreglass reinforced acrylic bath with flexible shower waste fittings
» Stainless Steel support for the bath |  |
|
| |

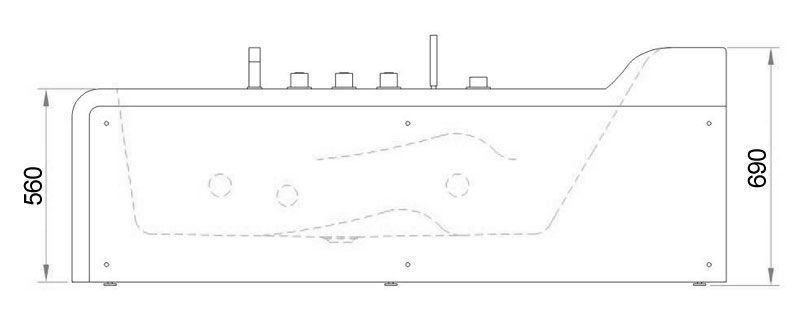

| Technical DiagramsDimensions and Layout |
 |  |  |

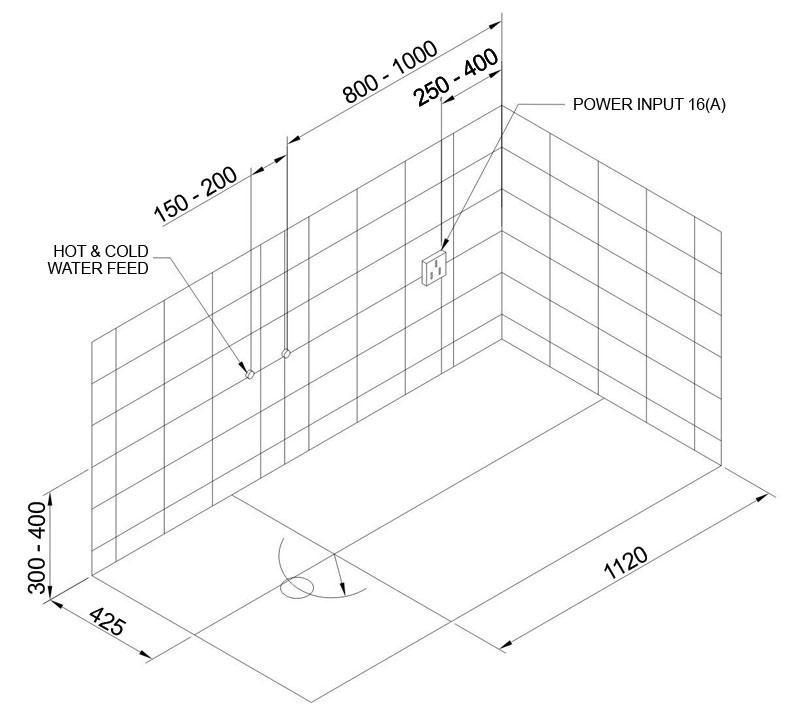

Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
Plumbing:- Hot & cold water supply required.
- Balanced water pressure of 2-3 BAR required.
- Gravity fed system may require a pump to meet pressure requirements.
|
|
| |
| More PhotographsClick to Enlarge |
|
|
| |
 |
| |
|
|
|
