When activated, hydromassage jets produce a continuous (not pulsating) spray of water to create a therapeutic massage effect for the muscles and skin. In some models the jets operate in unison while in other models the jets can be sequenced.
A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding.
Aromatherapy is the use of plant extracts, also known as essential oils for the purpose of aiding in a persons mood, health or cognitive function. Oils can be added through the steam outlet and will be dispersed as the cabin fills with steam.
A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user.
|
 |

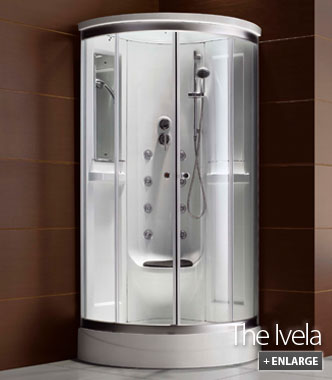

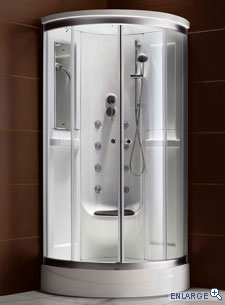

About the Ivela (S-DV010B)
Dimensions: 900 × 900 × 2150 (mm) | 36 × 36 × 85 (in.)
Number of Jets: 8
Internal Height: 1950mm | 77 in. |
| Offering a unique, yet simple single button steam control system, the Ivela offers all the benefits of steam, aromatherapy, luxury showering and hydromassage water jets. Compactly designed to encompass a seat within the 900mm × 900mm cubicle, this corner fitting model will fit into most bathrooms. |
|
|
|
|
| |
Steam Shower FeaturesTo compliment its high build-quality the Ivela includes the following product features: |  |
|
| Product FeaturesInformation about the Ivela steam shower |

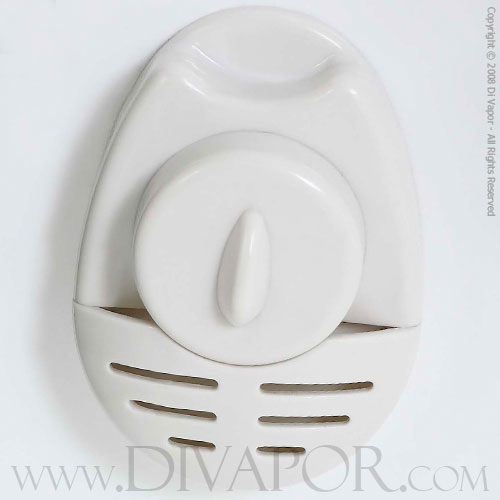

 | Aromatherapy
Our patented steam outlet design allows you to easily enjoy all the benefits aromatherapy offers by simply placing a few drops into the aromatherapy oil intake and twisting to start your aromatherapy session. |
|

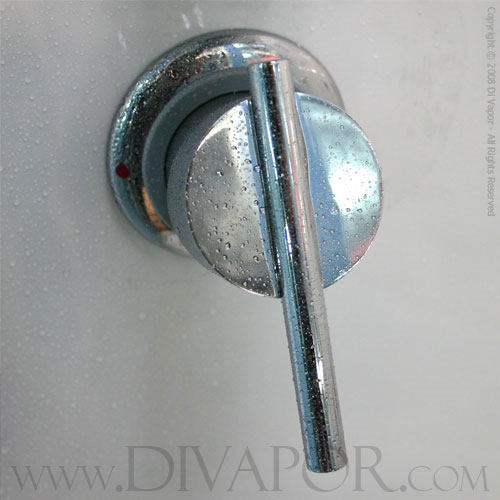

 | Thermostatic (Anti-scald) Valve
This thermostatic valve is a vital feature that enables the selection of a specifically desired water temperature, whilst eliminating those sudden water temperature shifts, making your new steam shower especially safe for both children and older users. |
|
 | Steam generator
Our specially engineered steam generators heat up in a matter of minutes so you can enjoy your steam shower as soon as possible. The steam function is simply started and stopped by pressing the same operating button. |
|

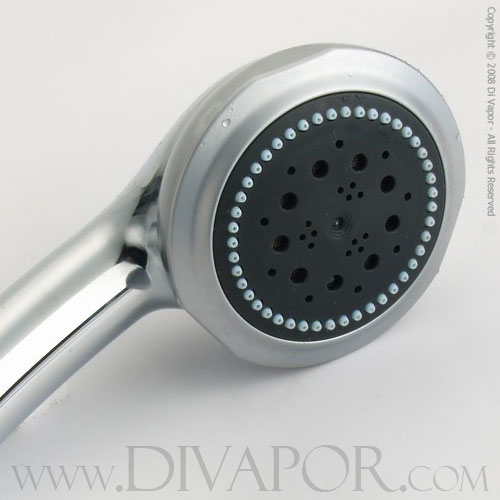

 | 3 Way Handheld shower on slide rail
In addition to the overhead rainfall shower this shower features an extra positionable shower head located on a conveniently placed slide rail. This shower head can easily detach to enable handheld showering with jet, spray or champagne functions. |
|

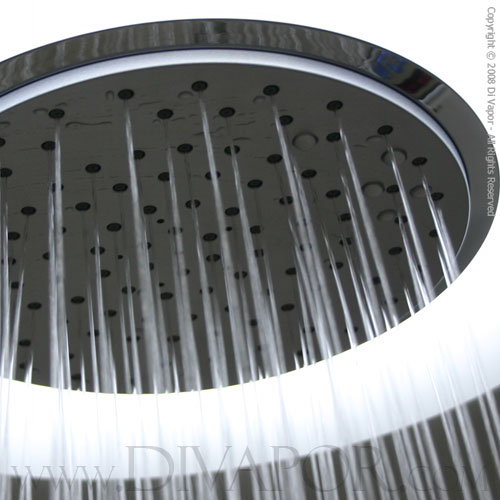

 | Overhead 8" Rainfall Shower Rose
In addition to your standard handheld shower on a slide rail this model features a large overhead rainfall shower that could be likened to standing out in a fresh rain fall. |
|

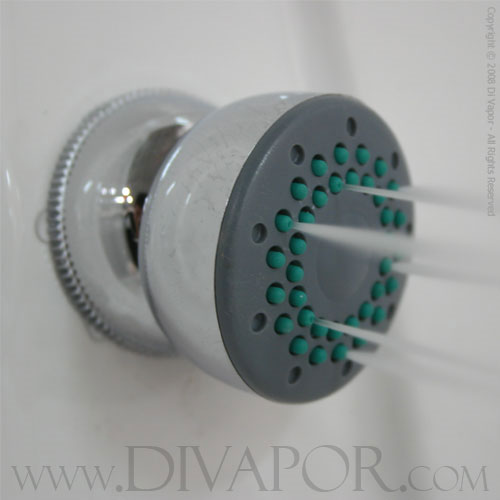

 | 2 upper body, 4 middle body and 2 lower body jets
8 hydromassage water jets are positioned to massage your lower, mid and upper back whilst you sit and relax in the Ivela steam shower. |
|

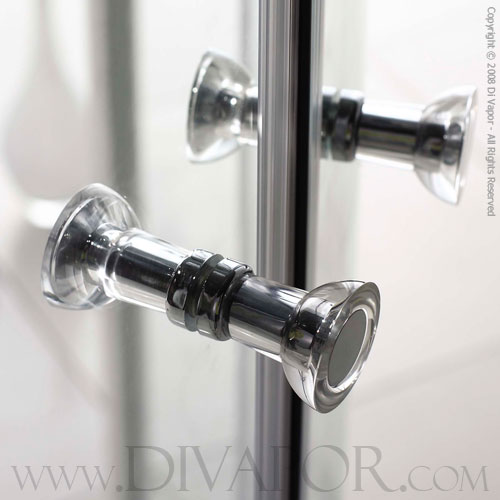

 | 2 sliding satin doors
A high quality satin finished aluminium frame holds tempered glass finished with solid metal luxury door handles. Did you know that Di Vapor runners are factory tested to pass over 100,000 uses! |
|
 | Internal Shelving
This model features recessed shelving in the shower side panels for convenient storage of shampoo, conditioner and other showering accessories. |
|
 | Seating for one person
Comfortable seating for one is provided so you can sit while enjoying your steam shower or back massage using the hydromassage water jets. |
|
 | Mirror
A conveniently placed mirror enables you to see yourself while cleaning or scrubbing your face or body! |
|
 | Automatic Safety shutoff for overheating or no water
In the event that no water is detected or the steam generator overheats then this model will automatically turn-off to protect both the user and the unit. |
|
 | Residual Current Device (RCD) Protection
A Residual Current Device offers a safety cut-off if an unbalanced flow of current is detected. The RCD adds additional protection for both the user and unit itself. |
|
|
| |
| Extra Material Specifications: |
| » Fibreglass reinforced acrylic tray with flexible shower waste fittings |  |
| » Durable stainless steel pipe clips |
| » Stainless Steel support for the shower base |
| » 1-1.5mm Strengthened Aluminium Profiles. |
| » 6mm Tempered Fixed Safety Glass and 6mm Safety Glass Panels. |
| » Magnetic seal system to create a close fitting door |
|
| |

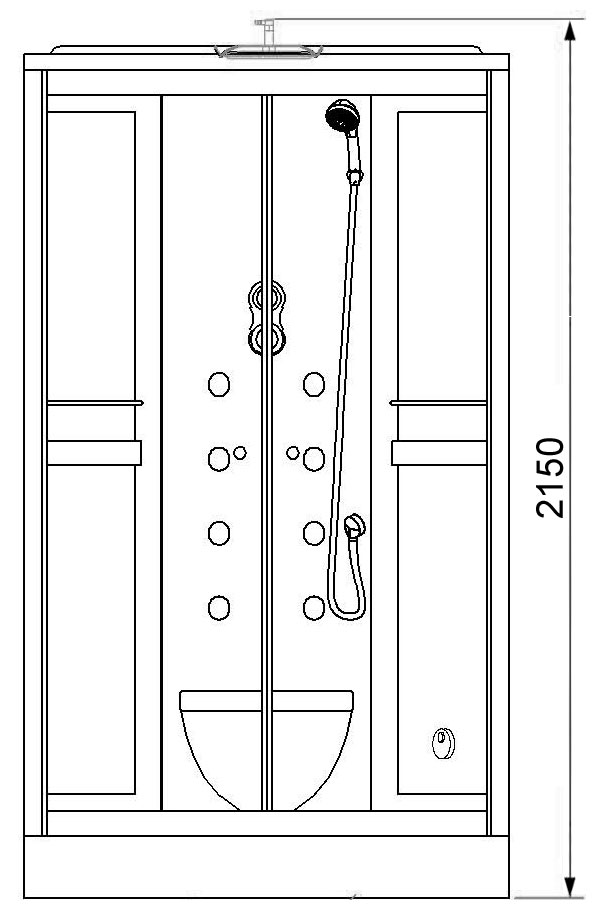

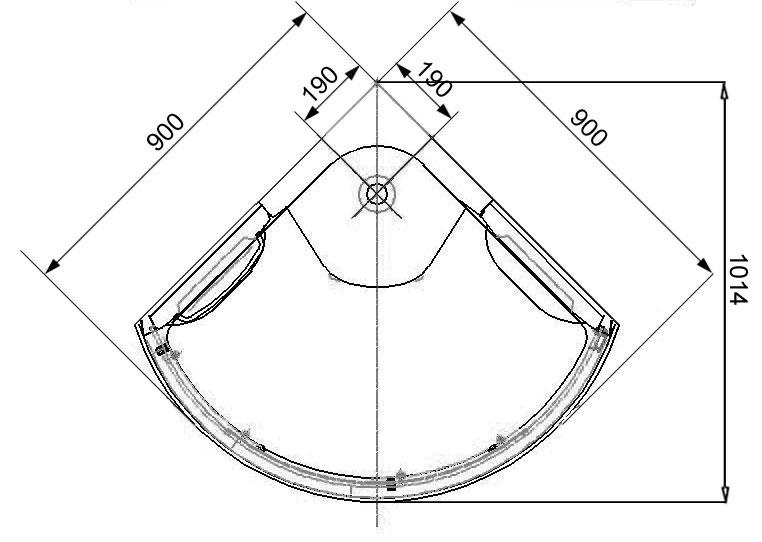

| Technical DiagramsDimensions and Layout |
 |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
|
Plumbing:- Hot & cold water supply required.
- Balanced water pressure of 2-3 BAR required.
- Gravity fed system may require a pump to meet pressure requirements.
|
|
| |
