When activated, hydromassage jets produce a continuous (not pulsating) spray of water to create a therapeutic massage effect for the muscles and skin. In some models the jets operate in unison while in other models the jets can be sequenced. A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding. Aromatherapy is the use of plant extracts, also known as essential oils for the purpose of aiding in a persons mood, health or cognitive function. Oils can be added through the steam outlet and will be dispersed as the cabin fills with steam. A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user. An enclosed shower cubicle that includes a steam generator that can generate heated water vapour to fill the cubicle. This is likened to a steam room but designed for a home bathroom environment.
|
 |
About the Venice (S-DV6013)
Dimensions: 1200×900×2250 (mm) | 48×36×89 (in.)
Internal Height: 2050mm | 81 in.
Number of Jets: 6 |

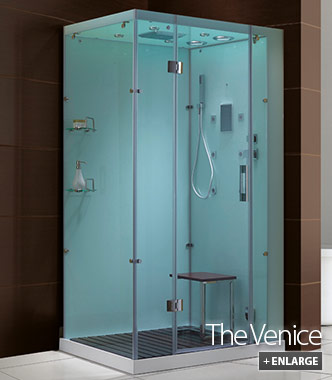

| The Venice is a spacious, single person steam cabinet with a modern, contemporary design. Featuring 2 shelves, recessed back massage jets, overhead rainfall shower, handheld shower, LED lighting, large mirror, thermostatic valve and steam, this elegant shower cabinet provides luxury, features and functionality. |
|
|
|
|
| |
Steam Cabinet InformationThe Venice steam cabinet comes with the following features: |  |
|
| Product FeaturesInformation about the Venice steam cabinet |
 | Touch Sensitive Control Panel
This cutting edge control system uses a touch sensitive panel that can be used to operate the radio, volume level, steam time and temperature settings, overhead lighting, and circulation fan. |
|
 | 8 Inch Overhead Rainfall Shower
Fitted into the ceiling of this steam shower is a large 8 inch, chrome finished overhead rainfall shower. This overhead shower can be likened to the experience of standing outside in a rainfall! |
|
 | Handheld Shower on Slide Rail
Located on the right-hand side of the cabin is the handheld shower with a style and design to complement the showers overall finish. This shower comes on a slide rail so the showers height can easily be adjusted. |
|
 | Steam Outlet with Provision for Aromatherapy Oil
The specially engineered steam outlet has a provision for aromatherapy oils. Simply place a few drops in the steam dial, twist and the aroma will slowly dissipate through the cabin as the steam starts. |
|
 | 6 Back Massage Jets
Positioned behind the foldable seat are six water massage jets. These jets are selected using the diverter valve to provide a water massage to your lower, mid and upper back. |
|
 | Shower Function Selector
The built-in diverter valve uses ceramic valves to provide maximum durability. The shower selector or diverter valve allows you to easily change the water flow between the handheld shower, overhead shower and back massage jets. |
|
 | Thermostatic Temperature Valve
This valve adds both convenience and safety to your showering experience. Simply turn the dial to your desired water temperature and the thermostatic valve will mix the hot and cold water accordingly. The valve adds an element of safety by helping to avoid those sudden temperature fluctuations that can easily scald. |
|
 | Fully Programmable FM Radio with Memory Function
Listen to and store your favourite FM radio stations using the built-in radio. The radio will be played through the built-in speaker and can be tuned using the control panel. If you want to hook up your iPod/MP3/CD player then why not try using an FM radio transmitter (not supplied). |
|
 | Steam with Time and Temperature Setting
Using the touch sensitive control panel you can simply adjust the steam showers target temperature and session duration. |
|
 | Circulation Fan
This fan is operated using the touch-sensitive control panel and helps to circulate the steam within the cabin to provide a more even temperature throughout. |
|
 | Overhead LED Lighting
Spaced around the ceiling of this steam shower are a collection of white, circular LED lights that provide illumination within cabin and can be operated using button on the digital control panel. |
|
 | Countdown Timer for Steam Shut-off
After entering the steam shower enclosure you can use the digital control panel to select a desired water temperature or session time. After the temperature has been reached or the time counts down to zero the steam generator will stop. |
|
 | RCD (Residual Current Device) Safety
The RCD is an electrical device that can detect an imbalance in the phase of the current and automatically cut-off power to the unit to help protect both the user and shower itself. |
|
 | Automatic Safety Shut-off for Overheating or No Water
This unit will detect a lack of water and automatically turn off to avoid "dry-boil". Avoiding dry-boil will protect the product and provide an additional safety measure for the user. |
|
 | Foldable Seating for One
Located on the side wall underneath the back jets this seat provides comfortable seating for one and can be folded up to create extra showering space. |
|
 | Speaker Volume Adjustment
The digital control panel provides buttons to increase or decrease the speaker volume within the unit. |
|
 | 2 Shower Shelves
Conveniently located in the far corner of the steam shower these shelves provide a great place to store your shampoo, conditioner, sponge and other washing utensils. |
|
|
|
| |
| Extra Material Specifications: |
| » Fibreglass reinforced acrylic tray with flexible shower waste fittings |  |
| » Durable stainless steel pipe clips |
| » Stainless Steel support for the shower base |
| » 1-1.5mm Strengthened Aluminium Profiles. |
| » 6mm Tempered Fixed Safety Glass and 6mm Safety Glass Panels. |
| » Magnetic seal system to create a close fitting door |
|
| |

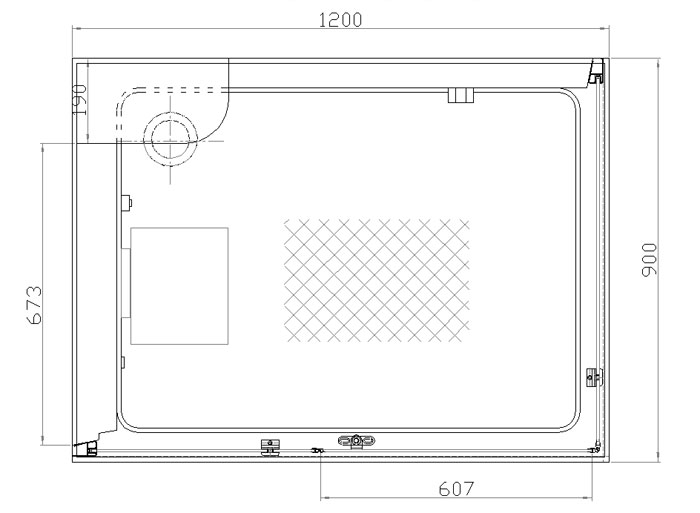

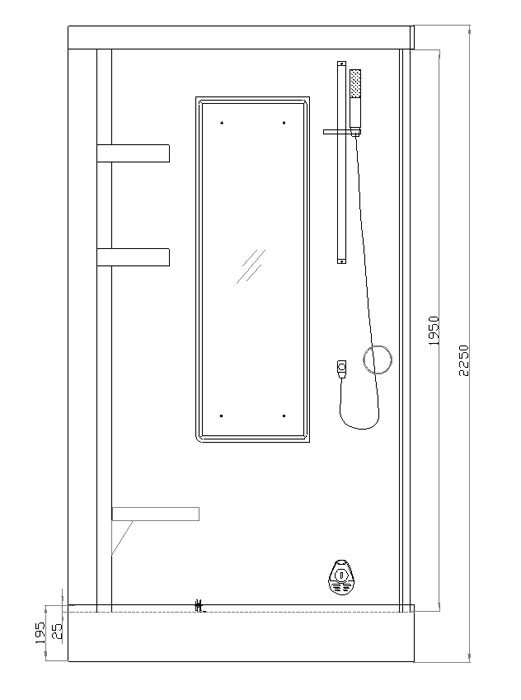

| Technical DiagramsDimensions and Layout |
 |  |
This shower comes complete with a Di Vapor easyplumbTM tray. This allows access underneath in order to connect the drainage easily. The tray comes with adjustable feet to increase or decrease height. |
 |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
|
Plumbing:- Hot & cold water supply required.
- Balanced water pressure of 2-3 BAR required.
- Gravity fed system may require a pump to meet pressure requirements.
|
|
| |
 |
| |
|
|
|
|
