A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding. A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user. A whirlpool bath is a tub that uses air jets, water jets or both to create swirling currents in the water to produce a therapeutic massage sensation. Water jets are operated using a pump that jets streams of water against the body while air jets typically line the bottom of the tub and blow air up through the water and against the bather. Using a dedicated air pump located underneath the bath, a continuous stream of air is blown up through the water at each jet location. These streams of air provide a therapeutic massage to the bather.
|
 |
About the Windermere (B-DV8007)
Dimensions: 1500 × 1500 × 780 (mm) | 59 × 59 × 30 (in.)
DUAL action Jet Systems: 8 water massage jets, 8 air bubble jets |
| The Windermere is a spacious whirlpool bathtub using a dual action massage system to provide both water and air bubble massage jets while you relax by yourself or with your partner. In addition, this model has underwater lighting, thermostatic temperature control and a built-in, three-way handheld shower to wash off any leftover suds or shampoo. |
|
|
|
|
| |
Whirlpool Bathtub FeaturesThe Windermere whirlpool bathtub includes the following features: |  |
|
| Product FeaturesInformation about the Windermere whirlpool bath |

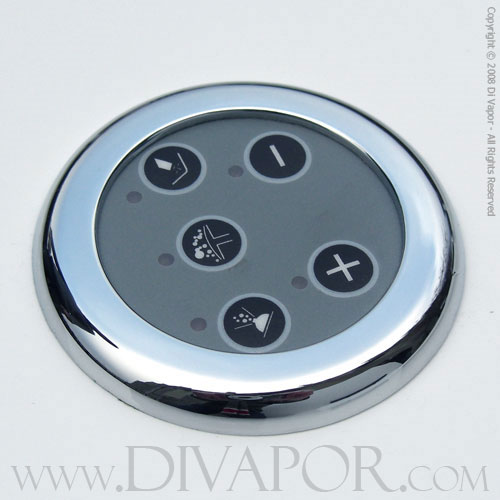

 | Digital control panel
Located along the back edge of the whirlpool bath this control panel allows you to increase/decrease the pressure of the air jets, turn the air massage jets on/off and turn the water pump on/off. The pressure of the water jets can be controlled using a dial on the side of the bath. |
|
 | 8 Hydromassage water jets
Carefully positioned around the edge of the bathtub these water jets, powered by a 1HP water pump, spray water onto your body to gently relax and massage your tired or aching muscles. |
|
 | 8 Air Massage Jets
To compliment the water massage jets this dual action massage system also provides an air pump and 8 air jets that line the base of the whirlpool bathtub to provide a complete body massage. |
|

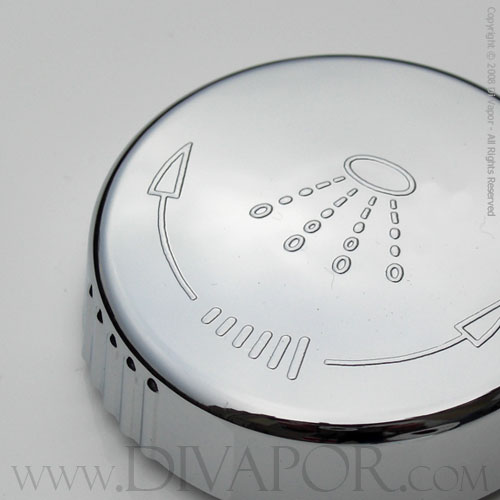

 | Adjustable Water Jets
Select the desired pressure of the water jets that line the side of the bathtub. Simply turning the pressure dial will gently increase or decrease the pressure accordingly. |
|

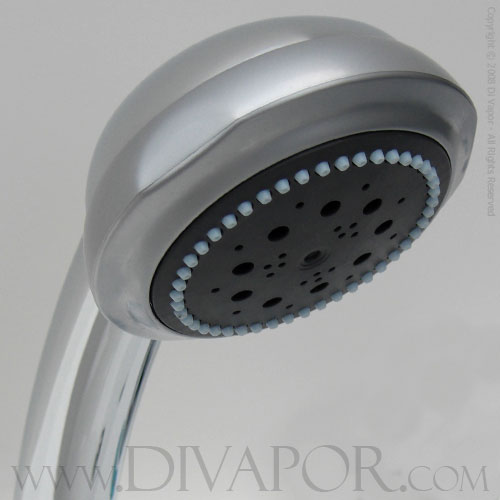

 | Three-way hand shower
After your whirlpool hydromassage is complete you can simply wash off any shampoo or bubbles that remain using this built-in handheld shower. The handheld shower provides 3 settings for either spray, jet or champagne showering. |
|
 | Water level safety sensor
In the event that the water fill level is below the water jets then this will be automatically detected by the bathtub and it will not start the water jets. This helps protect the electrical water pump if it is started without water being present. |
|

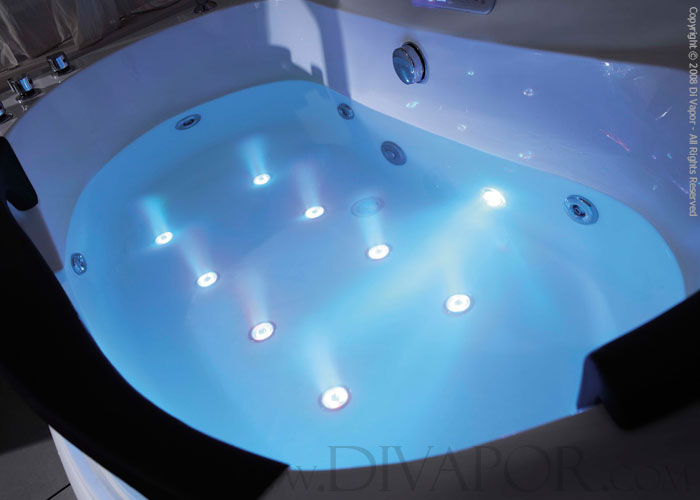

 | Underwater LED Lighting
An underwater LED light illuminates the bubbling water to create the perfect bathroom ambience while enjoying the dual action massage system. |
|
 | Residual Current Device (RCD) Safety
The Residual Current Device (RCD) is a device that can detect an imbalance in the electrical current within the unit. This is an early warning system that shuts-off the product if an imbalance is detected to protect both the user and the product. |
|
 | Two Padded Headrests
One positioned on either side of the bathtub, these durable waterproof, firm, foam pads provide a comfortable headrest for one or two users while leaning back and relaxing in the Windermeres whirlpool bathtub. |
|
|
|
| |
| Extra Material Specifications: |
» Fibreglass reinforced acrylic bath with flexible shower waste fittings
» Stainless Steel support for the bath |  |
|
| |

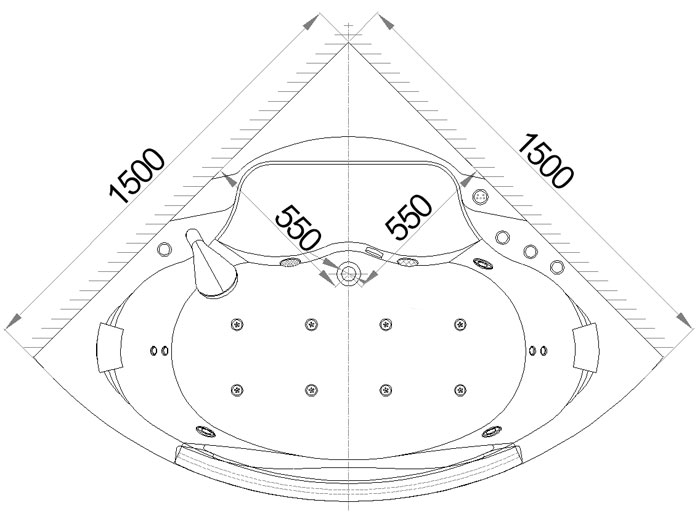

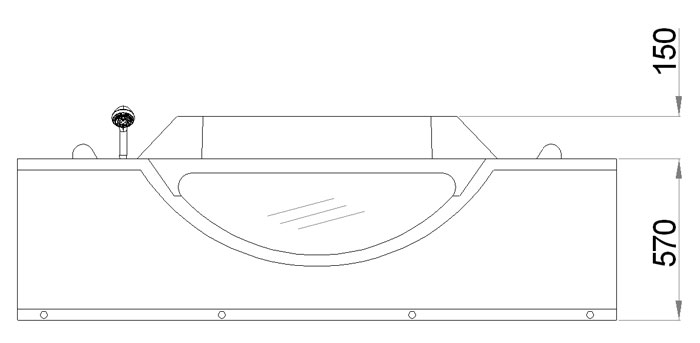

| Technical DiagramsDimensions and Layout |
 |  |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
Plumbing:- Hot & cold water supply required.
- Windermere bath Volume: 180 Litres
- Water pump: 1HP, air pump: 0.5HP
|
|
| |
| More PhotographsClick to Enlarge |
|
|
| |
 |
| |
|
|
|
|
