A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding.
A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user.
A whirlpool bath is a tub that uses air jets, water jets or both to create swirling currents in the water to produce a therapeutic massage sensation. Water jets are operated using a pump that jets streams of water against the body while air jets typically line the bottom of the tub and blow air up through the water and against the bather.
Using a dedicated air pump located underneath the bath, a continuous stream of air is blown up through the water at each jet location. These streams of air provide a therapeutic massage to the bather.
|
 |
About the Novara (B-DV078)
Dimensions: 1780 × 850 × 640 (mm) | 70 × 34 × 25 (in.)
Water Jet System: 9 water massage jets
Air Jet System: 8 air massage jets
Surround: No apron or surround included (please ask if required). |
| The contemporary straight lines of the Novara combined with chrome plated brass taps and a dual-action massage jet system make this the perfect addition to any bathroom. Furthermore, this model gives you the flexibility of providing a modern tile-surround to match your bathroom design and set-off this whirlpool bathtub. |
|
|
|
|
| |
Whirlpool Bathtub FeaturesThe Novara hydromassage bath includes the following features: |  |
|
| Product FeaturesInformation about the Novara whirlpool bath |
 | 9 Hydromassage water jets
The water massage system provides 4 large and 5 small water massage jets that surround the whirlpool bathtub. In addition, the spray direction of each jet can be changed. |
|
 | Adjustable Water Jets
Located at the side of the bath is a pressure control for the water jet system. Simply turn this dial to gently increase or decrease the pressure of the water jets. |
|
 | 8 air massage jets
8 carefully positioned air massage jets line the bottom of the Novara whirlpool bath. In contrast to the water jets that spray water into the bath, the air jets blow streams of air up through the water to complete the Novara's dual-action jet system. |
|

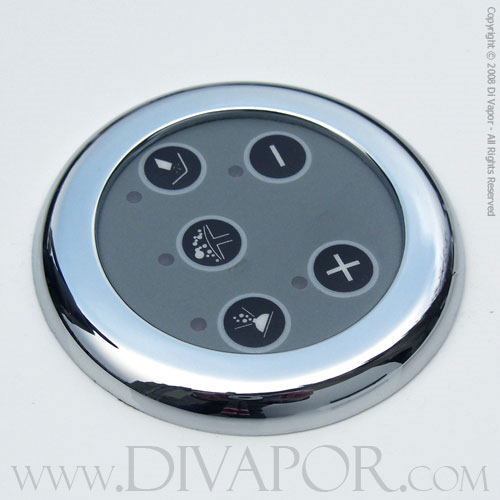

 | Adjustable Air Jets
Gently increase or decrease the pressure of the air massage jets using the digital control panel located at the side of the bathtub. |
|

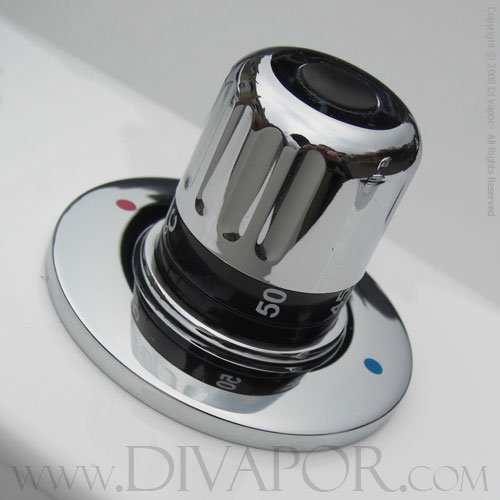

 | Thermostatic Temperature Control
The Novara comes with a built-in thermostatic temperature control valve that regulates the temperature of the water that flows into the bath. This feature helps to avoid the risk of scalding yourself or your child with sudden temperature fluctuations. |
|
 | Three-way handheld shower
Positioned at the side of the Novara is a handheld shower with an adjustable showerhead providing spray, jet and champagne functions. Once you have finished your hydrotherapy session this hand shower provides a convenient way to wash off any leftover suds. |
|
 | Underwater LED Light
This underwater light illuminates the bubbling water to create the perfect whirlpool ambience. |
|
 | Water level safety sensor
To avoid damage to the water pump this model has a built-in sensor that detects whether water has been filled above the water jets, in which case the pump can be activated. |
|
 | Residual Current Device (RCD) Safety
This safety device is used to detect an imbalance in the electrical current of the bathtub. In the event of an imbalance then the RCD will trip and stop the electrical current. This safety feature helps protect both the user and product itself. |
|
 | One Padded Headrest
This simple yet stylish waterproof, firm foam padded headrest is located at the end of the whirlpool bathtub allowing you to rest your head in comfort while enjoying your hydromassage session. |
|
 | Cleaning system
Simply unscrew the cap and fill with a gentle whirlpool bath cleaning fluid. When the system is activated, the cleaning fluid will be run through the water and the internal pipes. |
|
|
|
| |
| Extra Material Specifications: |
» Fibreglass reinforced acrylic bath with flexible shower waste fittings
» Stainless Steel support for the bath |  |
|
| |

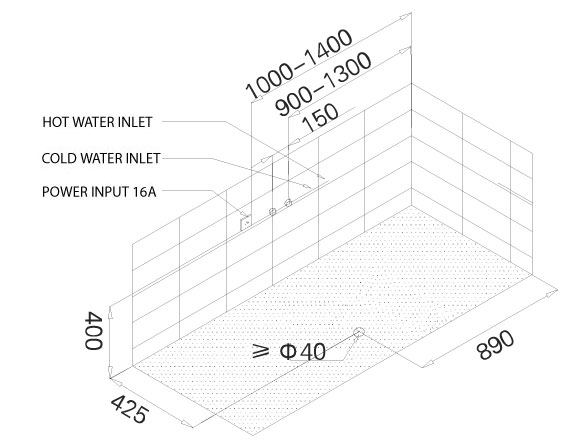

| Technical DiagramsDimensions and Layout |
 |  |  |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
Plumbing:- Hot & cold water supply required.
- Novara bath Volume: 150 Litres
- Water pump: 1HP, air pump: 0.5HP
|
|
| |
