A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding. A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user. A whirlpool bath is a tub that uses air jets, water jets or both to create swirling currents in the water to produce a therapeutic massage sensation. Water jets are operated using a pump that jets streams of water against the body while air jets typically line the bottom of the tub and blow air up through the water and against the bather. Using a dedicated air pump located underneath the bath, a continuous stream of air is blown up through the water at each jet location. These streams of air provide a therapeutic massage to the bather.
|
 |
About the Varda (B-DV022)
Dimensions: 1800mm × 850mm × 650mm
Water Jet System: 6 water massage jets
Air Jet System: 8 air massage jets
Surround: Acrylic surround included on 2 sides. |
| This dual action whirlpool bath combines both water and air massage systems, with built-in radio, three-way handheld shower, thermostatic temperature valve and cleaning system making this bath a perfect addition to your bathroom. |
|
|
|
|
| |
Whirlpool Bath FeaturesThis jacuzzi style whirlpool bath includes the following features: |  |
|
| Product FeaturesInformation about the Varda whirlpool bath |

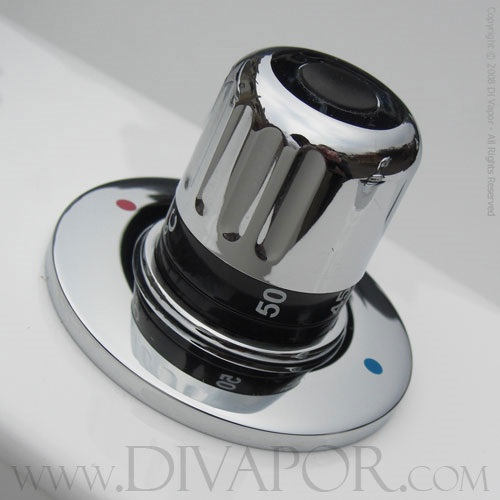

 | Thermostatic Temperature Valve
The thermostatic valve is a safety device that mixes a hot and cold water supply to create a selected water temperature. This makes filling the bath safer for younger and older users alike by eliminating those sudden fluctuations in water temperature. |
|
 | 6 Hydromassage water jets
Lining the side of this single person whirlpool bathtub, 6 water jets circulate water to gently massage your muscles. The water jets are controlled by a 1HP dedicated water pump. |
|

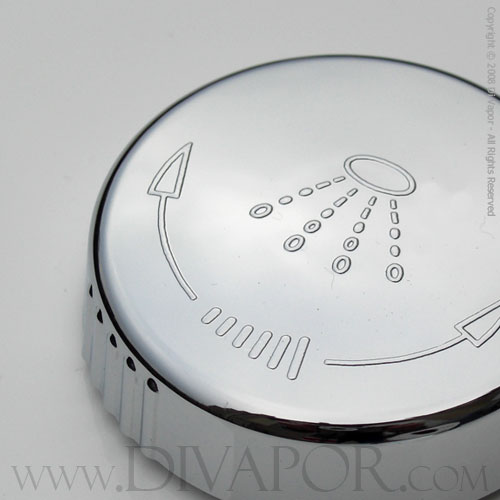

 | Adjustable water jets
The water pressure generated by the surrounding water jets can be adjusted using a dial located on the side of the whirlpool bath. Simply turn the dial clockwise or anti-clockwise to gently increase or decrease the pressure. |
|
 | 8 air massage jets
Spaced along the base of the bath are air massage jets that blow streams of air up through the water. The air bubble jets are controlled by a dedicated 0.5HP air pump. |
|
 | Adjustable air pressure

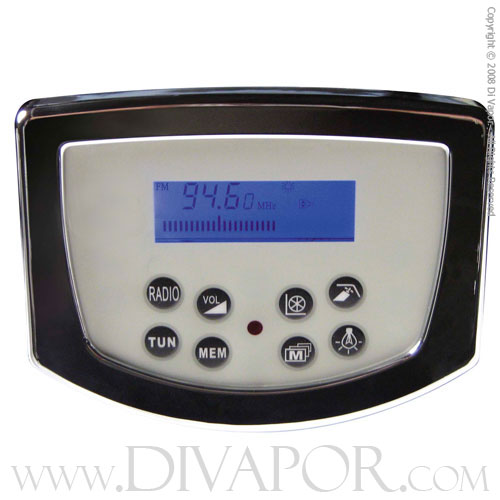

Simply press buttons on the digital control panel to increase or decrease the pressure of the air bubble jets within the bath. |
|
 | Radio
While relaxing in the bubbling water you can tune in and listen to your favourite FM radio station. Through the control panel you can tune in radio stations, store stations and recall those stored stations. |
|
 | Volume Adjustment
The control panel has built-in functionality to increase or decrease the built-in speaker volume of the radio to which you are listening. |
|
 | Bath Cleaning System
When the water pump is running, press the cleaning button for 3 seconds to activate the cleaning system that will circulate your cleaning detergent through the water pipes and water pump. |
|

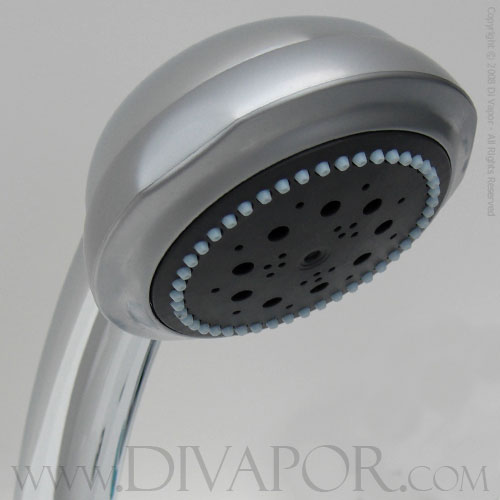

 | Three-way hand shower
Conveniently located at the side of the bath this handheld shower provides 3 different showering settings; spray, jet and champagne. This handheld shower provides a great way to wash off those shampoo suds. |
|
 | Underwater LED Light
Located in the side of the bath this underwater light can be used to illuminate the water as it cascades over itself. |
|
 | Water Level Sensor
To protect the electrical water pump a built-in sensor will detect when the water fill level is below the required level. In this event the water pump will be automatically shut-off. |
|
 | Residual Current Device (RCD) Safety
An RCD is an electrical device that will detect a phase imbalance in the flow of current to the unit. If this happens then power to the unit will automatically be shut-off to protect both the user and bath. |
|

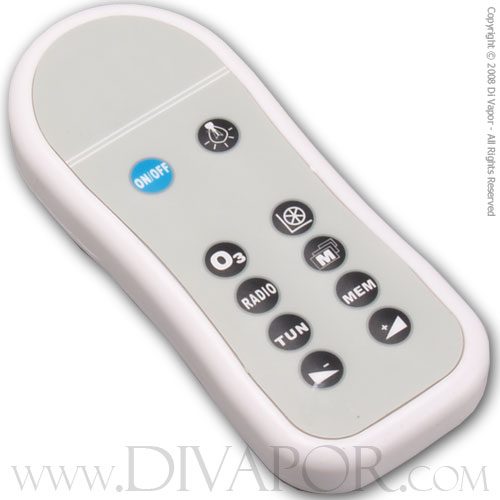

 | Remote control
Operate features of the bath more conveniently using the remote control provided. For example, turn on the radio and control its volume from across your bathroom. |
|
|
|
| |
| Extra Material Specifications: |
» Fibreglass reinforced acrylic bath with flexible shower waste fittings
» Stainless Steel support for the bath |  |
|
| |

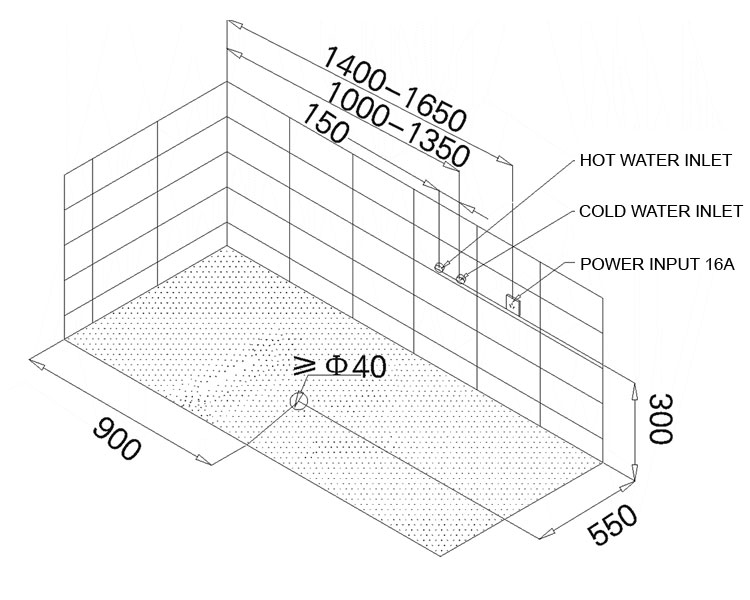

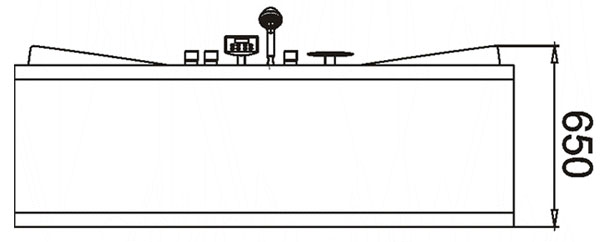

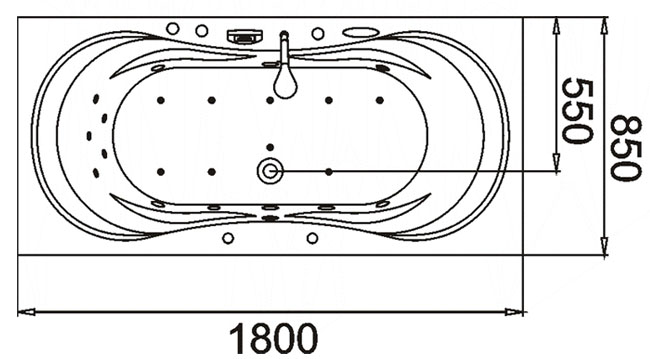

| Technical DiagramsDimensions and Layout |
 |  |  |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
Plumbing:- Hot & cold water supply required.
- Varda bath Volume: 125 Litres
- Water pump: 1HP, air pump: 0.5HP
|
|
| |
