ULTRA A3380 Beaumont Sequential Concealed Faceplate

SUMMARY

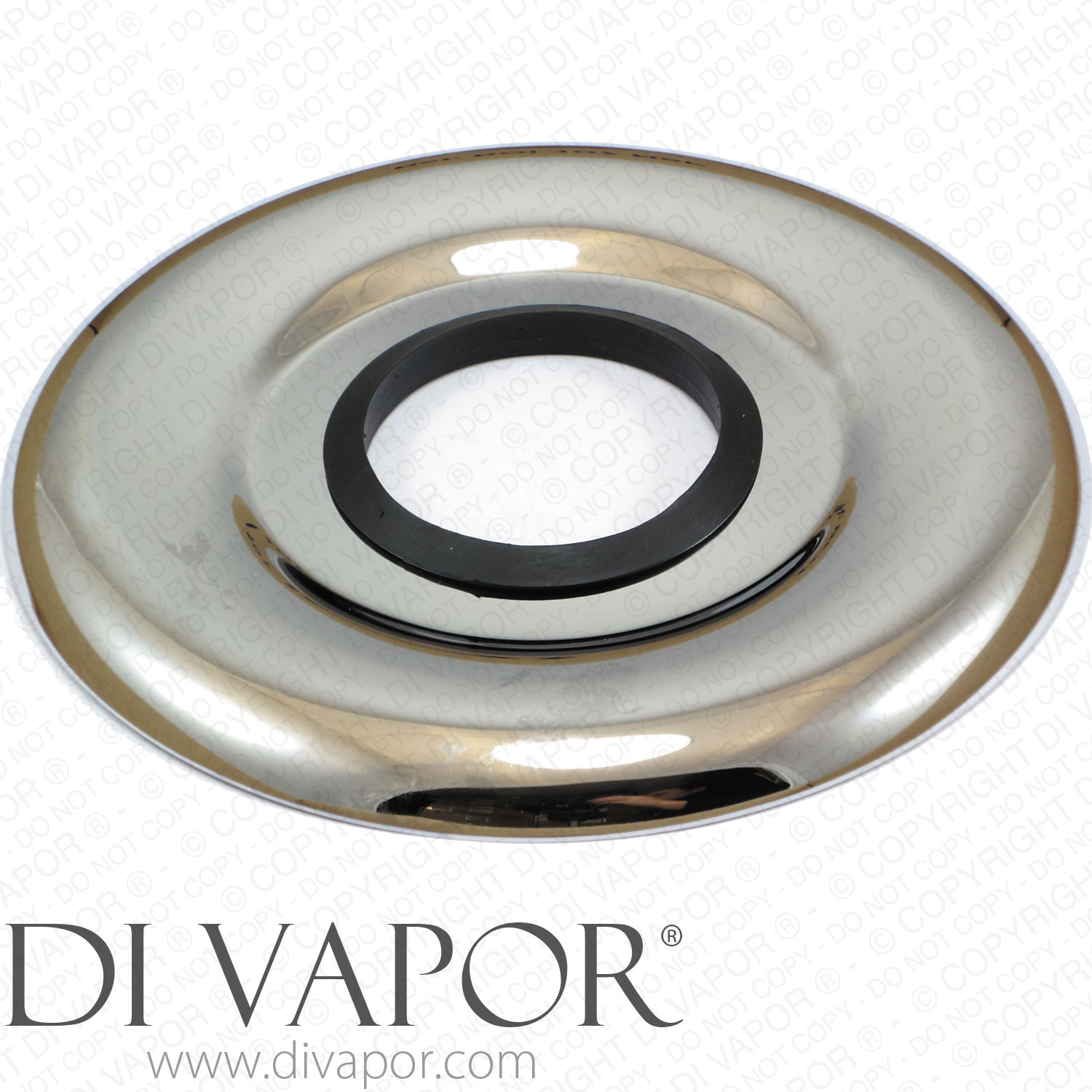

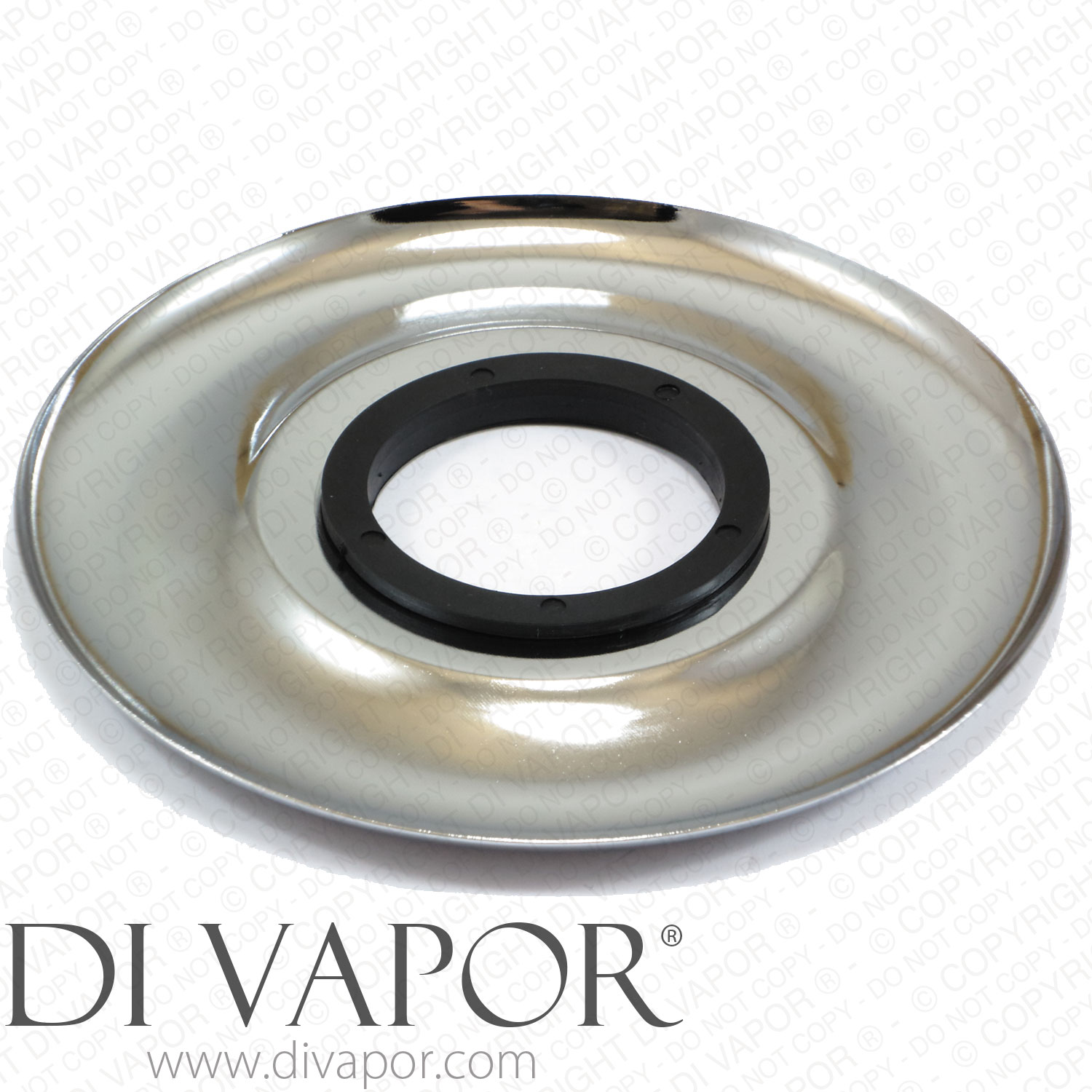

Ultra A3380 Beaumont Sequential Concealed Shower Valve Faceplate

The Ultra A3380 Beaumont sequential concealed shower valve faceplate is the outer concealing plate for the A3380 shower valve in a concealed installation. It covers the wall opening around the valve and provides a neat finish behind the control.

This is the large outer wall plate. The smaller engraved Hot/Off plate around the control is a separate component, listed as A3380-PP.

Technical Details

- - Brand: Ultra

- - Part Number: ULTRA-A3380-PLATE

- - Part type: Outer concealing faceplate

- - Application: Beaumont A3380 sequential thermostatic shower valve in concealed configuration

- - Profile: Round plate with a raised centre and a single central opening

Confirmed Compatible Models

- - Ultra Beaumont A3380 sequential thermostatic shower valve in concealed configuration

- - Ultra A3380C Traditional Concealed Thermostatic Sequential Shower Valve

Before Ordering and Fitting

Check the valve model and compare the existing plate's profile, centre opening and grommet arrangement before ordering. Confirm that the replacement plate will cover the existing wall opening.

Fit the centre grommet into the faceplate before pushing the plate into position. Follow the valve manufacturer's instructions for sealing the plate against the finished wall, then refit the smaller engraved plate and handle. Clean the exposed surface with a soft, damp cloth and avoid abrasive cleaners.

Replacing the outer faceplate renews the visible trim. Temperature control or shut-off faults require separate investigation of the valve.

Related Spares You May Need

The following parts are listed separately for work on the valve or its associated fittings.

- - SAR00-CS thermostatic cartridge service kit - Cartridge, traditional handle and small Hot/Off plate

- - SAR00 thermostatic cartridge - Internal cartridge for the sequential valve

- - A3380-PP Hot/Off plate - Small engraved control plate

- - SAR00-HANDLE temperature control handle - Traditional handle design

- - SAR00-A3380-HANDLE temperature control handle - Conical handle design

- - SA3290SPIN2 spindle - 24-spline spindle for the SAR00 cartridge

- - SA3290SPIN spindle - Spindle for the SAR00 cartridge, now discontinued

- - SAOV15 non-return valves - Pack of two

- - V068-P Ov20 check valve - Individual non-return valve

- - TAC86 TACSIL silicone grease - 3g cartridge servicing grease

- - GR-18007031 GROHE silicone grease - 2g cartridge servicing grease

- - NXT734 shower hose - Check the length and connections required by the installation

Use the Di Vapor part identification service if you need help finding the right part.
