Non Return Valve from Recessed Valves (Crosswater Z0A363N)
SUMMARY
Non Return Valve from Recessed Valves (Crosswater Z0A363N)

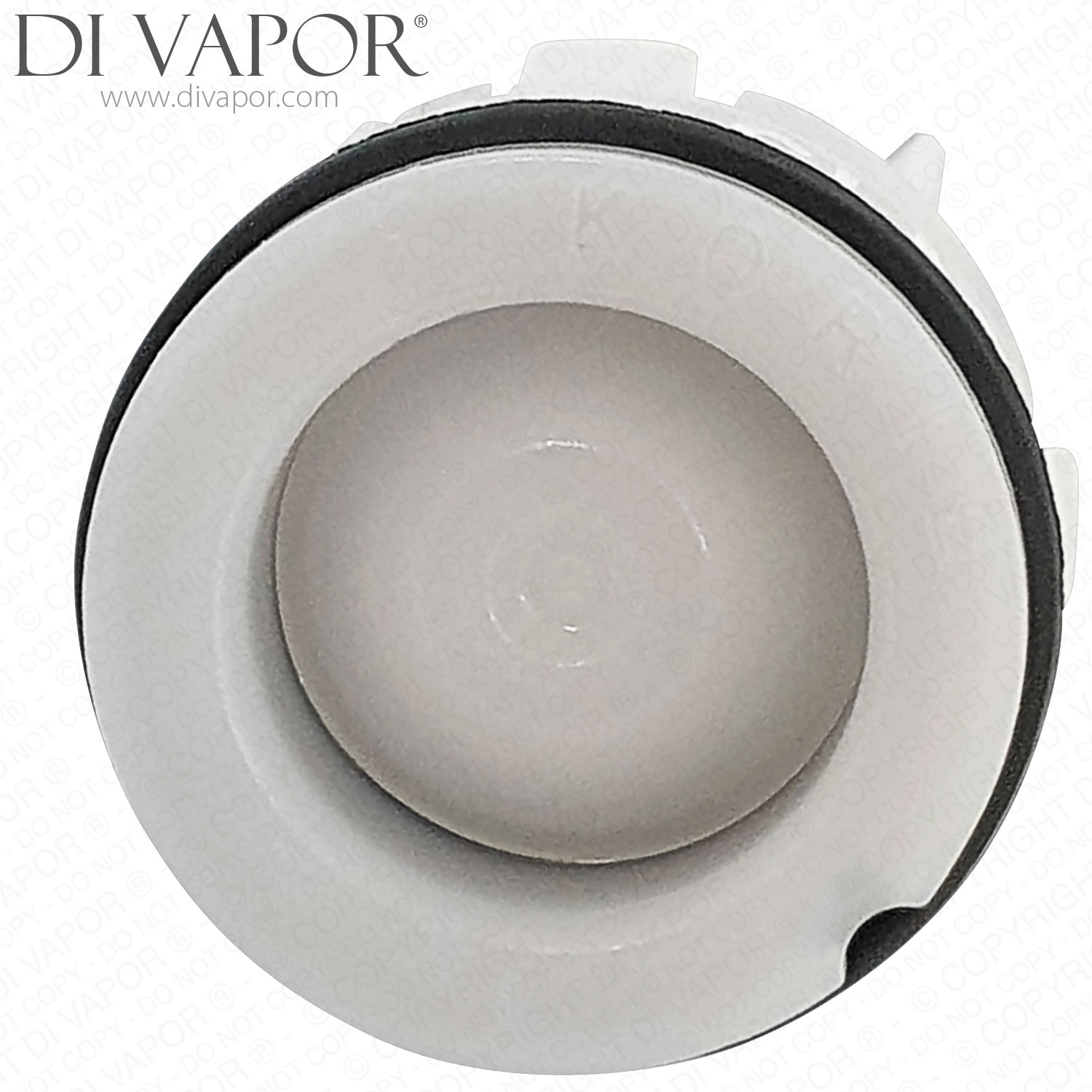

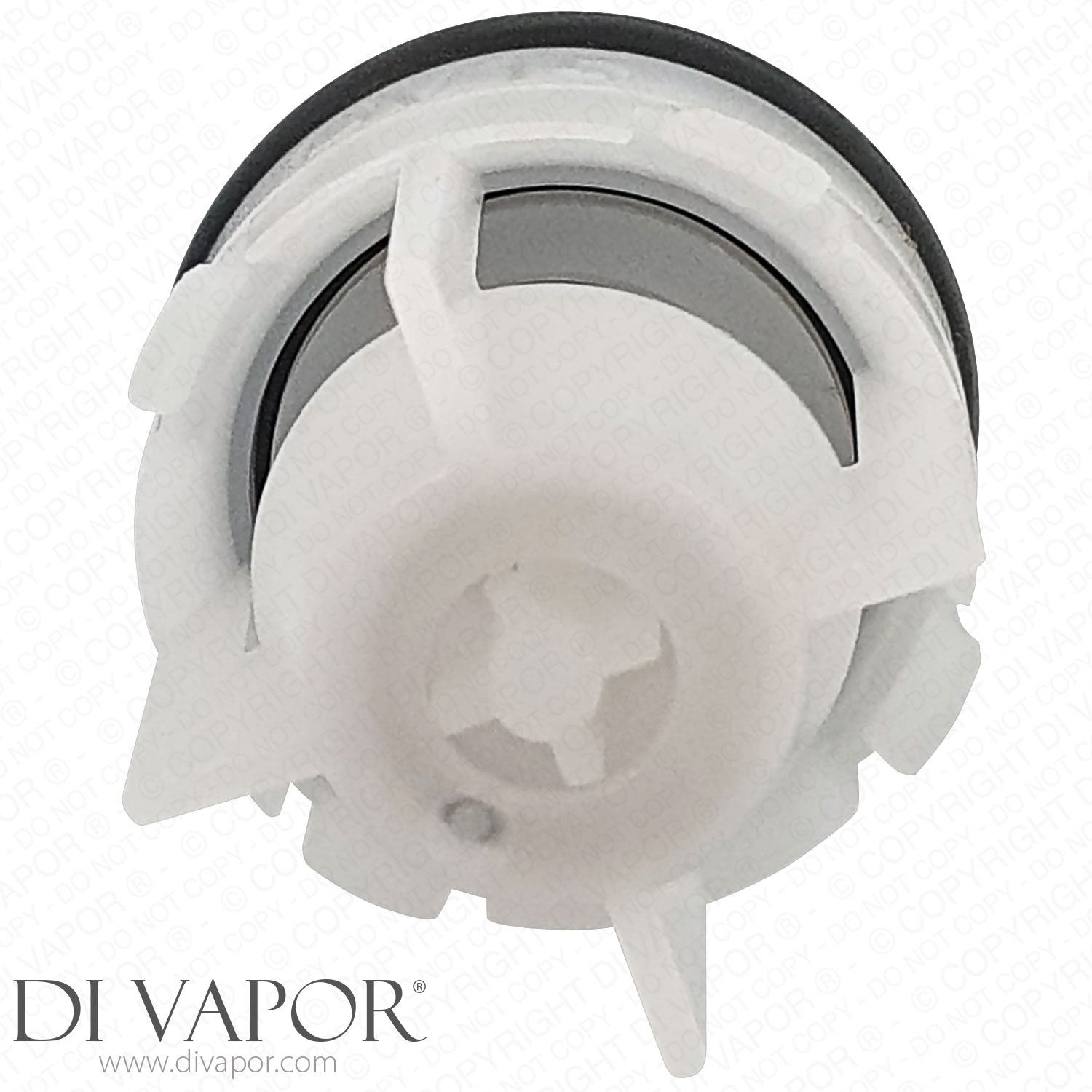

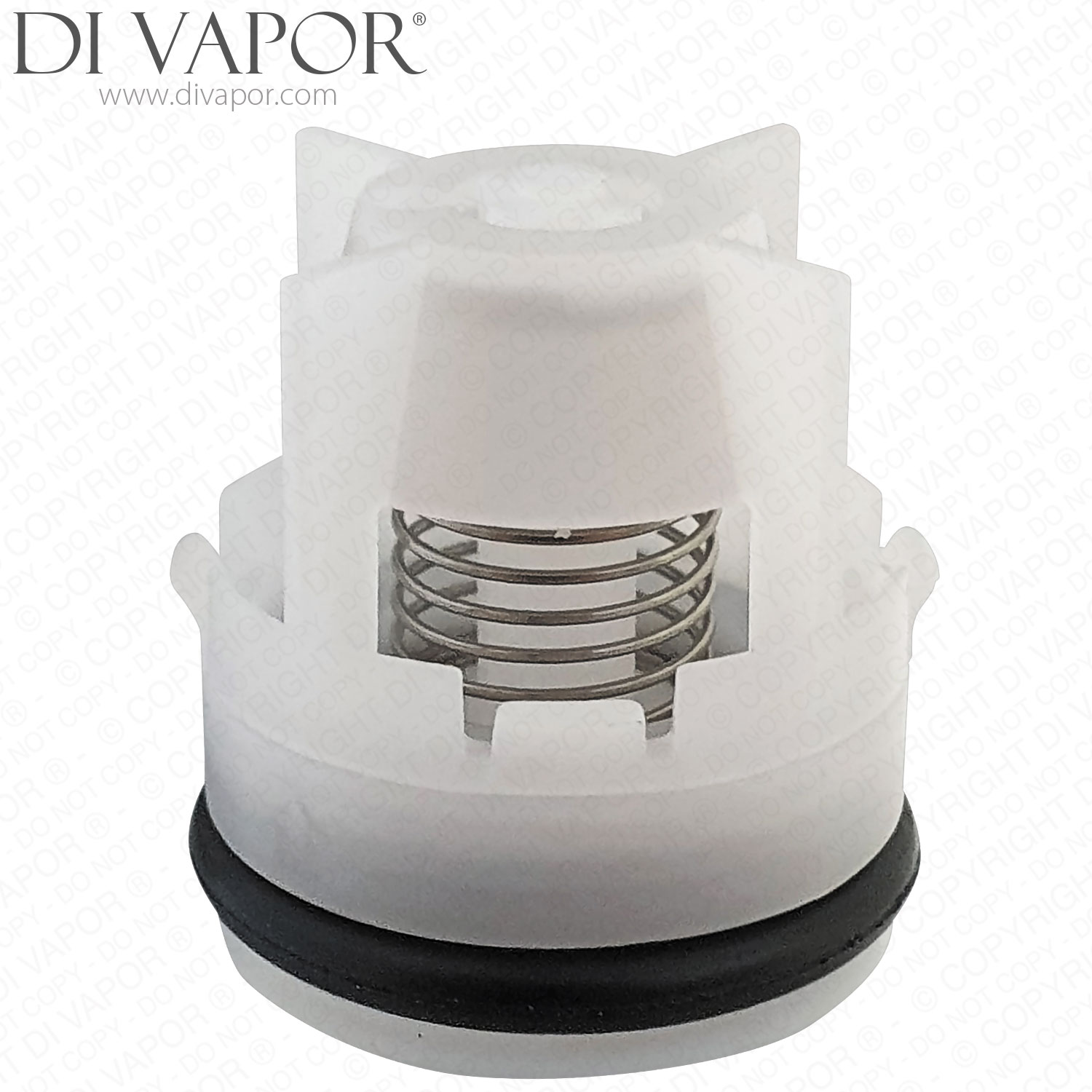

A non-return valve Crosswater Z0A363N is a one-way water control component used within selected Crosswater recessed thermostatic shower valves. It helps prevent water flowing backwards through the shower valve's supply connections and reduces the risk of unwanted crossflow between the hot and cold water supplies.
This non-return valve is supplied individually and is associated with Crosswater recessed valve assemblies manufactured across several ranges. It is important to identify the exact valve model and generation before ordering, as earlier versions may use a different non-return valve.
Technical Details
- - Part Number: Z0A363N
- - Component type: Non-return valve
- - Application: Selected recessed thermostatic shower valves
- - Function: Restricts reverse water flow through the shower valve's supply connections
- - Fitting reference: 22mm
- - Quantity supplied: One non-return valve
- - Associated non-return valve filter: Z00717N
- - Valve generation: Specified for the listed WLBP valve families from 2006 onwards
- - Earlier reference: IBNRV is specified for certain pre-2006 WLBP valve assemblies
Confirmed Compatible Models
Crosswater WLBP 1000 Family
- - WLBP1000RC+ - Single-outlet valve body used in the Svelte shower assembly
Crosswater WLBP 1500/1 Family
- - WLBP1500RC+ - Portrait two-way diverter valve body used in the Belgravia BL1500RC+ assembly
- - WLBP1501RC+ - Landscape two-way diverter valve body used in the Belgravia BL1501RC-VS+ assembly
Crosswater WLBP 2000/1 Family
- - WLBP2000RC+ - Portrait two-outlet independent-control thermostatic shower valve body
Crosswater WLBP2500 Family
- - WLBP2500RC+ - Portrait three-way diverter thermostatic shower valve body
Crosswater WLBP 3000/1 Family
- - WLBP3000RC+ - Portrait three-outlet thermostatic shower valve body with diverter control
- - WLBP3001RC+ - Landscape three-outlet valve body used in the Central CE3001RC+ assembly
Crosswater WLBP25x31 Family
- - WLBP25X31R+ - Landscape two-outlet MultiFlow thermostatic shower valve without collar - 2006 onwards only
Crosswater WLBP25x3 Family
- - WLBP25X3R+ - Portrait two-outlet MultiFlow thermostatic shower valve without collar
Crosswater Belgravia Range
- - Belgravia BL1500RC+ Thermostatic Shower Valve
- - Belgravia BL2000RC_LV+ Thermostatic Shower Valve
- - Belgravia BL2000RC_VS+ Thermostatic Shower Valve
- - Belgravia BL2000RC_LV-VS+ 2 Outlet 3 Handle Thermostatic Shower Valve
- - Belgravia HG3000RN Thermostatic Shower Valve
Crosswater Waldorf Range
- - Waldorf CW DV 101 Thermostatic Shower Valve
- - Waldorf WF1000RC_LV+ Thermostatic Shower Valve
- - Waldorf WF1000RC_VS+ Thermostatic Shower Valve
- - Waldorf WF1500RC_LV+ Thermostatic Shower Valve
- - Waldorf WF1500RC_BLV_VS+ Thermostatic Shower Valve with 2 Way Diverter
- - Waldorf WF1500RC_VS+ Thermostatic Shower Valve with 2 Way Diverter
- - Waldorf WF2000RC_BLV_VS+ Thermostatic Shower Valve with 2 Way Diverter
- - Waldorf WF3000RC_BLV_VS+ Thermostatic Shower Valve with 3 Way Diverter
Crosswater Kai Lever Range
- - Kai Lever KL1000RC Thermostatic Shower Valve
- - Kai Lever CW DV 102 Thermostatic Shower Valve
- - Kai Lever Thermostatic Shower Valve with 2 Way Diverter & Shower Kit CW DV 104
Crosswater Wisp Range
- - Wisp WP1000RC Thermostatic Shower Valve
- - Wisp WP2000RC Thermostatic Shower Valve
- - Wisp WP2001RC Thermostatic Shower Valve with 2 Way Diverter
Crosswater Totti Range
- - Totti TO1000RC GEN1 Thermostatic Shower Valve (2007-2013)
- - Totti II TO2000RC Thermostatic Shower Valve
Crosswater Zero Range
- - Zero 2 CW DV 147 Thermostatic Shower Valve
- - Zero 2 ZR02_3000RC Thermostatic Shower Valve
- - Zero 3 CW DV 149 Thermostatic Shower Valve
Crosswater Svelte Range
- - Svelte WLBP1000RC+ with CE1000BPC / SETHL02 Thermostatic Shower Valve
- - Svelte SE1500RC Thermostatic Shower Valve with 2 Way Diverter
Crosswater Water Square Range
- - Water Square WS3000RC Thermostatic Shower Valve
- - Water Square WS2001RC Thermostatic Shower Valve with 2 Way Diverter
Other Crosswater Shower Valves
- - Central CW DV 107 Thermostatic Shower Valve
- - Modest MO2001RC Thermostatic Shower Valve
- - Design DE2001RC Thermostatic Shower Valve
- - Elite EL2001RC Thermostatic Shower Valve
- - Essence ES1500RC Thermostatic Shower Valve with 2 Way Diverter
Symptoms and Checks Before Ordering
A faulty non-return valve may allow unwanted movement of water between the hot and cold supplies. Possible symptoms include crossflow, unexpected changes in water supply behaviour or inconsistent shower temperatures. Similar problems can also result from faults elsewhere in the shower valve, so the non-return valve should be inspected before replacement.
Check the exact model and age of your shower valve, and compare the existing component with the required spare. The older IBNRV and other Crosswater non-return valve references should not be assumed to be interchangeable with Z0A363N. The 22mm fitting reference alone is not sufficient to establish fitment.
Isolate the water supplies before removing or servicing the shower valve, and follow the manufacturer's instructions for the particular assembly.
Related Spares You May Need

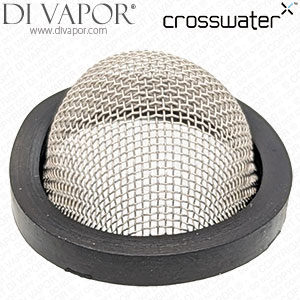

- - Crosswater Z00717N Non-Return Valve Filter
- - Crosswater CGPRO2500D Diverter Cartridge - CW-CGPRO2500D Listing
- - Crosswater CGPRO2500D Diverter Cartridge for PRO2500R and WLBP2500RC+ Valves
- - Crosswater CA43-102 Thermostatic Cartridge
- - Crosswater CA43-059 Thermostatic Cartridge
- - Crosswater 2172-0019-5-N0 Diverter Cartridge for WLBP25X3R+ and WLBP25X31R+ Valves
- - Crosswater CGPRO1500D Diverter Flow Cartridge
- - Crosswater X2A071N 90mm Ceramic Disc Flow Cartridge - Anticlockwise Open
- - Crosswater X2A044N-1 Diverter Cartridge
- - Crosswater X2A044N-1-COL Diverter Retaining Nut Collar
- - Crosswater SC50T20-M Thermostatic Cartridge
- - Crosswater CA43-29 Thermostatic Cartridge
- - Crosswater RN1000FA1 Retaining Nut
- - Crosswater D1S207N Thermostatic Cartridge Override Ring
- - Crosswater T5T346C Chrome Thermostatic Cartridge Collar
- - Crosswater H1T082C Handle Base
- - Crosswater CP0000250 Handle Base - Part Number CP00002345
- - Crosswater SSP004 Recessed Shower Valve Control Screws
- - TACSIL 3g WRAS Approved Silicone Grease - TAC86
These are associated service parts for different Crosswater shower valve models and generations. Check the relevant valve assembly before selecting a thermostatic cartridge, diverter cartridge, flow cartridge or control component, as not every part listed is used in every shower valve.
If you are unsure which part you need, use the Di Vapor Part Identification Service and send us a photo of your existing part.
