Crosswater X2A044N-1 Retaining Nut Collar
Send a photo of your item and we'll help confirm it.
Summary

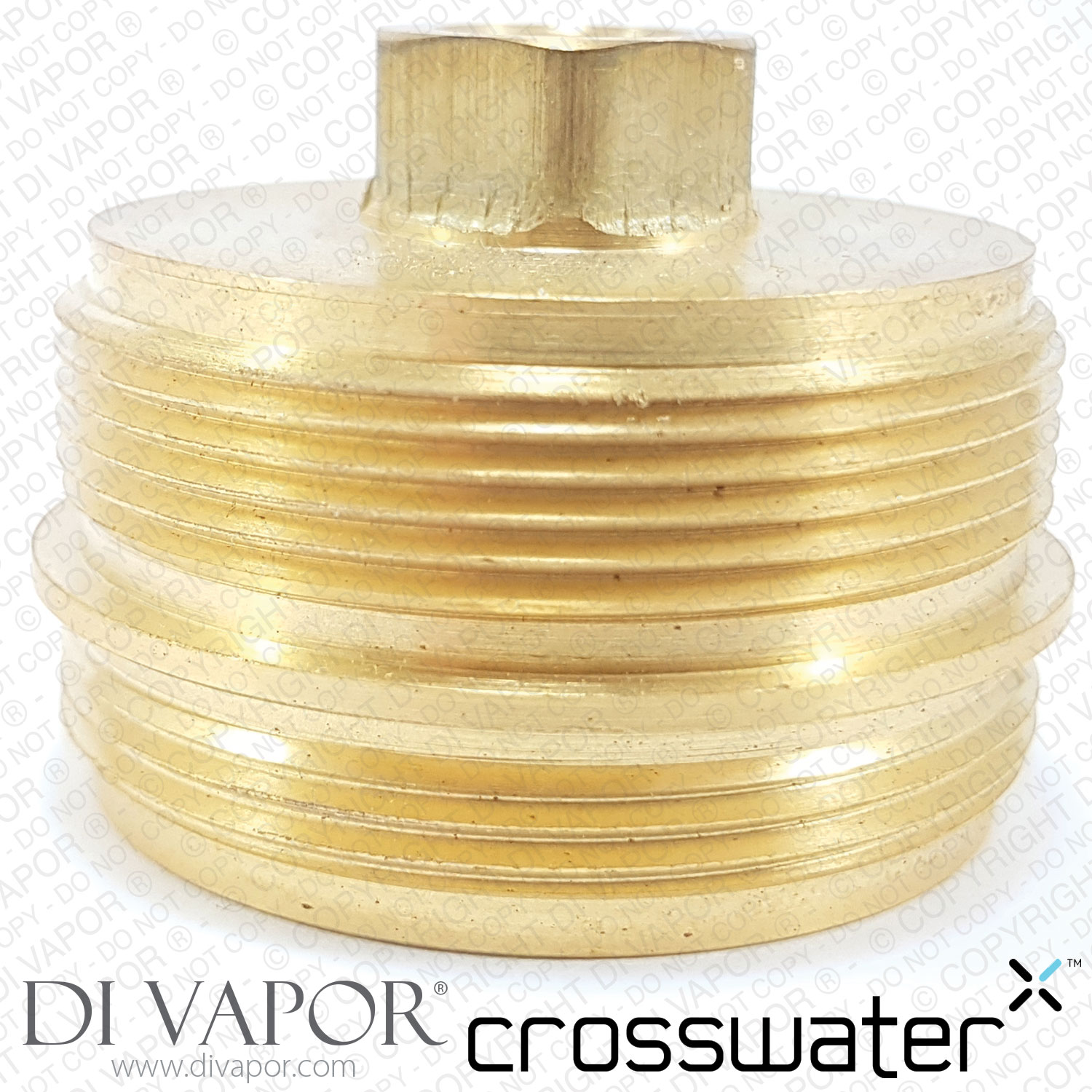

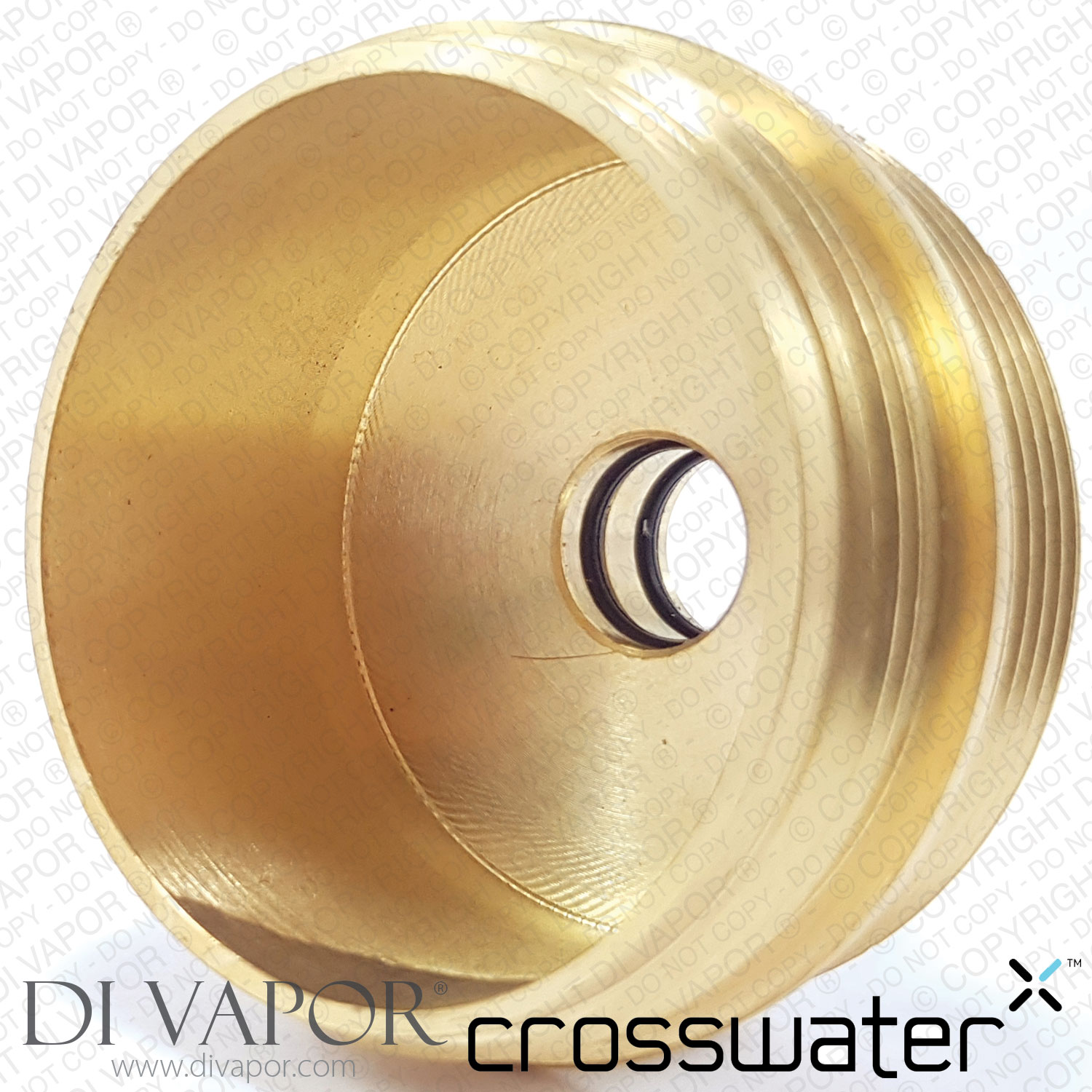

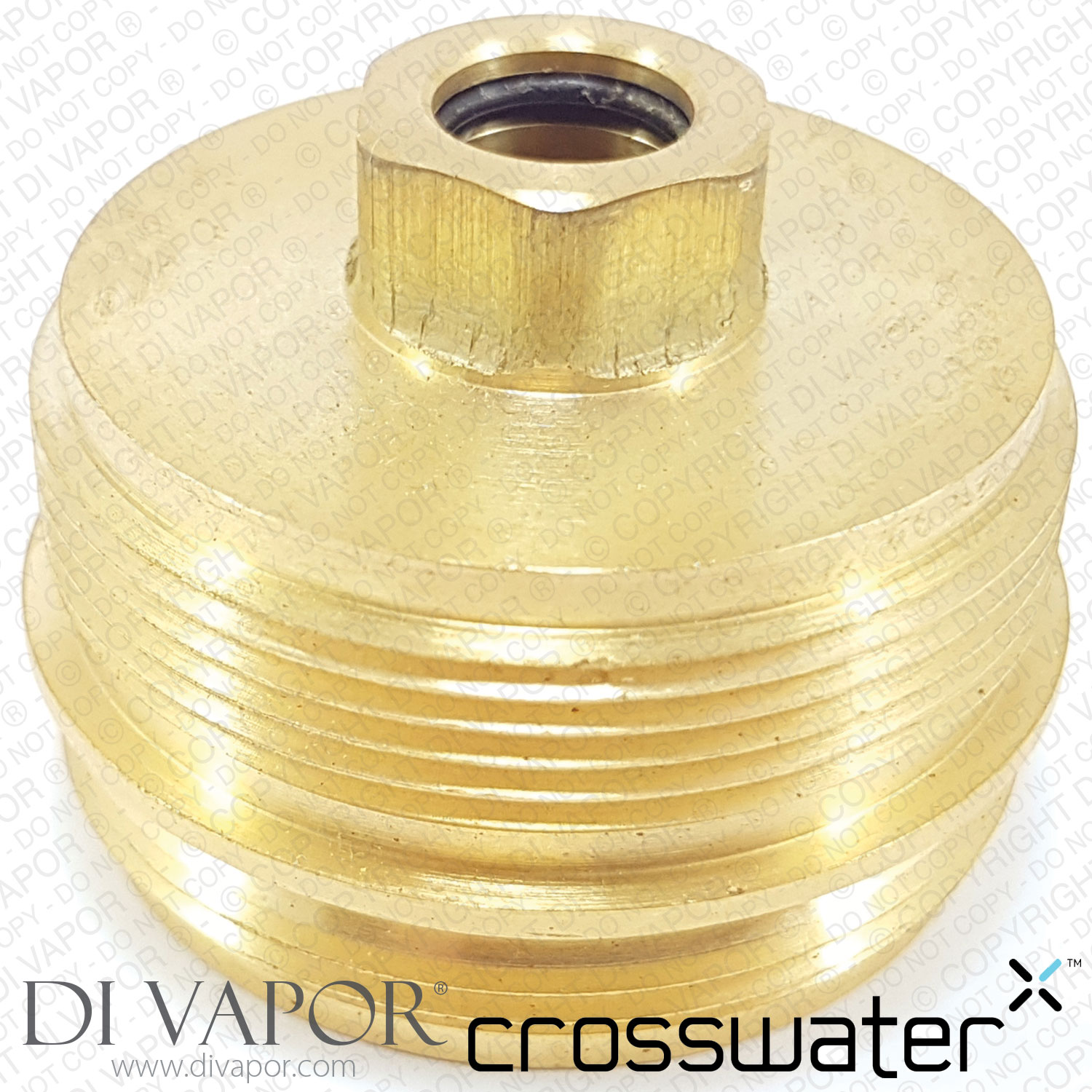

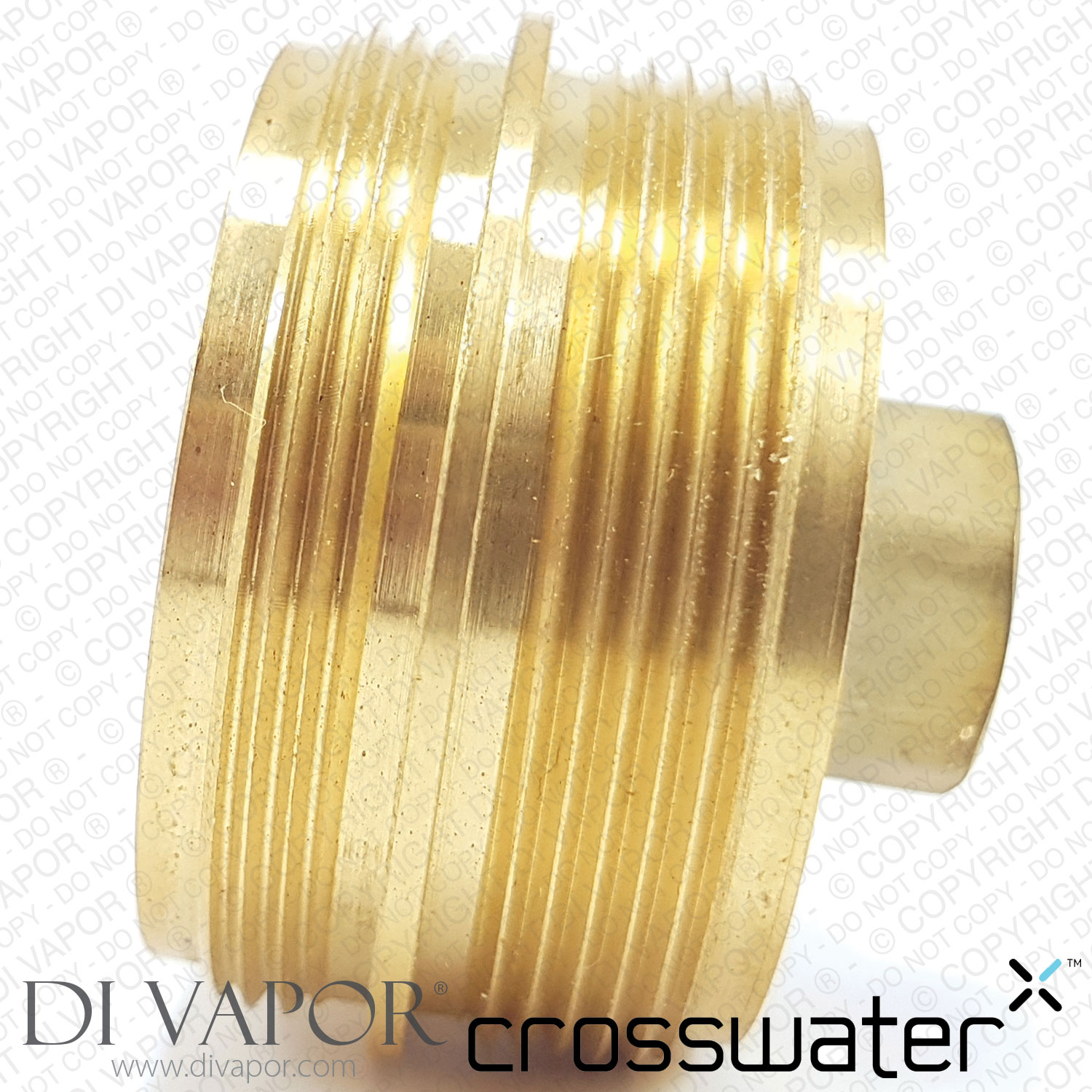

Crosswater X2A044N-1 Retaining Nut Collar
Crosswater X2A044N-1-COL is a retaining nut collar for use with the Crosswater X2A044N-1 diverter cartridge assembly in selected Crosswater recessed thermostatic shower valves with diverter control.
This collar secures the diverter cartridge in position during refitting. It is useful when the original retaining nut collar is damaged, missing, worn or cannot be reused during cartridge replacement.
Technical Details
| Brand | Crosswater |
|---|---|
| Part Number | X2A044N-1-COL |
| Part type | retaining nut collar |
| Application | retaining collar for Crosswater X2A044N-1 diverter cartridge installations |
| Total height | 31.5mm |
| Barrel width at thread | 42mm |
| Diameter of spindle hole | 31.5mm |
| Diameter of top hex | 15.3mm |
Check the valve model code, existing collar dimensions and diverter cartridge reference before ordering. Isolate the hot and cold water supplies before removing the shower handle, cover and retaining parts.
Confirmed Compatible Models
- Crosswater WLBP25X3R+ 2 Outlet Thermo MultiFlow No Collar Portrait Shower
- Crosswater CT1500RC Celeste Thermostatic Shower Valve with 2 Way Diverter
- Crosswater PRO3000RC+ MPRO Thermostatic Shower Valve with 3 Way Diverter
- DE3001RC Crosswater Design Thermostatic Shower with 3 Way Diverter
- KL1500RC Crosswater Kai Lever Thermostatic Shower with 2 Way Diverter
- KL3000RC Crosswater Kai Lever Thermostatic Shower with 3 Way Diverter
- KL3001RC Crosswater Kai Lever Thermostatic Shower with 3 Way Diverter
- MO3000RC Crosswater Modest Thermostatic Shower with 3 Way Diverter
- MO3001RC Crosswater Modest Thermostatic Shower with 3 Way Diverter
- TO1500RC Crosswater Totti Thermostatic Shower with 2 Way Diverter
- TO3000RC Crosswater Totti Thermostatic Shower with 3 Way Diverter
Related Spares You May Need
- Crosswater X2A044N-1 Diverter Cartridge - 100mm Length
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Crosswater CGPRO1500D Diverter Flow Cartridge
- Crosswater CA43-059 Thermostatic Cartridge
A failing diverter cartridge can cause stiff outlet changeover, dripping from one outlet while another is in use, or leakage when the valve is turned off. This retaining nut collar is not the cartridge itself; order the X2A044N-1 diverter cartridge separately if the internal cartridge also needs replacing.
