Crosswater D1S207N Over-Ride Ring (Sc50) from Wl1000RC Valves (d15207n)

SUMMARY

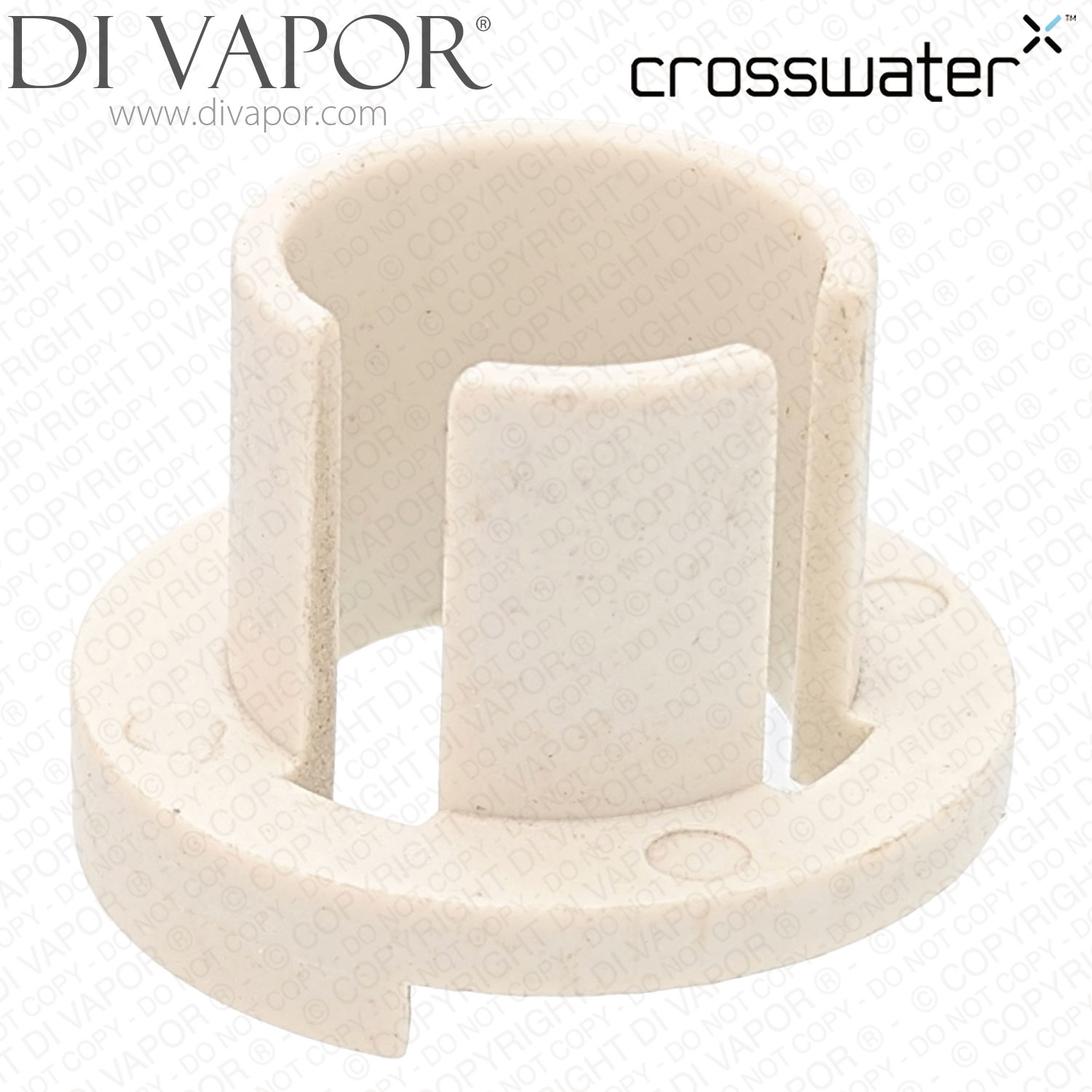

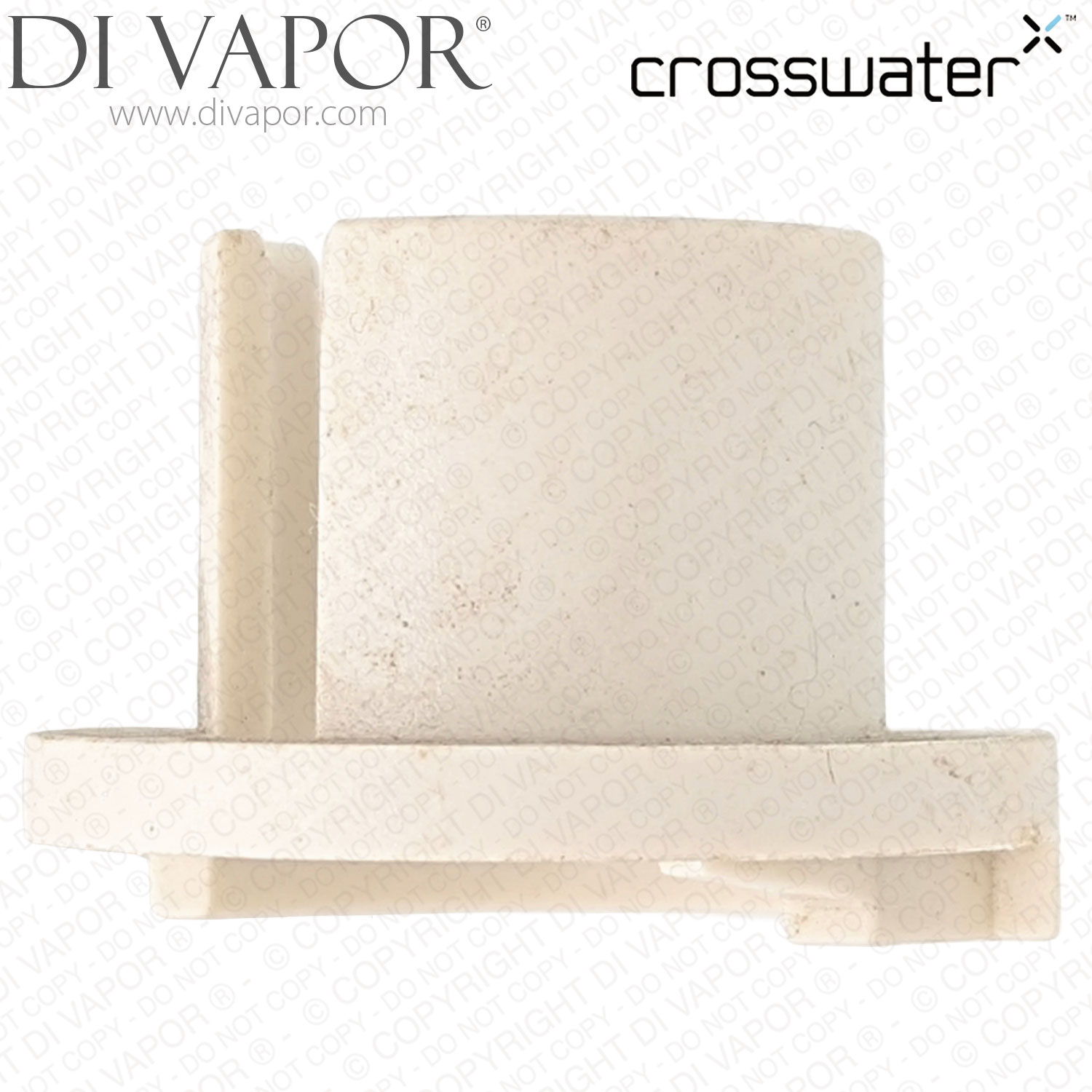

Crosswater D1S207N SC50 Temperature Over-Ride Ring for WL1000RC Thermostatic Shower Valves

The Crosswater D1S207N is an SC50 temperature over-ride ring used in the temperature-control assembly of selected concealed thermostatic shower valves. It is identified with WL1000RC valves and is listed among the spare parts for Crosswater Kai Lever and first-generation Totti shower valves.

The ring forms part of the temperature stop and over-ride arrangement associated with the shower's temperature handle. It is a separate control component, not a complete thermostatic cartridge, flow cartridge or shower valve.

Technical Details

- - Part Number: D1S207N

- - Part type: SC50 temperature over-ride ring

- - Associated valve reference: WL1000RC

- - Application: Thermostatic shower temperature-control assembly

- - Supplied part: Over-ride ring only, not the complete thermostatic cartridge

Confirmed Compatible Models

- - Crosswater KL1000RC Kai Lever Thermostatic Shower Valve

- - Crosswater KL2000RC Kai Lever Triple Concealed Thermostatic Shower Valve

- - Crosswater Totti TO1000RC GEN1 Thermostatic Shower Valve (2007-2013)

- - Crosswater WL1000RC SC50-equipped shower valve

The listed Totti valve is the 2007-2013 first-generation version. Check the model and existing ring before ordering, as different valve generations and other Crosswater temperature stop rings must not be assumed interchangeable.

A damaged or missing over-ride ring may affect the operation of the temperature-handle stop. If the shower temperature fluctuates or fails to regulate, inspect the thermostatic cartridge and other valve components rather than assuming that this ring alone is the cause.

Related Spares You May Need

- - SC50T20 Crosswater Thermostatic Cartridge

- - Crosswater T5T346C Chrome Thermostatic Cartridge Collar

- - Crosswater CP0000250 Handle Base (Part Number CP00002345)

- - Crosswater H1T082C Handle Base

- - Crosswater RN1000FA1 Retaining Nut

- - Crosswater X2A071N Ceramic Disc Flow Cartridge

- - Crosswater NRV1000FA1 Non-Return Valve

- - Crosswater Z0A363N Non-Return Valve

- - Crosswater Z00717N Non-Return Valve Filter

- - TACSIL 3g Cartridge Silicone Grease

Unsure which part to order? Use the Di Vapor part identification service and send us a photo of the existing part.
