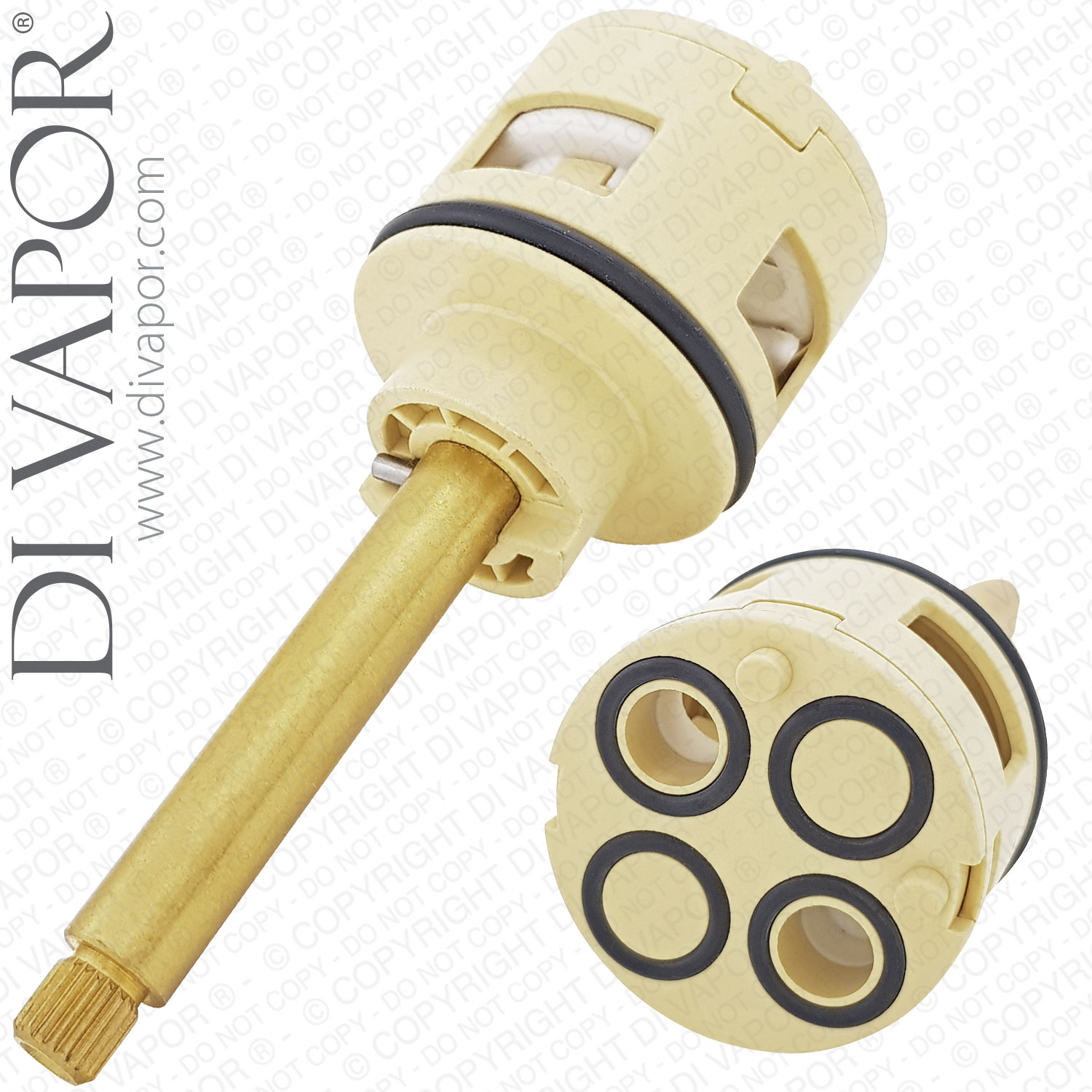

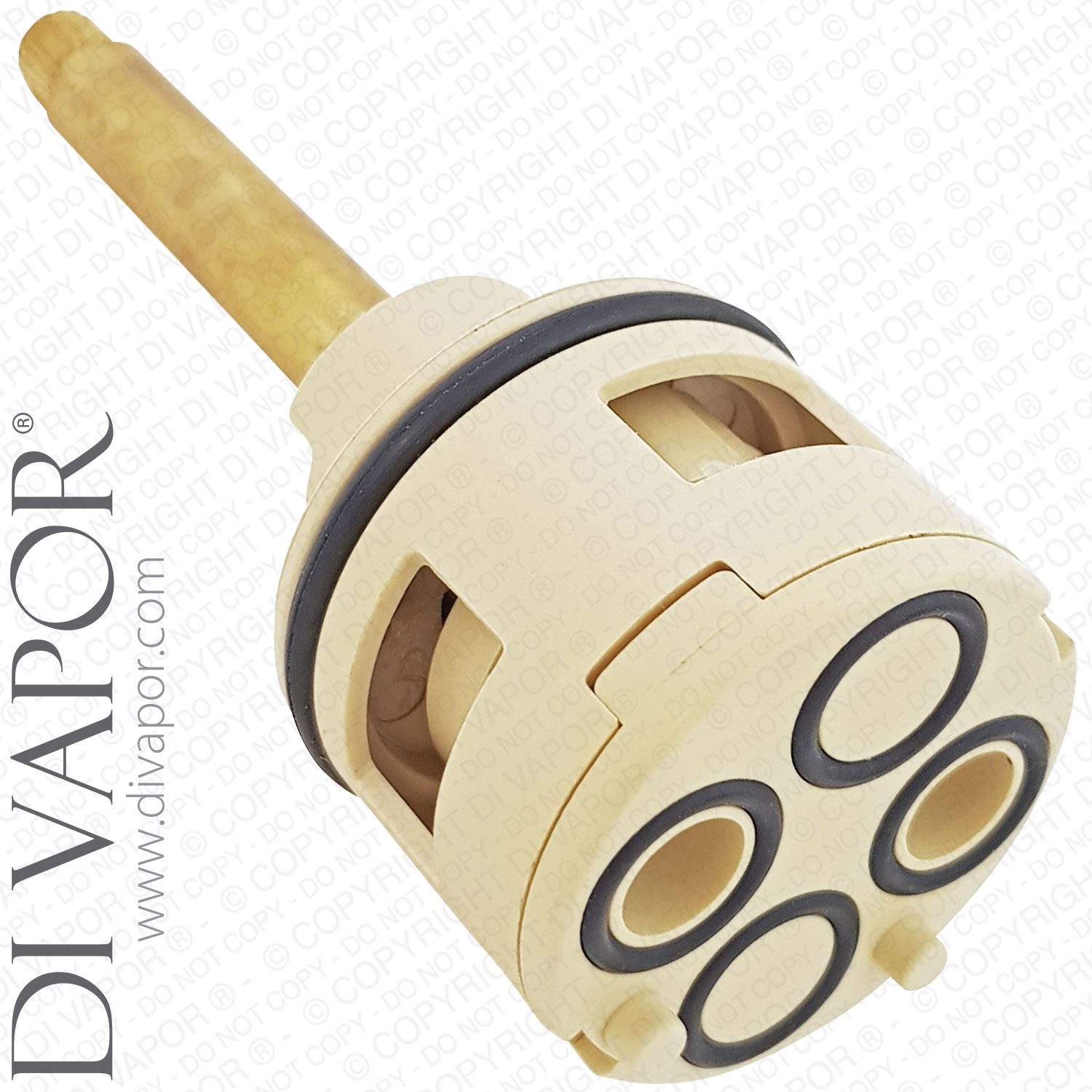

Crosswater CGPRO1500D Diverter Flow Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Crosswater CGPRO1500D is a diverter flow cartridge used in selected Crosswater thermostatic shower valves with 2 Way and 3 Way diverter control arrangements.
The cartridge controls outlet selection and flow diversion within the valve. A worn diverter or flow cartridge can cause stiff operation, poor outlet changeover, water passing to the wrong outlet, or dripping from the shower head or spout when the shower valve is turned off.
Technical Details
| Brand | Crosswater |
|---|---|
| Part Number | CGPRO1500D |
| Part type | diverter flow cartridge |
| Application | Crosswater thermostatic shower valves with diverter outlets |
| Spline | 20 teeth |
| Overall length | 100mm |
| Body width | 40mm |
| Spindle length | 60mm |
| Function | diverts water between shower outlets and controls diverter flow operation |
Check the valve model code, cartridge length, body diameter, locating pins and spline detail before ordering. Isolate the hot and cold water supplies before removing the handle and retaining parts.
Confirmed Compatible Models
- Crosswater PRO1501RC Mike Pro MPRO Thermo Shower Valve
- Crosswater Belgravia Crosshead Thermostatic Shower Valve with 2 Way Diverter BL1501RC+ GEN1
- Crosswater HG1501RC+ Belgravia Crosshead Thermostatic Shower Valve with 2 Way Diverter
- Crosswater WS1500RC Water Square Concealed Thermostatic Shower Valve with 2 Way Diverter GEN1
- Crosswater WS1500RC-VS Water Square Thermostatic Shower Valve with 2 Way Diverter
- Crosswater WS1701RC Water Square Wall Mounted Thermostatic Shower Valve with Handset GEN1
- Crosswater KL1500RC Kai Lever Thermostatic Shower Valve with 2 Way Diverter GEN1
- Crosswater KL3000RC Kai Lever Thermostatic Shower Valve with 3 Way Diverter GEN1
- Crosswater KL3001RC Kai Lever Thermostatic Shower Valve with 3 Way Diverter GEN1
- Crosswater CE3000RC+ Central Thermostatic Shower Valve with 3 Way Diverter GEN1
- Crosswater WS3000RC-VS Water Square 3000 Thermostatic Shower Valve GEN1
- Crosswater WS3001RC-VS Water Square Thermostatic Shower Valve with 3 Way Diverter and Slim Backplate GEN1
- Crosswater PRO1701RC Mike Pro Thermostatic Bath Shower Valve
- Crosswater PRO1711RC Mike Pro MPRO Thermostatic Bath Shower Valve GEN1
- Crosswater PRO3001RC Mike Pro MPRO Shower Valve GEN1
- Crosswater HG3001RC+ Belgravia Thermostatic Shower Valve with 3 Way Diverter
- Crosswater WF1501RC+ Waldorf Art Deco Crosshead Thermostatic Shower Valve with 2 Way Diverter Landscape GEN1
