Crosswater OEMSC50T20 Thermostatic Cartridge

SUMMARY

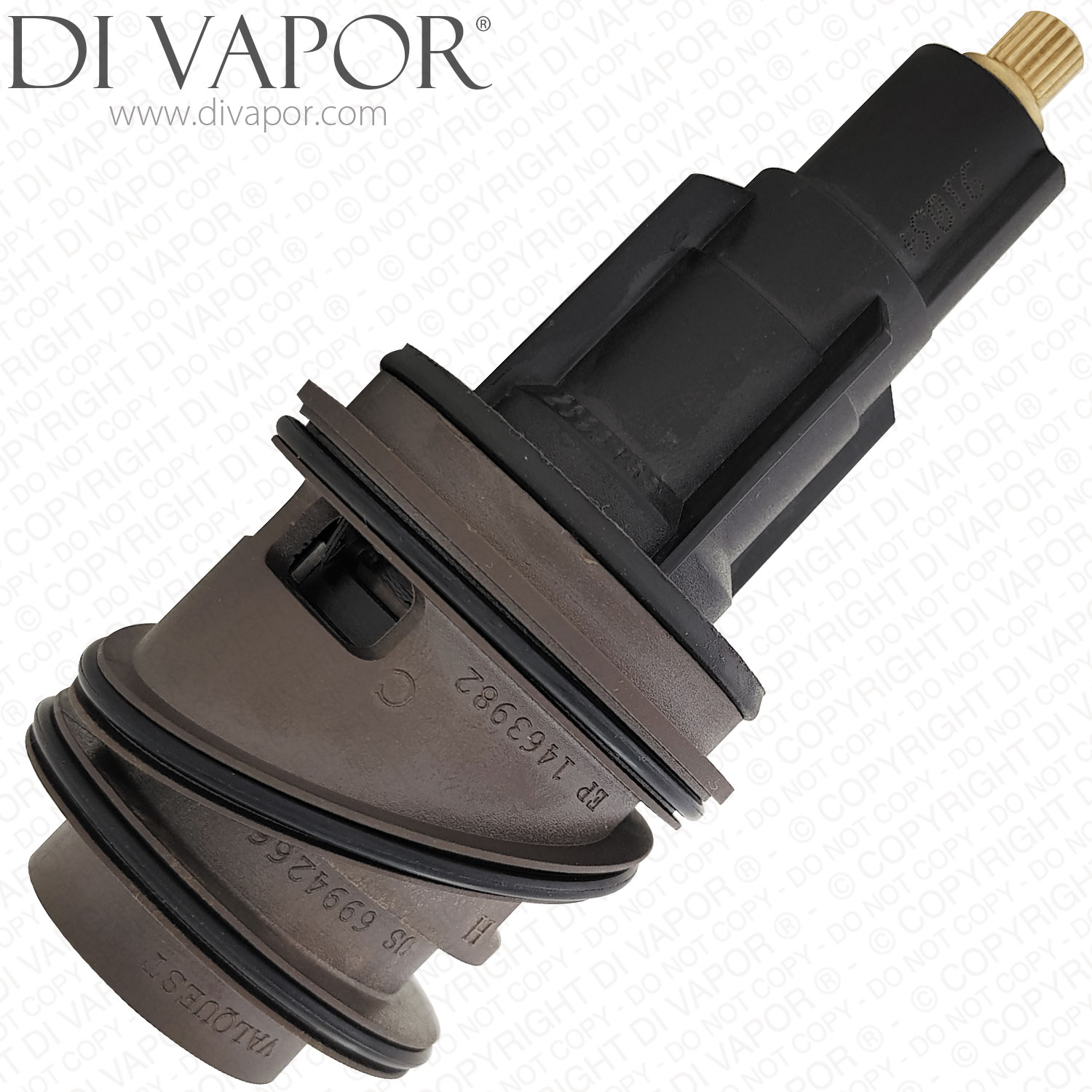

Crosswater OEMSC50T20 20 Spline Thermostatic Shower Valve Cartridge

The Crosswater OEMSC50T20 is a thermostatic shower cartridge associated with the SC50-T20 20-spline cartridge family used in selected older Crosswater thermostatic shower mixer valves. The cartridge regulates the mixing of hot and cold water to maintain the selected showering temperature.

A worn or faulty thermostatic cartridge can cause fluctuating water temperatures, insufficient hot water, difficulty adjusting the temperature or stiff temperature controls. Replacing a faulty cartridge can restore normal temperature regulation when the cartridge has been correctly identified.

Technical Details

- - Part Number: OEMSC50T20

- - Part type: thermostatic shower cartridge

- - Associated cartridge family: SC50-T20

- - Temperature-control spindle: 20 splines

- - Function: thermostatic mixing and regulation of hot and cold water

- - Application: selected older thermostatic shower mixer valves

- - SC50-T20 family reference length: approximately 119.5mm

- - SC50-T20 family reference widest diameter: approximately 53.5mm

- - SC50-T20 family reference lower-body diameter: approximately 41.2mm

- - SC50-T20 family reference spindle diameter: approximately 7.6mm

- - SC50-T20 family reference construction: brown and black body with three O-rings

These measurements describe the associated SC50-T20 cartridge family and have not been independently confirmed for the exact OEMSC50T20 listing. Compare the removed cartridge before ordering, paying particular attention to the spline count, overall length, body profile and sealing positions.

Documented SC50-T20 Family Valve Models

The following shower valves are documented with the SC50-T20 cartridge family. The association with OEMSC50T20 should be checked against the existing cartridge before ordering. Some model codes were produced with different thermostatic cartridges depending on their production year.

Crosswater Totti Range

- - Crosswater Totti TO1000RC GEN1 - 2007 to 2013

- - Crosswater Totti TO1000RC

- - Crosswater Totti II TO1500RC - 2-way diverter

- - Crosswater Totti TO1600RC - bath spout and diverter

- - Crosswater Totti II TO3000RC - 3-way diverter

- - Crosswater Totti II TO3001RC - 3-way diverter

Crosswater Alvero Range

- - Crosswater Alvero AL1000RC

- - Crosswater Alvero AL3000RC - 3-way diverter

- - Crosswater Alvero AL3001RC - 3-way diverter

Crosswater Design Range

- - Crosswater Design DE1500RC - 2-way diverter

- - Crosswater Design DE3000RC - 3-way diverter

- - Crosswater Design DE3001RC - 3-way diverter

Crosswater Kai Lever Range

- - Crosswater Kai Lever KL1000RC

- - Crosswater Kai Lever KL1500RC - 2-way diverter

- - Crosswater Kai Lever KL3000RC - 3-way diverter

- - Crosswater Kai Lever KL3001RC - 3-way diverter

Crosswater Modest Range

- - Crosswater Modest MO1500RC - 2-way diverter

- - Crosswater Modest MO3000RC - 3-way diverter

- - Crosswater Modest MO3001RC - 3-way diverter

Crosswater WLBP Valve Family

Crosswater identifies the SC50-T20 thermostat for selected WLBP valves manufactured between 2006 and 2013.

- - Crosswater WLBP1000 series - selected 2006 to 2013 versions

- - Crosswater WLBP1500/1 series - selected 2006 to 2013 versions

- - Crosswater WLBP2000/1 series - selected 2006 to 2013 versions

- - Crosswater WLBP3000/1 series - selected 2006 to 2013 versions

Other SC50-T20 Family Applications

- - Crosswater Elite EL2001RC - 3-control thermostatic shower valve

- - Hudson Reed Lennox SQR3207 - twin concealed thermostatic shower valve

- - Hudson Reed REI3407 Reign twin concealed shower valve

- - Hudson Reed Tec Pura shower valves

Important Checks Before Ordering

The SC50-T20 is the 20-spline design and must not be confused with the SC50-T32 32-spline cartridge. Crosswater also used different thermostatic cartridges in later shower valve generations, including CA43-102 and CA43-059 references. A matching shower model name alone does not establish the correct cartridge. Confirm the production version and compare the removed cartridge before purchasing.

Check whether the problem is caused by the thermostatic cartridge before replacing it. Unstable temperatures or a stiff temperature control may indicate thermostat wear, limescale or restricted supplies. Water dripping from a shower head or spout after the valve is turned off can instead indicate a faulty flow or diverter cartridge.

Installation Information

Isolate both hot and cold water supplies before removing the shower controls and cartridge. Inspect the retaining components and valve housing, clean away accumulated debris and check the condition of the sealing surfaces. Follow the valve manufacturer's instructions for installation and temperature-stop calibration. Use a suitable silicone-based plumbing grease on the cartridge O-rings where appropriate.

Related Spares You May Need

- - SC50T20STRM cartridge stop ring

- - HJ7772 retaining locking nut for SC50T20

- - HG7264 chrome collar for SC50T20

- - Crosswater D1S207N temperature override ring

- - Crosswater RN1000FA1 retaining nut

- - Crosswater T5T346C thermostatic cartridge chrome collar

- - Crosswater H1T082C 20-spline handle base

- - Crosswater CP0000250 handle base - Part Number CP00002345

- - Crosswater Z0A363N non-return valve

- - Crosswater Z00717N non-return valve filter

- - Crosswater NRV1000FA1 non-return valve

- - Crosswater X2A044N1 diverter cartridge for TO1000RC valves

- - Crosswater X2A044N-1 diverter cartridge

- - Crosswater X2A044N-1-COL diverter retaining nut collar

- - Crosswater X2A071N ceramic disc flow cartridge

- - Crosswater SSP004 recessed shower valve control screws

- - Ultra SVQ07 diverter cartridge - Part Number ULTRA-SVQ07

- - Ultra SVQ15 non-return valve

- - TACSIL 3g cartridge silicone grease - Part Number TAC86

The related fittings and valve components vary by shower model. Check the exact assembly before ordering additional spares.

If you are unsure which cartridge you need, use our Di Vapor Part Identification Service for help.
