Crosswater CR010NC 35mm On/​Off Flow Diverter GO4500 Compatible Cartridge

SUMMARY

Crosswater CR010NC 35mm On/Off Flow Diverter GO4500 Compatible Cartridge

This cartridge is used in the Crosswater Curve Multifunction shower valve.

NOTE: Does not include spline adapter or stop limiting ring.

This CR010NC 35mm on/off flow diverter cartridge is a compatible spare for the Crosswater Curve RM553WC multifunction bar mixer shower with fixed head and single mode kit. The spline adaptor and stop limiting ring are not included.

The cartridge controls water shut-off and directs flow between the fixed shower head and handset. A worn, damaged or obstructed cartridge can cause water to drip from the shower head when the shower is turned off, make the control stiff or prevent reliable outlet selection. Temperature regulation is handled by a separate thermostatic cartridge.

Technical Details

- - Part Number: CR010NC

- - Associated reference: GO4500

- - Part type: on/off flow diverter cartridge

- - Nominal cartridge diameter: 35mm

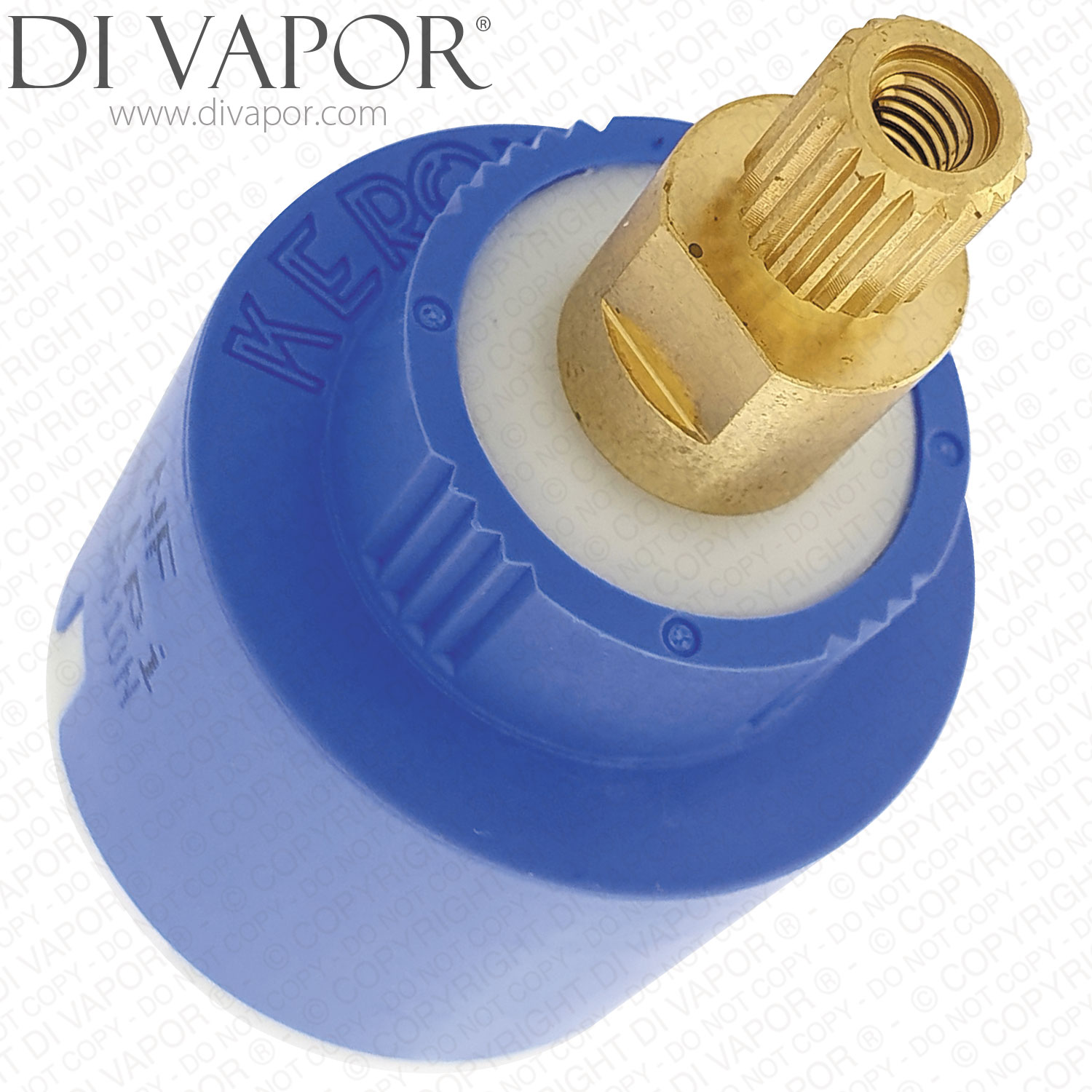

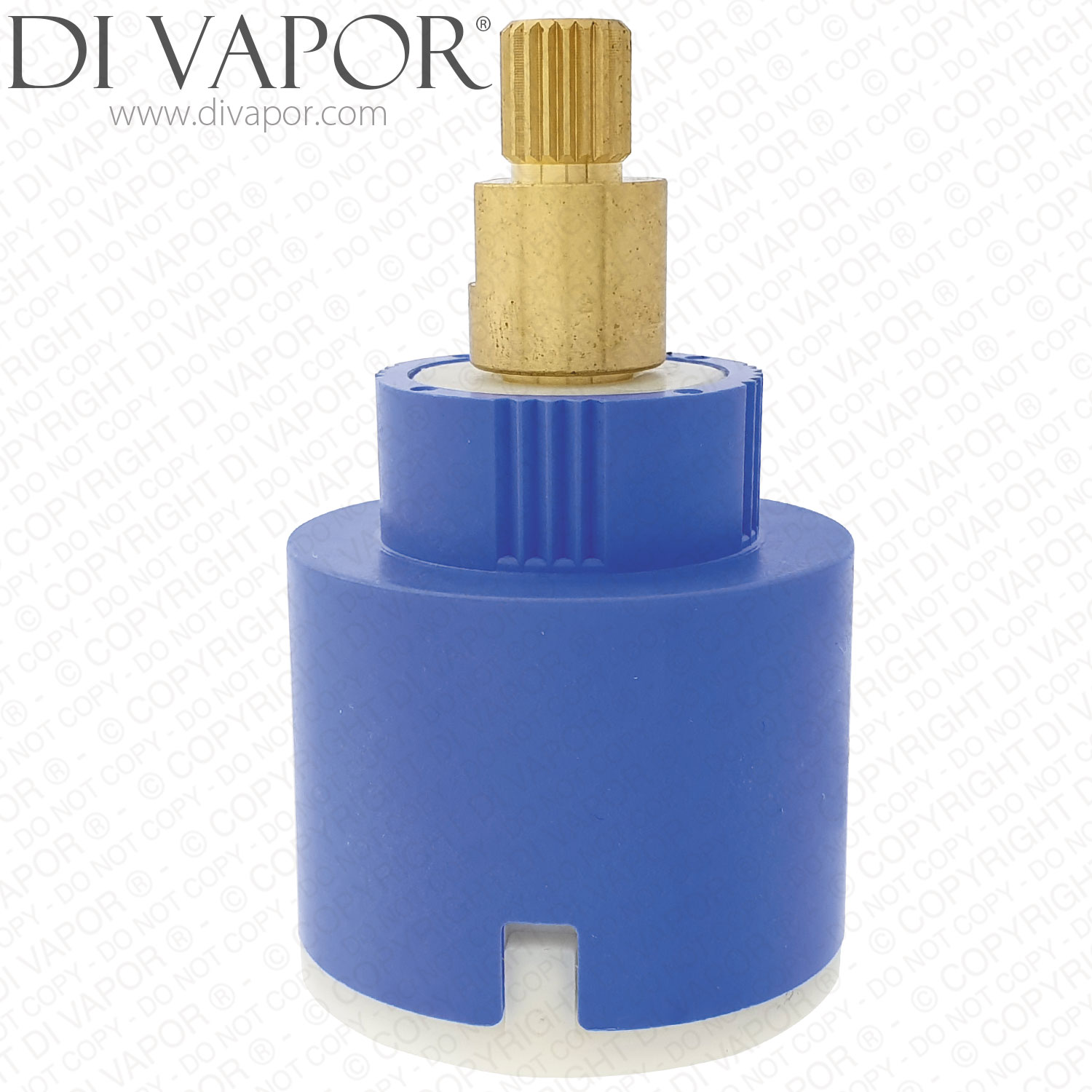

- - Blue housing with a splined spindle and three-port base

- - Spline adaptor: not included

- - Stop limiting ring: not included

Confirmed Compatible Models

- - Crosswater Curve RM553WC Multifunction Bar Mixer Shower with Fixed Head and Single Mode Kit

Before Ordering

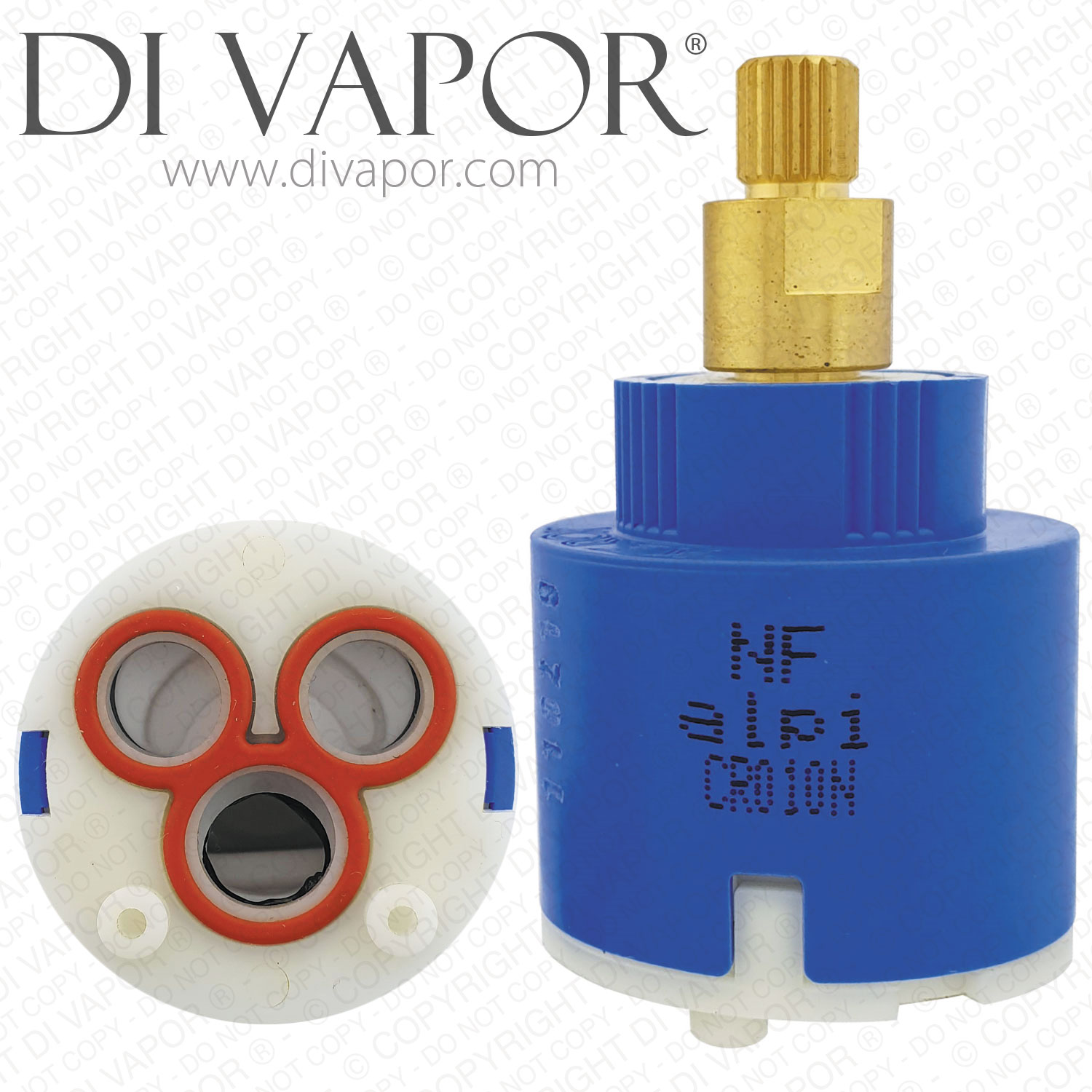

Compare the existing cartridge with the product images, including the spindle, base ports, locating features and overall shape. The cartridge body may carry the marking CR010N; CR010NC is the ordering reference for this item. Do not select the cartridge from its 35mm diameter alone.

Check the condition and fit of the existing spline adaptor and stop limiting ring, as these components are not supplied. Showers marked RM553WC+ require a separate cartridge check before ordering; the similar model name does not establish fitment.

Installation and Servicing

Isolate the hot and cold water supplies before removing the cartridge. Clean debris from the valve body and seating surfaces, and apply a thin coating of suitable silicone grease to the appropriate seals during installation. Do not force a stiff control. After reassembly, check for leaks, correct outlet selection and complete shut-off.

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease - TAC86 for lubricating appropriate cartridge seals and O-rings

- - GROHE SYNTHESO LM 220 Silicone Grease 2g - GR-18007031 as an alternative lubricant for appropriate seals during cartridge servicing

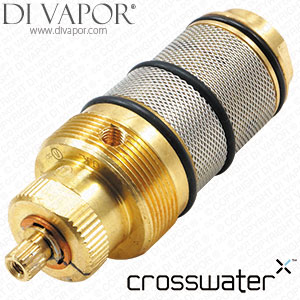

- - Crosswater RM/SQ Thermostatic Cartridge CR101C - CR-CR101C / CR-101C (check the existing thermostat and valve model separately before ordering)

- - Crosswater CR-150C Thermostatic Cartridge for Curve RM553WC (CR150C) for servicing the shower's temperature control

- - NXT734 Shower Hose for the shower handset; check the required hose length and end fittings before ordering

If you need help finding the right cartridge, use our part identification service.
