Vado TAB-001G-DIV Diverter Cartridge
Send a photo of your item and we'll help confirm it.
Summary

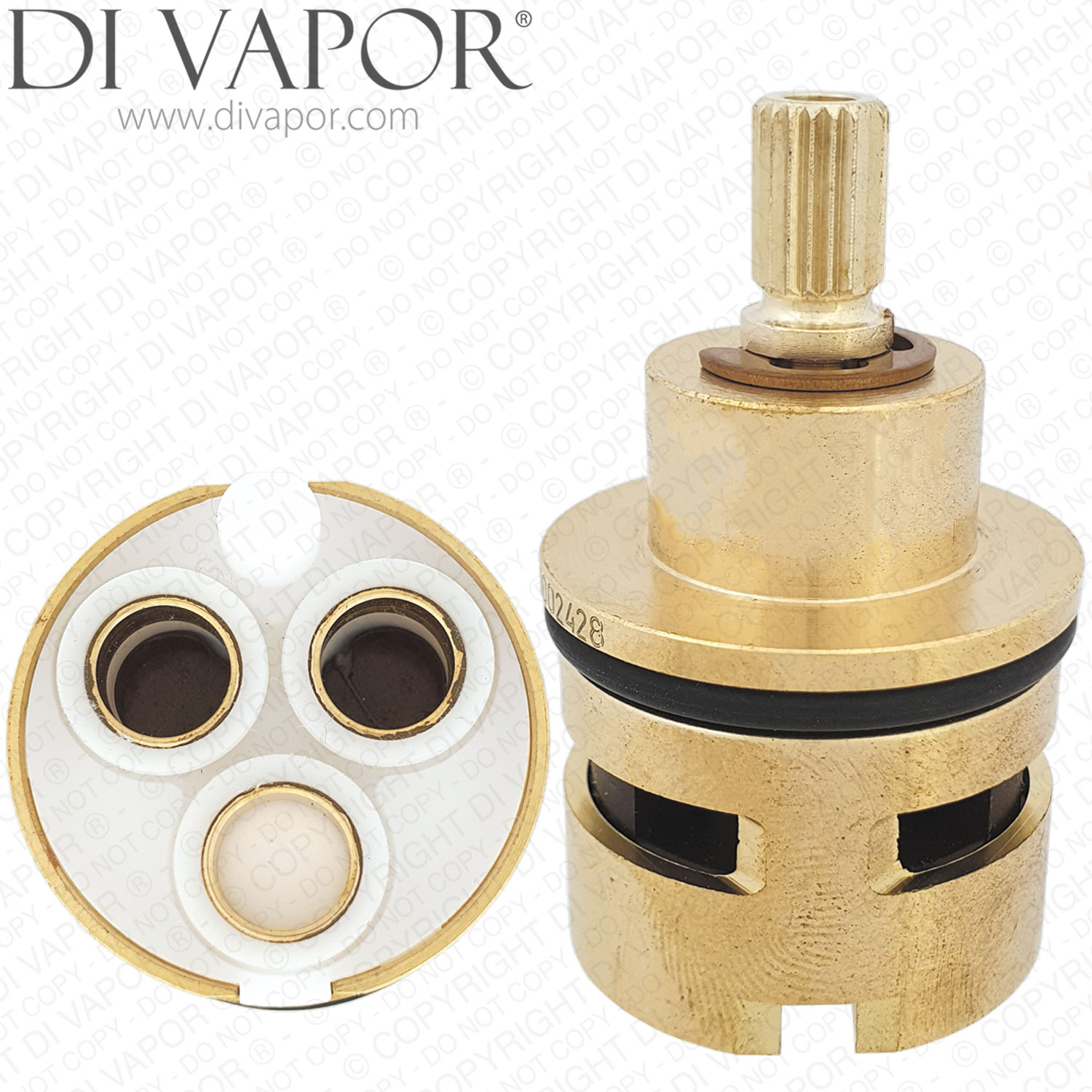

Vado TAB-001G-DIV Diverter Cartridge
The Vado TAB-001G-DIV is a 2 outlet shower diverter cartridge code associated with Vado FL-802-33/2MX for selected Vado Tablet all-flow concealed thermostatic shower valves and shower sets. The current Di Vapor listing for the fuller cartridge details is Vado FL-802-33/2MX Diverter Cartridge - 31mm.
This diverter cartridge sits inside the shower valve and switches water between the available outlets. Replacing a worn diverter cartridge can restore outlet selection where the shower is difficult to switch, passes water between outlets, fails to shut one function off cleanly or allows water to drip from a shower head or spout when the valve is turned off.
Technical Details
| Exact supplied part code | TAB-001G-DIV |
|---|---|
| Associated current part code | FL-802-33/2MX |
| Part type | 2 outlet diverter cartridge |
| Total length including bottom seal | 53mm excluding locating pins |
| Diameter at widest point | 32.8mm |
| Barrel diameter | 31mm |
| Brass spindle length including spline | 14mm |
| Top spline diameter | 7.6mm |
| Top spline teeth / notches | 20 with 2 splines missing so 18 are visible when counted externally |
| Distance between bottom locating pins centre to centre | 16.5mm |
| Number of function outlets | 2 |
Before You Order
Check the printed cartridge code, valve model code, spindle spline, locating pin position and overall measurements before ordering. Vado uses other diverter cartridge families on similar concealed shower valves, so this part should not be identified by barrel diameter alone.
Verified Used In Under FL-802-33/2MX
- VADO TAB-148/2-ALT-C/P Tablet Altitude Vertical 2 Outlet 2 Handle Thermostatic Shower Spare Parts
- Vado TAB-1721/WO-ALT-CP Tablet Altitude 2 Outlet Thermostatic Shower Set Spare Parts
- Vado TAB-1753/WO-ALT-CP Tablet Altitude 3 Outlet Thermostatic Shower Set Spare Parts
- VADO TAB-128/3-H-NOT-C/P Tablet Notion Horizontal Concealed 3 Outlet 3 Handle Thermostatic Shower Spare Parts
- Vado TAB-1720/NOT-ORA-CP Tablet Notion 2 Outlet Thermostatic Shower Set Spare Parts
- VADO TAB-148/2-H-KOV-C/P Tablet Kovera 2 Outlet 2 Handle Thermostatic Valve Spare Parts
- VADO TAB-128/3-KOV-C/P Tablet Kovera 3 Outlet 3 Handle Shower Valve Spare Parts
- VADO TAB-148/2-H-OMI-C/P Tablet Omika 2 Outlet 2 Handle Concealed Thermostatic Valve Spare Parts
- VADO TAB-128/3-H-OMI-C/P Tablet Omika 3 Outlet 3 Handle Concealed Thermostatic Shower Valve Spare Parts
- Vado IND-T148/2-H-OMI-PB Omika Noir Tablet 2 Outlet Thermostatic Valve Spare Parts
- Vado IND-T148/2-H-XBNK Knurled X Fusion Tablet 2 Outlet Thermostatic Valve Spare Parts
