GROHE 38732000 Flush Plate - Skate Cosmopolitan Dual Flush Vertical WC Wall Plate

SUMMARY

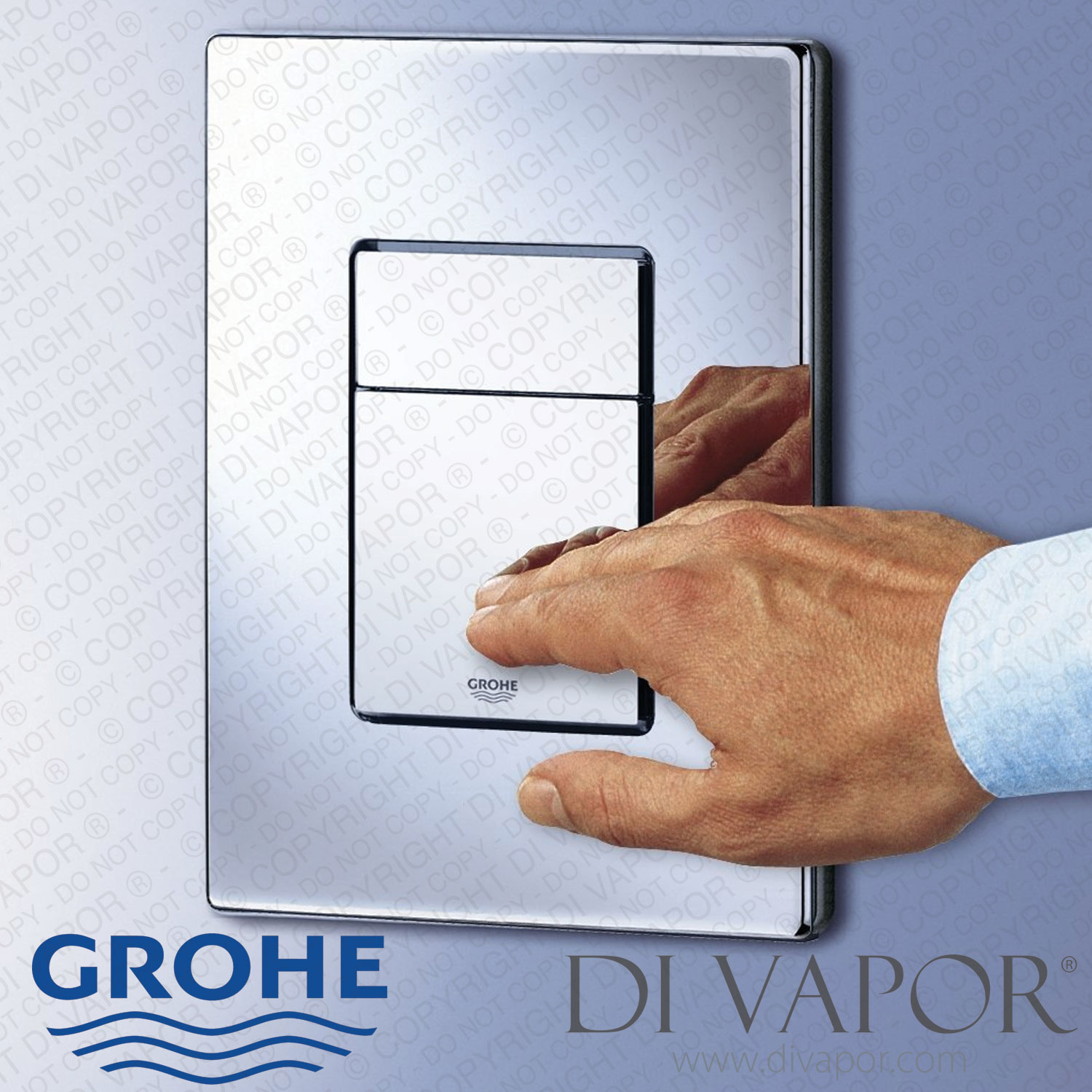

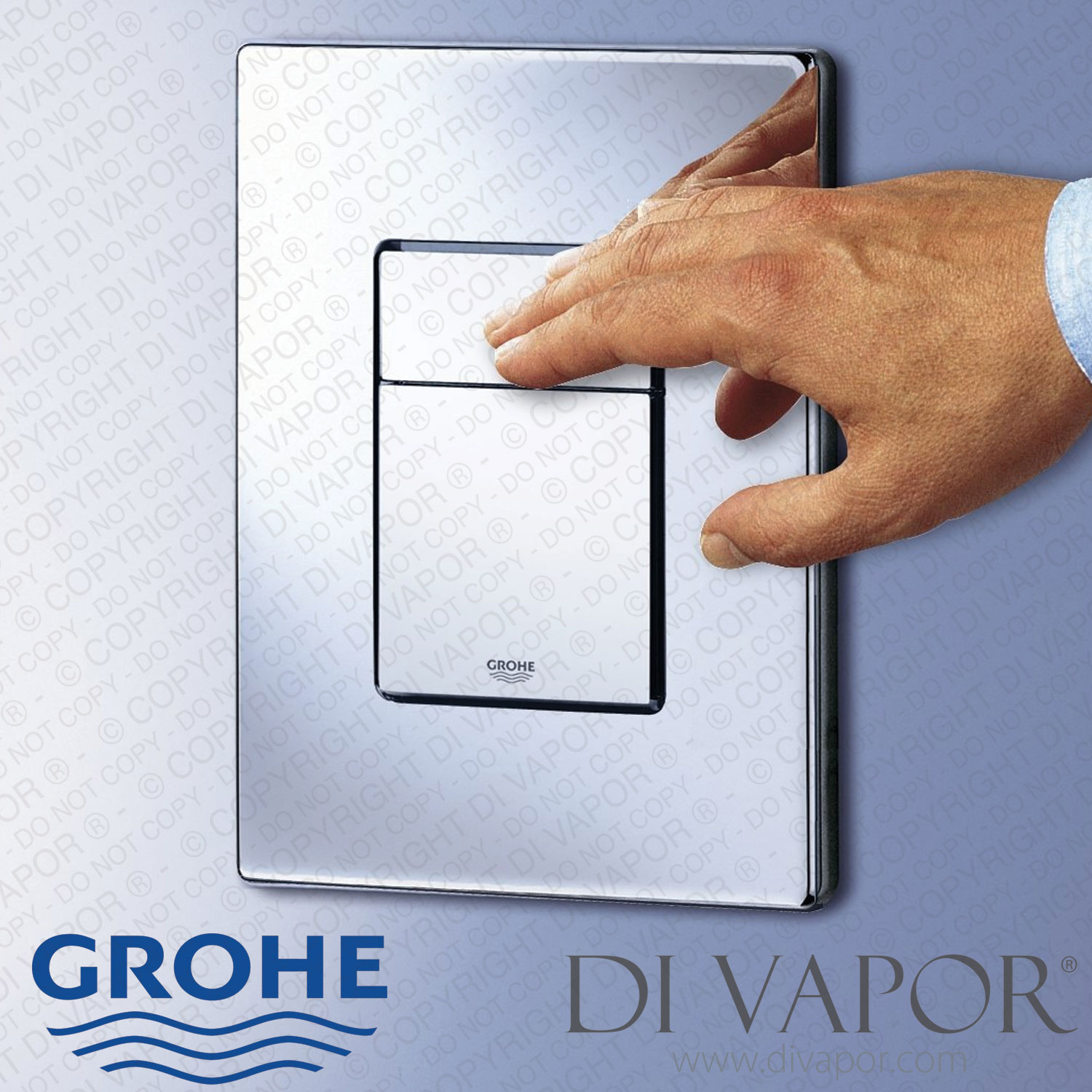

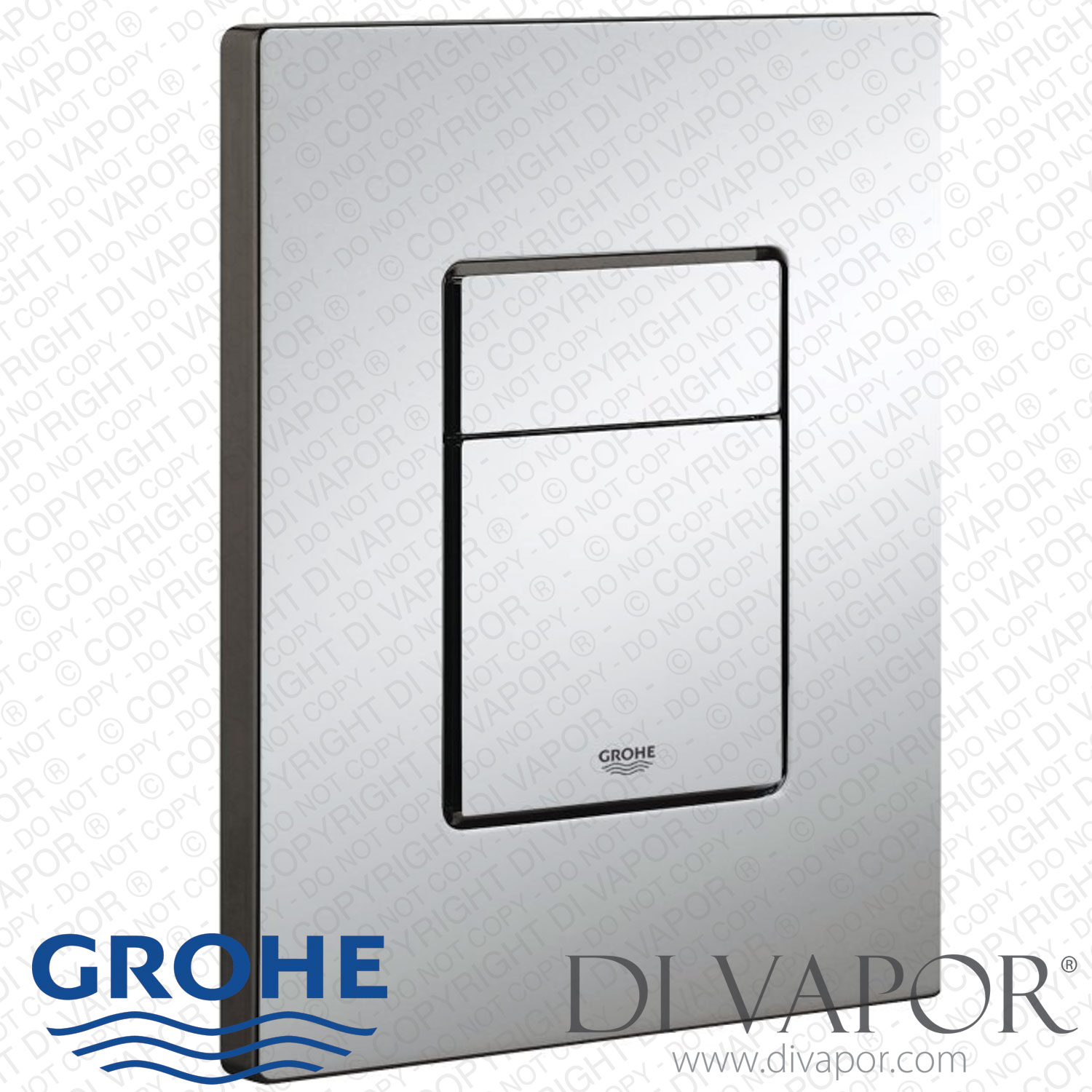

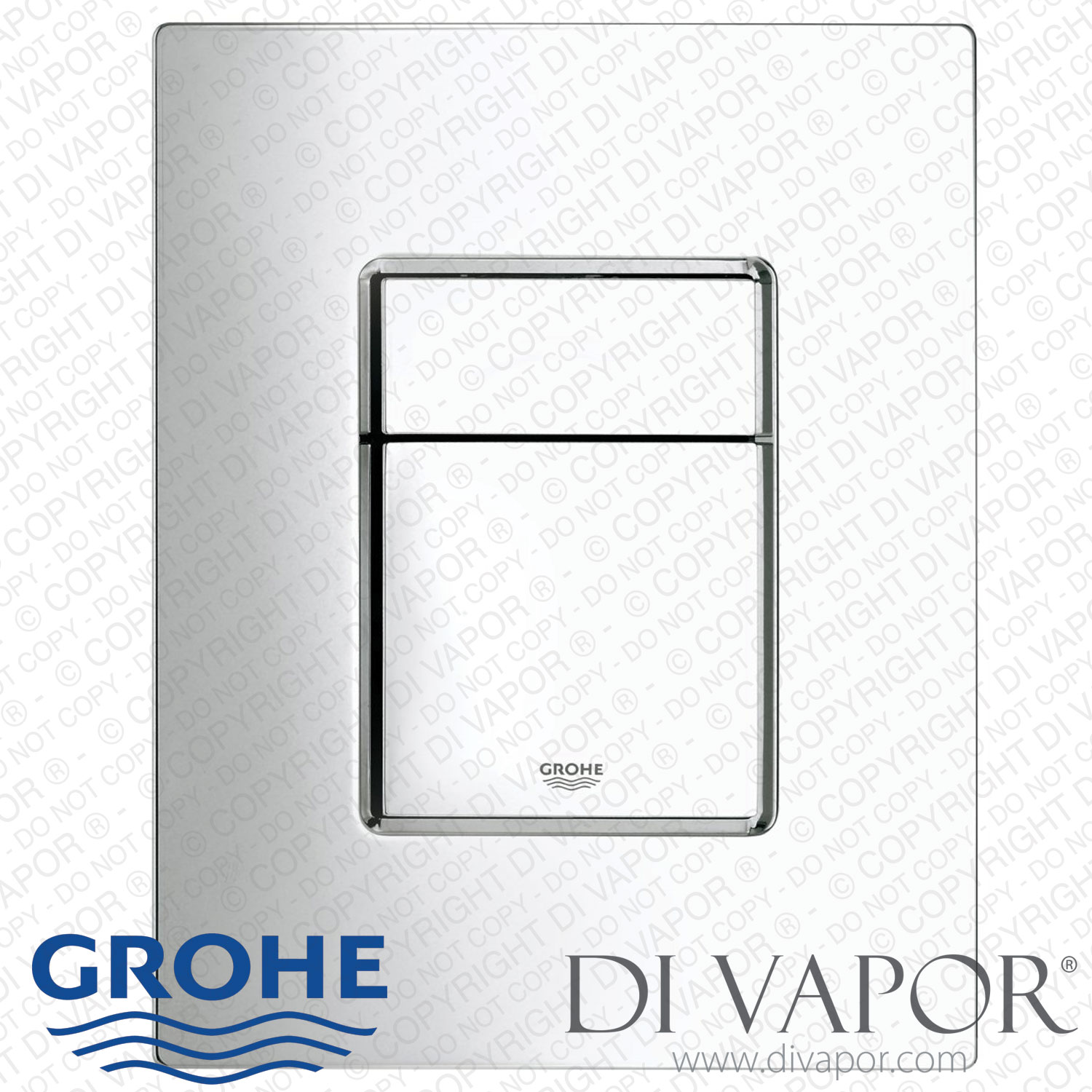

GROHE 38732000 Flush Plate - Skate Cosmopolitan Dual Flush Vertical WC Wall Plate

The GROHE 38732000 Skate Cosmopolitan is a chrome WC flush plate designed for pneumatic AV1 discharge valves used with GROHE concealed cistern systems. It provides Dual Flush or Start & Stop actuation and is suitable for both vertical and horizontal installation.

The plate is manufactured from ABS and measures 156 x 197 mm with an overall published depth of approximately 10 mm. Its two-button control allows the user to select the appropriate flush or interrupt a full flush using the smaller button. GROHE specifies the plate for Rapid SL and Uniset installations using GD 2 cisterns.

Technical Details

- - Brand: GROHE

- - Range: Skate Cosmopolitan

- - Category: WC flush plate

- - Product code: 38732000

- - GROHE code format: 38 732 000

- - Part type: dual flush WC actuation plate

- - Actuation: Dual Flush or Start & Stop

- - Discharge valve type: pneumatic AV1

- - Installation orientation: vertical or horizontal

- - Width: 156 mm

- - Height: 197 mm

- - Overall published size: 156 x 197 x 10 mm

- - Material: ABS

- - Finish: chrome

- - EAN: 4005176836114

Confirmed Compatible Models

- - GROHE Rapid SL systems with GD 2 cistern

- - GROHE Uniset systems with GD 2 cistern

- - GROHE Uniset 2-in-1 Set for WC 38825000

- - GROHE Uniset Element for WC 38643001 / 38 643 001

- - GROHE Rapid SLX when used with shaft 66 791 000 ordered separately

Before You Order Check

Check that the concealed cistern is a GROHE Rapid SL or Uniset system using a GD 2 cistern and pneumatic AV1 actuation. For Rapid SLX installations the separate 66 791 000 shaft is required. The 38732000 plate can be installed vertically or horizontally and should not be selected on dimensions alone.

Related Spares You May Need

- - GROHE 38736000 Dual Flush Valve Set - AV1 retro-fit dual flush valve set for GD 2 cistern applications
