VADO Notion NOT-148/2/3/FLOW-EXT 2/3 way Extension ION Kit Used in Notion NOT-148C/2 Valve and Notion NOT-148C/3 Valve
Send a photo of your item and we'll help confirm it.
Summary
VADO Notion NOT-148/2/3/FLOW-EXT 2/3 way Extension ION Kit Used in Notion NOT-148C/2 Valve and Notion NOT-148C/3 Valve
This extension is used in the following Vado valves:
- Notion NOT-148C/2 valve and Notion NOT-148C/3 valve

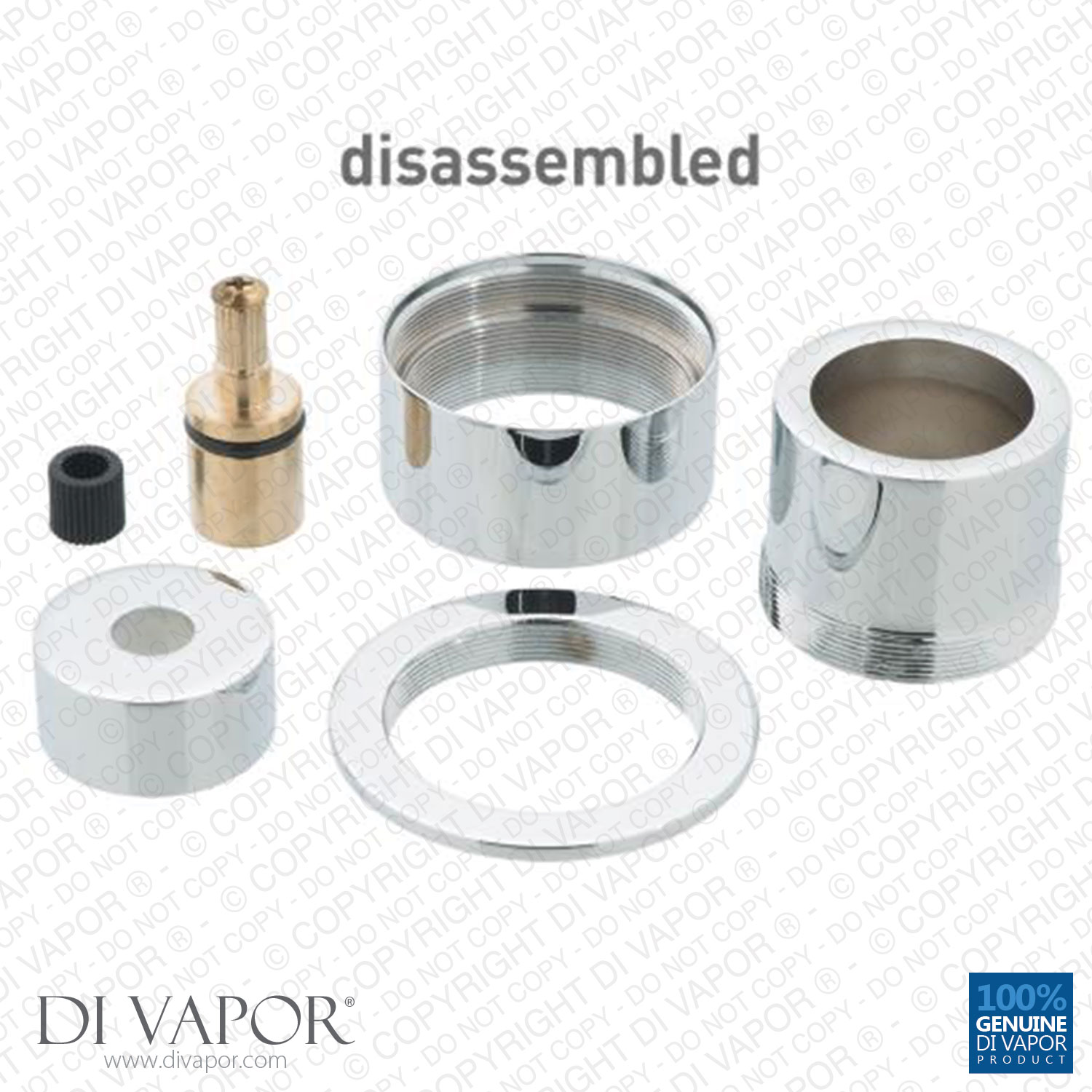

The VADO Notion NOT-148/2/3/FLOW-EXT is a 2/3 way extension ION kit used with Notion NOT-148C/2 and Notion NOT-148C/3 concealed thermostatic shower valves. It is for the flow or diverter side of the Notion 2 outlet and 3 outlet valve installation where extra reach is required because the valve body sits deeper behind the finished wall surface.
This is the Notion-specific extension kit and should not be confused with the VADO Celsius CEL-148/2/3/FLOW-EXT extension kit. Check the existing valve family and code before ordering, especially if the valve trim has been removed during a bathroom refit or wall depth correction.
Technical Details
| Part Number | NOT-148/2/3/FLOW-EXT |
|---|---|
| Part type | 2/3 way flow extension ION kit |
| Application | Notion NOT-148C/2 valve and Notion NOT-148C/3 valve |
- Standard wall mount depth shown for the VADO WG-NOTBOX/2/A-C/P Notion kit: 68mm to 77mm with 73mm optimum installation depth
- Extension wall mount depth shown for the VADO WG-NOTBOX/2/A-C/P Notion kit: 77mm to 103mm with 90mm optimum installation depth
- The associated VADO Notion valve technical data lists fittings for 1/2 inch and 3/4 inch pipework
- Check whether the matching Notion temperature extension is also required when extending the finished wall depth
Confirmed Vado Valves and Systems
- VADO NOT-148C/2-C/P Notion 2 Outlet 2 Handle Thermostatic Shower
- VADO NOT-148C/3-C/P Notion 3 Outlet 2 Handle Thermostatic Shower Valve
- VADO WG-NOTBOX/2-C/P Notion Concealed Thermostatic Valve with Shower Kit
- VADO WG-NOTBOX/3-C/P Notion Concealed 3 Outlet 2 Handle Thermostatic Shower Valve
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Vado V-001C-PLA Thermostatic Cartridge Replacement for Celcius | Elements | Notion | Origins | Nuance | Soho | Tonic and Mix Shower Valves
- Vado CEL-RETROFIT/DIV Diverter Cartridge for Celsius | Notion | Soho | Nuance | Life | Mix | Origins Shower Valves
- VADO Notion NOT-148C/TEMP-EXT Temperature Extension ION Kit Used in Notion NOT-148C Valves
- VADO FR-SHOWER/9-C/P Flow Regulator
