VADO CEL-048B-CONC Celsius Concealed 1 Function Thermostatic Shower Valve
Send a photo of your item and we'll help confirm it.
Summary
This does not include any chrome parts such as the handles, faceplate and shrouds, it only includes the brass valve and cartridges as per the photos.
VADO CEL-048B-CONC Celsius Concealed 2 Handle Thermostatic Shower Valve - Brass valve assembly as per the photo. This is a one way valve meaning it can only control one function. It doesn't not have a diverter function.
Vado CEL-048B-CONC Celsius Concealed 1 Function Thermostatic Shower Valve

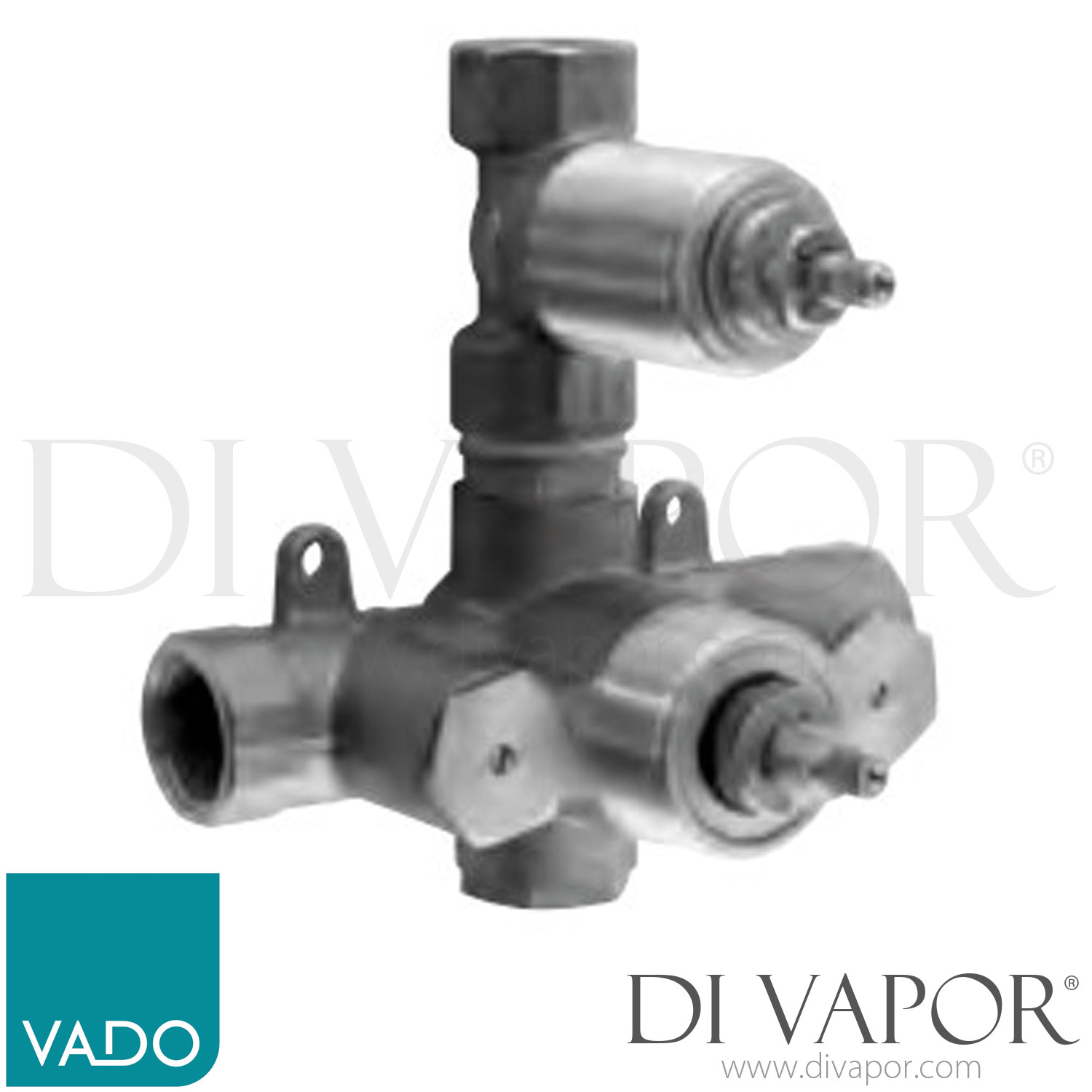

The Vado CEL-048B-CONC is a wall mounted concealed Celsius brass valve body with two handles controlling one shower outlet. It is supplied as the bare mixer body with internal cartridges only and is intended to be used with separate Celsius trim kits and faceplates.
Function
This valve provides thermostatic temperature control and on off flow control to a single shower outlet. One handle adjusts temperature via the internal Celsius thermostatic cartridge and the second handle controls water flow through the three quarter ceramic disc on off cartridge.
Internal Components
The brass body is designed to accept the Celsius thermostatic cartridge type CEL-001B B WAX and the three quarter inch ceramic disc flow cartridge CEL-002A B 3 4 as listed in manufacturer spare parts information. These components combine to deliver stable mixed water temperature and positive shut off.
Trim and Compatibility
The CEL-048B-CONC valve body is used behind the wall with compatible Celsius trim kits including square and round backplate options and dedicated handle sets. Trim kits such as NUA-148B-TRIM-C P and other Celsius front plates are specified for use with this concealed valve body.
Installation Notes
The valve is intended for recessed installation in a solid or stud wall and connects to hot cold inlets and a single mixed water outlet. Correct orientation depth setting and pipework support are required to ensure alignment with the selected Celsius trim kit.
Typical Applications
This valve body is suitable for new installations or replacement of existing Celsius concealed 1 function mixers where the original CEL-048B-CONC was used. It is chosen for shower systems that require concealed thermostatic temperature control with two handle operation and one shower outlet.
This is a replacement thermostatic cartridge for VADO CEL-001B/B-WAX. The cartridge is a screw in type installation. You will receive the exact same cartridge that's in the photos. We are the only company who still has stock of this cartridge, and there are not many left. ...
VADO CEL-002A/B-3/4 On/Off ceramic disc flow cartridge. The cartridge closes / stops water flow by turning the handle clockwise (8:20 broach 3/4" ceramic disc valve). This CEL-002A/B-3/4 cartridge will fit the following Vado shower valves: - Vado Celsius CEL-148C - Vado N...
Sold Individually. VADO Celsius CEL-0021/B-C/P Plate SecuRing Rings Used in all 148C Valves, all 128C ValvesThis ring is used in the following Vado valves: - all 148C valves - all 128C valves...
VADO Celsius CEL-0023/B-C/P Temperature Shroud Used In All 148C Valves, All 128C ValvesThis shroud is used in the following Vado valves: - all 148C valves - all 128C valves - Notion NOT suitable for 2 or 3 way valves...
Vado CEL-1/TEMP-C/P temperature handle. The handle is designed to fit cartridge heads that have 20 teeth and are approximately 7.5mm in diameter. The temperature knob is made from a chrome finished stainless steel and has the 38 degrees Celsius marker on the side next to a spr...
Vado CEL-1/FLOW-C/P Flow Control Handle (On/Off) . The handle is designed to fit cartridge heads that have 20 teeth and are approximately 7.5mm in diameter. The FLOW knob is made from a chrome finished stainless steel and has the 38 degrees Celsius marker on the side next to a...
Vado CEL-003A-FIL Non-Return Valve HousingThe Vado CEL-003A-FIL is a non-return valve housing for selected Vado concealed thermostatic shower valves. It forms part of the non-return valve and check valve assembly and helps prevent reverse water flow through the valve body.This pa...
VADO Celsius CEL-148/FLOW-EXT Flow Extension ION Kit Used in all 148C Valves, all 128C ValvesThis flow extension is used in the following Vado valves: - all 148C valves - all 128C valves - except for Notion ION valve use Notion NOT-148/FLOW-EXT Brass Extension piece: 40.2mm I...
VADO Celsius CEL-148/2/3/FLOW-EXT 2/3 way Extension ION Kit Used in all 148C/2 and 148C/3 ValvesThis extension is used in the following Vado valves: - all 148C/2 and 148C/3 valves - except for Notion ION valve use Notion NOT-148/2/3-FLOW-EXT Please inquire with us if you hav...
Vado Shower Valve Reducing Bush - 3/4" to 1/2" - Pack of 3
VADO Celsius CEL-0024C-PLA Stop Ring Used in all 148C Valves, all 128C ValvesThis stop ring is used in the following Vado valves: - all 148C valves - all 128C valves - except Notion Height: 12.8mm Raised (stepped) Stopper Height: 16mm-17mm Internal Diameter: ~22.8mm Diamete...
Vado CEL-PLA-936 Grub Screw & Allen Key Set. Used with Vado CEL-RETROFIT/B Thermostatic Cartridge and Handle Assemblies. Allen Keys - 2mm, 2.5mm and 3mm Grubscrew Diameters: 3.7mm, 4.8mm and 5.6mm Got questions about the Vado CEL-PLA-936? + Please pop us a messag...
Vado CEL-0010/SQ-C/P Cover Plate Width: 150mm Height: 240mm Bottom Edge to Bottom of Bottom Hole: 52mm Top Edge to Top of Top Hole: 52mm Hole Diameters: 55mm Gap between holes: 25mm Distance between hole centres: 80mm...
Vado CEL-0010/RO-C/P Shower Valve Faceplate used on a number of different Vado Celsius valves. Cartridge Measurements: Total External Diameter: 195mm Diameter of Top Hole: 55mm Diameter of Bottom Hole: 55mm The top hole is the same diameter as the bottom hole. Photo ang...
