Vado FL-802-33/​2MX Diverter Cartridge - 31mm

SUMMARY

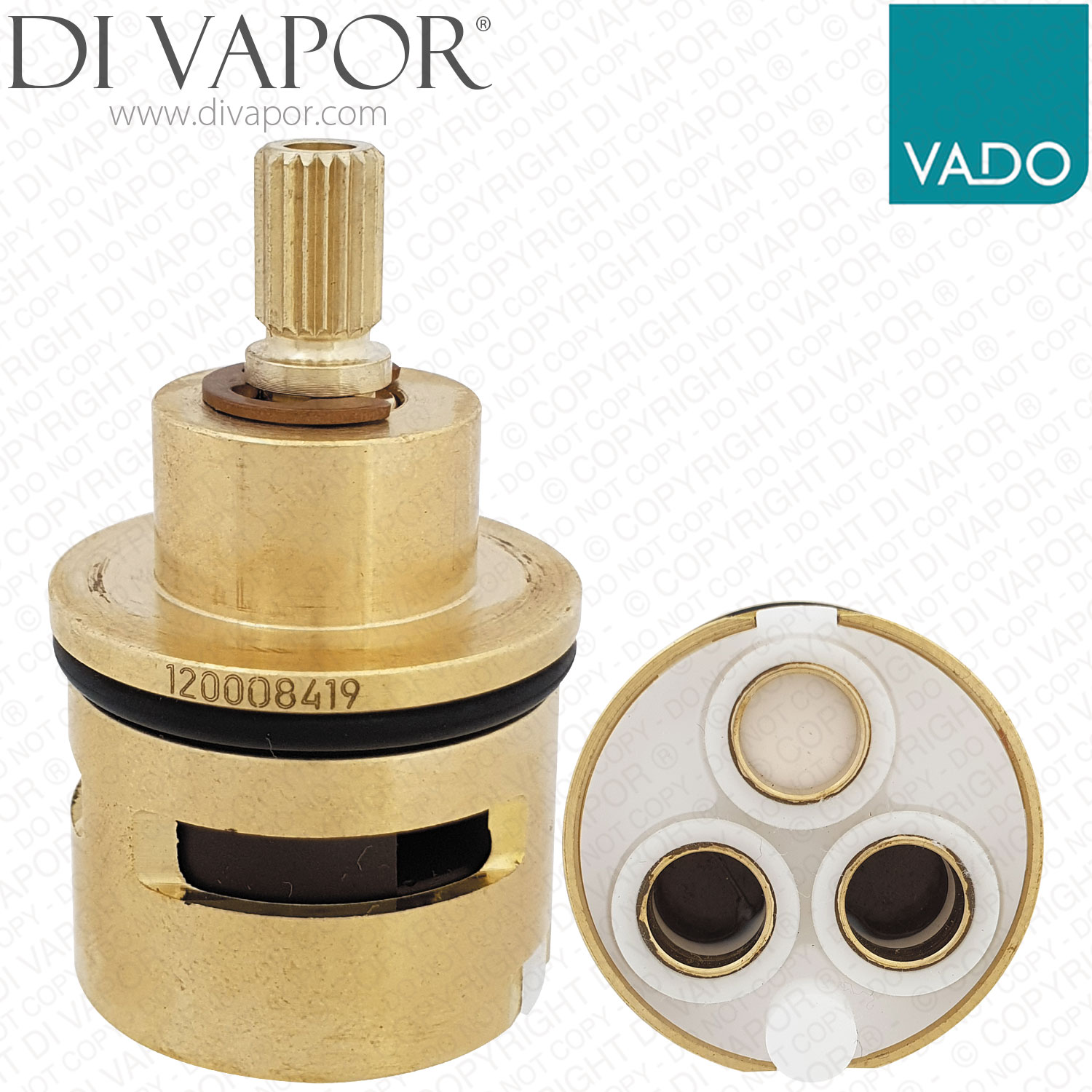

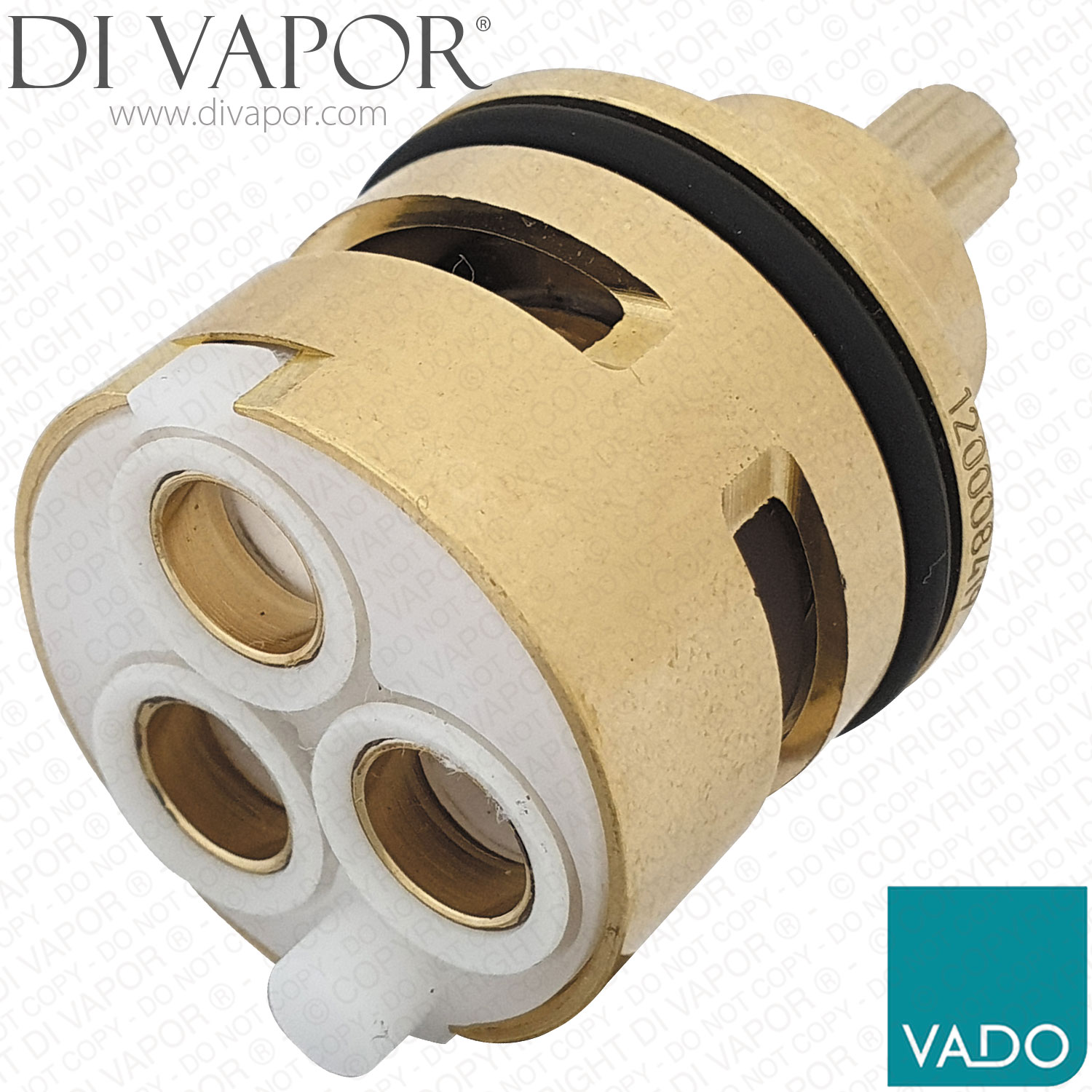

Genuine Vado FL-802-33/2MX diverter cartridge used in a range of Vado Tablet all-flow concealed thermostatic shower valves and shower sets. This 2 outlet diverter is the internal cartridge that switches water between functions and restores correct outlet selection when the original cartridge is worn or sticking.

A common symptom of a failed diverter cartridge is poor switching between outlets, water bleeding from one outlet to another, or difficulty shutting one function off cleanly.

Technical Details

- - Exact part code: FL-802-33/2MX

- - Part type: 2 outlet diverter cartridge

- - Total length including bottom seal: 53mm excluding locating pins

- - Diameter at widest point: 32.8mm

- - Brass spindle length including spline: 14mm

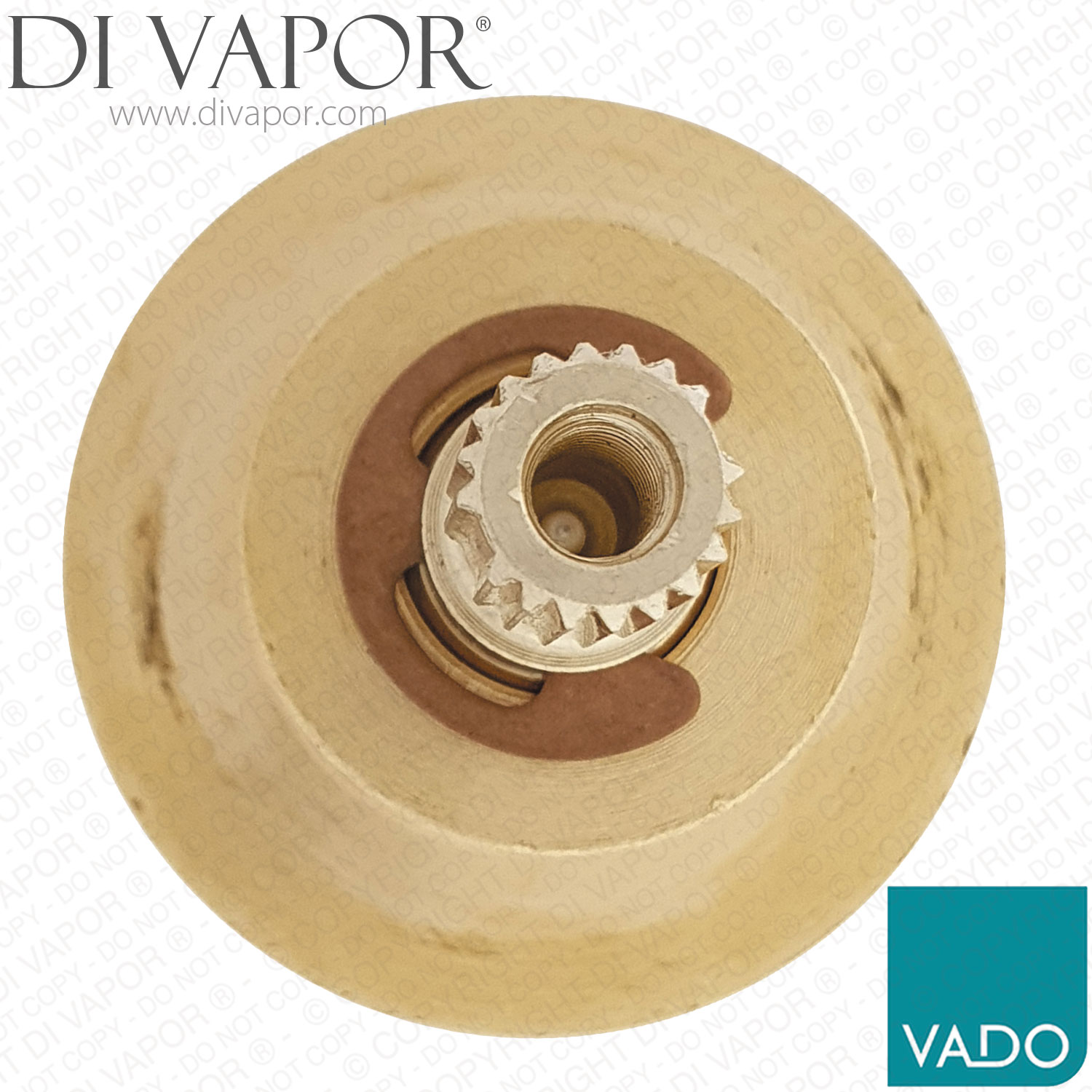

- - Top spline diameter: 7.6mm

- - Top spline teeth / notches: 20 with 2 splines missing so 18 are visible when counted externally

- - Barrel diameter: 31mm

- - Distance between bottom locating pins centre to centre: 16.5mm

- - Number of function outlets: 2

- - No verified superseded replacement code was found in the researched Di Vapor and Vado sources

- - Check the printed FL-802-33/2MX code where possible and match the full measurements and valve code before ordering because Vado also uses other diverter families on similar valves

Verified Used In

- - VADO TAB-148/2-ALT-C/P Tablet Altitude Vertical 2 Outlet 2 Handle Thermostatic Shower Spare Parts

- - Vado TAB-1721/WO-ALT-CP Tablet Altitude 2 Outlet Thermostatic Shower Set Spare Parts

- - Vado TAB-1753/WO-ALT-CP Tablet Altitude 3 Outlet Thermostatic Shower Set Spare Parts

- - VADO TAB-128/3-H-NOT-C/P Tablet Notion Horizontal Concealed 3 Outlet 3 Handle Thermostatic Shower Spare Parts

- - Vado TAB-1720/NOT-ORA-CP Tablet Notion 2 Outlet Thermostatic Shower Set Spare Parts

- - VADO TAB-148/2-H-KOV-C/P Tablet Kovera 2 Outlet 2 Handle Thermostatic Valve Spare Parts

- - VADO TAB-128/3-KOV-C/P Tablet Kovera 3 Outlet 3 Handle Shower Valve Spare Parts

- - VADO TAB-148/2-H-OMI-C/P Tablet Omika 2 Outlet 2 Handle Concealed Thermostatic Valve Spare Parts

- - VADO TAB-128/3-H-OMI-C/P Tablet Omika 3 Outlet 3 Handle Concealed Thermostatic Shower Valve Spare Parts

- - Vado IND-T148/2-H-OMI-PB Omika Noir Tablet 2 Outlet Thermostatic Valve Spare Parts

- - Vado IND-T148/2-H-XBNK Knurled X Fusion Tablet 2 Outlet Thermostatic Valve Spare Parts

Related Spares You May Need

- - Vado Notion V-704-34S Thermostatic Cartridge used on a wide range of Vado Tablet all-flow 2 outlet and 3 outlet valve assemblies that also use FL-802-33/2MX

- - Vado FL-301-RTC 3/4 Flow Cartridge used alongside FL-802-33/2MX on verified 3 outlet all-flow systems

- - Vado V-001C-PLA Thermostatic Cartridge Replacement for Celcius | Elements | Notion | Origins | Nuance | Soho | Tonic and Mix Shower Valves shown by Di Vapor as a related thermostat option on FL-802-33/2MX linked Vado valve pages
