Grohe 45869000 Flow On/Off Cartridge F 34966/100
SUMMARY

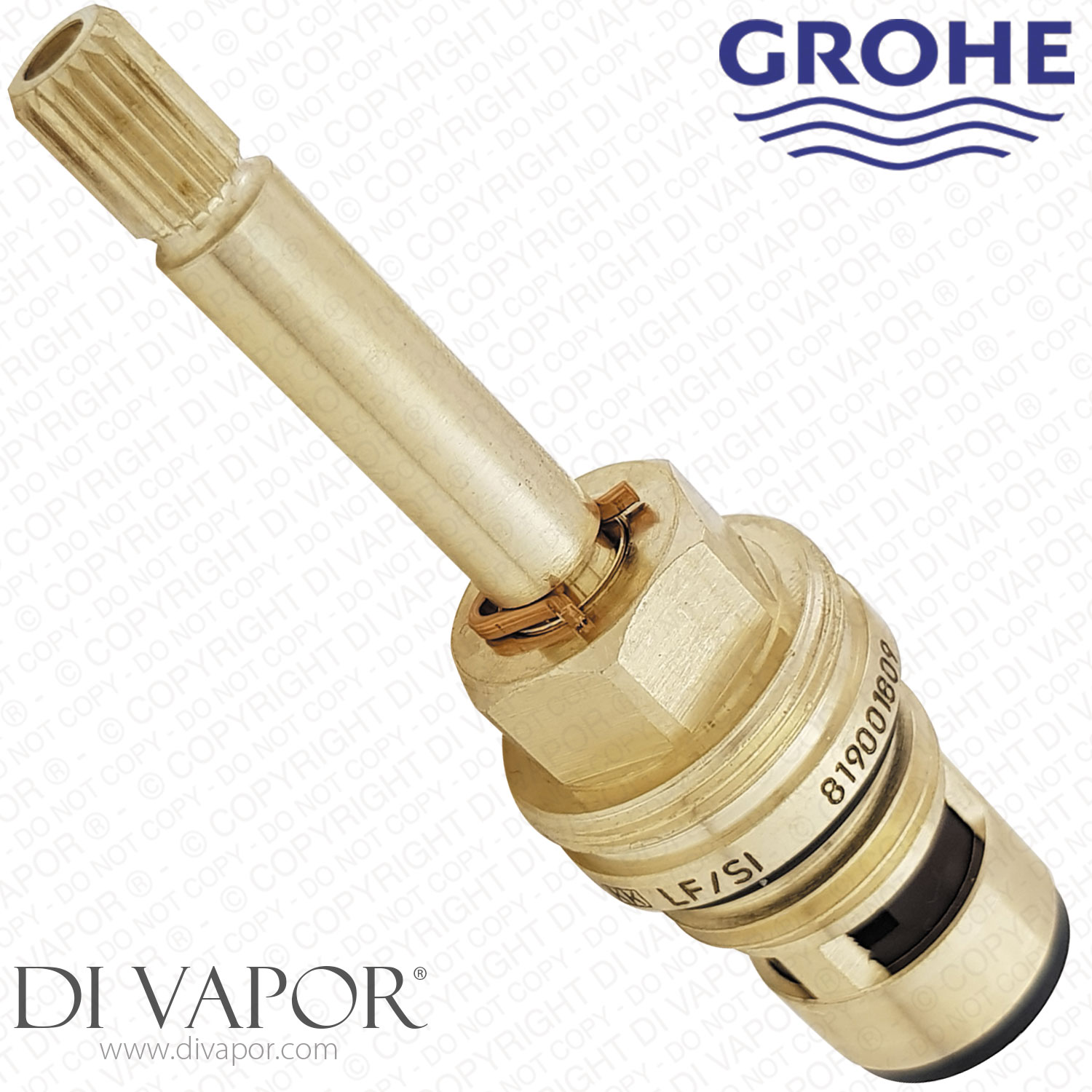

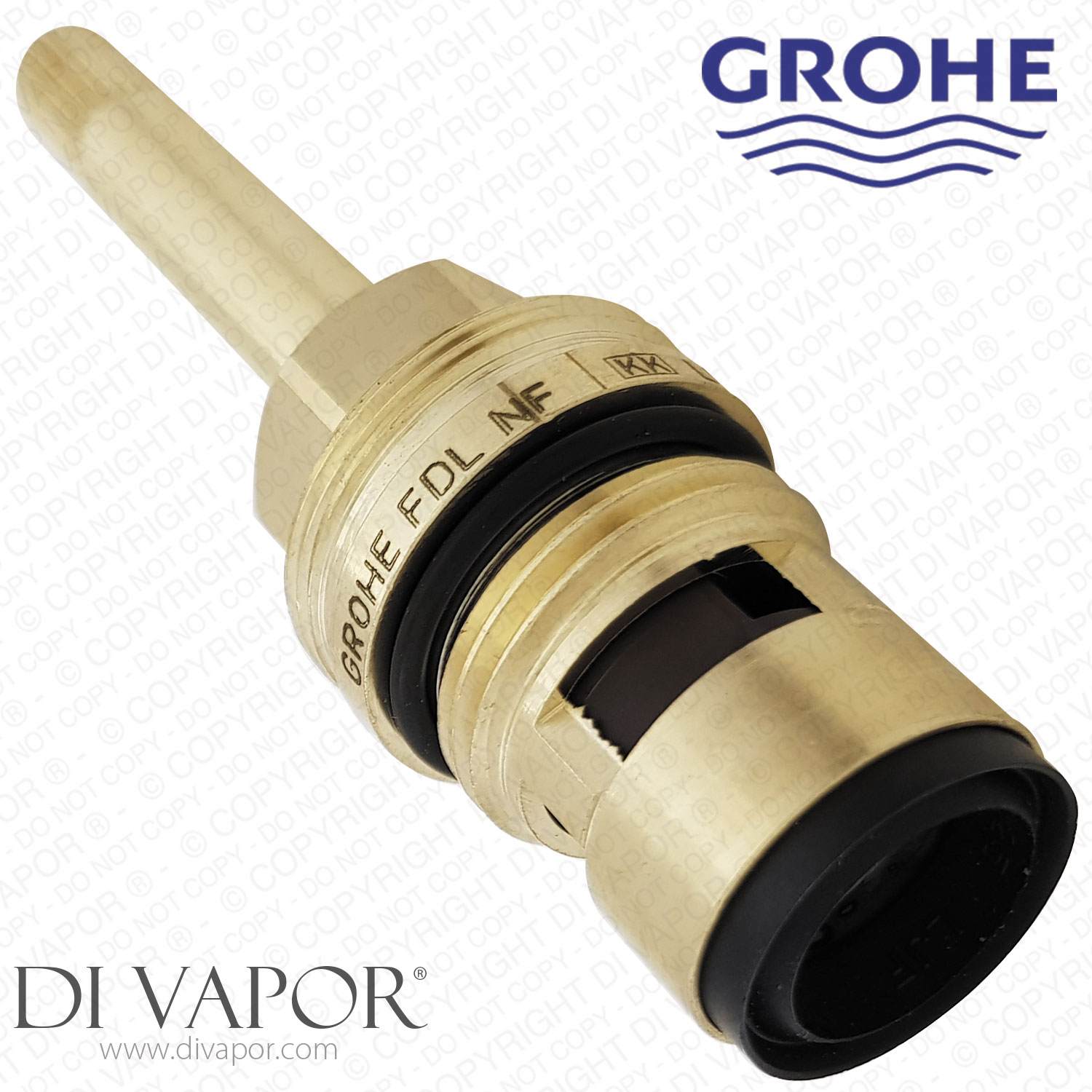

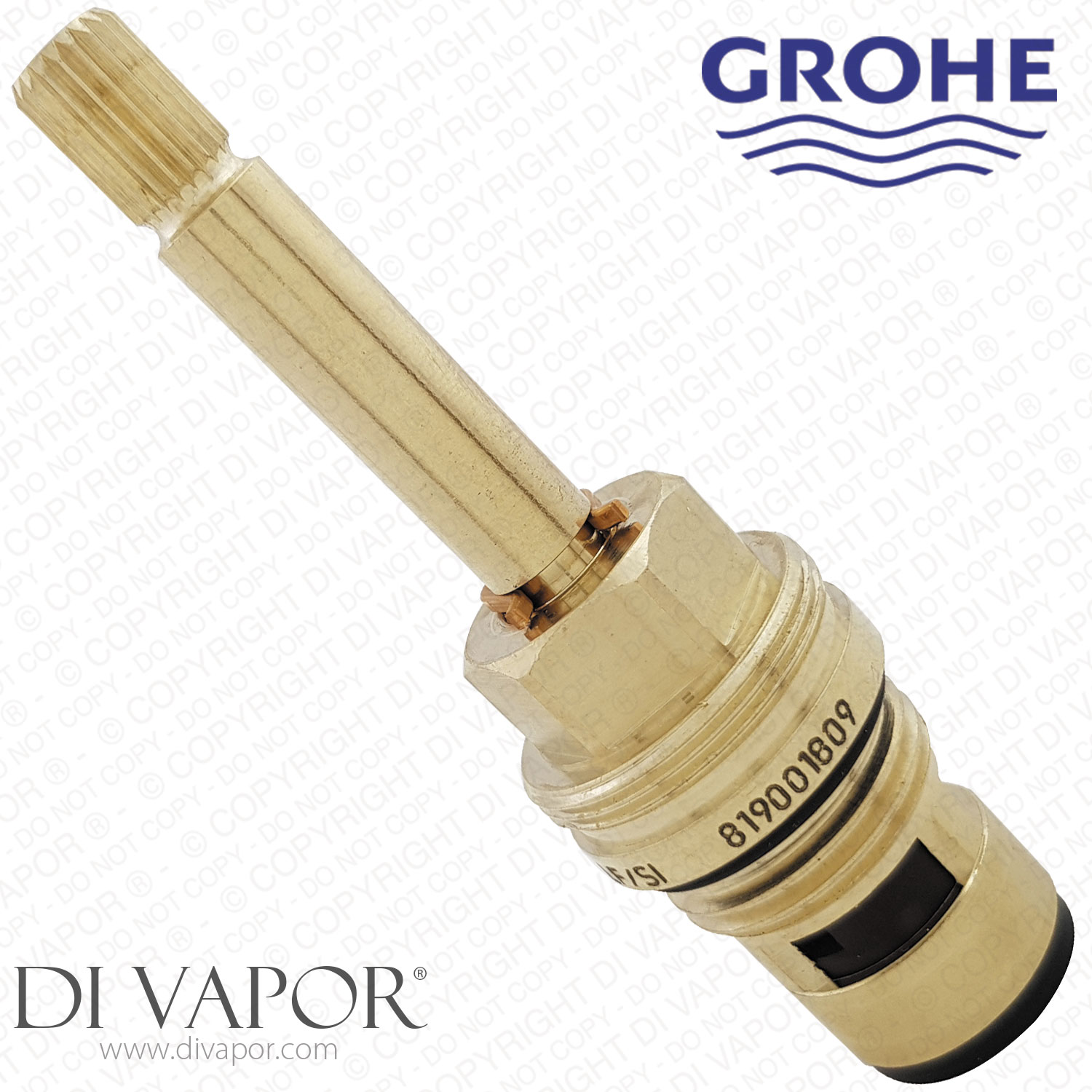

Grohe 45869000 1/2 Inch Concealed Flow On/Off Cartridge
Grohe 45869000 flow cartridge to control the on and off function of the following Grohe models:
- - Grohe Grohtherm 3000 34193 Grohtherm 3000
- - Grohe 19697000
- - Grohe 34966/100
- - Grohe Grohterm 1000 Oval Concealed Thermostatic Shower Mixer
- - Grohe Grohtherm 1000 34161 Thermostatic shower mixer 1/2"
- - Grohe Grohtherm 3000 Cosmopolitan 34278 Thermostatic shower mixer 1/2"
- - Grohe Grohmaster 34162 Grohtherm 1000
- - Grohe Concealed body for THM 34211 Thermostat shower mixer 1/2"
- - Grohe Grohtherm 3000 19 663 Oval Concealed Thermostatic Shower Mixer
- - Grohe Automatic 2000 34954 Thermostat mixer 1/2"
- - Grohe Concealed body for THM 34100 Thermostat shower mixer 1/2"
The Grohe 45869000 is a 1/2 inch concealed ceramic flow on/off cartridge used in selected GROHE thermostatic shower mixers and concealed shower valve assemblies. This GROHE spare controls the water flow and shut-off function rather than the water temperature.
A worn or damaged flow cartridge can cause poor shut-off or water continuing to drip from the shower head when the valve is turned off, where the flow headpart is the source of the fault. The 45869000 uses ceramic sealing discs and operates through a 180-degree half turn.
Technical Details
- - Part code: 45869000
- - Part type: Concealed 1/2 inch flow on/off headpart
- - Mechanism: Ceramic sealing discs
- - Rotation: 180 degrees / half turn
- - Turn orientation: Clockwise to close
- - Stop: Right-hand stop
- - Total length: 83.4mm
- - Spindle length including splines: 42mm
- - Diameter at widest point: 23.8mm
- - Bottom thread diameter: 20.6mm
- - Top spline diameter: 7.6mm
- - Number of splines: 20
- - Top thread diameter: 23.8mm
- - Removal hex: 17mm
Confirmed Compatible Models
- - GROHE Sentosa 19667000 Thermostatic Shower Mixer
- - GROHE Allure 19307000 / 19307 Thermostatic Shower Mixer
- - GROHE Europlus 19682000 Mixer Shower with Flow Control
- - GROHE Grohtherm 1000 34161000 / 34161 Thermostatic Shower Mixer 1/2 Inch
- - GROHE Grohtherm Auto 1000 34328000 / 34328
- - GROHE Grohtherm Auto 1000 19236000 Trim Set
- - GROHE Grohtherm Automatic 2000 19605000 / 19605
- - GROHE Grohtherm 3000 19255000 Thermostatic Shower Mixer
- - GROHE Grohtherm 3000 19663000 / 19 663 Thermostatic Shower Mixer
- - GROHE 34211000 / 34211 000 Shower Mixer Valve
- - GROHE Automatic 2000 34954000 / 34954 Thermostat Mixer 1/2 Inch
- - GROHE 34966000 / 34966 000 Mixer Valve
- - GROHE Taron 19658000 / 19658 000 Shower
- - GROHE Tenso 19066000 Thermostatic Shower Mixer
- - GROHE Grohmaster Grohtherm 1000 34162000 Thermostat Shower Mixer
- - GROHE Grohtherm 3000 34193000 / 34193 Shower
- - GROHE Grohtherm 3000 Cosmopolitan 34278000 Thermostatic Shower Mixer 1/2 Inch
- - GROHE Grohtherm 1000 34024000 Grohmaster BIV Shower 1994-2004
- - GROHE Grohtherm 1000 34162001 Concealed Shower System
- - GROHE 34100000 / 34100 Concealed Body for THM Thermostat Shower Mixer 1/2 Inch
- - GROHE Grohterm 1000 Oval Concealed Thermostatic Shower Mixer GR DV 105
Before Ordering
- - Check the existing valve model and cartridge dimensions before ordering. The 45869000 is the flow-control headpart and is not the thermostatic temperature-control cartridge
- - If the shower continues to drip when turned off, confirm that the fault is on the flow-control side before replacing the cartridge
Installation Notes
- - Isolate the water supplies before removing the valve controls or cartridge
- - On the Grohtherm 1000 34161 the cartridge can be removed from the flow-control side using a 17mm spanner and turning anti-clockwise
- - Apply a thin coating of suitable silicone grease to the seals before installation
- - Tighten the replacement securely without overtightening
Related Spares You May Need
- - Grohe 47450000 Thermo Element Thermostatic Cartridge

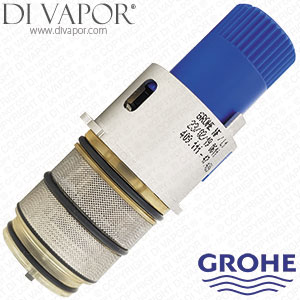

- - Grohe 47439000 Compact Thermostatic Cartridge 1/2 Inch
- - GROHE Premium Plumbers Silicone Grease 2g SYNTHESO LM 220 18007031
- - Grohe 47364000 Aquadimmer Flow Cartridge
- - Grohe 47092000 Grohe 1000 Flow Control Handle

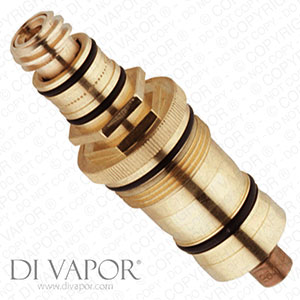

- - Grohe 47217000 Thermostatic Cartridge 1/2 Inch
