Grohe 47311000 Shut-Off Handle

SUMMARY

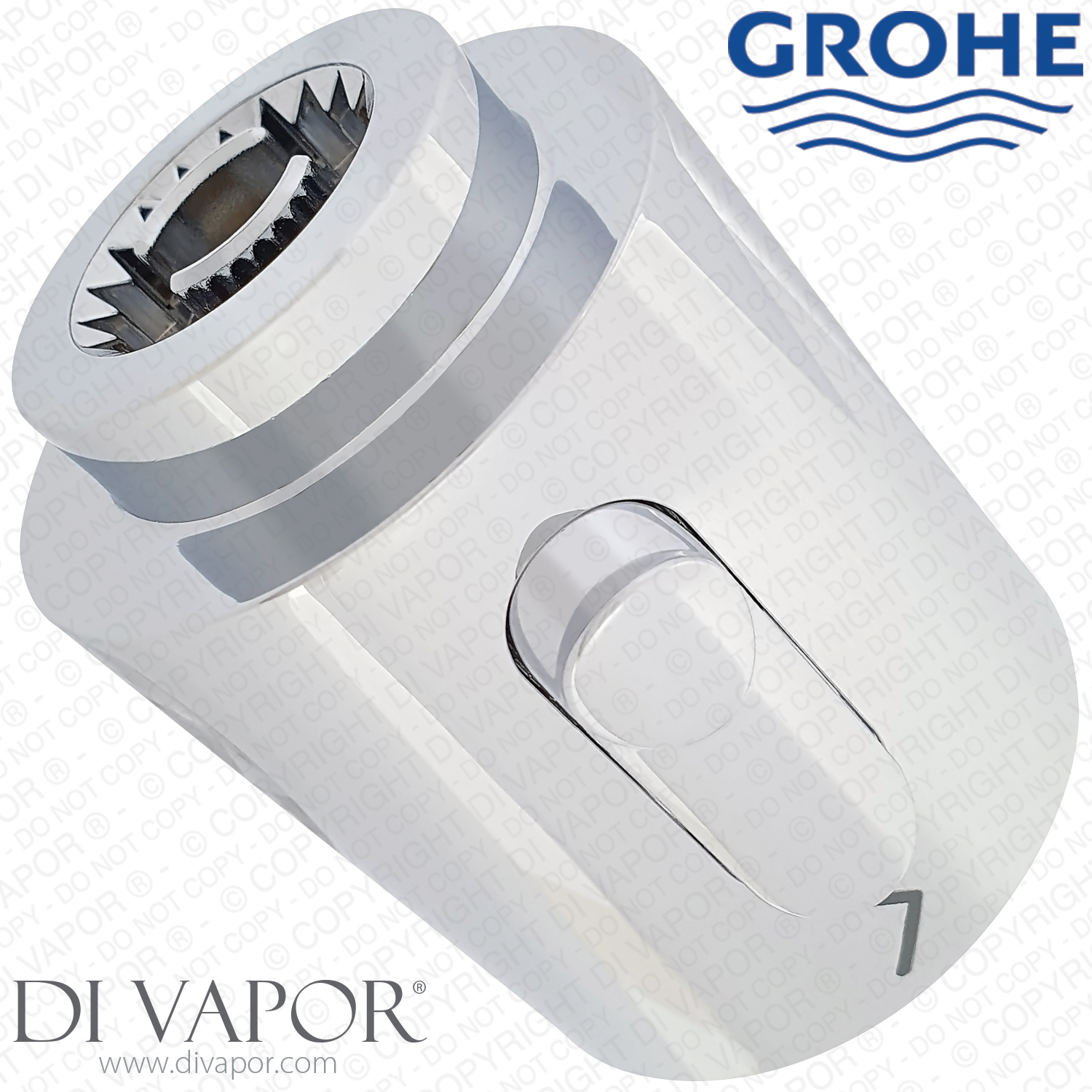

GROHE 47311000 Atrio Shut-Off Valve Handle Chrome

The GROHE 47311000 is a chrome Atrio shut-off valve handle used on the water-flow control side of selected GROHE Atrio thermostatic shower mixer assemblies. It is the external control component that operates the shut-off mechanism and should not be confused with the ceramic headpart fitted behind the handle.

The ceramic headpart used behind 47311000 varies according to the exact shower valve or trim set. Identifying the GROHE model number before ordering is therefore important, particularly where the handle appearance is similar across different Atrio assemblies.

Technical Details

- - Part code: 47311000

- - Part type: Shut-off valve handle

- - Application: Water-flow and shut-off control on selected GROHE Atrio thermostatic shower mixers

- - Finish: Chrome

- - Associated GROHE handle-assembly O-ring: 0354000M

- - 0354000M O-ring size: 31 x 2 mm

Confirmed Compatible Models

- - GROHE 34010000 Atrio Thermostat Shower Mixer

- - GROHE 34011000 Atrio Thermostatic Shower

- - GROHE 19144000 Atrio Ypsilon Thermo Shower Valve Trimset

- - GROHE 19145000 Atrio Thermostat Shower Mixer

- - GROHE 19394000 Atrio Thermostatic Shower Mixer

- - GROHE 19398000 Atrio Thermostatic Shower Mixer Valve

Before You Order

The shut-off headpart behind 47311000 is model-dependent. GROHE 34010000, 34011000 and 19394000 use 45346000 in the relevant control assembly; 19144000 and 19145000 use 06709000; and 19398000 uses 45882000. Do not select the ceramic headpart from the handle appearance alone.

Related Spares You May Need

- - GROHE 45346000 1/2 Inch Carbodur Half Turn Flow On/Off Cartridge - shut-off headpart used with 34010000, 34011000 and 19394000

- - GROHE 47680000 Atrio Control Handle - related Atrio control component

- - GROHE 06676000 Atrio Temperature Control Handle - temperature-side control used in relevant Atrio assemblies

- - GROHE 47324000 Flow Control Lever Handle - flow-control lever used in relevant Atrio configurations

- - GROHE 47289000 Atrio Temperature Control Handle - temperature-side handle used in relevant confirmed assemblies

- - GROHE 08943000 Atrio Snap Insert Spline Adapter White & Grey - handle-to-spindle interface used in relevant Atrio control assemblies

- - GROHE 06709000 Atrio Ceramic Disc Cartridge - shut-off headpart listed for 19144000 and 19145000

- - GROHE 45882000 Ceramic Headpart Cartridge 1/2 Inch 1/4 Turn Anti-Clockwise Open - flow-control headpart listed for 19398000

- - GROHE 0392400M Pack of 10 O-Rings - seal pack listed with several of the confirmed valve assemblies

- - GROHE 47780000 27.5mm Rapido T Extension Kit - installation-depth extension listed with 19394000 and 19398000

- - GROHE 47367000 Extension Set 27.5mm - installation-depth extension listed with 19145000

- - GROHE 47326000 Atrio Cover Plate with Shrouds - trim component listed with the 19394000 assembly
