A thermostatic valve is a valve that mixes or blends hot and cold water together to a specific temperature, thus creating a constant water temperature that is safe and helps to avoid scalding.
A Residual Current Device (RCD) is an electrical device connected onto the power cable before it enters the control box or steam generator. This will cut-off power to the unit if an imbalance in the live and neutral currents is detected to protect the user.
A whirlpool bath is a tub that uses air jets, water jets or both to create swirling currents in the water to produce a therapeutic massage sensation. Water jets are operated using a pump that jets streams of water against the body while air jets typically line the bottom of the tub and blow air up through the water and against the bather.
|
 |
About the Genoa (B-DV026)
Dimensions: 1700 × 800 × 500 (mm) | 67 × 32 × 20 (in.)
Water Jet System: 5 water massage jets
Volume: 1.24m3
Surround: No apron or surround included (please ask if required). |

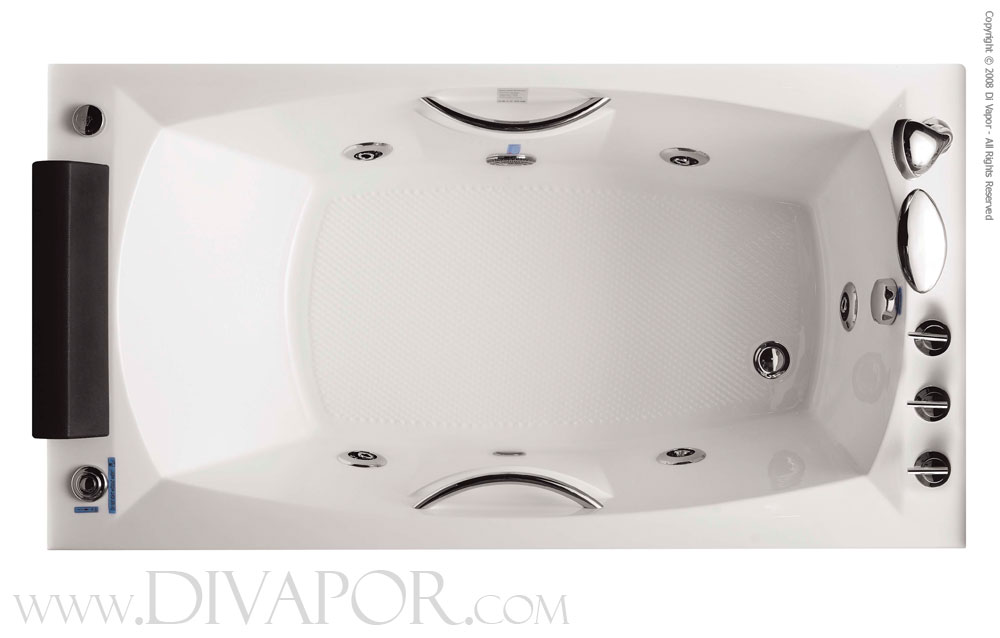

| The Genoa whirlpool bathtub is lined with five large water jets along its sides. The Genoa is designed to allow you to give the surround a custom finish that will best compliment the rest of your bathroom. In addition to a temperature control valve this model provides a handheld shower to wash off any left over suds! |
|
|
|
|
| |
Whirlpool Bathtub FeaturesThe Genoa whirlpool bathtub includes the following features: |  |
|
| Product FeaturesInformation about the Genoa whirlpool bath |

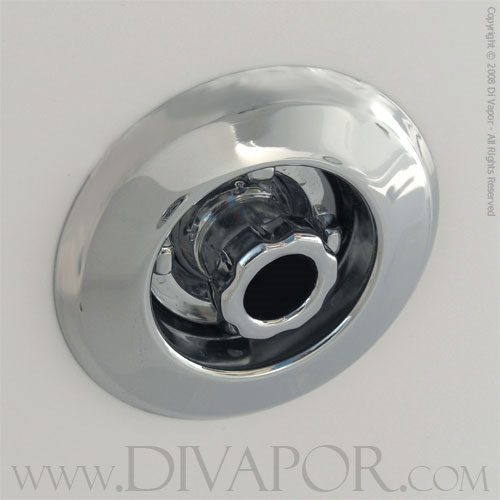

 | 5 Hydromassage water jets
Carefully positioned around the edge of the bathtub these water jets, powered by a 1HP water pump, spray water onto your body to gently relax and massage your tired or aching muscles. |
|

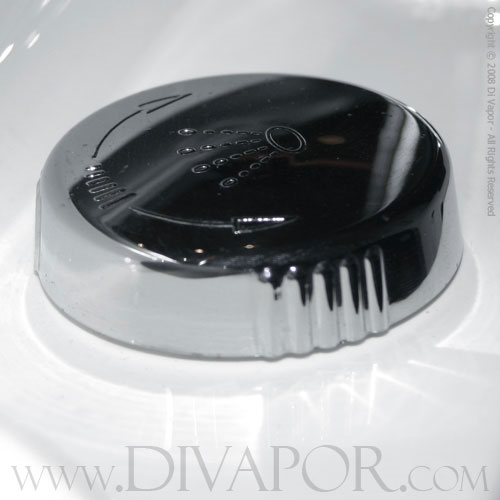

 | Adjustable Water Jets
Using a dial positioned at the end of the bath tub you can easily increase or decrease the pressure of the water jets that line the sides of the bath. |
|

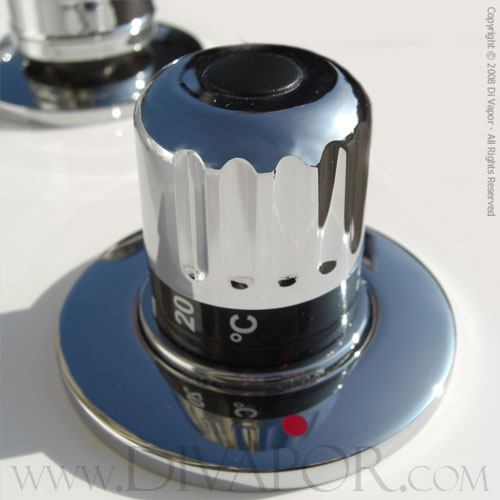

 | Thermostatic Temperature Control
As standard, Di Vapor provides a built-in thermostatic valve so that the water that flows into the whirlpool bath won't have any sudden temperature fluctuations. This is a particularly important consideration when the bathtub is being used by the young and old who have thinner skin and are more susceptible to scalding. |
|

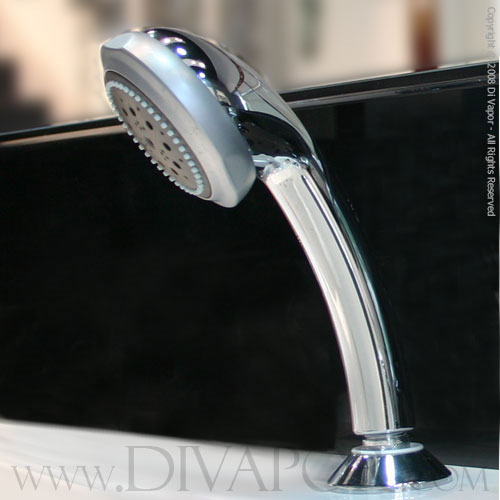

 | Three-way hand shower
After finishing your whirlpool hydromassage session you can simply wash off any shampoo or bubbles that remain using this built-in handheld shower. The handheld shower provides 3 settings for either spray, jet or champagne showering. |
|
 | Underwater LED Lighting
An underwater LED light illuminates the bubbling water to create the perfect bathroom ambience while enjoying the water massage jets. |
|
 | Water level safety sensor
In the event that the water fill level is below the water jets then this will be automatically detected by the bathtub and it will not start the water jets. This helps protect the electrical water pump from being started without water being present. |
|
 | Residual Current Device (RCD) Safety
This safety device is used to detect an imbalance in the electrical current of the bathtub. In the event of an imbalance then the RCD will trip and stop the electrical current. This safety feature helps protect both the user and product itself. |
|

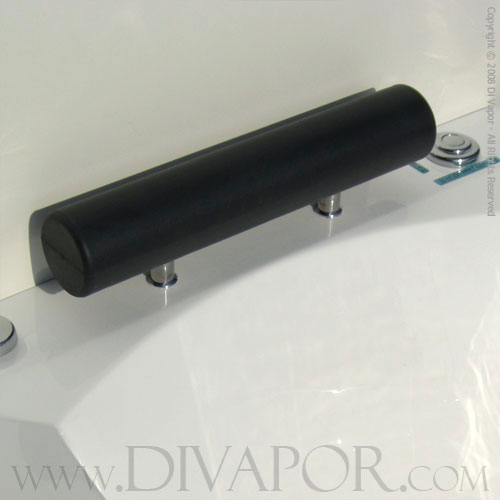

 | One Padded Headrest
This simple yet stylish waterproof, firm foam padded headrest is located at the end of the whirlpool bathtub allowing you to rest your head in comfort. |
|
 | Without Apron
To create a uniform design within your bathroom, the Pesaro is provided without a curtain so you can tile the sides in a style to best compliment your bathroom. |
|
|
|
| |
| Extra Material Specifications: |
» Fibreglass reinforced acrylic bath with flexible shower waste fittings
» Stainless Steel support for the bath |  |
|
| |

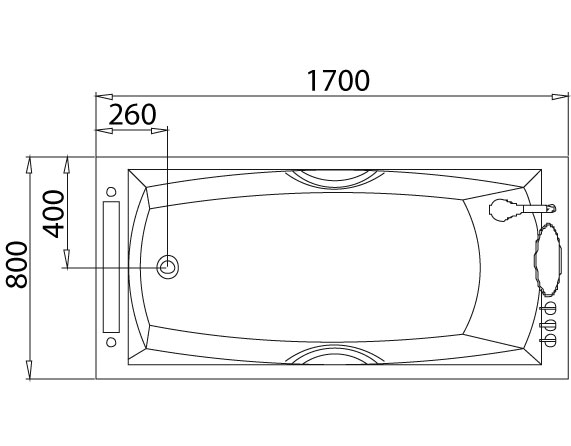

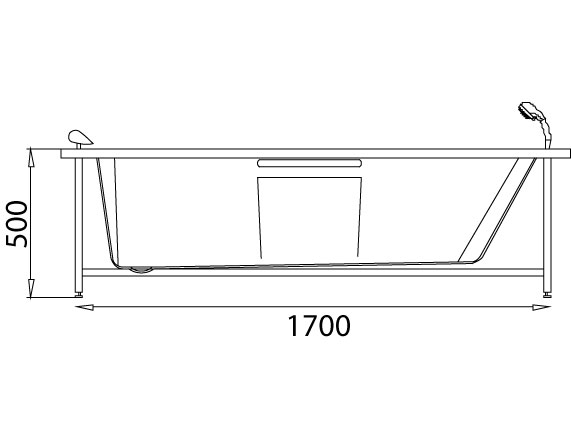

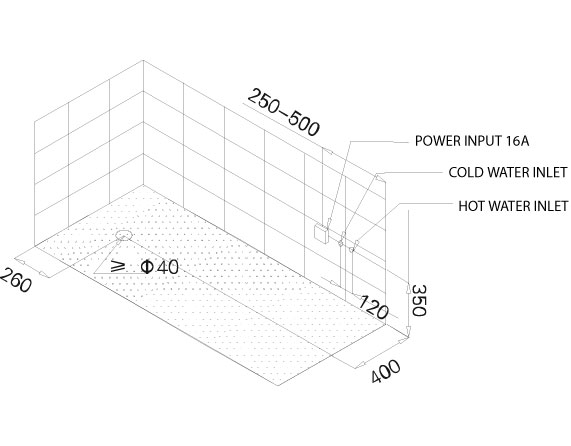

| Technical DiagramsDimensions and Layout |
 |  |  |
Electrical:- 16AMP electrical supply required.
- RCD fitted on power flex.
- Fused spur/mains RCD optional.
Plumbing:- Hot & cold water supply required.
- Genoa bath volume: 135 Litres
- Water pump: 1HP
|
|
| |
