Grohe 49028000 Thermostatic Cartridge for SmartControl with 3 valves (29121 000)

SUMMARY

Grohe 49028000 Thermostatic Cartridge for SmartControl with 3 valves (29121 000)

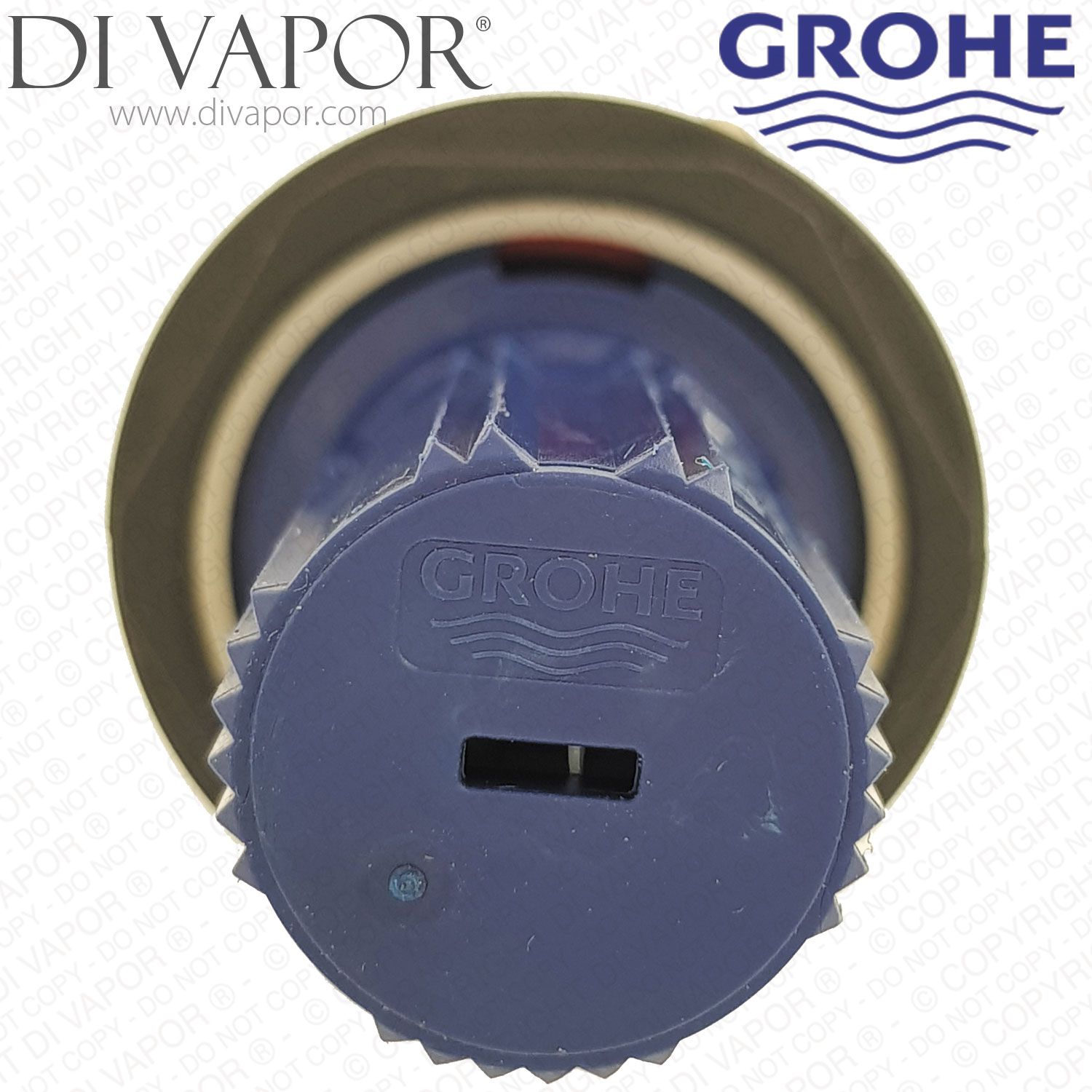

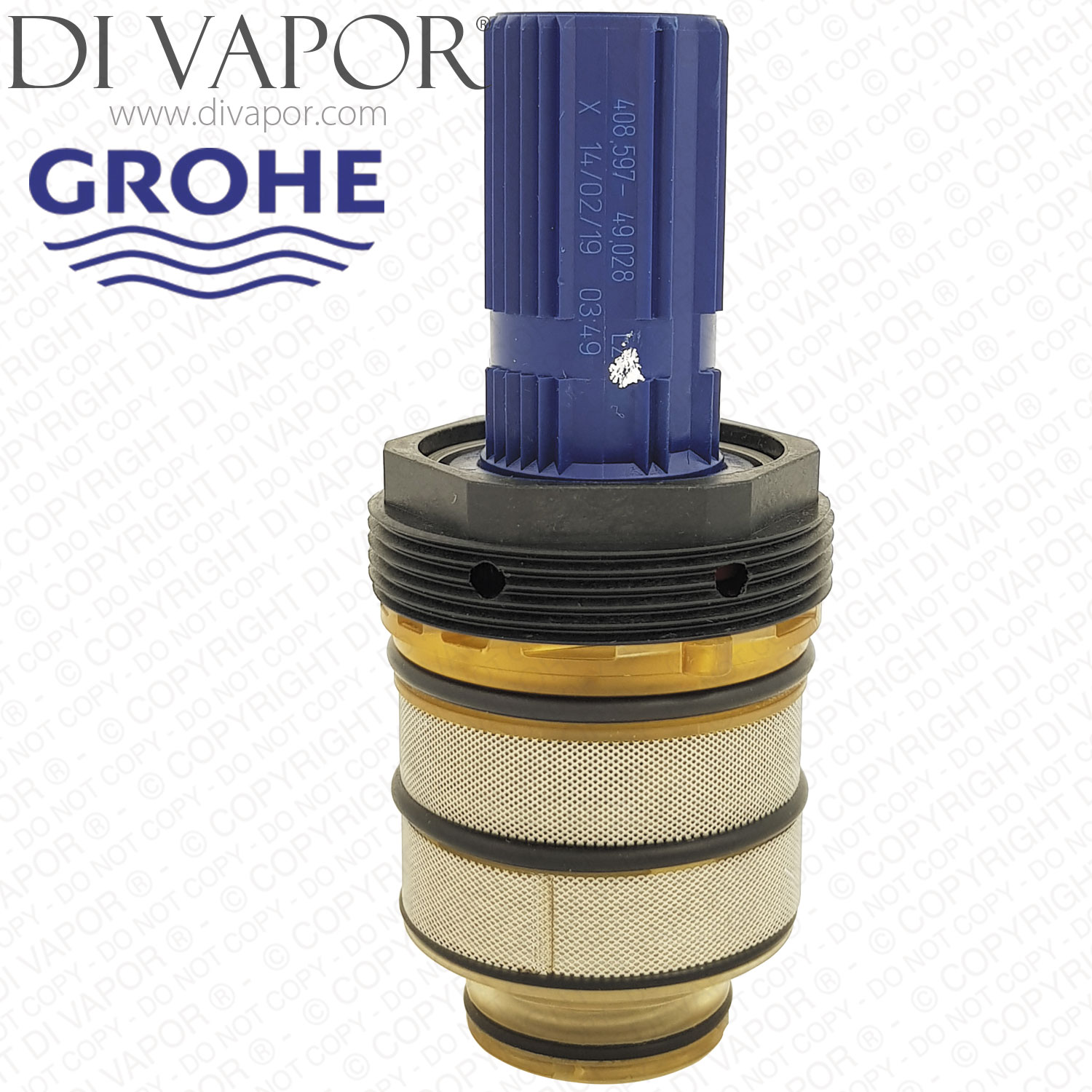

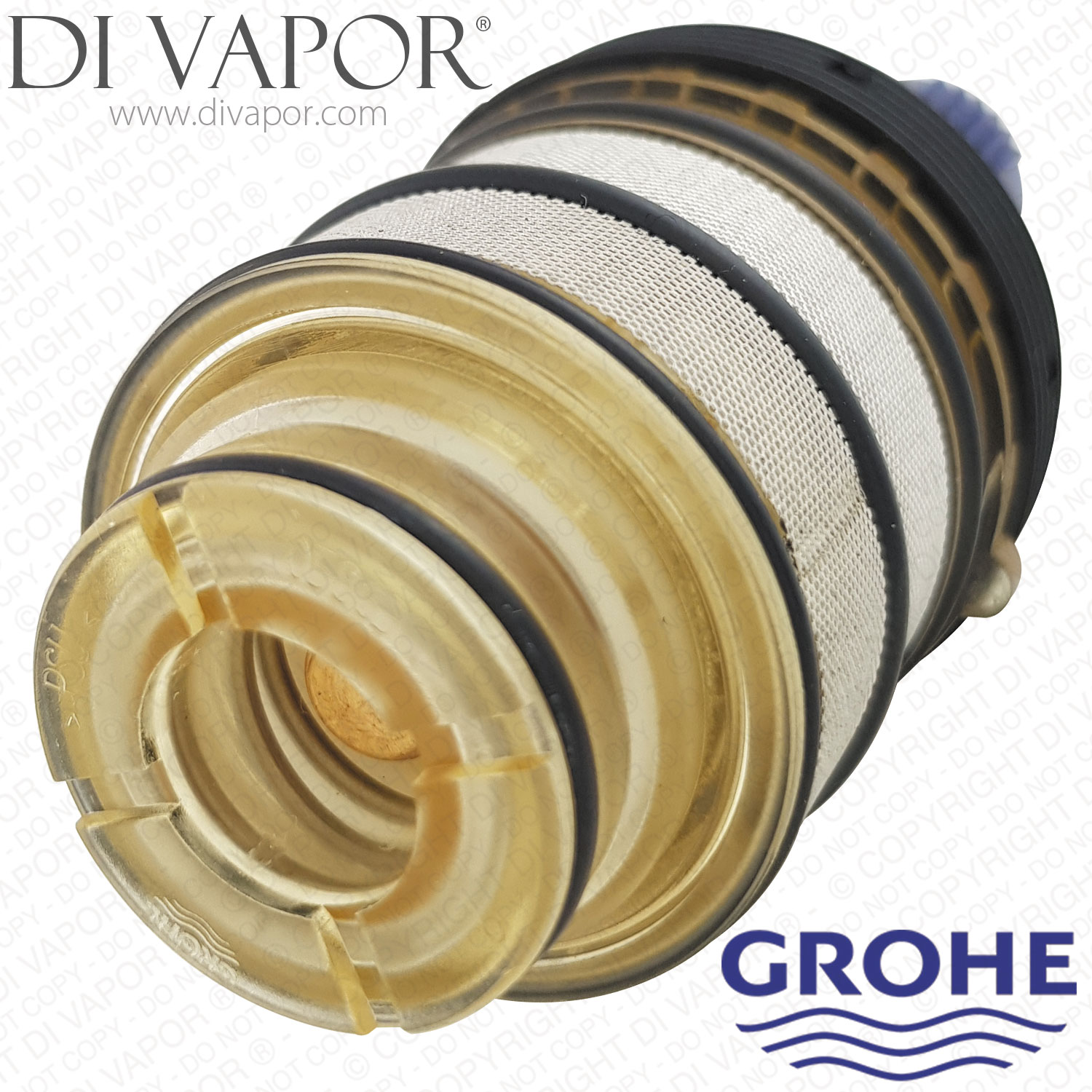

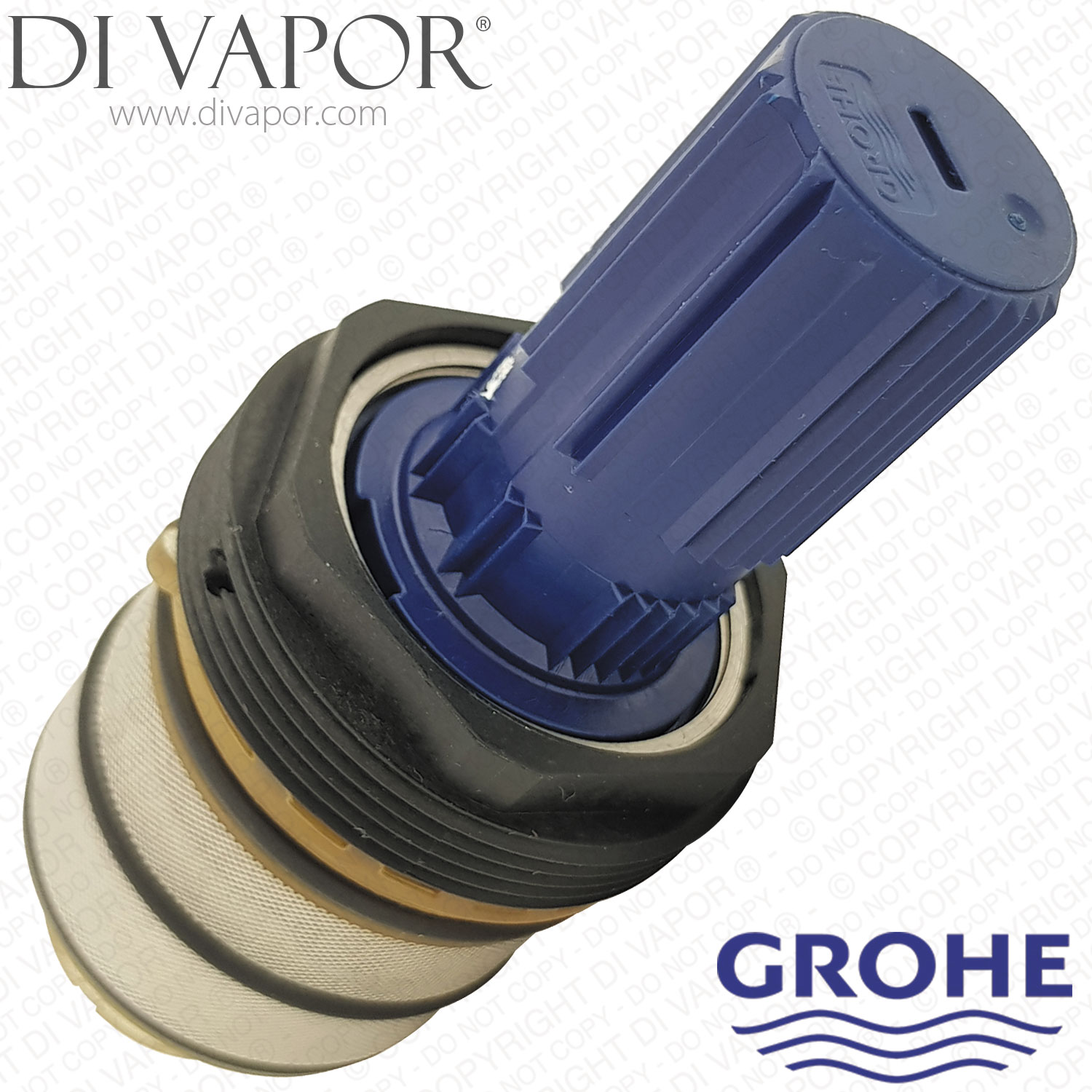

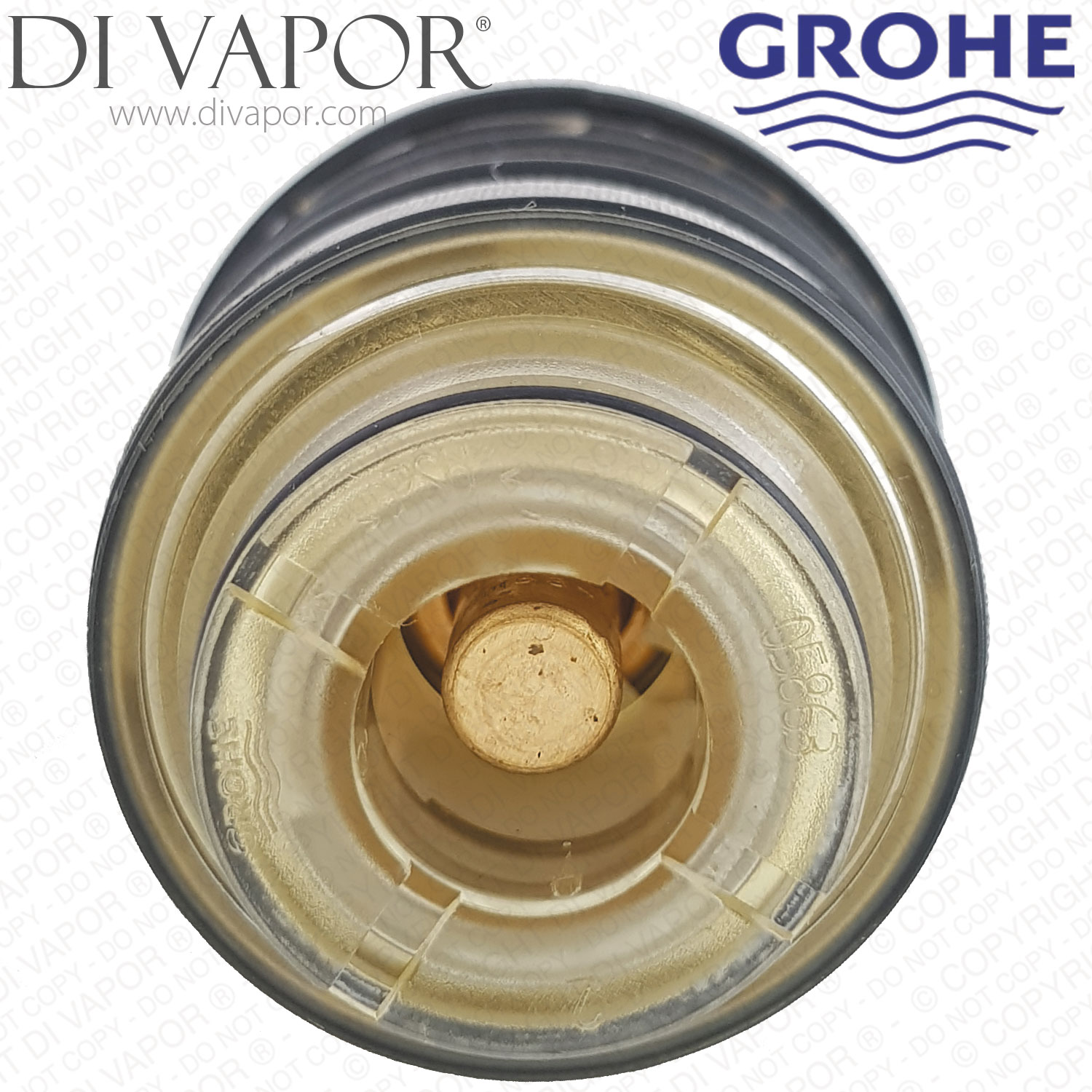

The GROHE 49028000 is a 3/4 inch thermostatic compact cartridge used to regulate mixed-water temperature in a wide range of GROHE concealed thermostatic controls. This cartridge is also used in verified one-valve and two-valve SmartControl assemblies as well as selected Grohtherm, Grohtherm Cube, Atrio and Allure concealed thermostatic controls.

The cartridge uses GROHE TurboStat technology with a wax thermoelement to react to changes in the mixed-water temperature and maintain the selected temperature at the control. GROHE supplies the cartridge with its fastening nut.

Technical Details

- - Product code: 49028000

- - Part type: thermostatic compact cartridge

- - Size designation: 3/4 inch

- - Thermostatic technology: GROHE TurboStat

- - Thermostatic element: wax thermoelement

- - Fastening nut: included

- - Application: concealed thermostatic shower and bath controls

Confirmed Compatible Models

- - GROHE 29118000 GEN1 Grohtherm SmartControl Thermostat 2016-2018 1 Valve

- - GROHE 29118000 GEN2 Grohtherm SmartControl Thermostat 2018-2020 1 Valve

- - GROHE 29118000 Grohtherm SmartControl Thermostat 1 Valve

- - GROHE 29119000 GEN1 Grohtherm SmartControl Thermostat 2016-2020 2 Valves

- - GROHE 29119000 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29120000 Grohtherm SmartControl Thermostat 2 Valves with Integrated Shower Holder

- - GROHE 29121000 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29119AL0 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29119DC0 GEN1 Grohtherm SmartControl Thermostat 2018-2020 2 Valves

- - GROHE 29119DC0 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29121AL0 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29121DC0 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29125000 Grohtherm SmartControl Thermostat 2 Valves with Integrated Shower Holder

- - GROHE 29126000 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29126A00 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29137000 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29137A00 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29137GN0 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29138000 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29138EN0 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29141000 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29142000 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29156LS0 Grohtherm SmartControl Thermostat

- - GROHE 29161LS0 Grohtherm SmartControl Thermostat 3 Valves

- - GROHE 29164LS0 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29229000 Grohtherm SmartControl Thermostat 2 Valves

- - GROHE 29123AL0 Grohtherm SmartControl Thermostat 1 Valve

- - GROHE 29123DC0 Grohtherm SmartControl Thermostat 1 Valve

- - GROHE 29124AL0 Grohtherm SmartControl Thermostat

- - GROHE 24075000 Grohtherm Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24076000 Grohtherm Thermostatic Mixer 2 Outlets with Integrated Shut-Off Diverter

- - GROHE 24077000 Grohtherm Thermostatic Bath Mixer 2 Outlets with Integrated Shut-Off Diverter

- - GROHE 24078000 Grohtherm Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24079000 Grohtherm Thermostatic Mixer 2 Outlets with Integrated Shut-Off Diverter

- - GROHE 24080000 Grohtherm Thermostatic Bath Mixer 2 Outlets

- - GROHE 24107000 Grohtherm Thermostatic Mixer 1 Outlet

- - GROHE 24110000 Grohtherm Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24110EN0 Grohtherm Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24111000 Grohtherm Thermostatic Mixer 2 Outlets

- - GROHE 24133000 Grohtherm Thermostatic Mixer 2 Outlets

- - GROHE 24153000 Grohtherm Cube Thermostatic Mixer

- - GROHE 24154000 Grohtherm Cube Thermostatic Shower Mixer

- - GROHE 24154AL0 Grohtherm Cube Thermostatic Mixer 2 Outlets with Shut-Off Diverter Valve

- - GROHE 24155000 Grohtherm Cube Thermostatic Mixer

- - GROHE 24134003 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24134AL3 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24135003 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24135AL3 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24135DC3 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24138003 Atrio Thermostatic Bath Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24151003 GEN1 Atrio Thermostatic Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24151003 GEN2 Atrio Thermostatic Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24151EN3 GEN1 Atrio Thermostatic Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24357000 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24357MG0 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24357DL0 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24357GN0 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24357MS0 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24357GL0 Atrio Thermostatic Mixer 1 Outlet with Shut-Off Valve

- - GROHE 24358GN0 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24358DA0 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24358MG0 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24358DC0 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24358GL0 Atrio Thermostatic Shower Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24359000 Atrio Thermostatic Bath Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 24359KF0 Atrio Thermostatic Bath Mixer 2 Outlets with Integrated Shut-Off Diverter Valve

- - GROHE 19380002 Allure Thermostatic Control

- - GROHE 29181002 Allure Thermostat with 2-Way Diverter

- - GROHE 29181GN2 Allure Thermostat with 2-Way Diverter

- - GROHE 29181MS2 Allure Thermostat with 2-Way Diverter

Before You Order

Check the existing cartridge code and the exact GROHE control model before ordering. The 3/4 inch designation is the manufacturer's cartridge designation and should not be used on its own to identify fitment or infer the connection thread.

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease for Tap and Shower Cartridges - Part Number TAC86
