Grohe 29119000 Grohtherm SmartControl Thermostat for Concealed Installation with 2 Valves Shower Spare Parts

SUMMARY

Shower Spares for Grohe 29119000 Grohtherm SmartControl Thermostat for Concealed Installation with 2 Valves

Year: 2020 - Present (Checked on June 2021)

- Set for Final Installation for Grohe Rapido Smartbox 35 600/35 604

- Grohe Turbostat Compact Cartridge with Wax Thermoelement

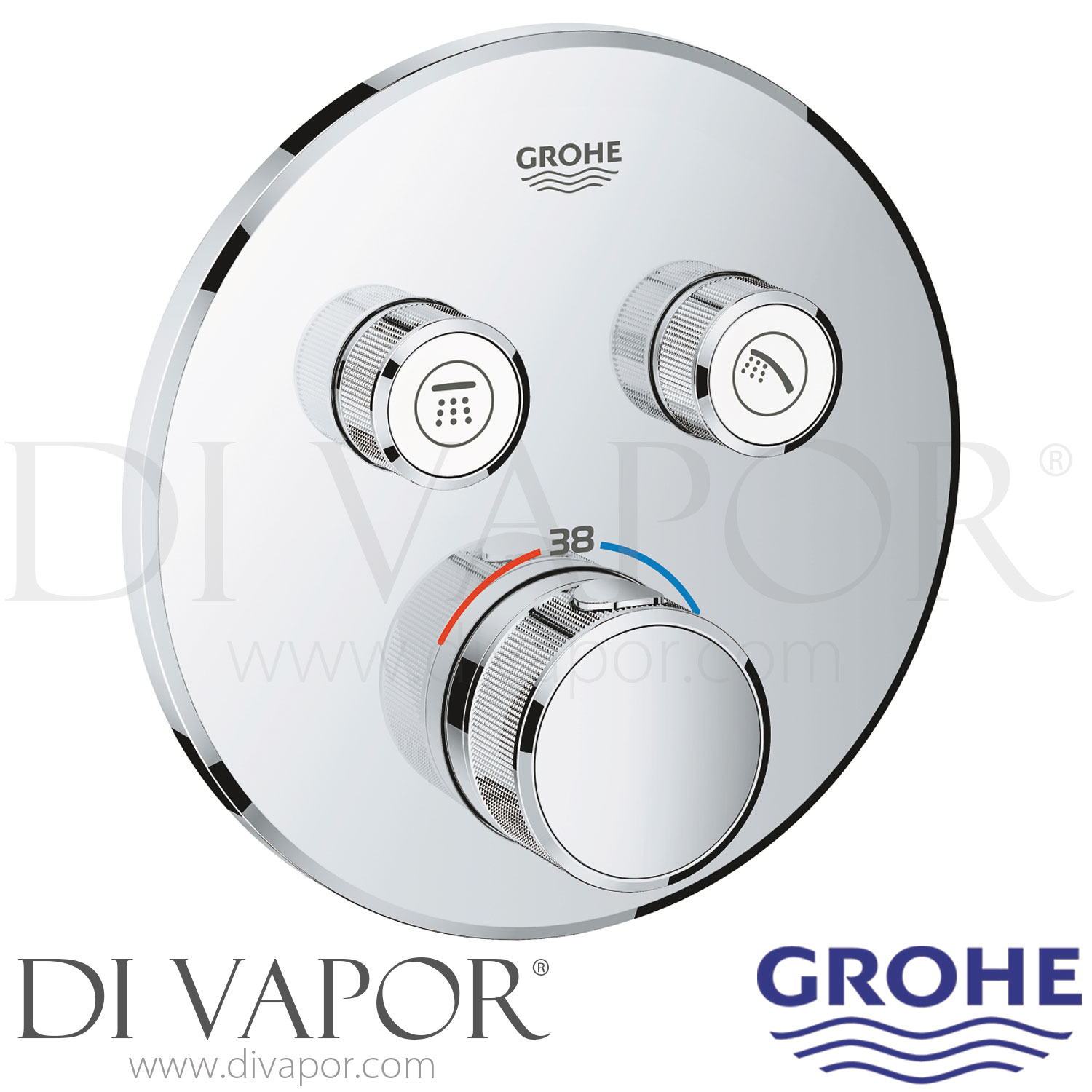

Spare parts for the Grohe 29119000 Grohtherm SmartControl concealed thermostatic shower mixer with two valves, covering the 2020-present generation. This chrome final-installation trim set is designed for a concealed Grohe Rapido SmartBox installation, with thermostatic temperature control and two SmartControl push-and-turn outlet controls.

The two controls allow the user to switch individual outlets on or off and adjust water volume, while the Grohe TurboStat compact cartridge with wax thermoelement regulates the mixed-water temperature. Multiple outlets can be operated simultaneously. For servicing, the Grohe spare parts listed below cover the temperature handle, push-button control, flow-control cartridge and thermostatic cartridge used in this valve.

Technical Details

- - Brand: Grohe.

- - Range: Grohtherm SmartControl.

- - Category: Thermostatic shower mixer.

- - Product code: 29119000.

- - Generation: 2020 - Present.

- - Installation type: concealed final-installation thermostatic trim set.

- - Number of valves: 2.

- - Finish: chrome.

- - Control system: Grohe SmartControl push-and-turn controls for outlet selection and flow adjustment.

- - Thermostatic system: Grohe TurboStat compact cartridge with wax thermoelement.

- - Temperature safety stop: Grohe SafeStop at 38 C.

- - Additional temperature limitation: SafeStop Plus limiter for 43 C or 46 C is included.

- - Internal protection: built-in non-return valves and dirt strainers.

- - Multiple outlets: the two outlets can be operated simultaneously.

- - Flow performance at 3 bar: outlet B, 24 l/min; outlet C, 26 l/min; outlets B and C together, 29 l/min.

- - Required concealed rough-in system: Grohe Rapido SmartBox 35 600 or 35 604, ordered separately.

- - EAN: 4005176412257.

Confirmed Installation Systems

- - Grohe 35600000 Rapido SmartBox Universal Rough-In Box 1/2 Spare Parts.

- - Grohe 35604000 Rapido SmartBox Universal Rough-In Box.

Other Available Valve Generations

- - Grohe 29119000 Grohtherm SmartControl Thermostat with 2 Valves 2016-2020 GEN1.

Fault Symptoms

- - Water continuing to drip from the shower head or spout after the outlet has been switched off can indicate wear in the 48359000 flow-control cartridge or its seals.

- - Difficulty maintaining the selected water temperature, slow temperature response or unstable mixed-water temperature can indicate wear in the thermostatic cartridge or restricted strainers.

Before You Order Check

Confirm that the mixer code is 29119000 and identify the valve generation before ordering. The 2016-2020 GEN1 version is separate from the 2020-present version, so compare the existing component code with the required spare. Also confirm that the concealed installation uses the appropriate Rapido SmartBox system.
