Grohe 24079000 Grohtherm Thermostatic Shower Mixer Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 24079000 Grohtherm Thermostatic Shower Mixer
- For 2 Outlets with Integrated Shut Off/Diverter Valve
- Set for Final Installation for Grohe Rapido Smartbox 35 600/35 604
- Grohe Turbostat Compact Cartridge with Wax Thermoelement

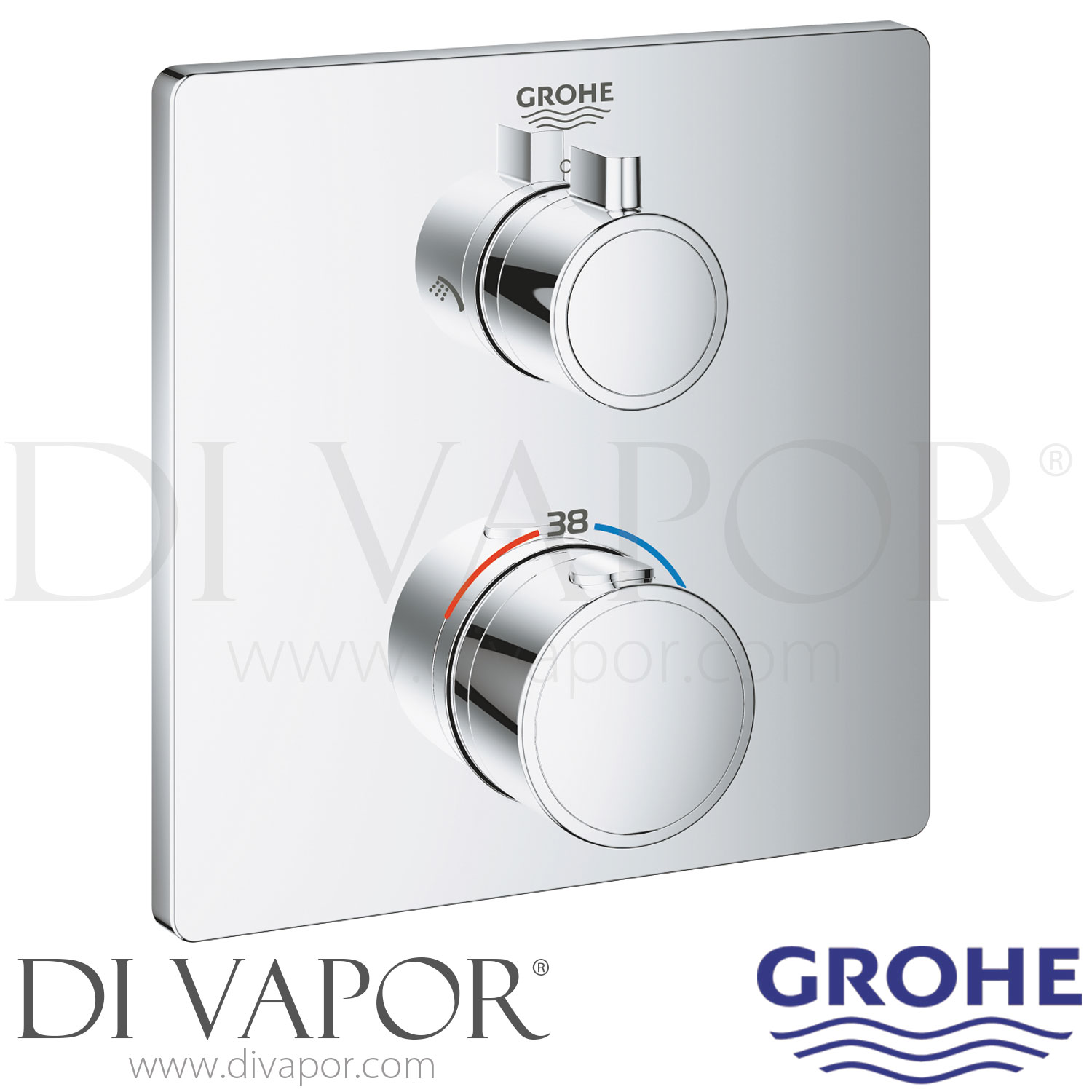

This spare parts page covers the Grohe 24079000 Grohtherm concealed thermostatic shower mixer trim set for two outlets. The square chrome control combines thermostatic temperature regulation with an integrated shut-off and AquaDimmer diverter for controlling a head shower and hand shower.
The temperature control uses a Grohe TurboStat compact cartridge with a wax thermoelement. The separate AquaDimmer control regulates the water flow, shuts the mixer off and switches the supply between the two shower outlets.
A worn AquaDimmer can cause poor outlet selection, reduced shut-off or water dripping from the shower head or handset when the mixer is turned off. Temperature fluctuation or failure to maintain the selected temperature may indicate wear in the thermostatic cartridge.
Technical Details
| Grohe product code | 24079000. |
|---|---|
| Range | Grohe Grohtherm. |
| Category | Thermostatic shower mixer. |
| Product type | concealed thermostatic shower mixer final installation trim set. |
| Number of outlets | 2. |
| Control functions | thermostatic temperature control with integrated shut-off and AquaDimmer diverter. |
| Required concealed body | Grohe 35600000 Rapido SmartBox Universal Rough-In Box or Grohe Rapido SmartBox 35 604. The concealed rough-in body is not included with the trim set. |
| Finish | chrome with Grohe LongLife finish. |
| Escutcheon | metal square wall plate approximately 158 mm x 158 mm. |
| Wall plate depth | approximately 10 mm. |
| Total projection from the finished wall | approximately 43 mm. |
| Alignment adjustment | up to 6 degrees after installation. |
| Temperature safety | Grohe SafeStop at 38 C with a supplied SafeStop Plus limiter for 43 C or 46 C. |
| Flow performance at 3 bar | outlet B 27 litres per minute and outlet C 30 litres per minute. |
| Recommended operating pressure | 1.5 to 5 bar. |
| EAN | 4005176466045. |
Before You Order Check
- Confirm that the mixer has the square Grohtherm trim marked for a head shower and hand shower.
- Match the product code 24079000 before selecting replacement controls or cartridges.
- The standard thermostatic cartridge is 49028000. Installations with the hot supply on the right and cold supply on the left require the special 49003000 reversed-supply cartridge instead.
- The shut-off and diverter handle specified for 24079000 is 49081000. Do not substitute 49083000.
- Isolate the hot and cold water supplies before removing the trim or servicing an internal cartridge.
Grohe 49081000 Shut Off Diverter Valve Handle for Grohtherm Thermostatic MixersThe Grohe 49081000 is a chrome shut-off and diverter valve handle for selected Grohtherm thermostatic mixer controls. It is the external operating handle used on the shut-off/diverter side of the valve...
GROHE 49084000 AquaDimmer Flow Control and Diverter Cartridge for Thermostatic MixersNOTE: Please make sure that this is the correct Aquadimmer cartridge as there are a number of different diverter flow cartridges that have been used in the Aquadimmer range.The GROHE 49084000 is ...
Grohe 49028000 Thermostatic Cartridge for SmartControl with 3 valves (29121 000)The GROHE 49028000 is a 3/4 inch thermostatic compact cartridge used to regulate mixed-water temperature in a wide range of GROHE concealed thermostatic controls. This cartridge is also used in verifi...
Grohe 49083000 Shut-Off Volume Control Handle for Grohtherm Thermostatic Shower ValvesThe Grohe 49083000 is a chrome shut-off and volume-control handle used on selected Grohtherm concealed thermostatic shower valve trims. It operates the flow control, allowing the user to turn th...
