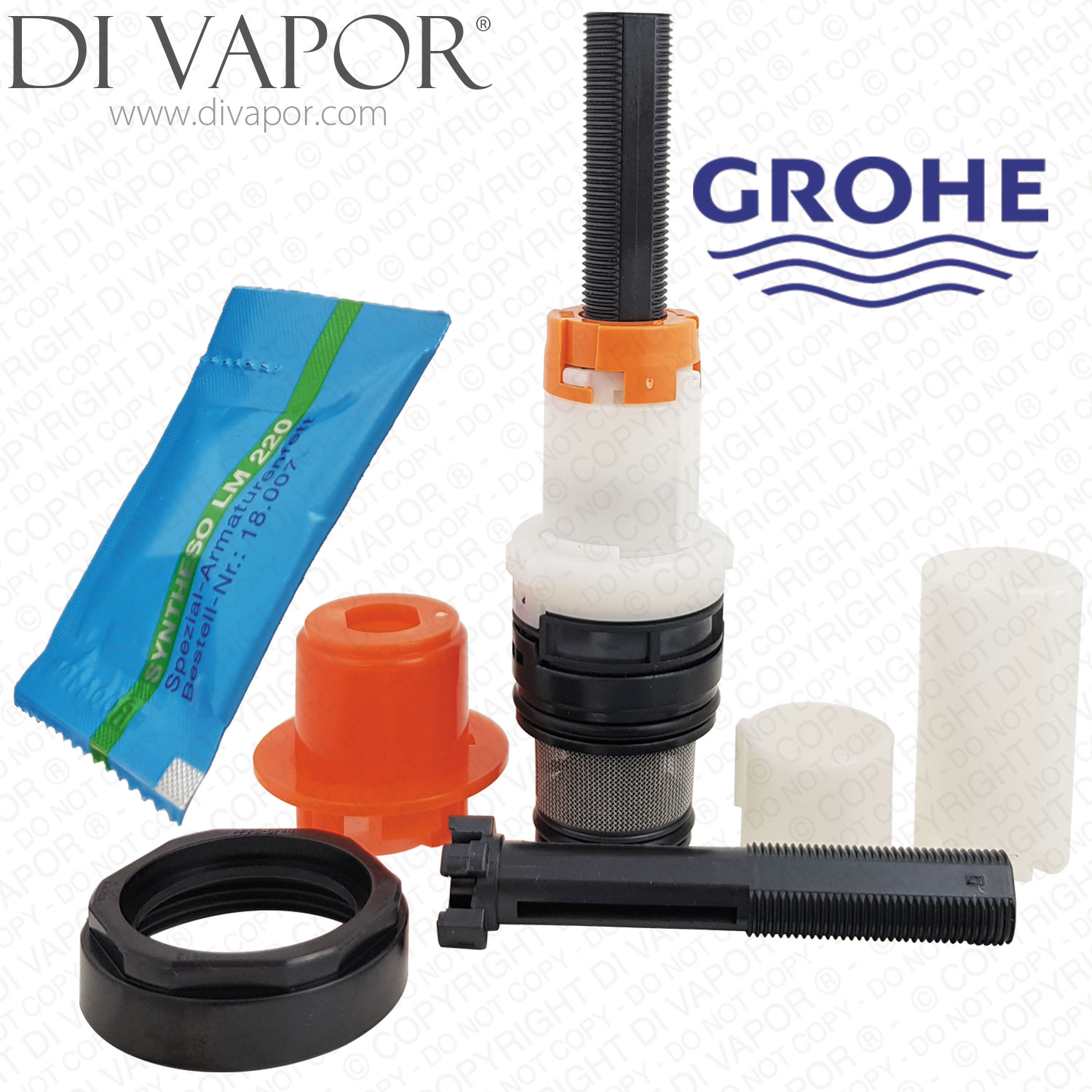

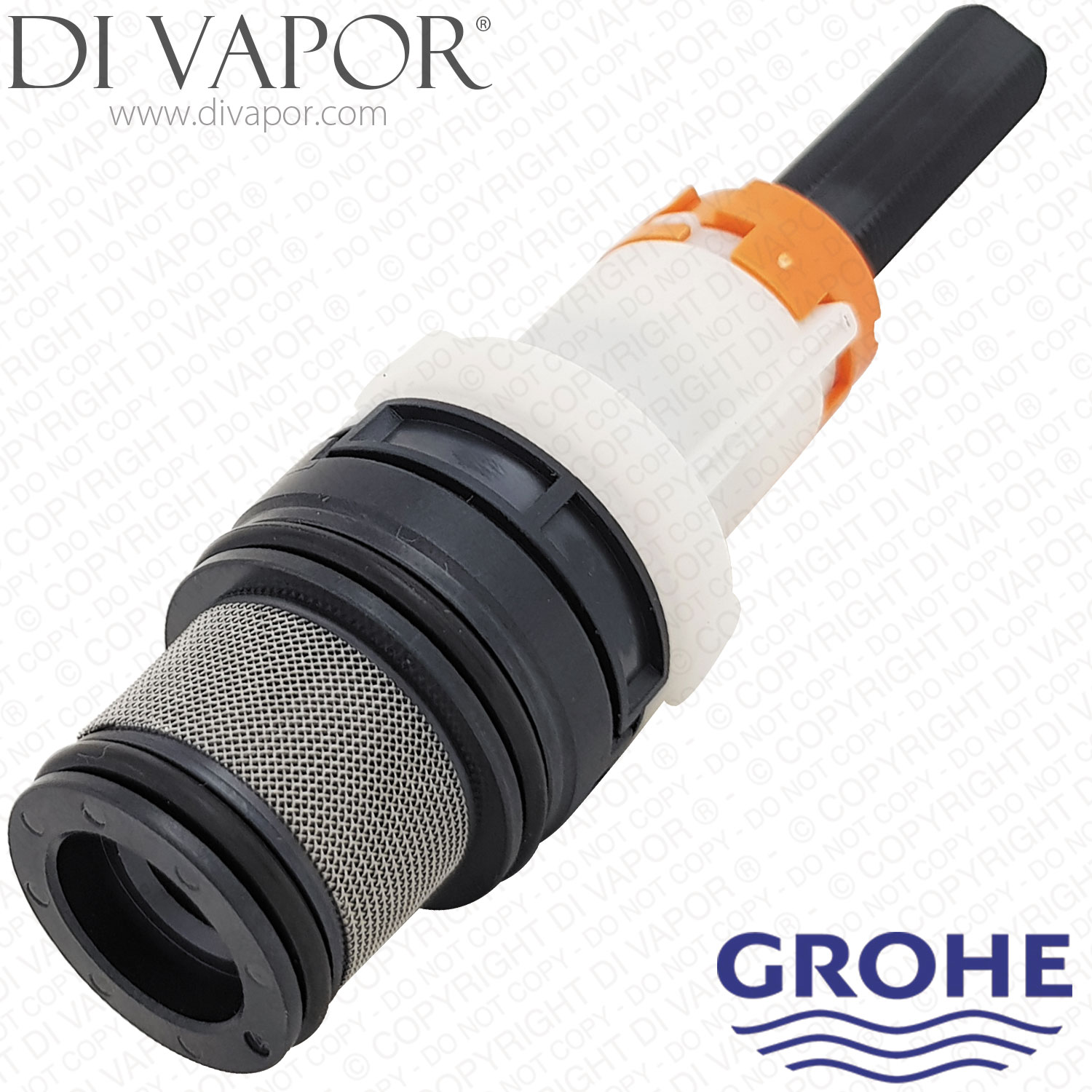

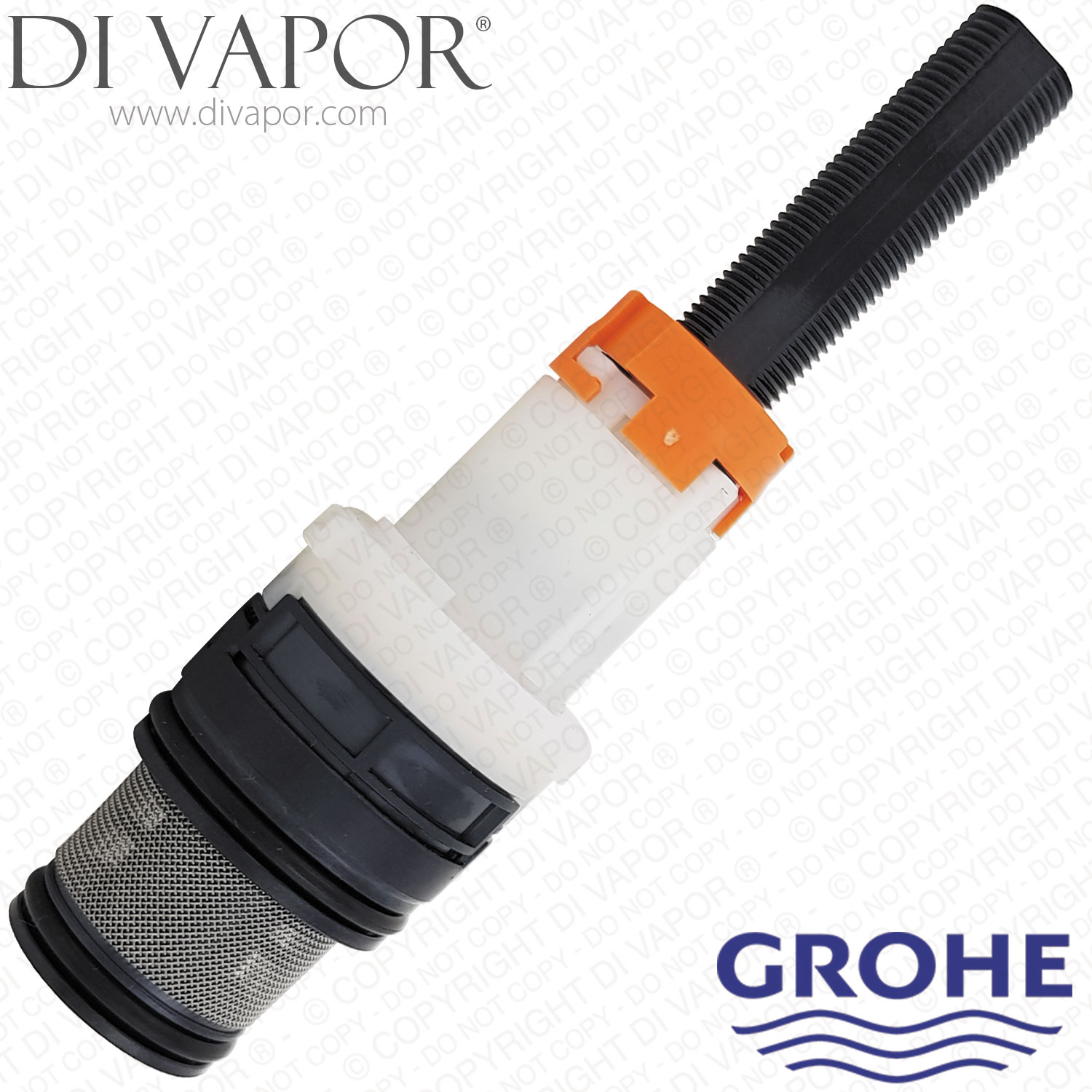

Grohe 48359000 Smart Flow Control Cartridge (48359 000)

SUMMARY

Grohe 48359000 SmartControl Concealed Flow Control Cartridge 48359 000

Grohe 48359000 is a SmartControl concealed flow control cartridge used behind the push-turn outlet controls on GROHE SmartControl and Grohtherm SmartControl concealed shower assemblies. This Grohe spare part provides the internal flow shut-off and water-volume control function when the SmartControl button is pressed and turned.

This cartridge is separate from the thermostatic temperature-control cartridge used in applicable Grohtherm SmartControl installations. It is also separate from GROHE spindle 49088000, which is listed as the associated spindle beneath the 48359000 cartridge in SmartControl spare-parts assemblies.

A worn or damaged flow-control cartridge can contribute to poor shut-off, stiff or inconsistent control, or water continuing to drip from a shower outlet after the control has been switched off. Check the existing cartridge code and the exact shower valve model before ordering because SmartControl assemblies can contain several different cartridge types.

Technical Details

- - Manufacturer part code: 48359000

- - Alternative code format: 48359 000

- - Part type: concealed flow control cartridge

- - Function: outlet on/off shut-off and water-volume control through the SmartControl push-turn mechanism

- - Associated spindle: GROHE 49088000

- - Temperature regulation is handled by a separate thermostatic or temperature-mixing cartridge where fitted

- - Listed in the GROHE 2026 spare-parts programme as a SmartControl concealed cartridge

Before You Order

- - Confirm the valve model and the 48359000 cartridge code before ordering

- - Do not identify this part from appearance or partial dimensions alone because other SmartControl cartridges perform different functions

- - When servicing the cartridge use a small amount of suitable silicone grease on O-rings and seals where required and avoid petroleum-based lubricants

Confirmed Compatible Models

- - Grohe 29118000 Grohtherm SmartControl Thermostat

- - Grohe 29118000 GEN1 Grohtherm SmartControl Thermostat 2016-2018

- - Grohe 29118000 GEN2 Grohtherm SmartControl Thermostat 2018-2020

- - Grohe 29118DC0 GEN1 Grohtherm SmartControl Thermostat 2017-2018

- - Grohe 29119000 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29119000 GEN1 Grohtherm SmartControl Thermostat with 2 Valves 2016-2020

- - Grohe 29119DC0 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29119DC0 GEN1 Grohtherm SmartControl Thermostat 2018-2020

- - Grohe 29119AL0 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29120000 Grohtherm SmartControl Thermostat

- - Grohe 29120DC0 Grohtherm SmartControl Thermostat

- - Grohe 29120AL0 Grohtherm SmartControl Thermostat

- - Grohe 29121000 Grohtherm SmartControl Thermostat

- - Grohe 29121AL0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29121DC0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29123000 Grohtherm SmartControl Thermostat with One Valve

- - Grohe 29123DL0 Grohtherm SmartControl Thermostat with One Valve

- - Grohe 29124000 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29124DC0 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29124DL0 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29124GN0 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29125000 Grohtherm SmartControl Thermostat

- - Grohe 29126000 Grohtherm SmartControl Thermostat

- - Grohe 29126DC0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29126DL0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29126GN0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29126AL0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29136A00 Grohtherm SmartControl Thermostat with One Valve

- - Grohe 29136AL0 Grohtherm SmartControl Thermostat with One Valve

- - Grohe 29137000 Grohtherm SmartControl Thermostat

- - Grohe 29137A00 Grohtherm SmartControl Thermostat

- - Grohe 29137EN0 Grohtherm SmartControl Thermostat Brushed Nickel

- - Grohe 29137GN0 Grohtherm SmartControl Thermostat

- - Grohe 29138A00 Grohtherm SmartControl Thermostat Hard Graphite

- - Grohe 29138AL0 Grohtherm SmartControl Thermostat

- - Grohe 29138EN0 Grohtherm SmartControl Thermostat

- - Grohe 29138GN0 Grohtherm SmartControl Thermostat

- - Grohe 29141000 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29142000 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29229000 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29122000 Grohtherm SmartControl Triple Volume Control Trim

- - Grohe 29127000 Grohtherm SmartControl Triple Volume Control Trim

- - Grohe 29127A00 Grohtherm SmartControl Triple Volume Control Trim

- - Grohe 29127DC0 Grohtherm SmartControl Triple Volume Control Trim

- - Grohe 29127GN0 Grohtherm SmartControl Triple Volume Control Trim

- - Grohe 29152LS0 Grohtherm SmartControl Triple Volume Control Trim

- - Grohe 29158LS0 Grohtherm SmartControl Triple Volume Control Trim Moon White

- - Grohe 29144000 GEN1 SmartControl Concealed Mixer with One Valve 2016-2018

- - Grohe 29144000 SmartControl Concealed Mixer with One Valve

- - Grohe 29145000 SmartControl Concealed Mixer with 2 Valves

- - Grohe 29146000 SmartControl Concealed Mixer with 3 Valves

- - Grohe 29147000 GEN1 SmartControl Concealed Mixer with One Valve 2016-2018

- - Grohe 29147000 SmartControl Concealed Mixer with One Valve

- - Grohe 29148000 SmartControl Concealed Mixer with 2 Valves

- - Grohe 29149000 SmartControl Concealed Mixer with 3 Valves

- - Grohe 29151LS0 Grohtherm SmartControl Thermostat

- - Grohe 29156LS0 Grohtherm SmartControl Thermostat

- - Grohe 29157LS0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29159LS0 Grohtherm SmartControl Thermostat with One Valve

- - Grohe 29161LS0 Grohtherm SmartControl Thermostat

- - Grohe 29164LS0 Grohtherm SmartControl Thermostat with 2 Valves

- - Grohe 29165LS0 Grohtherm SmartControl Thermostat with 3 Valves

- - Grohe 29904LS0 Grohtherm SmartControl Thermostat with 3 Valves

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease for Tap and Shower Cartridges - for cartridge installation and seal lubrication

- - Grohe 48361000 Push Buttons - for applicable SmartControl push-turn control assemblies

- - Grohe 49028000 Thermostatic Cartridge for SmartControl with 3 Valves - for applicable Grohtherm SmartControl thermostatic assemblies

- - Grohe 49029000 Temperature Handle Safety Button Chrome - for applicable Grohtherm SmartControl temperature-control assemblies

- - Grohe 46989000 Thermostatic Temperature Mixing Cartridge - for applicable SmartControl concealed mixer assemblies
