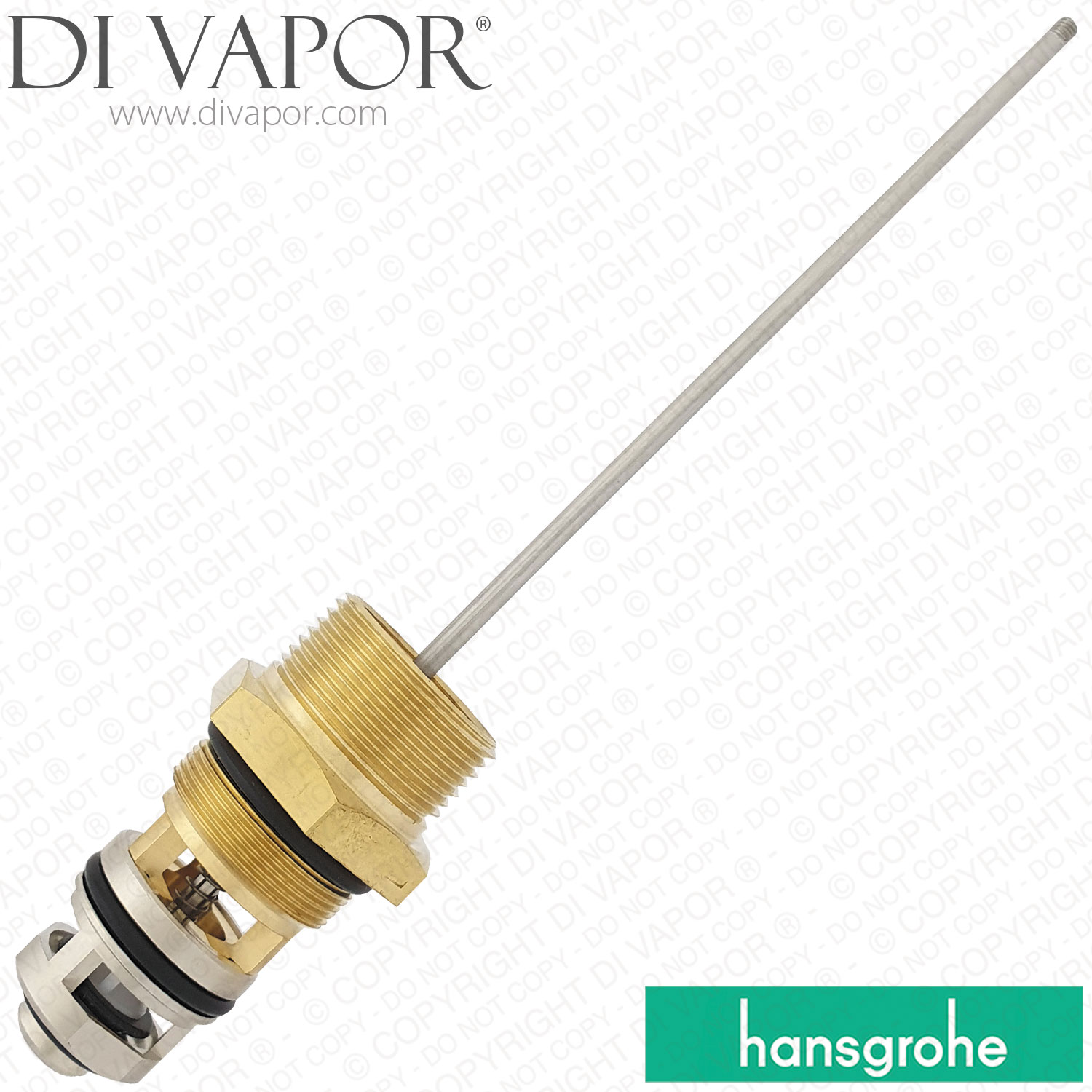

Hansgrohe 13970000 Selector Diverter for Bath Mixer

SUMMARY

Hansgrohe 13970000 Selector Diverter for Bath Mixer

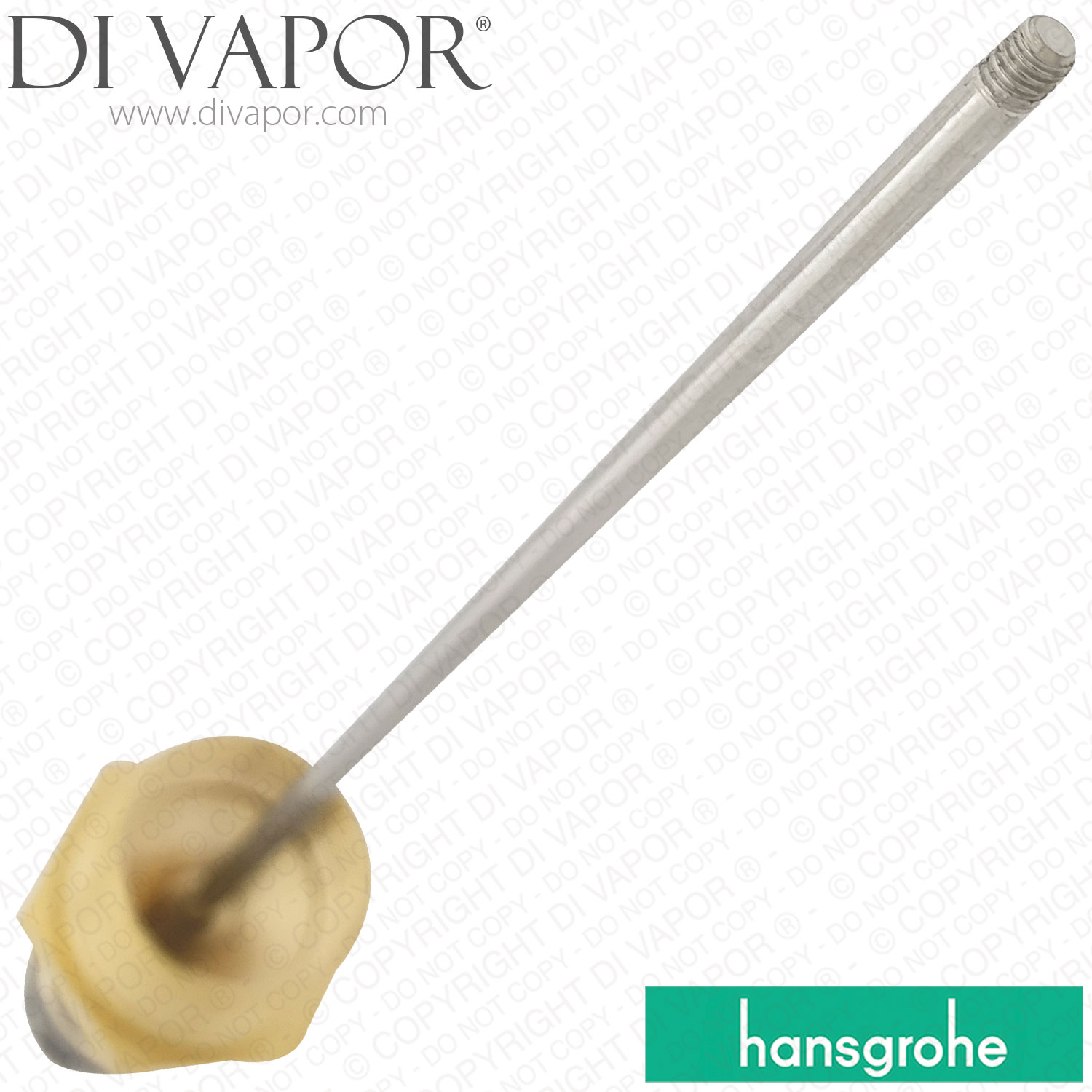

Rod Length: 109mm

Length of Bottom (from Bottom of shoulder downwards): 40mm

Diameter of Top Thread: 25.75mm

Diameter of Fitting Thread: 24.78mm

The Hansgrohe 13970000 is an internal selector diverter for selected older concealed Hansgrohe and AXOR bath/shower mixers. It operates inside the mixer to route mixed water between the bath spout and shower outlet.

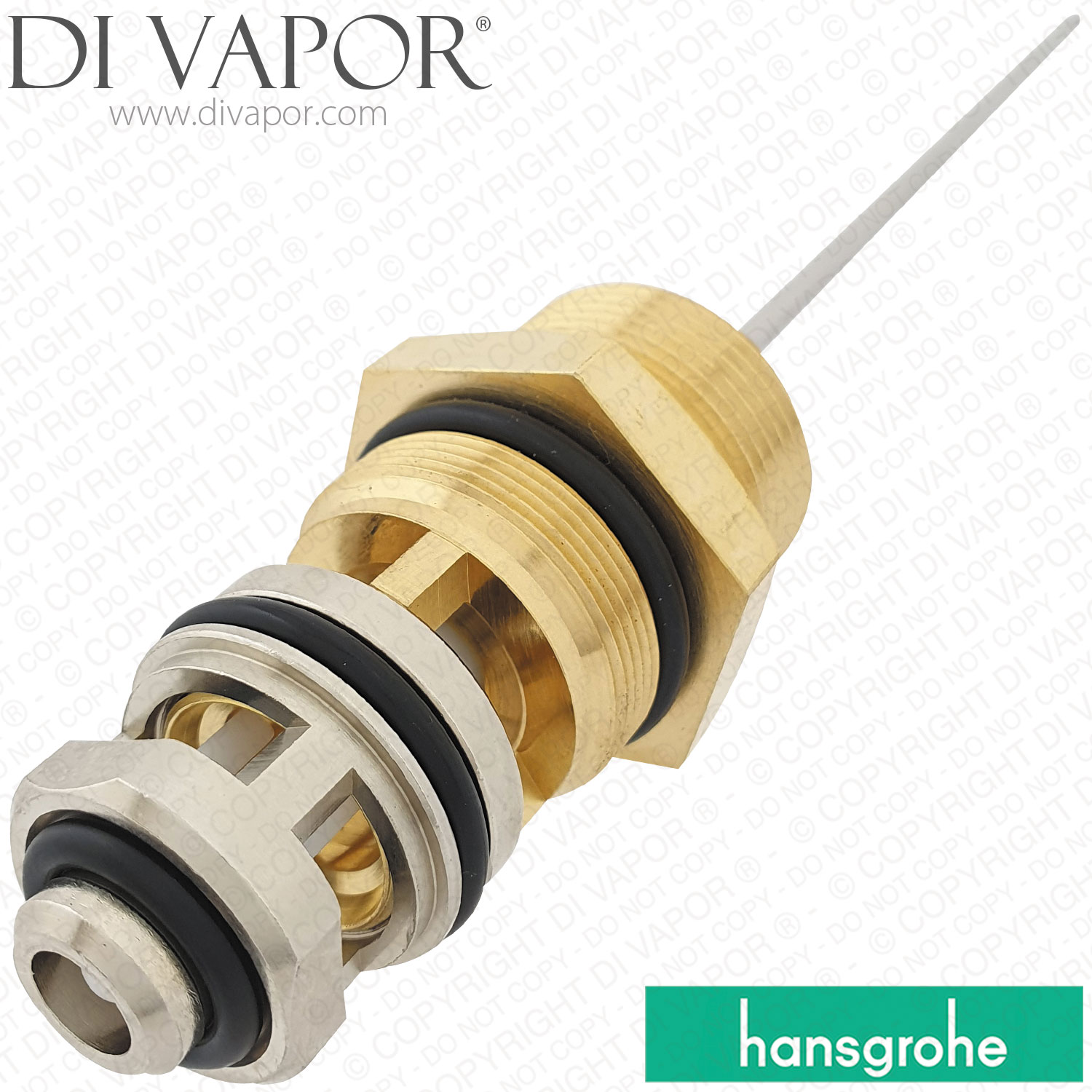

This part contains the threaded selector body, sealing rings and operating rod. It does not include the external sleeve or operating handle. A worn or seized selector can cause stiff operation, unreliable outlet selection, reduced flow, water passing through both outlets or dripping from the shower head or bath spout when the mixer is turned off.

Technical Details

- - Brand: Hansgrohe

- - Part code: 13970000

- - Product type: internal bath mixer selector diverter

- - Application: concealed bath/shower mixers

- - Configuration: selector without pipe interrupter or vacuum breaker

- - EAN: 4011097105994

- - Supplied without: external sleeve and operating handle

Confirmed Compatible Models

- - Hansgrohe Metris concealed bath/shower mixer finish set 31405000, production 07/1995 to 12/2001

- - Hansgrohe Picta concealed bath/shower mixer finish set 31415000, production 04/1996 to 12/2000

- - Hansgrohe Mondial concealed bath/shower mixer finish set 15405000, production 01/1989 to 12/2001

- - Hansgrohe Mondial II two-handle concealed bath/shower mixer finish set 15436000, production 01/1989 to 12/1995

- - Hansgrohe Metropol concealed bath/shower mixer finish set 14405000, production 04/1993 to 12/2001

- - Hansgrohe Metropol concealed bath/shower mixer finish set 14405090, production 04/1995 to 12/2001

- - AXOR Starck concealed bath/shower mixer 10405000

- - AXOR Arco concealed bath/shower mixer 11405000

- - AXOR Uno Color concealed bath/shower mixer 13456000

- - AXOR Carlton concealed bath/shower mixer 17405000

- - AXOR Mondaro concealed bath/shower mixer 18405000

- - AXOR Azzur concealed bath/shower mixer 34405000

- - AXOR Allegroh concealed bath/shower mixer 36405000

- - AXOR Allegroh concealed bath/shower mixer 16405000

- - AXOR 1901 concealed bath/shower mixer 19405000

- - AXOR Terrano bath mixer 37413000

- - AXOR Starck bath mixer 10425000

Check Before Ordering

- - Confirm the complete mixer model code and compare the existing selector body, rod and thread measurements before ordering. Do not identify the part from one diameter or its general appearance alone.

- - Mixers fitted with a pipe interrupter or vacuum-breaker arrangement use a different selector configuration, including Hansgrohe 13473000.

- - AXOR Steel mixers use the separate 13970800 selector and must not be matched to 13970000 solely because the components appear similar.

Related Spares You May Need

- - Hansgrohe 13971000 Diverter with Sleeve and Handle - complete chrome assembly for repairs requiring the selector, sleeve and operating handle

- - Hansgrohe 13471000 Diverter Knob CPL. - separate chrome operating knob for the associated concealed mixer arrangement

- - Hansgrohe 14096000 Cartridge - push-fit lever cartridge used in selected associated 38-degree bath and shower mixers

- - Hansgrohe 13952000 Service Kit - service and sealing components for selected older mixer assemblies

- - Hansgrohe 13964000 Mixer Ball - mixer ball used in selected associated ball-mixing valve arrangements

- - Hansgrohe 13475000 Washer Gasket - sealing component used within selected associated concealed mixer assemblies

Isolate the hot and cold water supplies before dismantling the mixer. Inspect the valve body, seals and mating surfaces for scale or damage, and use a qualified plumbing professional where identification or concealed access is uncertain.
