Hansgrohe 13971000 Diverter with Sleeve and Handle

Summary

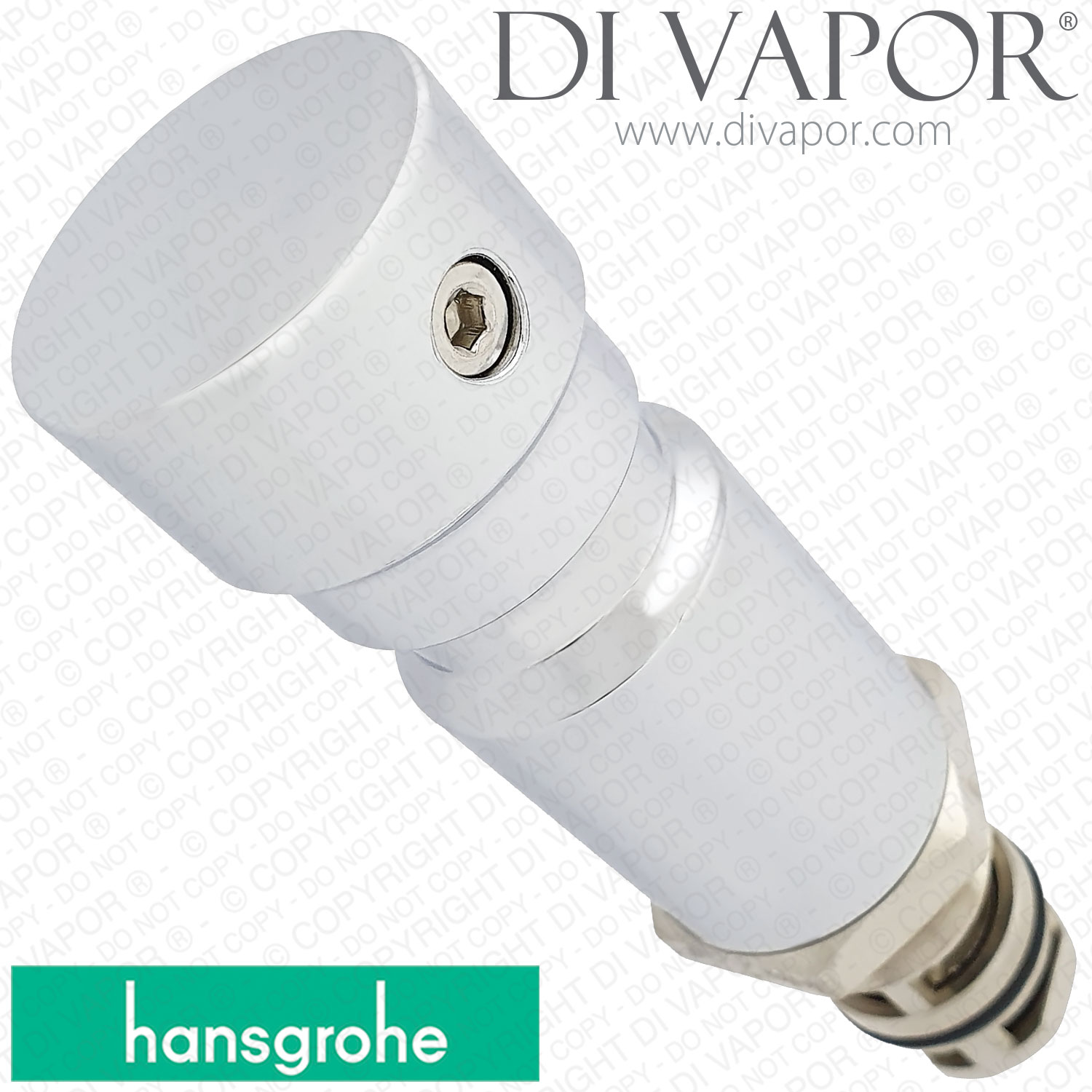

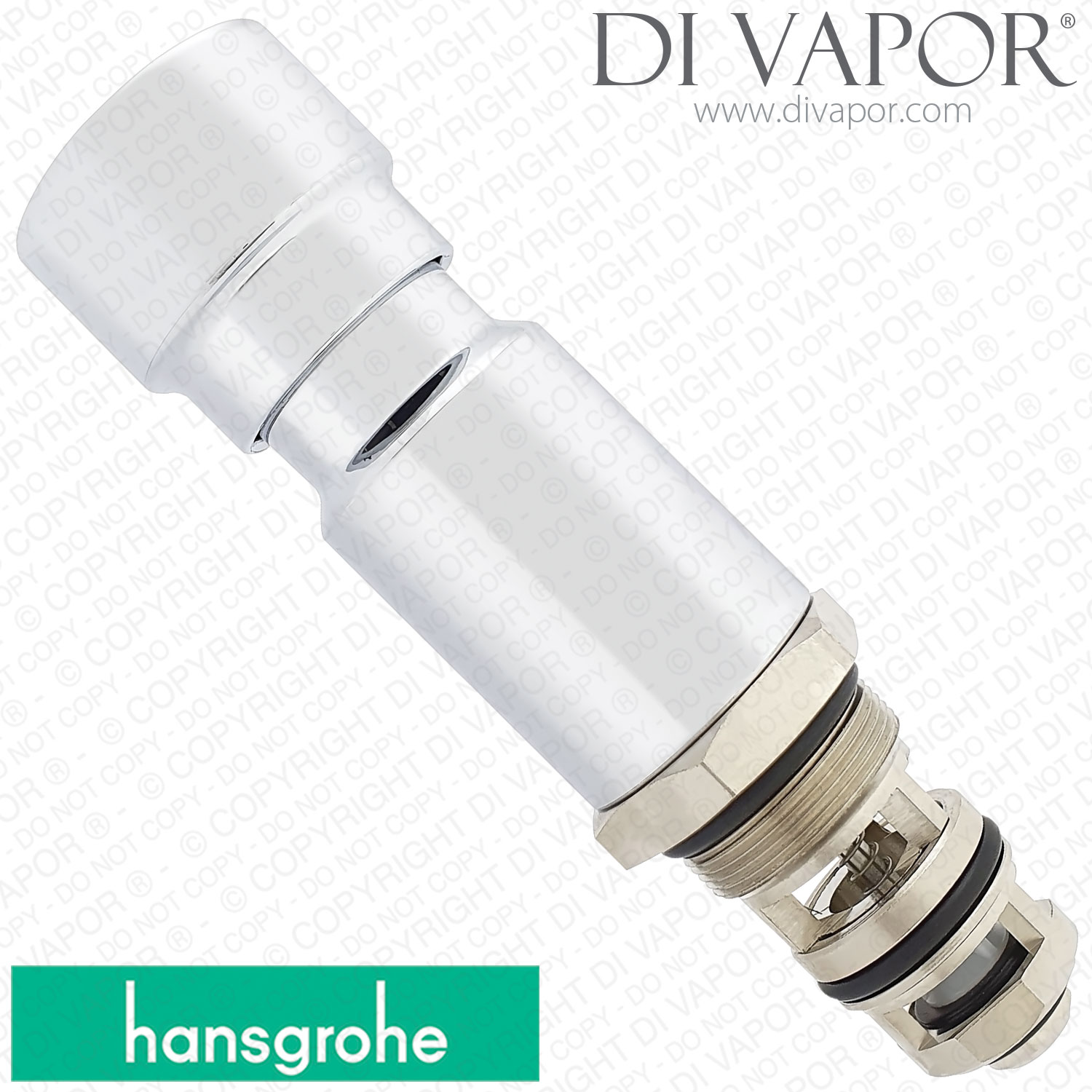

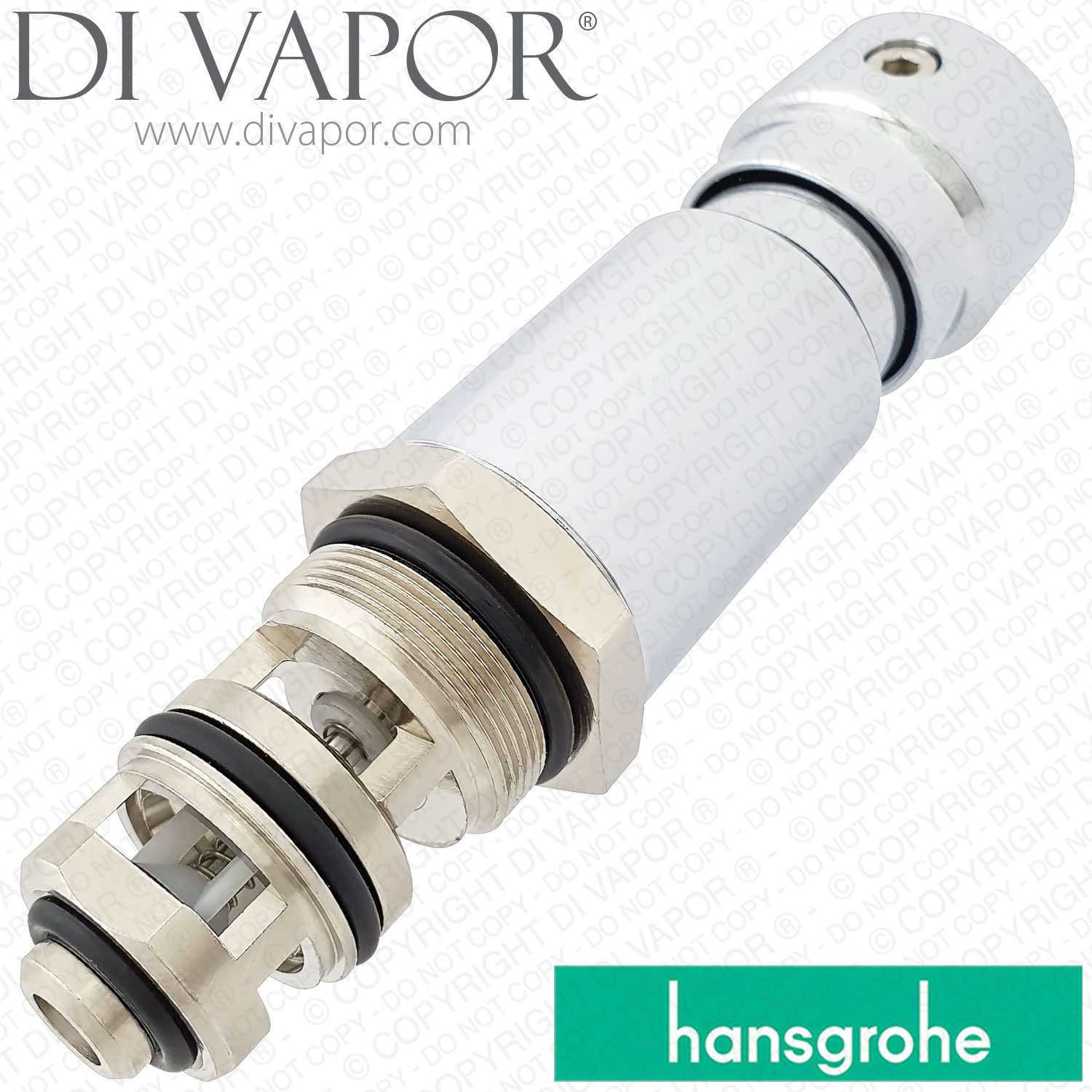

Hansgrohe 13971000 Bath Shower Mixer Diverter with Sleeve and Handle

The Hansgrohe 13971000 is a complete chrome bath and shower mixer diverter assembly supplied with the sleeve and operating handle. It is used in selected older concealed Hansgrohe and AXOR bath/shower mixers to direct mixed water between the bath outlet and shower outlet.

A worn or damaged diverter can cause stiff or unreliable handle movement, difficulty selecting the required outlet, reduced flow or water passing through the bath spout and shower outlet simultaneously. Replacing the complete assembly restores the mechanical outlet-selection function when the mixer body and the remaining components are serviceable.

Technical Details

Confirmed Compatible Models

• Hansgrohe Metris concealed bath/shower mixer finish set 31405000, production 07/1995 to 12/2001
• Hansgrohe Picta concealed bath/shower mixer finish set 31415000, production 04/1996 to 12/2000
• Hansgrohe Mondial concealed bath/shower mixer finish set 15405000, production 01/1989 to 12/2001
• Hansgrohe Mondial II two-handle concealed bath/shower mixer finish set 15436000, production 01/1989 to 12/1995
• Hansgrohe Metropol concealed bath/shower mixer finish set 14405000, production 04/1993 to 12/2001
• Hansgrohe Metropol concealed bath/shower mixer finish set 14405090, production 04/1995 to 12/2001
• Hansgrohe conversion kit from ball-mixing system to ceramic cartridge system 96385000
• Hansgrohe concealed bath mixer conversion kit 97332000
• AXOR Starck concealed bath/shower mixer 10405000
• AXOR Arco concealed bath/shower mixer 11405000
• AXOR Uno Color concealed bath/shower mixer 13456000
• AXOR Carlton concealed bath/shower mixer 17405000
• AXOR Mondaro concealed bath/shower mixer 18405000
• AXOR Azzur concealed bath/shower mixer 34405000
• AXOR Allegroh concealed bath/shower mixer 36405000
• AXOR Allegroh concealed bath/shower mixer 16405000
• AXOR 1901 concealed bath/shower mixer 19405000

Check Before Ordering

• Confirm the complete mixer model code and compare the existing sleeve and handle arrangement before ordering. Do not identify the part from diameter or approximate dimensions alone.
• Hansgrohe 13971000 is the chrome version. AXOR Steel mixer 35405800 uses the Satinox-finish 13971800 diverter and should not be fitted with 13971000 solely because the assemblies appear similar.
• Mixers fitted with the square-sleeve vacuum-breaker arrangement use a different diverter configuration and should not be matched to 13971000 by appearance alone.

Related Spares You May Need

• Hansgrohe 13970000 Selector Diverter for Bath Mixer - internal selector component for repairs where the existing sleeve and operating parts remain serviceable
• Hansgrohe 13471000 Diverter Knob CPL. - separate chrome operating knob used with the associated concealed mixer arrangement
• Hansgrohe 14096000 Cartridge - push-fit lever cartridge used in selected associated 38-degree concealed bath and shower mixers
• Hansgrohe 13952000 Service Kit - service and sealing components for the associated older mixer assembly
• Hansgrohe 13964000 Mixer Ball - mixer ball used in selected associated ball-mixing valve arrangements
• Hansgrohe 13475000 Washer Gasket - sealing component used within selected associated concealed mixer assemblies

Isolate the hot and cold water supplies before dismantling the mixer. Inspect the valve body, seals and mating surfaces for scale or damage, and use a qualified plumbing professional where access or identification is uncertain.
