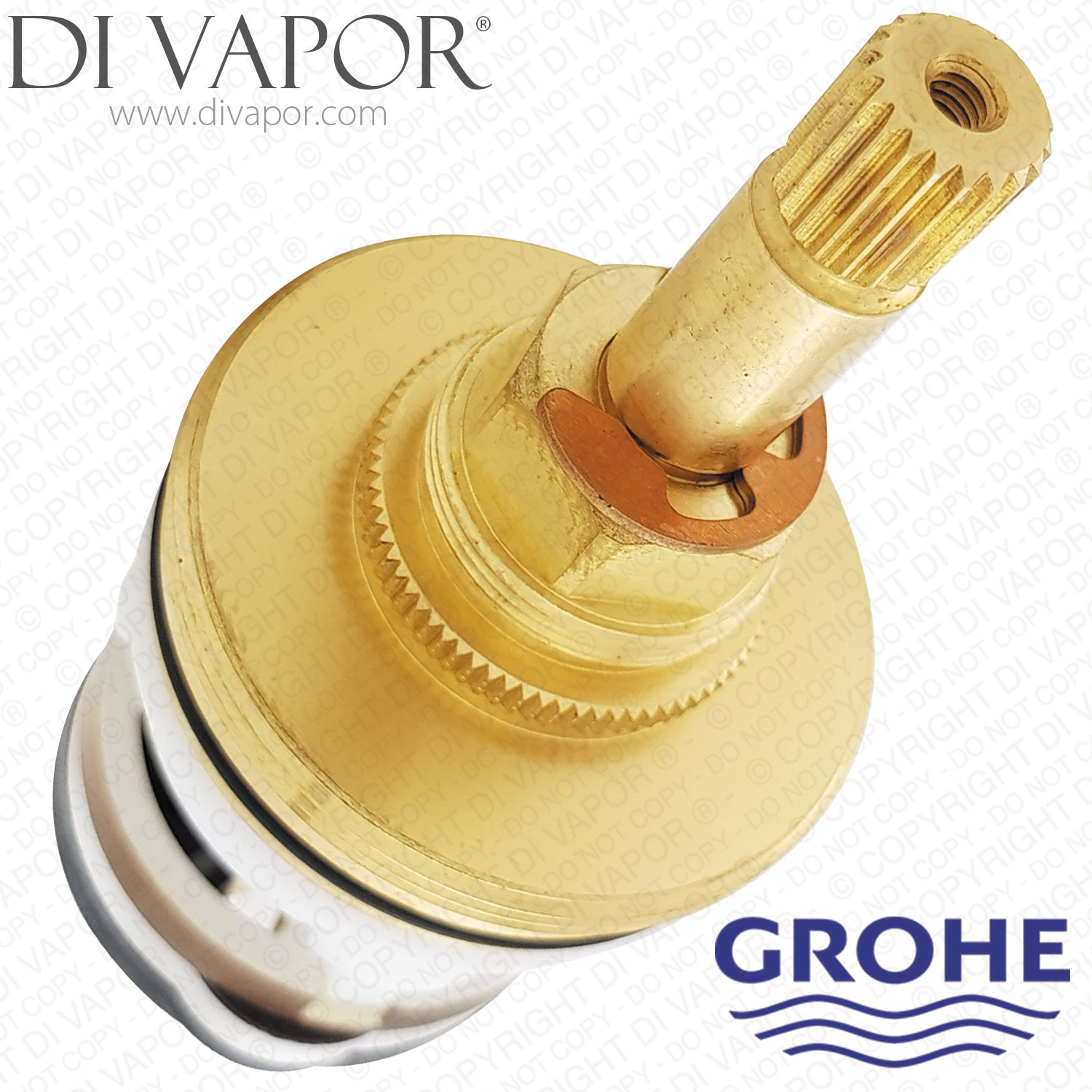

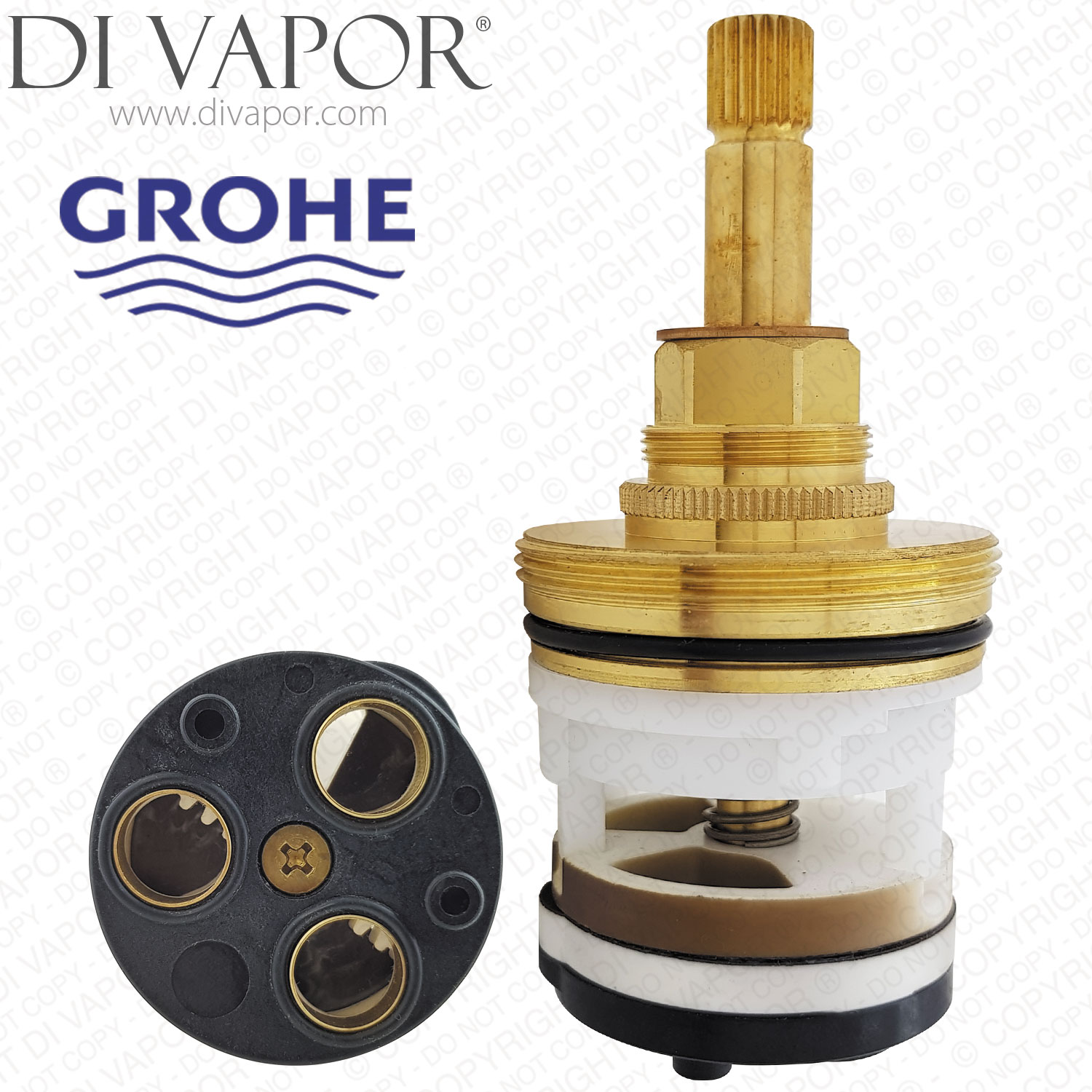

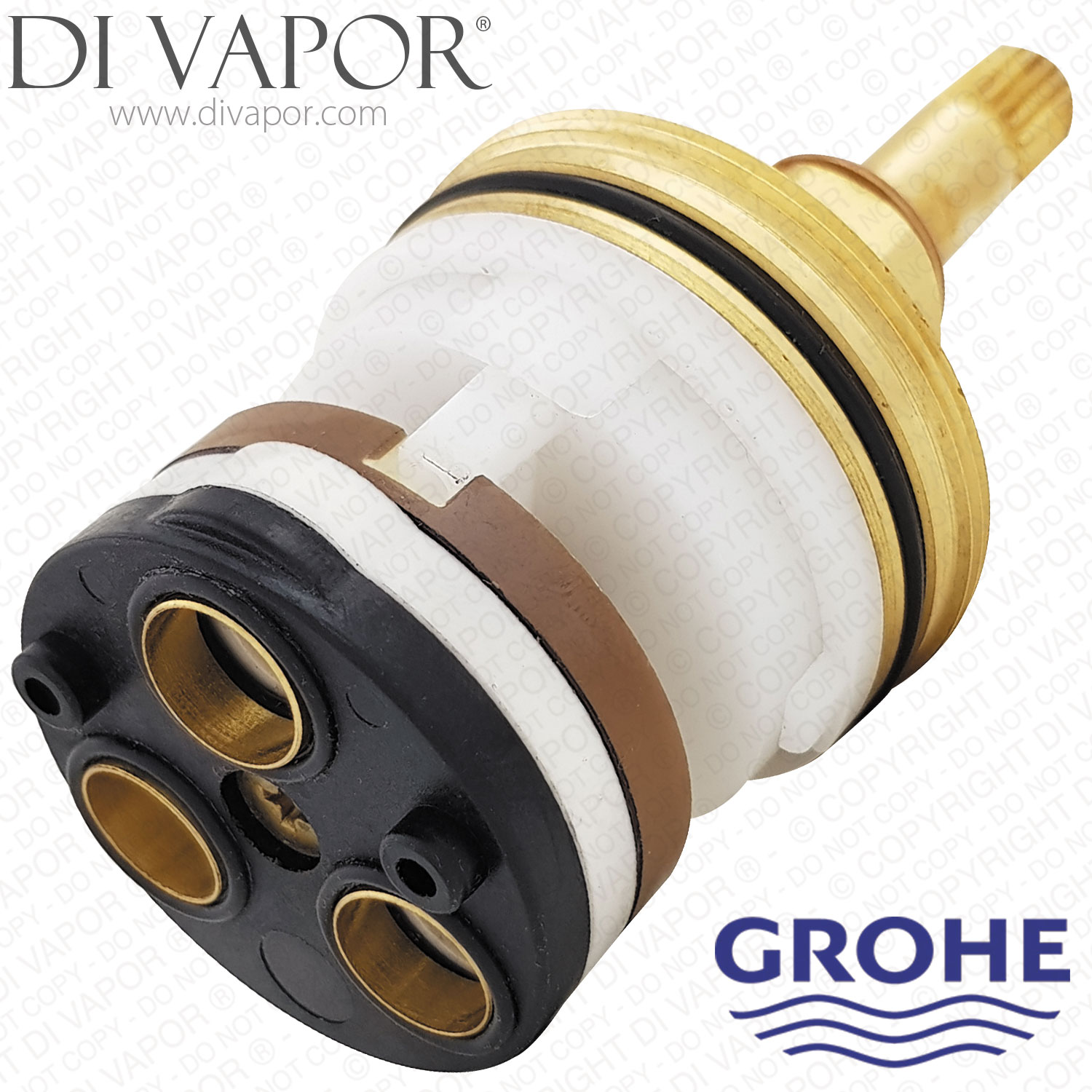

Grohe 47262000 Aquadimmer Flow Cartridge (On/​Off)

SUMMARY

Grohe 47262000 Aquadimmer Flow Cartridge (On/Off) used in Grohe Atrio Jota - 19136 000, Grohe Atrio Ypsilon - 19135 000, Grohe mixer valve - 34103 000, Grohe mixer valve - 34964 000, Grohe Tenso - 19060 000

The GROHE 47262000 Aquadimmer is a screw-in flow-control cartridge used in selected concealed thermostatic shower and bath/shower valve assemblies. Depending on the valve configuration, it provides water shut-off and flow control and can also form part of the bath/shower diversion function.

A worn flow-control cartridge can cause poor shut-off, stiff or inconsistent operation, or water continuing to drip from the shower head or bath spout after the control has been turned off. These symptoms can have other causes, so the valve model and cartridge code should be checked before ordering.

Technical Details

- - Manufacturer code: 47262000

- - Alternative code formatting: 47 262 000

- - Short article notation: 47262

- - Part type: screw-in Aquadimmer flow-control cartridge assembly

- - Valve application: concealed thermostatic shower 3/4 Inch

- - Bath application: 3-hole and 4-hole bath combinations 3/4 Inch

- - Documented function in supported systems: shut-off and flow control with bath/shower diversion where the valve configuration uses the Aquadimmer for diversion

Supersession and Code Check

No superseding or replacement code has been verified for 47262000. The references 47 262 000 and 47262 are alternative formatting or shortened article references for the same part rather than separate replacement codes.

Before Ordering

Confirm 47262000 against the existing cartridge and the exact shower or bath valve model before ordering. The 3/4 Inch designation refers to the documented valve and application class and should not be treated as confirmation of the cartridge thread size.

Installation Note

Isolate the water supplies before dismantling the valve. Check and clean the cartridge cavity before fitting the replacement and apply only a light coating of suitable silicone grease to seals or O-rings where appropriate.

Confirmed Compatible Models

- - GROHE 19135000 / 19135 000 Atrio Ypsilon

- - GROHE 19136000 / 19136 000 Atrio Jota Thermostat Bath Shower Mixer

- - GROHE 19613000 Chiara Bath Shower Mixer with 34306000 concealed body

- - GROHE 34103000 / 34103 000 Mixer Valve

- - GROHE 34964000 / 34964 000 Mixer Valve

- - GROHE Tenso 19060000 GEN1 / 19060 000 2001-2007

- - GROHE 34086000 4-Hole Bath/Shower Combination

- - GROHE 34306000 / 34306

- - GROHE 34307000 / 34307

Related Spares You May Need

- - GROHE 18007031 SYNTHESO LM 220 Silicone Grease 2g

- - GROHE 06654000 Atrio Flow Control Handle

- - TACSIL 3g WRAS Approved Silicone Grease

- - GROHE 06676000 Atrio Temperature Control Handle

- - GROHE 08943000 Atrio Snap Insert Spline Adapter

- - GROHE 47220000 3/4 Inch Thermostatic Cartridge

- - GROHE 47289000 Atrio Temperature Control Handle

- - GROHE 47300000 Stop Ring Adapter

- - GROHE 47477000 Non-Return Valve

- - GROHE 47324000 Flow Control Lever Handle

- - GROHE 47658000 3/4 Inch Reverse-Supply Thermostatic Cartridge

- - GROHE 47167000 Stop Ring Auto 2000 Adapter

- - GROHE 47310000 3/4 Inch Thermoelement

- - GROHE 08565000 Non-Return Valve

- - GROHE 47326000 Atrio Cover Plate with Shrouds

Related spares can vary with the exact valve configuration, so confirm the model before ordering additional components.
