GROHE 47300000 Stop Ring F Atrio 1944/​5/​6 Adapter for 47217000 Thermostatic Cartridge

SUMMARY

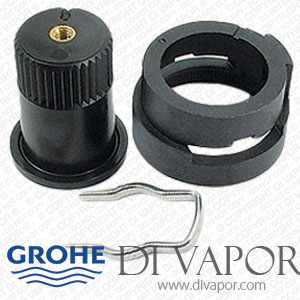

GROHE 47300000 Stop Ring and Regulating Nut for 47217000 and 47220000 Thermostatic Cartridges

This part connects onto the top of the 47217000 cartridge (i.e. the part which connects the cartridge to the temperature control handle).

This adapter is used in the following shower mixer valves:

- - Grohe Aquatower 3000 27203 Top 4 Shower System 3/4"

- - Grohe Concealed Body For Thm 34100 Thermostat Shower Mixer 1/2"

- - Grohe Aquatower 2000 27017 Aquatower 2000 1/2"

- - Grohe Eurodisc Se 36245 Self - Closing Shower Thermostat 1/2"

- - Grohe Chiara 34070 Thermostatic Bath/shower Mixer 1/2"

- - Grohe Gd2 38661 Wc Concealed Cistern 6 / 4 Litre

- - Grohe Aquatower 3000 27026 Dual Shower System 3/4"

- - Grohe Rainshower 27032 Shower System For Wall Mounting

- - Grohe Tenso 34027 Thermostatic Shower Mixer 1/2"

- - Grohe Aquatower 2000 27017 Aquatower 2000 1/2"

- - Grohe Aquatower 3000 27201 Aquatower 3000 1/2"

- - Grohe Tenso 34026 Thermostatic Bath/shower Mixer 1/2"

- - Grohe Eurodisc Se 36247 Self - Closing Shower Thermostat 1/2"

- - Grohe Eurodisc Se 36244 Self - Closing Shower Thermostat 1/2"

- - Grohe Aquatower 3000 27027 Dual Shower System 3/4"

- - Grohe Aquatower 3000 27200 Aquatower 3000 1/2"

- - Grohe Aquatower 3000 27202 Top 4 Shower System 3/4"

- - Grohe Amera 27013 Shower System

The GROHE 47300000 is a stop ring and regulating nut assembly used within selected GROHE thermostatic shower valves, bath/shower mixers, concealed thermostat bodies and shower systems. It forms part of the temperature-control assembly and provides the mechanical interface between the thermostatic element and the temperature-control mechanism.

The 47300000 assembly is manufacturer-documented with both the 47217000 1/2 inch thermostatic cartridge and the larger 47220000 3/4 inch thermostatic cartridge, depending on the exact GROHE valve or system. It should therefore be identified using the original model code and spare-parts diagram rather than appearance alone.

Technical Details

- - Part code: 47300000

- - Part type: stop ring and regulating nut

- - Function: forms part of the thermostatic temperature-control mechanism

- - Associated 1/2 inch thermostatic cartridge: 47217000

- - Associated 3/4 inch thermostatic cartridge: 47220000

- - Manufacturer-listed fixing clamp: 0574400M

- - The 1/2 inch and 3/4 inch sizes refer to the associated thermostatic cartridges, not a verified thread size for 47300000

Before You Order

Check the exact GROHE model or valve code before ordering. GROHE uses 47300000 with different thermostatic element assemblies, including 47217000 and 47220000, so the cartridge code and original spare-parts diagram should be checked where possible. Do not identify this part from dimensions, appearance or cartridge size alone.

Confirmed Models and Systems

- - GROHE 27013000 Amera Shower System

- - GROHE 27015000 Aquatower 1000

- - GROHE 27017000 Aquatower 2000

- - GROHE 27026000 Aquatower 3000 Dual Shower System

- - GROHE 27032000 Rainshower System 210

- - GROHE 27032000 Rainshower System 210 GEN1 2004-2005

- - GROHE 34010000 Atrio Thermostat Shower Mixer

- - GROHE 34011000 Atrio Thermostatic Shower Mixer

- - GROHE 34026000 Tenso Thermostat Bath/Shower Mixer

- - GROHE 34027000 Tenso Thermostat Shower Mixer

- - GROHE 34061000 Atrio Thermostat Bath/Shower Mixer

- - GROHE 34070000 Chiara Thermostatic Bath/Shower Mixer

- - GROHE 34071000 Chiara Thermostat Shower Mixer

- - GROHE 34100000 Concealed Body for THM Thermostat Shower Mixer

- - GROHE 34103000 Mixer Valve Shower

- - GROHE 36239000 Europlus E Infrared Electronic Wash Basin Thermostat

- - GROHE 36240001 Europlus E Infrared Electronic Wash Basin Thermostat

- - GROHE 36244000 Eurodisc SE Self-Closing Shower Thermostat

- - GROHE 36245000 Eurodisc SE Self-Closing Shower Thermostat

- - GROHE 36247000 Eurodisc SE Self-Closing Shower Thermostat

- - GROHE 36247000 Eurodisc SE GEN1 2001-2008

- - GROHE 19135000 Atrio Ypsilon Shower

- - GROHE 19136000 Atrio Jota Thermostat Bath/Shower Mixer

- - GROHE ATRIO 19144 / 19144000 thermostatic trim set, used with the GROHE 34100000 concealed thermostatic shower valve body, which uses the 47300000 stop ring and regulating nut

Related Spares You May Need

- - TACSIL 3g WRAS Approved Silicone Grease, for lubricating suitable cartridge O-rings and seals during valve servicing

- - GROHE 47217000 1/2 Inch Thermostatic Cartridge, manufacturer-documented with the 47300000 stop ring and regulating nut

- - GROHE 47220000 3/4 Inch Thermostatic Cartridge, manufacturer-documented with the 47300000 stop ring and regulating nut
