Grohe 47379000 Thermoelement 3/4 Inch Thermostatic Cartridge (Reverse Supplies) for Chiara 34305 and THM 34959 Valves
Send a photo of your item and we'll help confirm it.
Summary

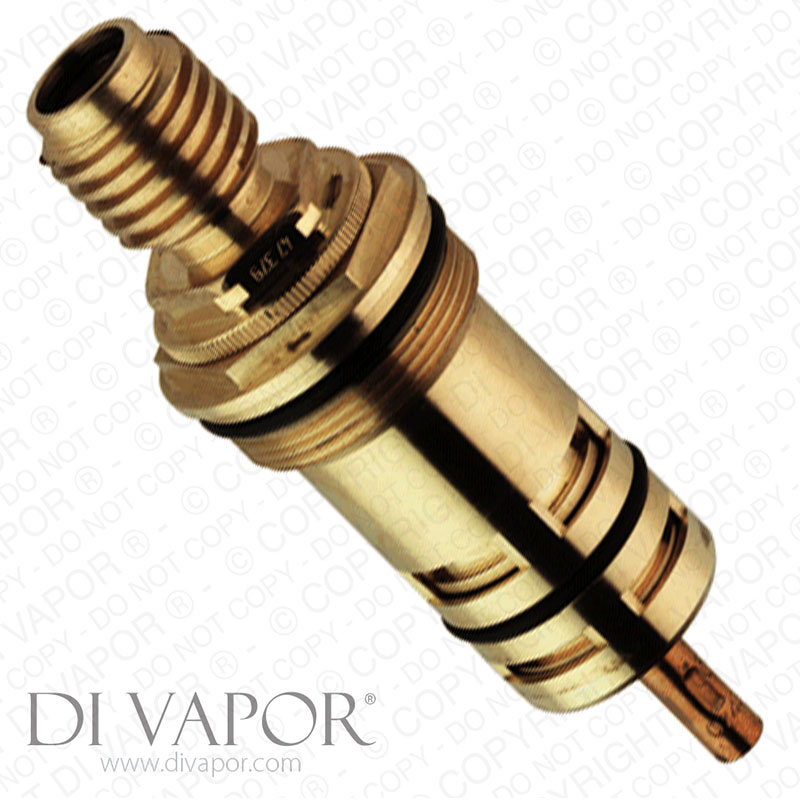

GROHE 47379000 3/4 Inch Reverse Supply Thermoelement Thermostatic Cartridge for Chiara 34305 and THM 34959
***IMPORTANT*** This is the REVERSE supplies version of the cartridge which is not commonly used. Please make sure you actually need the reverse feeds version before purchasing.
Grohe 47379000 thermostatic cartridge replacement for 3/4" inch reverse supplied valves. The 47379000 is used on the following valves:
- Grohe 3/4" Concealed body for THM 34959 Thermostat mixer concealed body
- Grohe 3/4" Chiara 34305 Thermostat mixer
The cartridge may also be called:
- Grohe 47379
- Grohe 47 379
- Grohe 47 379000
GROHE 47379000 is a 3/4 inch thermostatic cartridge thermoelement for selected GROHE thermostatic shower and bath/shower valves configured with reverse supplies. It regulates mixed-water temperature using a wax thermostatic element and is intended for installations where the hot supply is on the right and the cold supply is on the left.

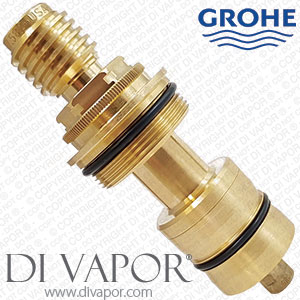

This is the reverse-supply cartridge and should not be selected simply because another GROHE cartridge is also 3/4 inch. Check the existing cartridge code and supply orientation before ordering. GROHE 47310000 is the standard-supply 3/4 inch thermoelement and is not a verified supersession for 47379000.
Technical Details
| Part code | 47379000 |
|---|---|
| Part type | thermostatic cartridge / thermoelement |
| Nominal size | 3/4 inch |
| Supply configuration | reverse supplies |
| Hot supply orientation | right |
| Cold supply orientation | left |
| Fitting type | screw-in thermoelement |
| Thermostatic control | wax element |
| Servicing | GROHE service instructions for the documented valves specify a 24mm open-ended spanner for thermoelement removal and installation |
| Also referenced as | 47379 / 47 379 / 47 379000 |
Confirmed Models and Valves
- GROHE 34305 / 34305000 Chiara Thermostat Mixer 3/4 Inch
- GROHE 34959 Concealed Body for THM Thermostat Mixer 3/4 Inch
- GROHE 19657000 / 19657 000 Grohtherm Auto 2000 Shower Valve
- GROHE 34963000 / 34963 000 Mixer Valve Shower
- GROHE 19060000 Tenso Thermostatic Bath / Shower Mixer Trim 2001-2007 GEN1
- GROHE 34964000 / 34964 000 Mixer Valve
- GROHE 19613000 Chiara Bath Shower Mixer Chrome
Before You Order
Check the code on the existing thermoelement and confirm that the valve has reversed hot and cold supplies before ordering. The 47379000 is specifically for the reverse-supply arrangement, with hot on the right and cold on the left. A standard-supply 3/4 inch cartridge should not be selected from size alone.
No verified global superseding code has been identified for 47379000. Availability and lifecycle information vary by market, so 47310000 should not be treated as a replacement for this reverse-supply thermoelement.
Related Spares You May Need
These verified Grohe spare parts are used with one or more of the confirmed valve assemblies above.
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- GROHE 07025000 3/4 Inch Shower Cartridge Valve On/Off
- GROHE 28151000 Relaxaflex Shower Hose 1500mm
- GROHE 45885000 Ceramic Disc Flow Cartridge 45885 000
- GROHE 47167000 Stop Ring Auto 2000 Adapter
- GROHE 47187000 Flow Control Knob for Auto 2000 Shower Valves
- GROHE 47255000 Temperature Control Handle
- GROHE 47336000 Cover Plate Fixing Set
- GROHE 47477000 Non-Return Valve
- GROHE 47262000 Aquadimmer Flow Cartridge On/Off
