Grohe 07146000 Headworks Flow Cartridge (On/Off) - 1/2"
SUMMARY

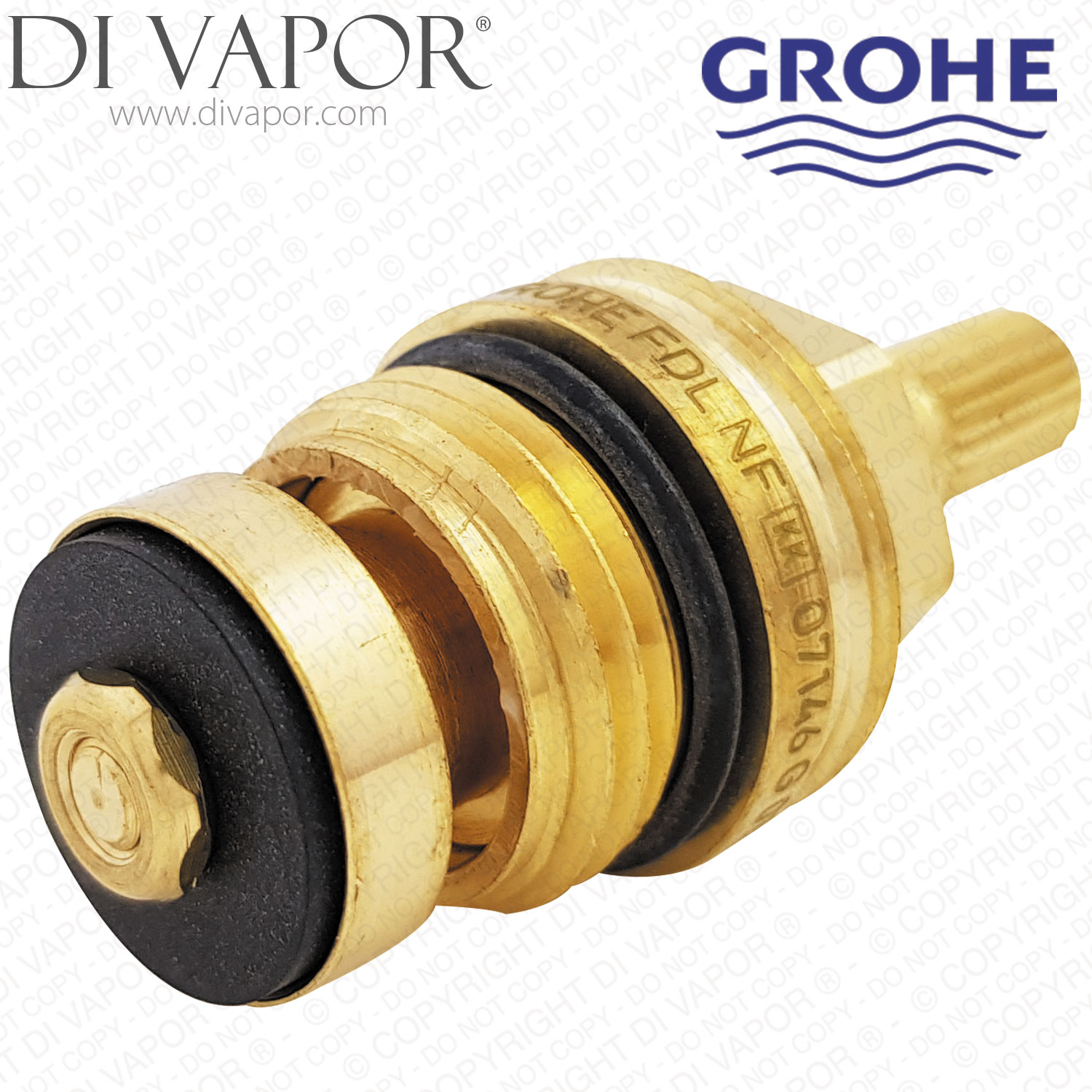

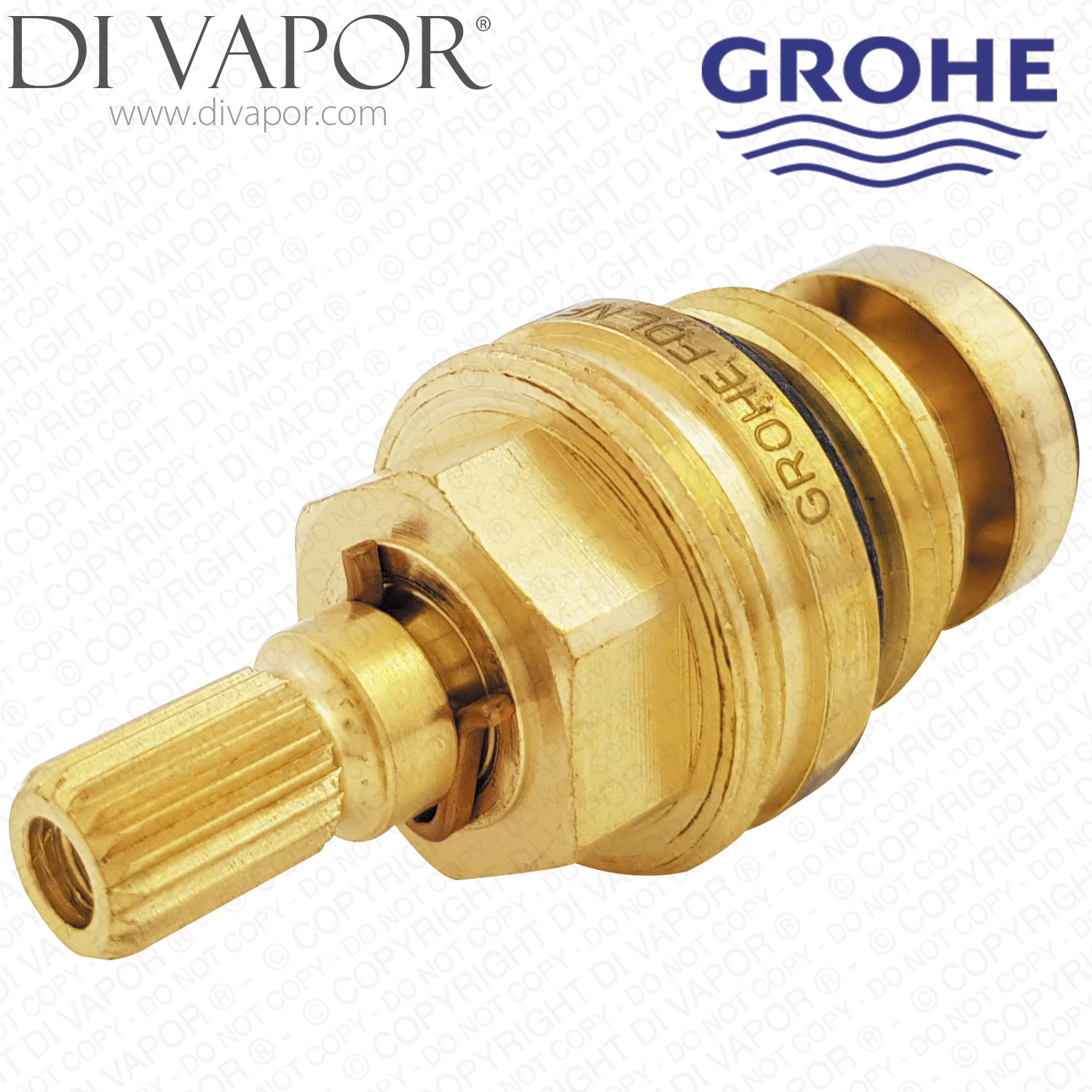

Grohe 07146000 1/2 Inch Headpart Flow Cartridge On/Off
The Grohe 07146000 is a 1/2 inch short-spindle screw-down headpart used to control on/off water flow in specified Grohe taps, shower mixers, thermostatic mixers and concealed valves. It is also described as a headworks flow cartridge and is used where the control requires a conventional screw-down opening and closing action.
The headpart regulates water flow through the fitting and provides shut-off when the control is closed. Wear to the headpart, sealing washer or O-rings can result in incomplete shut-off, stiff operation or water continuing to drip from the tap outlet, shower head or spout after the control has been turned off.
Technical Details
- - Part code: 07146000
- - Part type: Screw-down on/off flow headpart
- - Nominal size: 1/2 inch
- - Spindle type: Short spindle
- - Fitting type: Screw-in headpart
- - Associated service O-ring 0128300M: 6mm x 2mm
- - Associated service O-ring 0392400M: 18.2mm x 1.7mm
- - Associated sealing washer: 0529100M
Confirmed Compatible Models
- - Grohe 34430000 Grohtherm 1000 Cosmopolitan Thermostatic Multi Purpose Mixer 3/4 Inch
- - Grohe 34216000 Grohtherm Automatic 2000 Thermostatic Shower Mixer
- - Grohe 34537000 Wave Cosmopolitan Thermostatic Shower Mixer 3/4 Inch
- - Grohe 34437000 Grohtherm 1000 Cosmopolitan Thermostatic Shower Mixer 3/4 Inch
- - Grohe 34221 Grohmaster Grohtherm 2000 EV Shower
- - Grohe 34216 Grohtherm 2000 Thermostatic Shower Mixer 3/4 Inch
- - Grohe 34357000 Automatic 2000 Thermostatic Bath Mixer
- - Grohe 29032000 Concealed Valve
- - Grohe 29800 Concealed Bodies Stop Valve 1/2 Inch
- - Grohe 29800000 Concealed Valve 1/2 Inch
- - Grohe 19444000 Concealed Stop-Valve Trim
- - Grohe 26330001 Costa Shower Mixer
- - Grohe 26330000 Costa Shower Mixer 1974-2008
- - Grohe 26009001 Costa L Shower Mixer 1/2 Inch
- - Grohe 26308001 Costa L Shower Mixer 1/2 Inch
- - Grohe 26345001 Costa L Shower Mixer 3/8 Inch
- - Grohe 26001000 Costa Trend Shower Mixer 1/2 Inch
- - Grohe 25017000 Costa Bath Shower Mixer 1974-2008
- - Grohe 25450001 Costa L Bath Shower Mixer 1/2 Inch
- - Grohe 25452001 Costa L Bath Shower Mixer 1/2 Inch
- - Grohe 25460001 Costa L Bath Shower Mixer
- - Grohe 2546010A Costa L Bath Shower Mixer
- - Grohe 25453001 Costa L Bath Mixer
- - Grohe 25405000 Arabesk Bath Mixer Shower
- - Grohe 25407000 Arabesk Bath Mixer 1/2 Inch
- - Grohe 30098001 Costa L Kitchen Bibtap
- - Grohe 30064001 Costa L Bibtap 1/2 Inch
- - Grohe 30484001 Costa L Bibtap 1/2 Inch
- - Grohe 31831001 Costa L Sink Mixer 1/2 Inch
- - Grohe 31831001 GEN1 Costa L Sink Mixer 1/2 Inch 2007-2016
- - Grohe 31930001 Costa L Sink Mixer 1/2 Inch
- - Grohe 31187001 Costa L Wall Sink Mixer 1/2 Inch
- - Grohe 31072000 Costa Trend Single-Hole Sink Mixer 1/2 Inch
- - Grohe 31703000 Arabesk Two-Handle Sink Mixer Tap
- - Grohe 20186001 Costa L Pillar Tap 1/2 Inch
- - Grohe 20393001 Costa L Pillar Tap
- - Grohe 20404001 Costa L Basin Tap
- - Grohe 20142000 Costa Trend Pillar Tap 1/2 Inch
- - Grohe 20454001 Atlanta Basin Bathroom Tap
- - Grohe 21374001 Costa L One-Hole Basin Mixer 1/2 Inch
- - Grohe 21390001 Costa L Basin Mixer Tap
- - Grohe 21100001 Costa L One-Hole Basin Mixer 1/2 Inch
- - Grohe 21102000 Costa Trend One-Hole Basin Mixer 1/2 Inch L-Size
- - Grohe 21155000 Arabesk Basin Mixer Tap
- - Grohe 21156000 Arabesk One Hole Basin Mixer Tap
- - Grohe 18904001 Costa L Pillar Taps for Bidet
- - Grohe 19854001 Costa L Concealed Valve Exposed Part
- - Grohe 31829001 Costa L Single-Hole Sink Mixer 1/2 Inch
- - Grohe 31186001 Costa L Wall Sink Mixer 1/2 Inch
- - Grohe 22917000 Angle Valve 1/2 Inch
Before You Order
- - Confirm the exact Grohe tap, mixer or valve product number before ordering
- - Do not identify 07146000 from the 1/2 inch size alone because other Grohe headparts and cartridges use the same nominal connection size
- - Compare the spindle and headpart arrangement with the existing component before removal and installation
Related Spares You May Need
- - TACSIL 3g WRAS Approved Silicone Grease for Tap & Shower Cartridges
