Grohe Costa L Sink Mixer (1/2 Inch) - 2007 to 2016 - Spare Parts 31831001 GEN1
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 31831001 Costa L Sink Mixer 1/2 Inch from 2007 to 2016

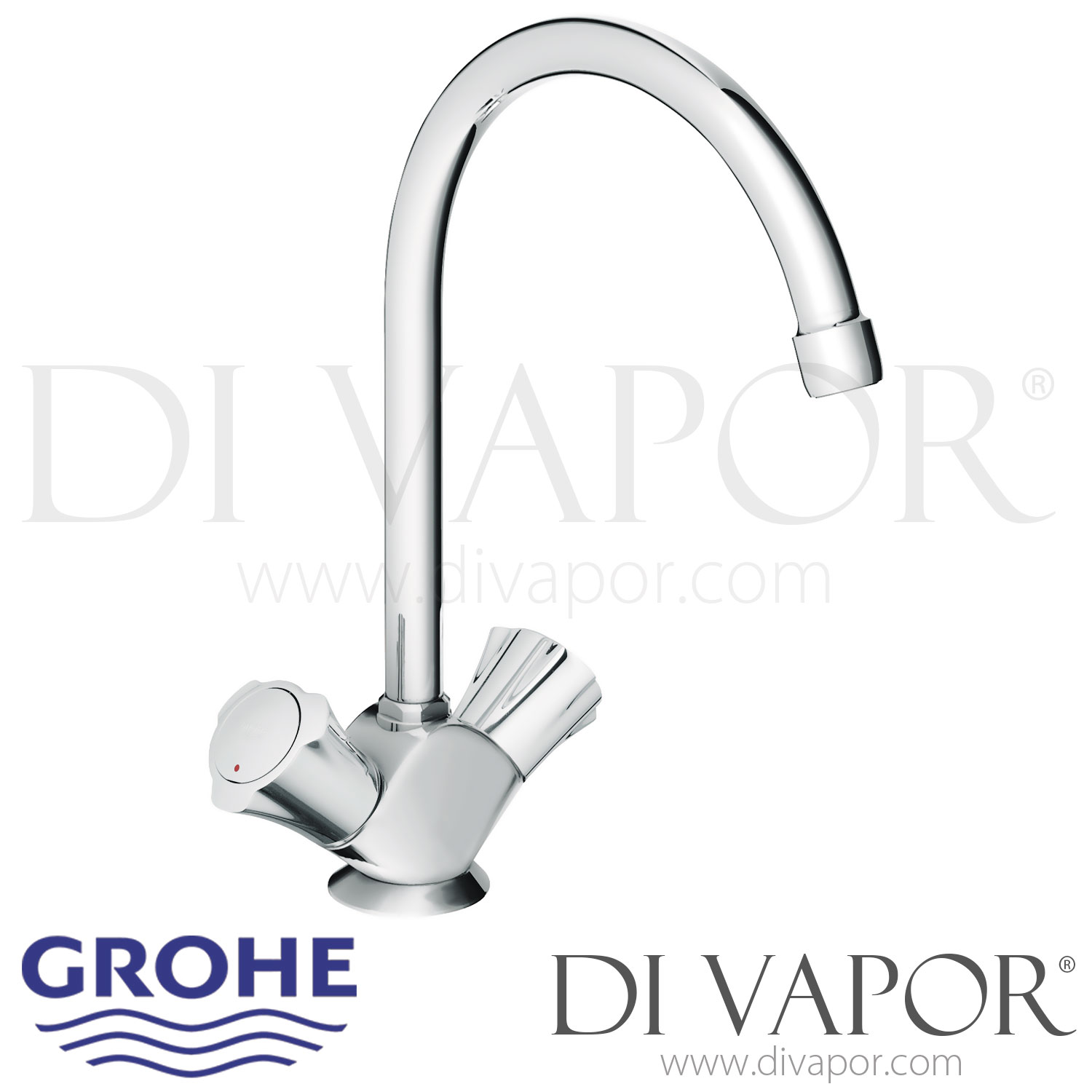

The Grohe Costa L 31831001 GEN1 is the 2007 to 2016 spare parts record for the Costa L two-handle sink mixer 1/2 inch, used as a deck-mounted kitchen tap with separate hot and cold controls and a high swivel spout.

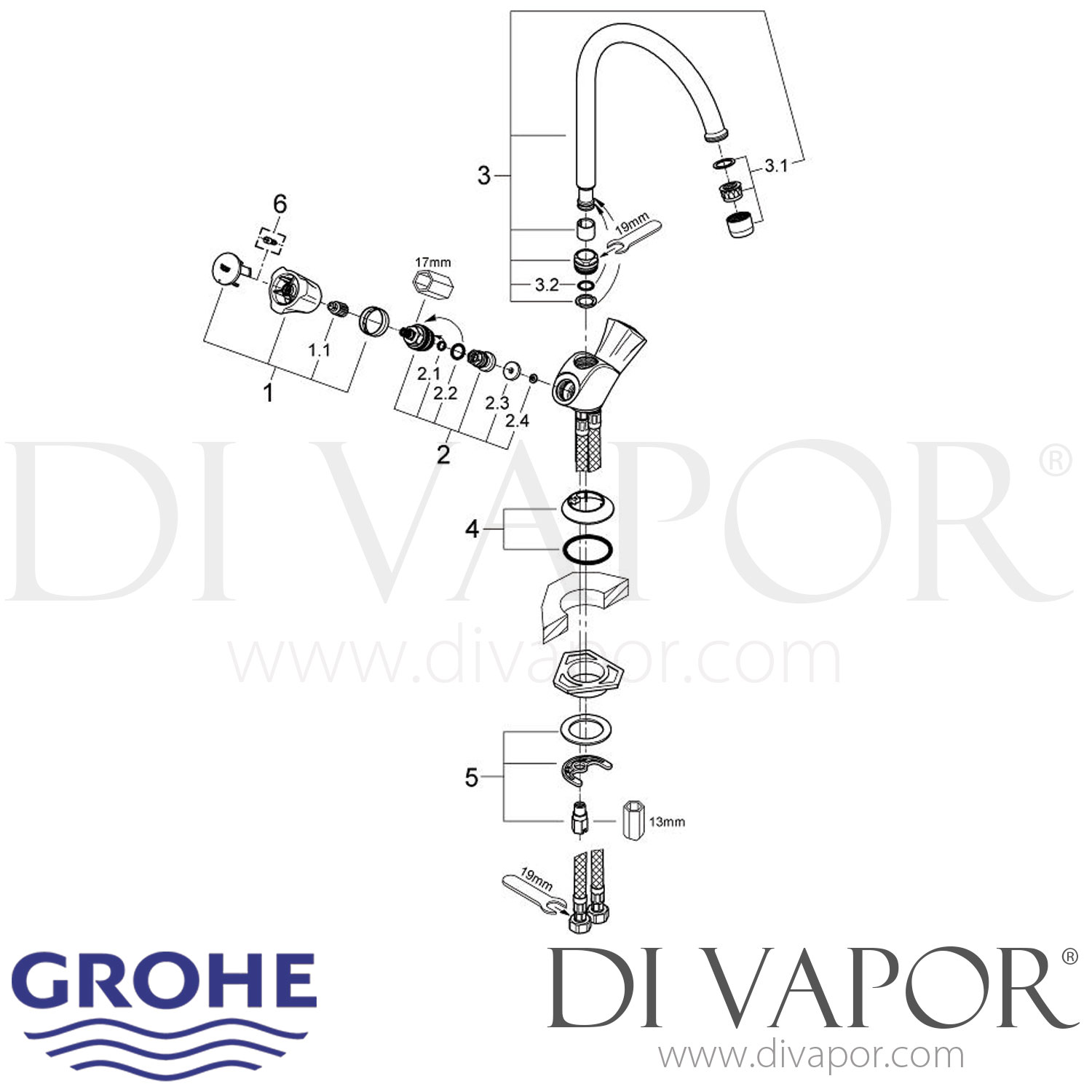

This page brings together the Grohe spare parts used to service the earlier generation of the 31831001 Costa L sink mixer. Available service components include the 1/2 inch headworks flow cartridge, O-rings, outlet mousseur and tap mounting bracket.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Costa L |
| Category | Kitchen tap |
| Product code | 31831001 |
| Generation reference | GEN1 |
| Generation period | 2007 to 2016 |
| Mixer type | Two-handle sink mixer, 1/2 inch |

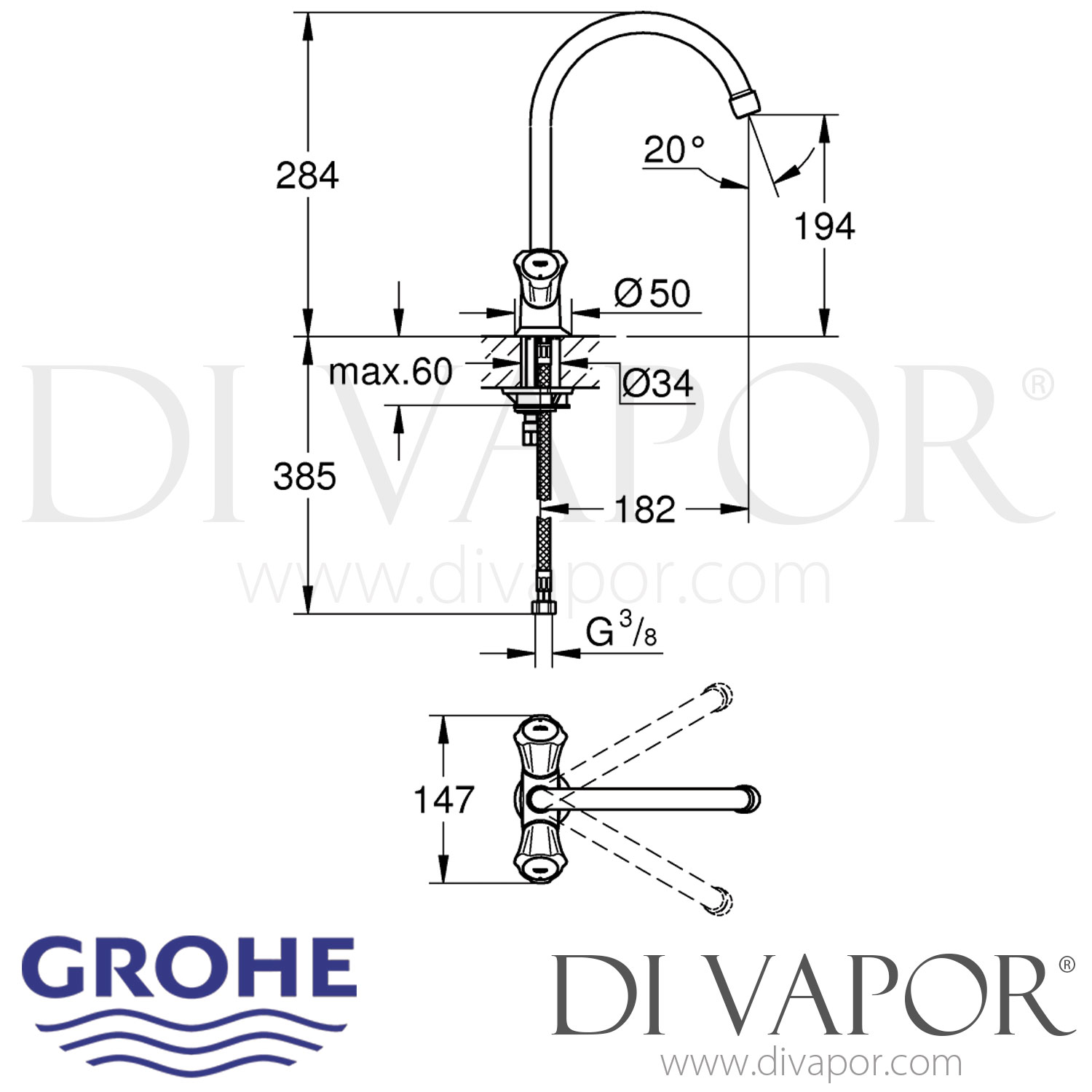

| Maximum clamping length | 60 mm |
| Minimum flow pressure | 0.5 bar |
| Recommended flow pressure | 1 to 5 bar |
| Maximum operating pressure | 10 bar |
| Maximum hot water inlet temperature | 80 C |
| Approximate flow rate at 3 bar | 10 l/min |
| EAN | 4005176843280 |
Other Available Generations
Before You Order
Check that the tap is product code 31831001 from the 2007 to 2016 generation before ordering parts, as a separate spare parts record is available for the later generation from 2016 onward.

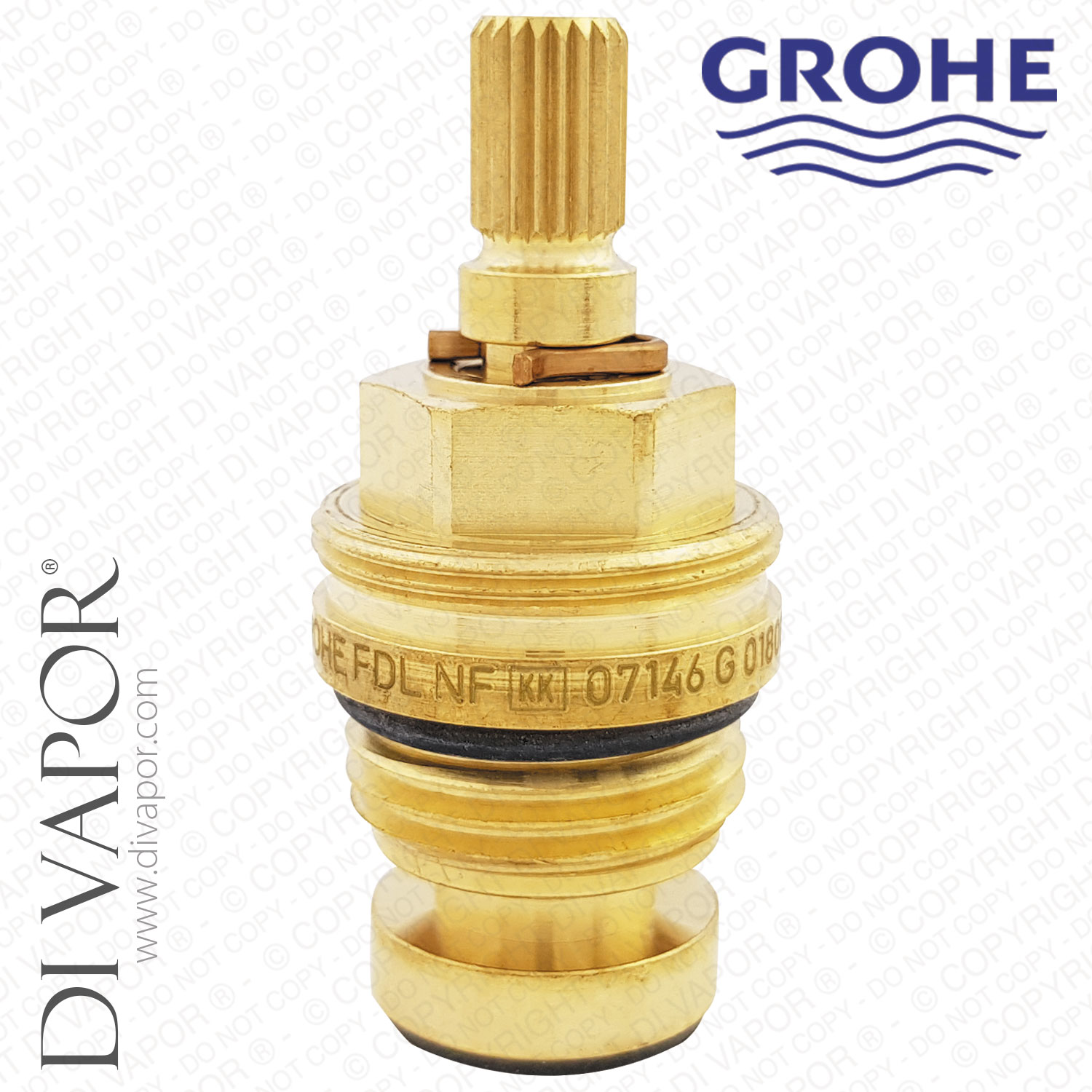

Grohe 07146000 1/2 Inch Headpart Flow Cartridge On/OffThe Grohe 07146000 is a 1/2 inch short-spindle screw-down headpart used to control on/off water flow in specified Grohe taps, shower mixers, thermostatic mixers and concealed valves. It is also described as a headworks flow ca...
GROHE 0392400M Pack of 10 O-Rings 18.2mm x 1.7mmGROHE 0392400M is a service pack of 10 O-rings, each measuring 18.2 mm outside diameter with a 1.7 mm cross-section. The seals are used in identified GROHE tap and shower assemblies, including 1/2-inch ceramic headparts and selected...

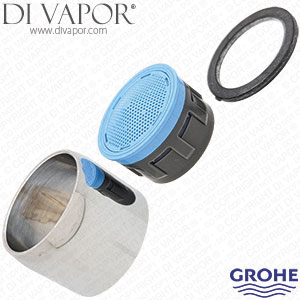

The fitting size for Grohe 13928000 Mousseur Aerator / Grohe Flow restrictor 13928000 (Grohe part number 13928000) is: Female thread M22 x 1. That means it screws into a M22 x 1 male threaded spout/tap outlet standard faucet aerator size on many Grohe basin and sink mixers. Gro...
GROHE 46249000 Shank Mounting Kit for Basin Bidet Bath and Kitchen MixersGROHE 46249000 is a shank mounting kit used to secure selected deck-mounted GROHE taps and mixers to the basin, bidet, bath or worktop mounting surface. GROHE spare-parts documentation also describes 4624900...
